Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Restraints and Safety Systems >> Pedestrian Protection System >> Service and Repair >> AR91.60-P-0900EW Remove/Install Engine Hood Lifter

AR91.60-P-0900EW Remove/Install Engine Hood Lifter



AR91.60-P-0900EW Remove/Install Engine Hood Lifter
- with CODE (U60) Pedestrian protection

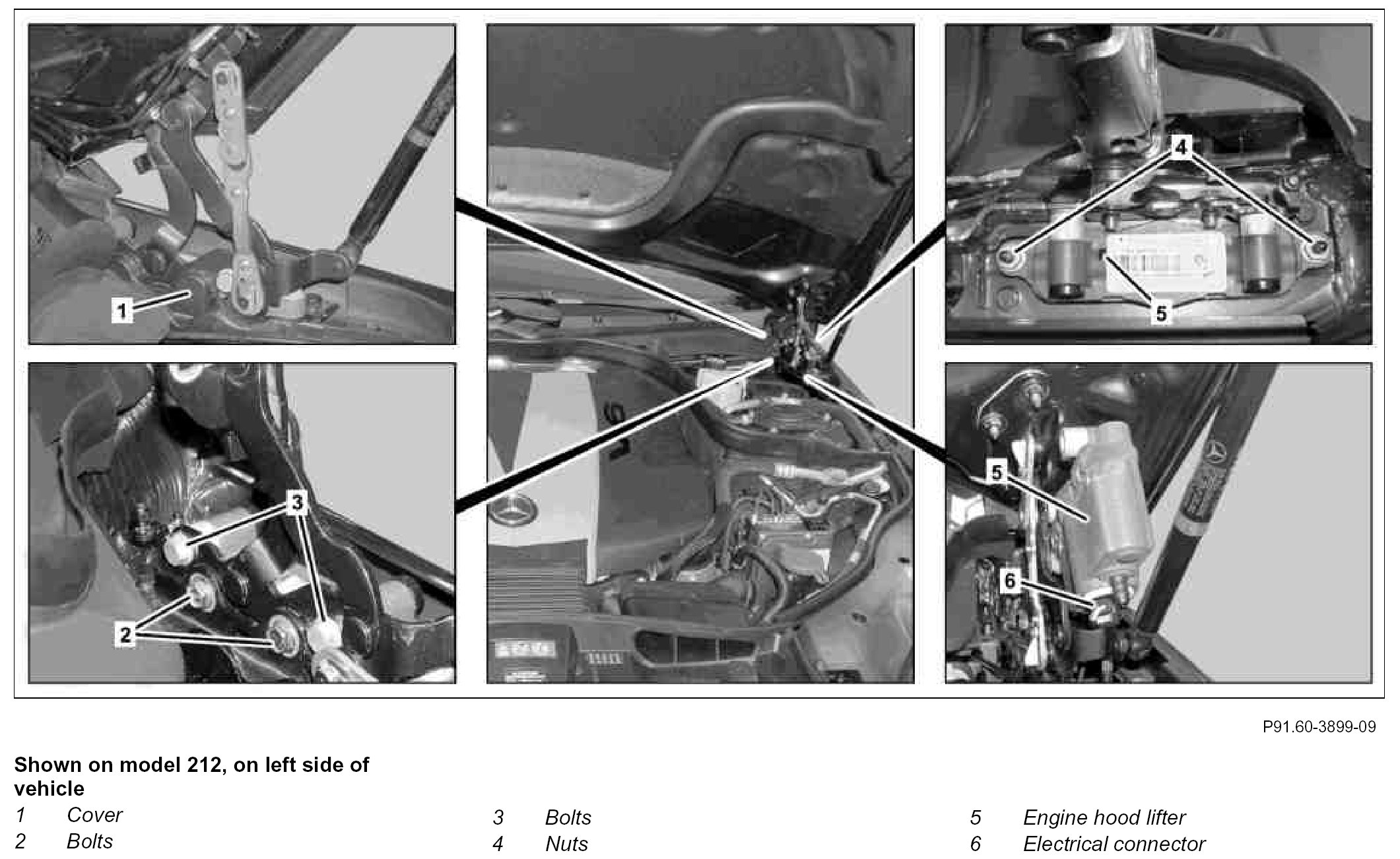

Component Identification:

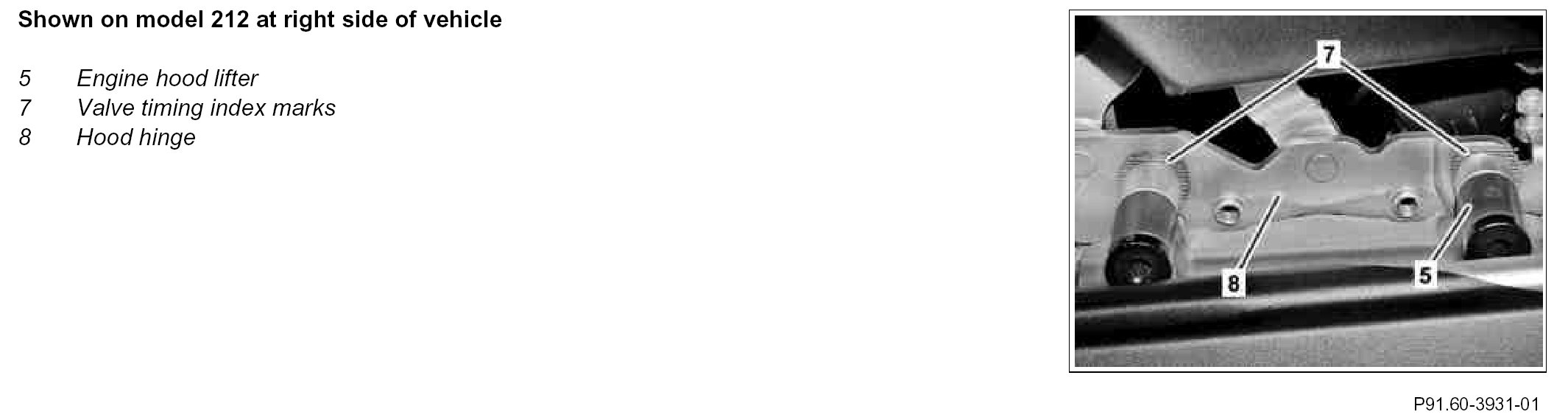

Component Identification:

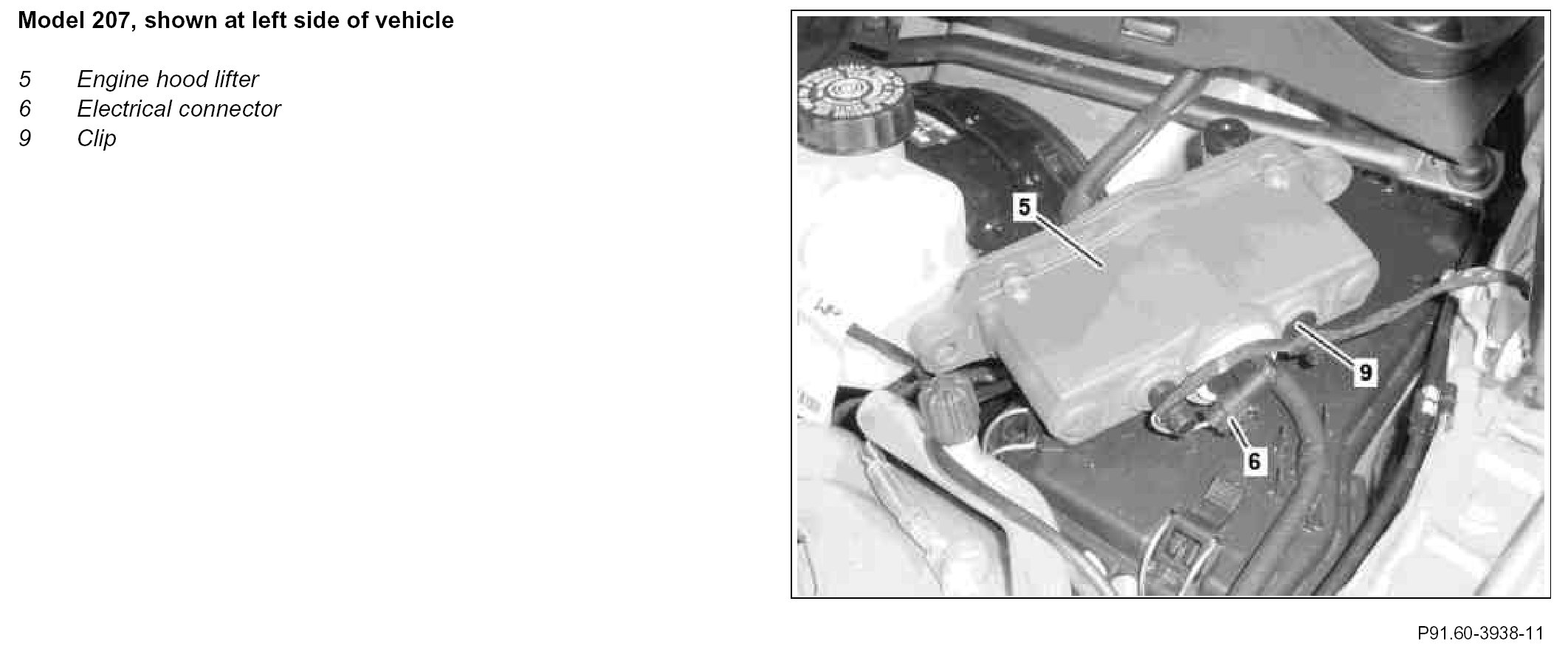

Component Identification:

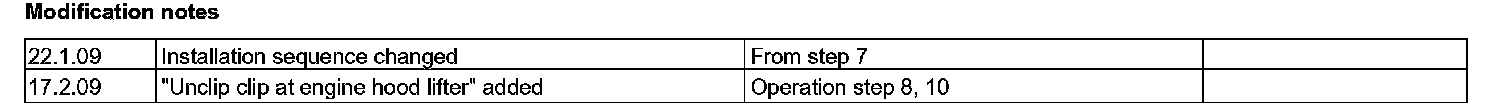

Modification Notes:

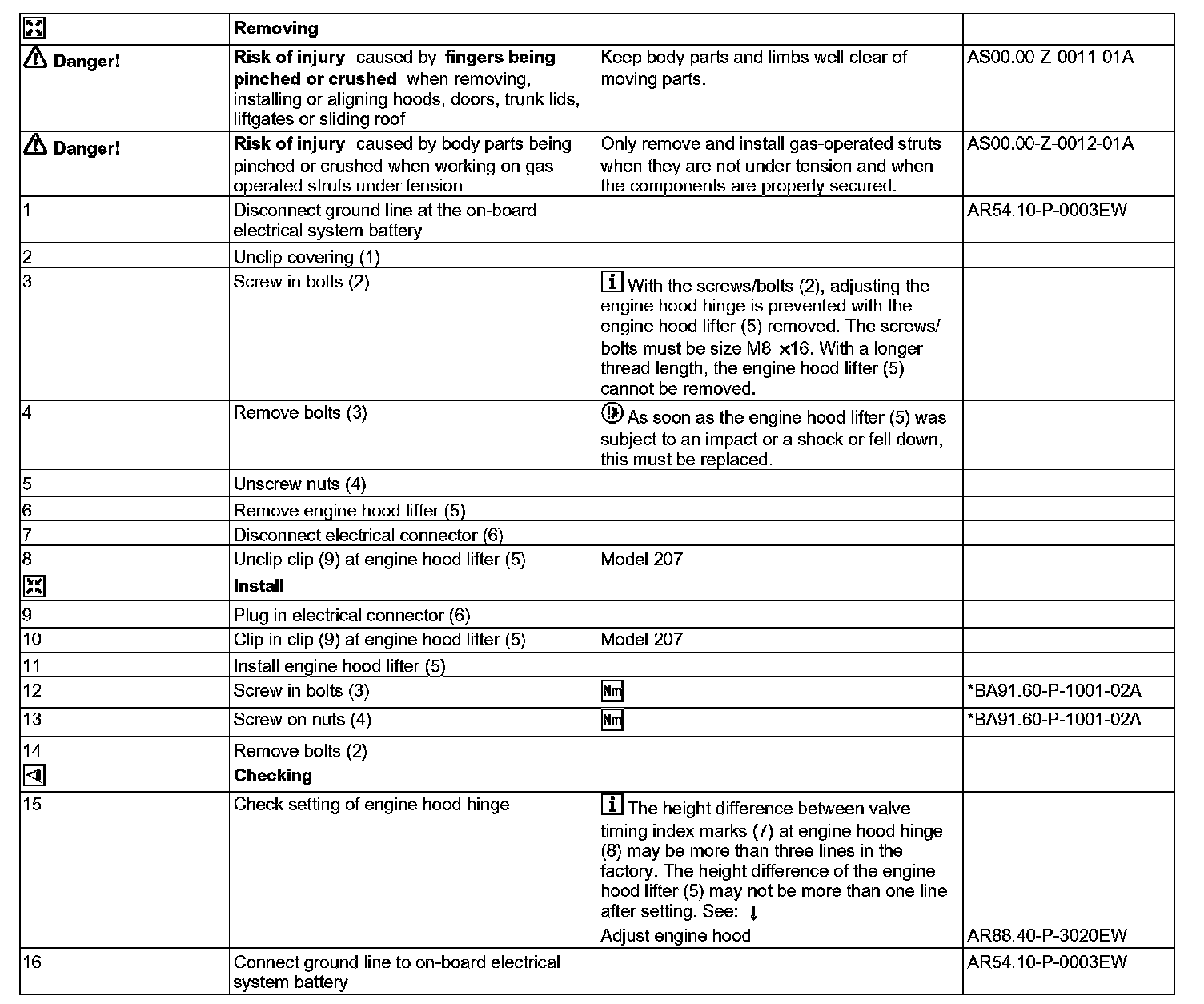

Steps 1 - 16:

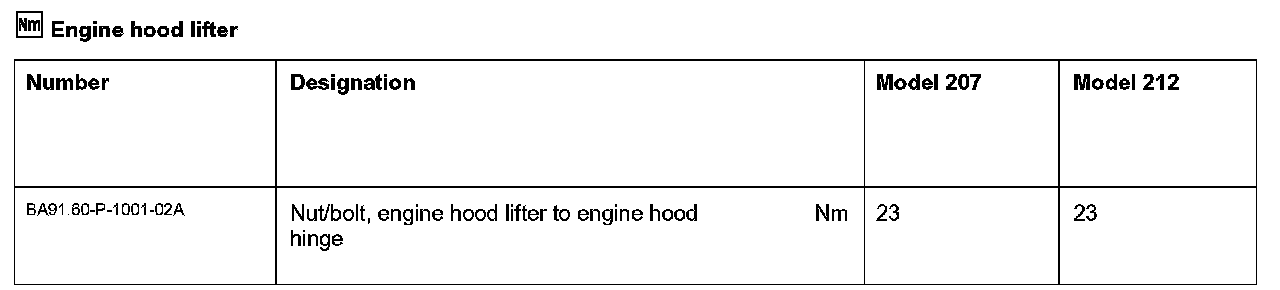

Engine Hood Lifter:
