Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Restraints and Safety Systems >> Head Restraint System >> Head Rest >> Service and Repair >> Removal and Replacement >> AR91.16-P-0050CW Remove/Install Head Restraint Guide on Front Seat

AR91.16-P-0050CW Remove/Install Head Restraint Guide on Front Seat



AR91.16-P-0050CW Remove/Install Head Restraint Guide On Front Seat

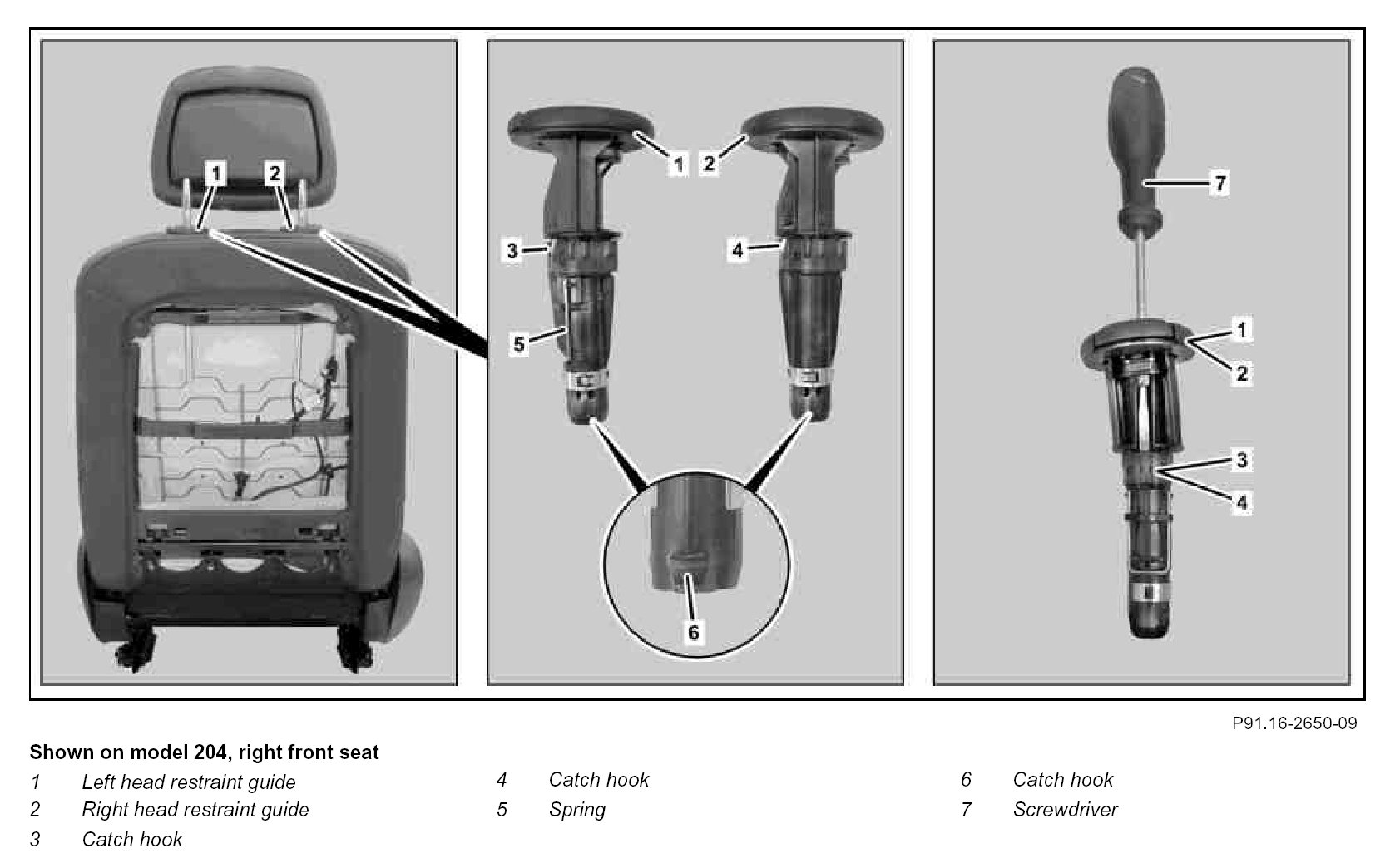

Component Identification:




Modification Notes:

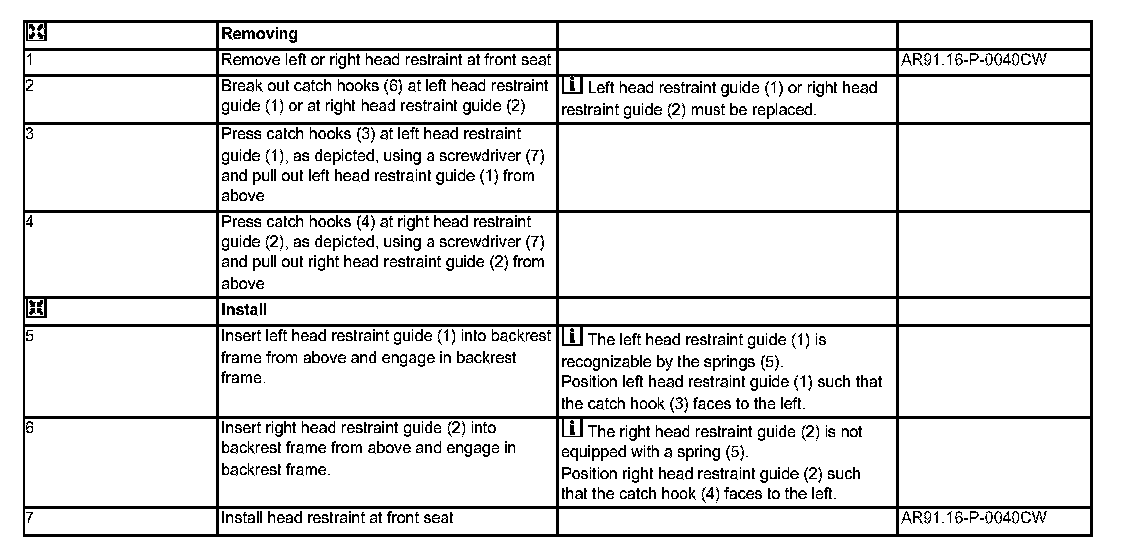

Steps 1 - 7:
