PE91.60-P-2105DAB Airbag Control Unit



PE91.60-P-2105DAB Airbag Control Unit
MODEL 212

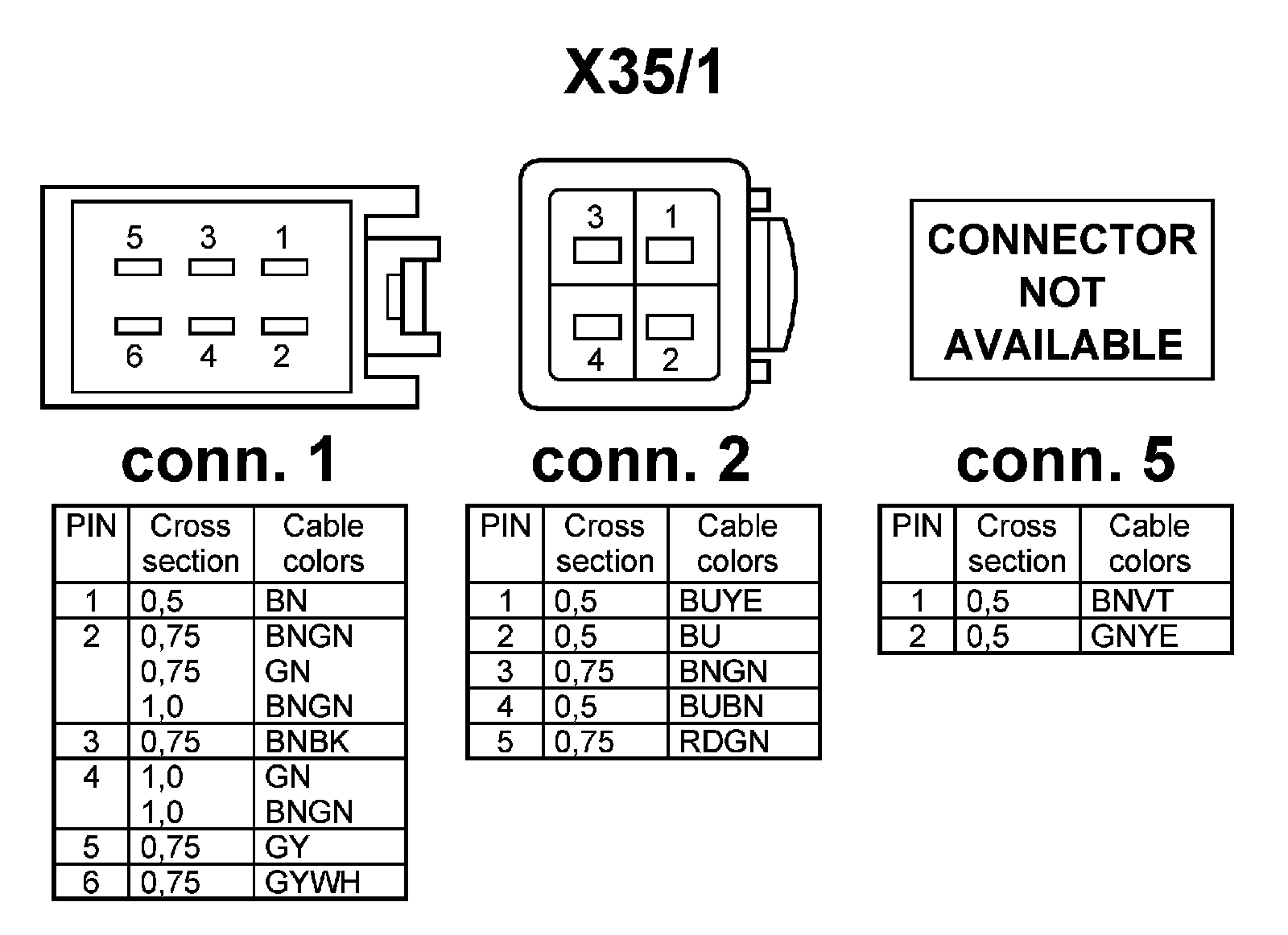

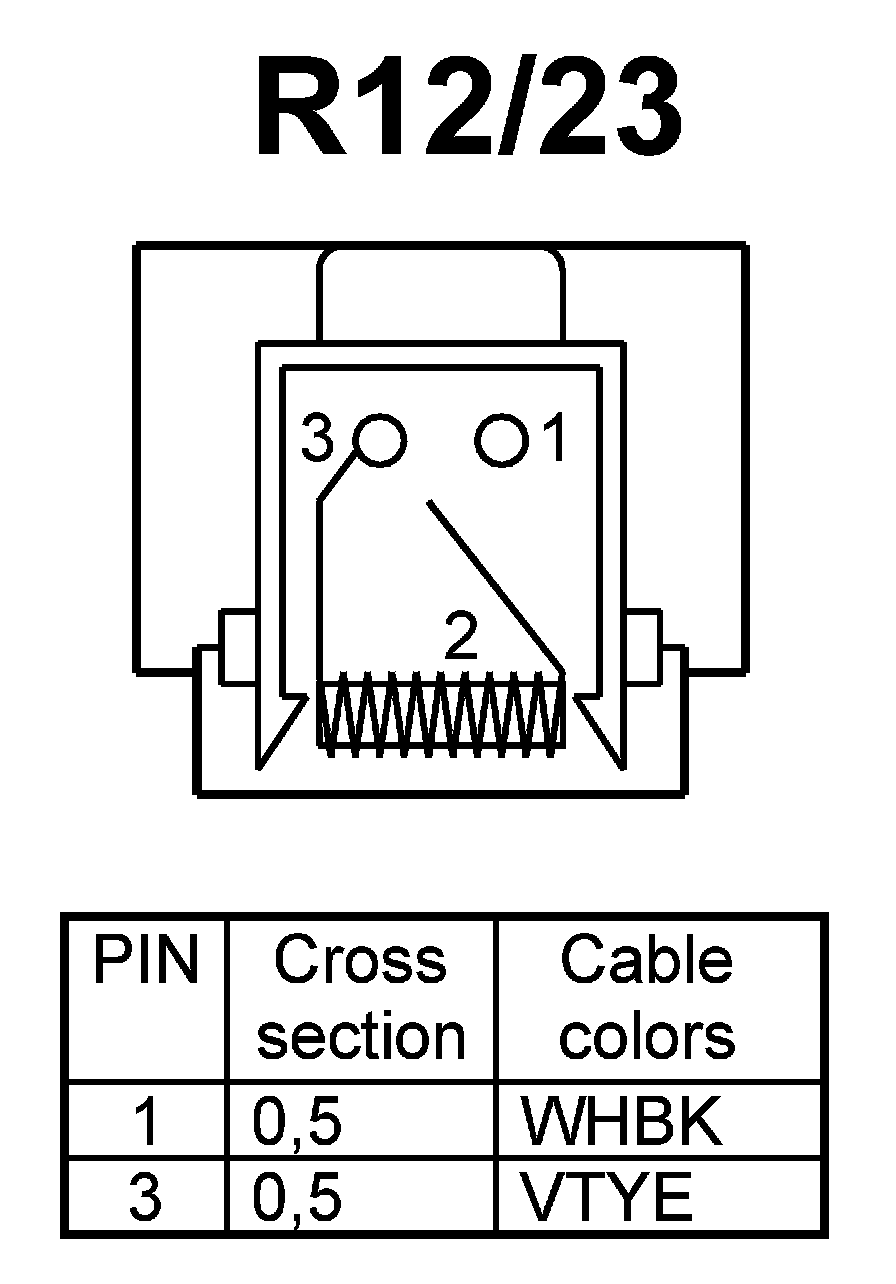

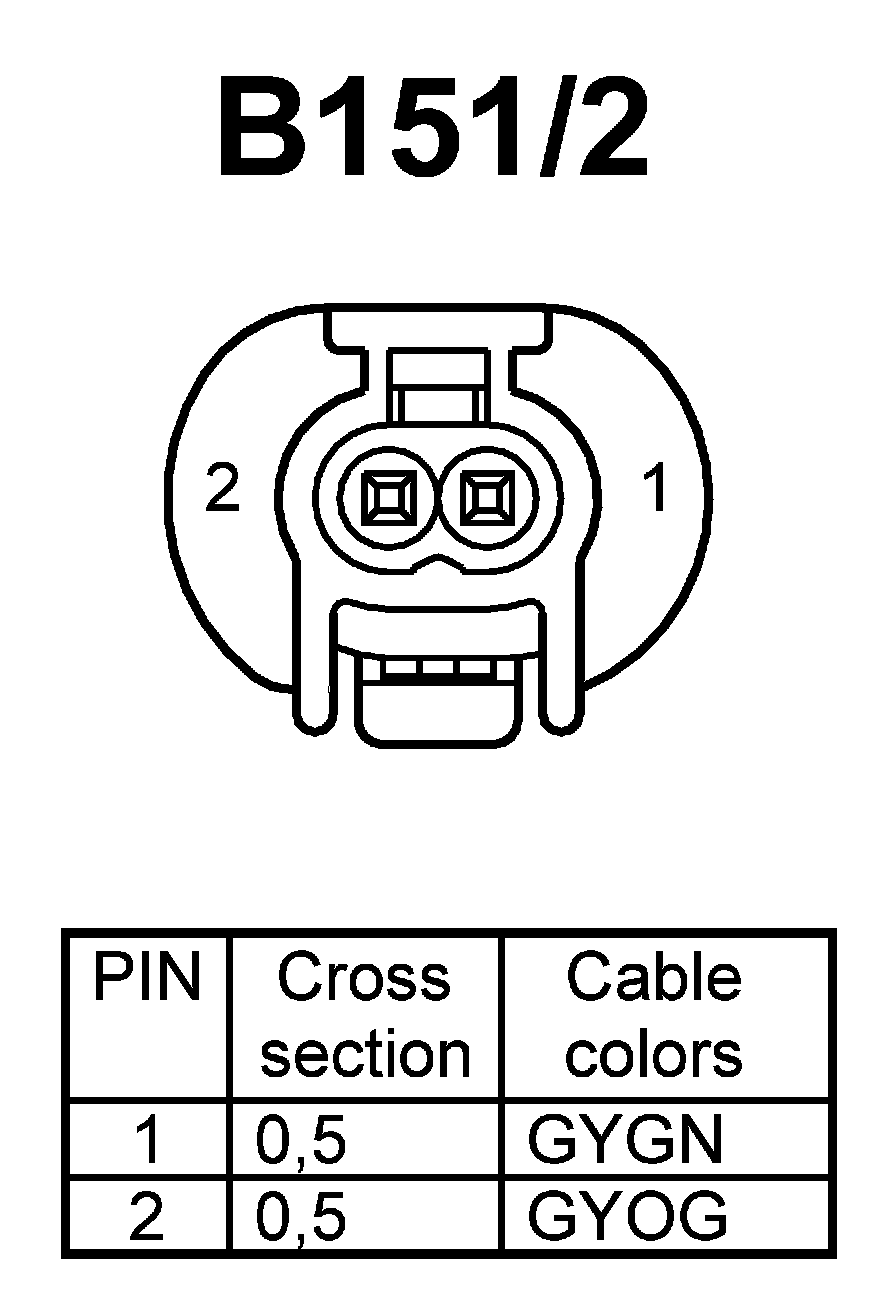

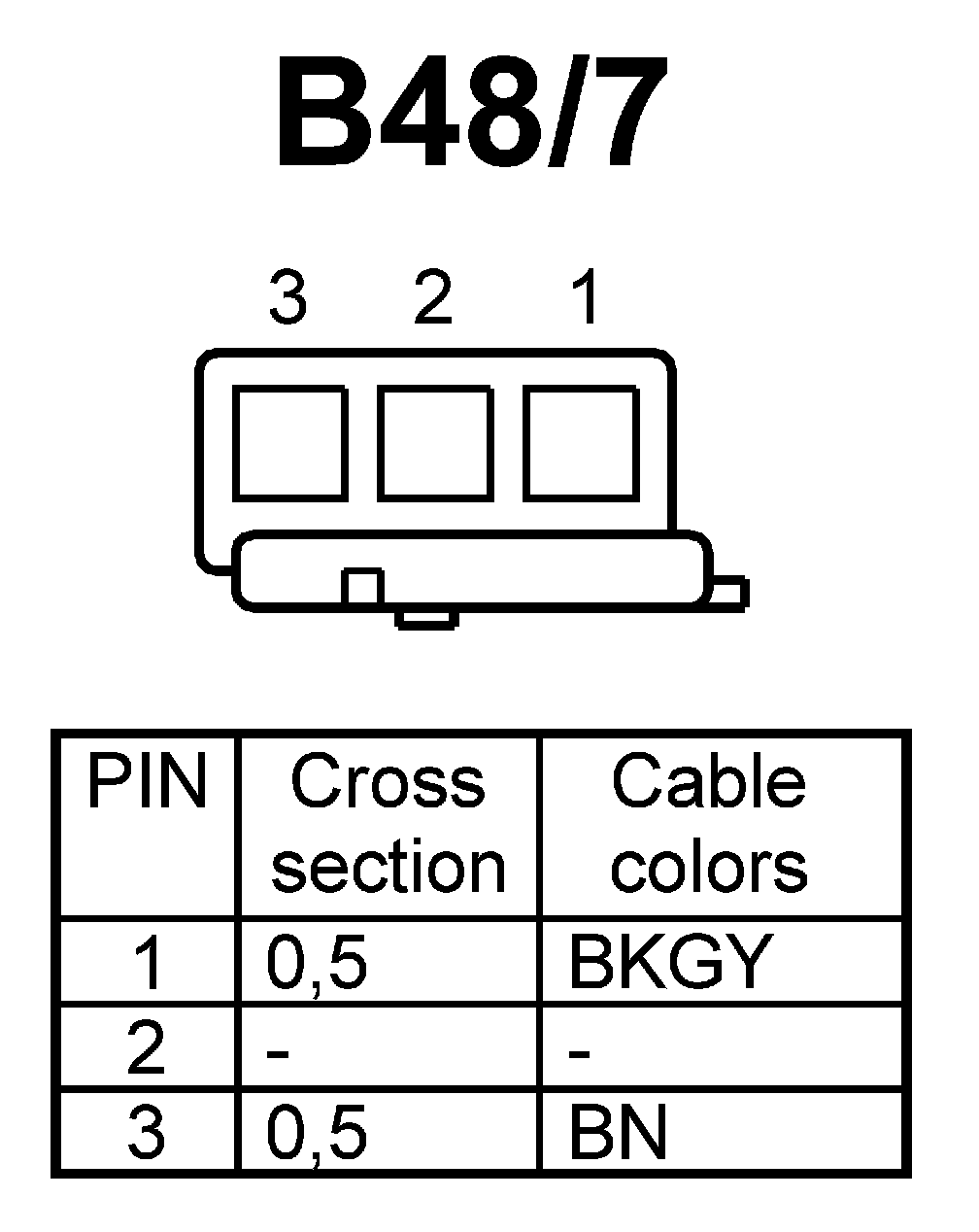

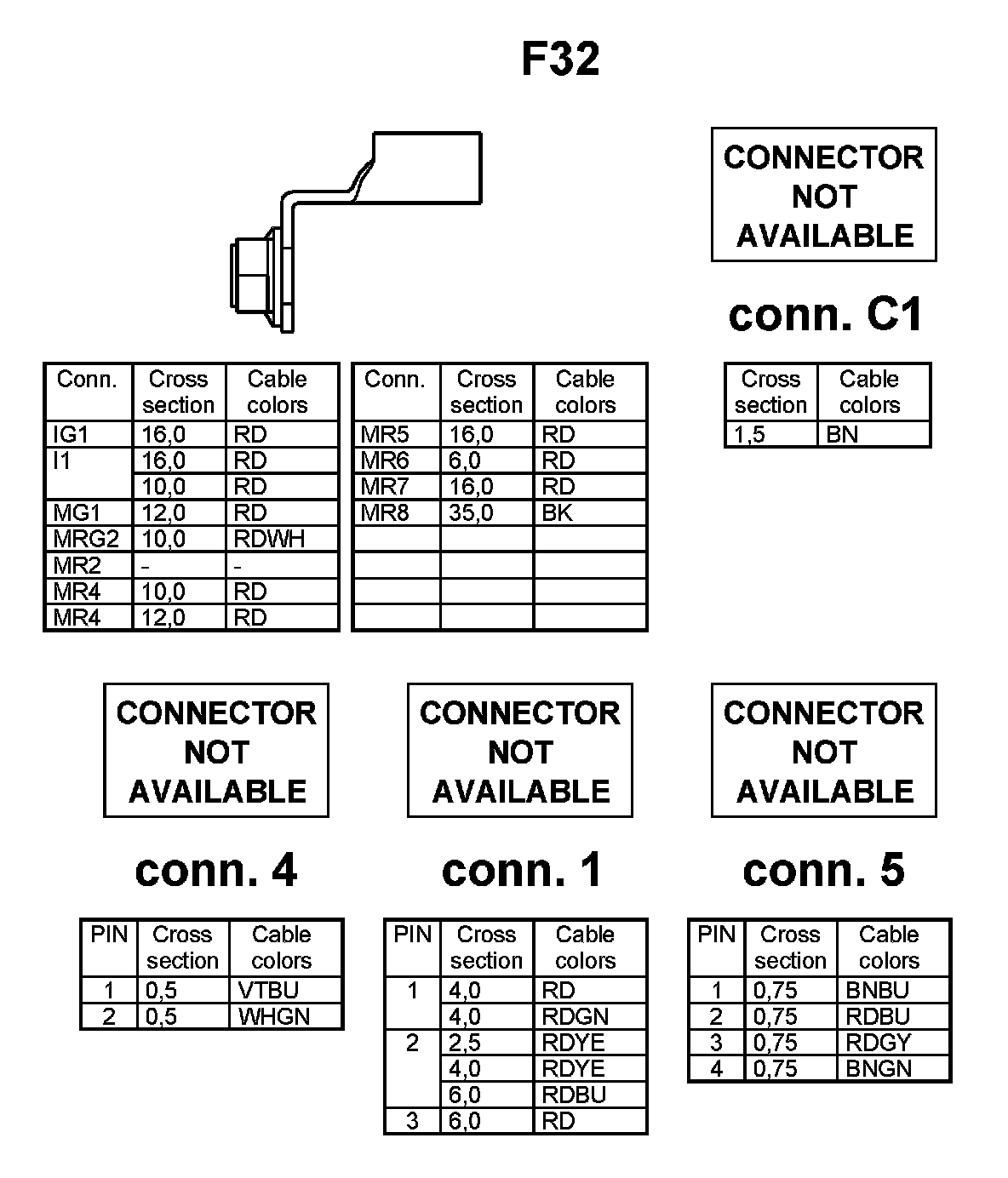

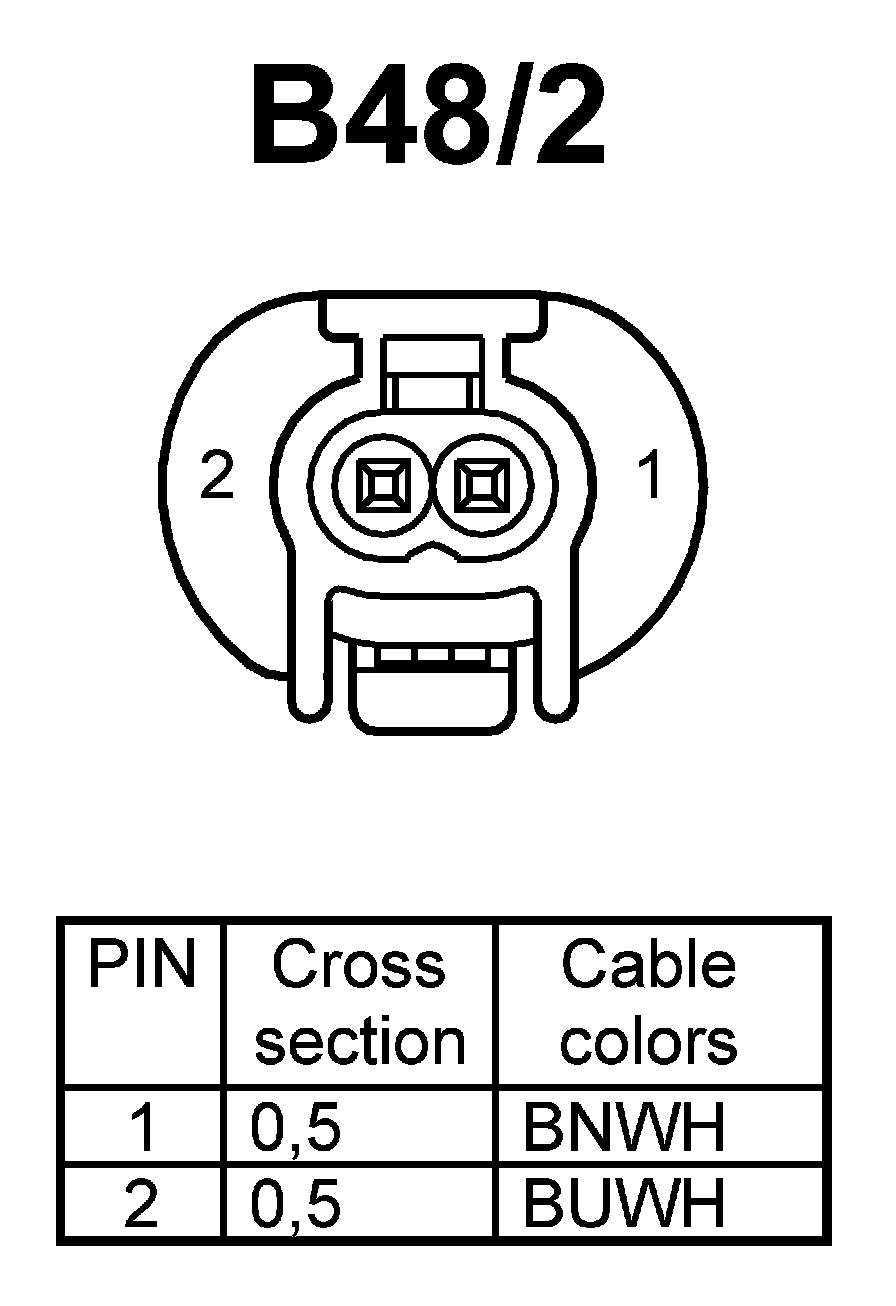

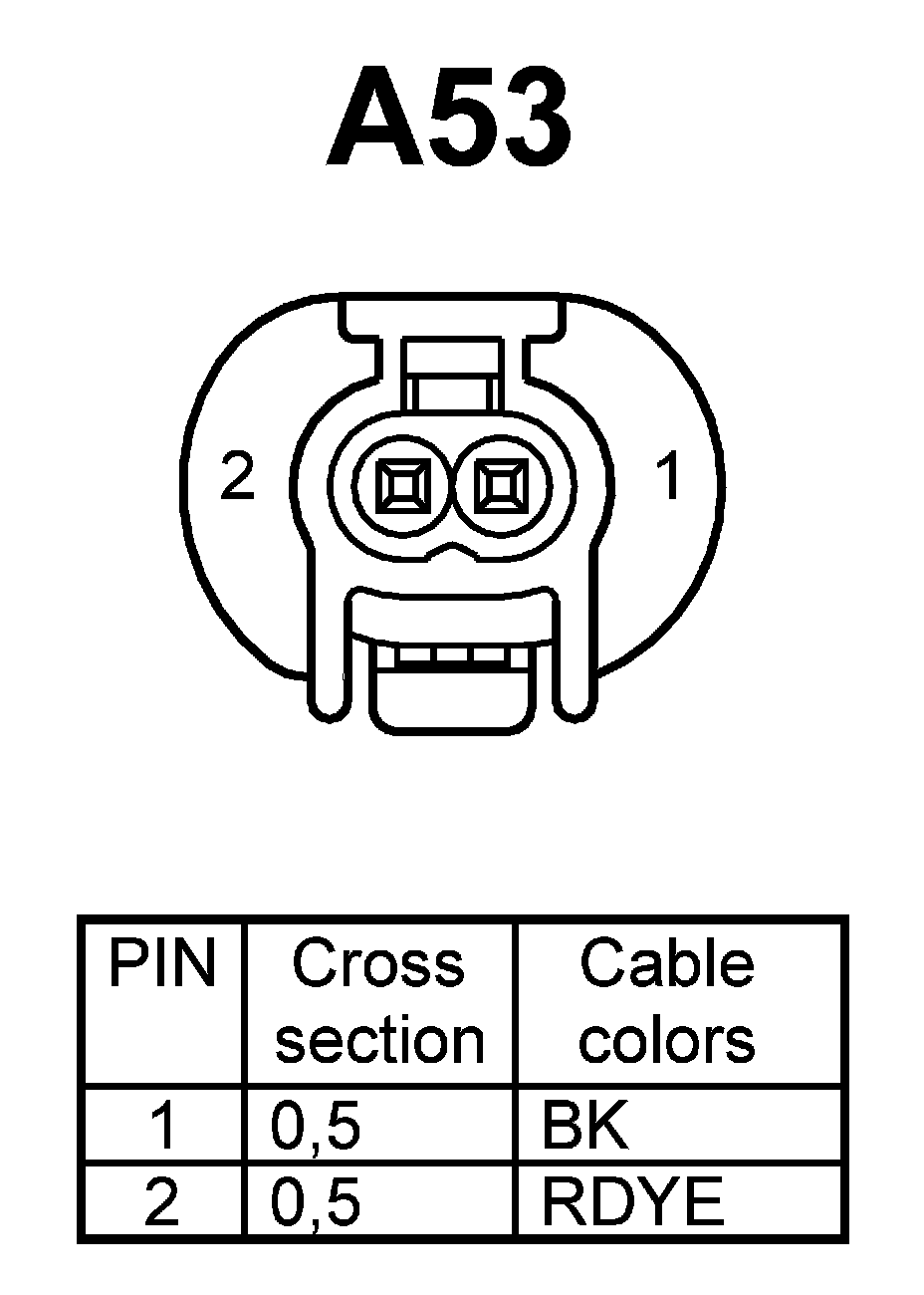

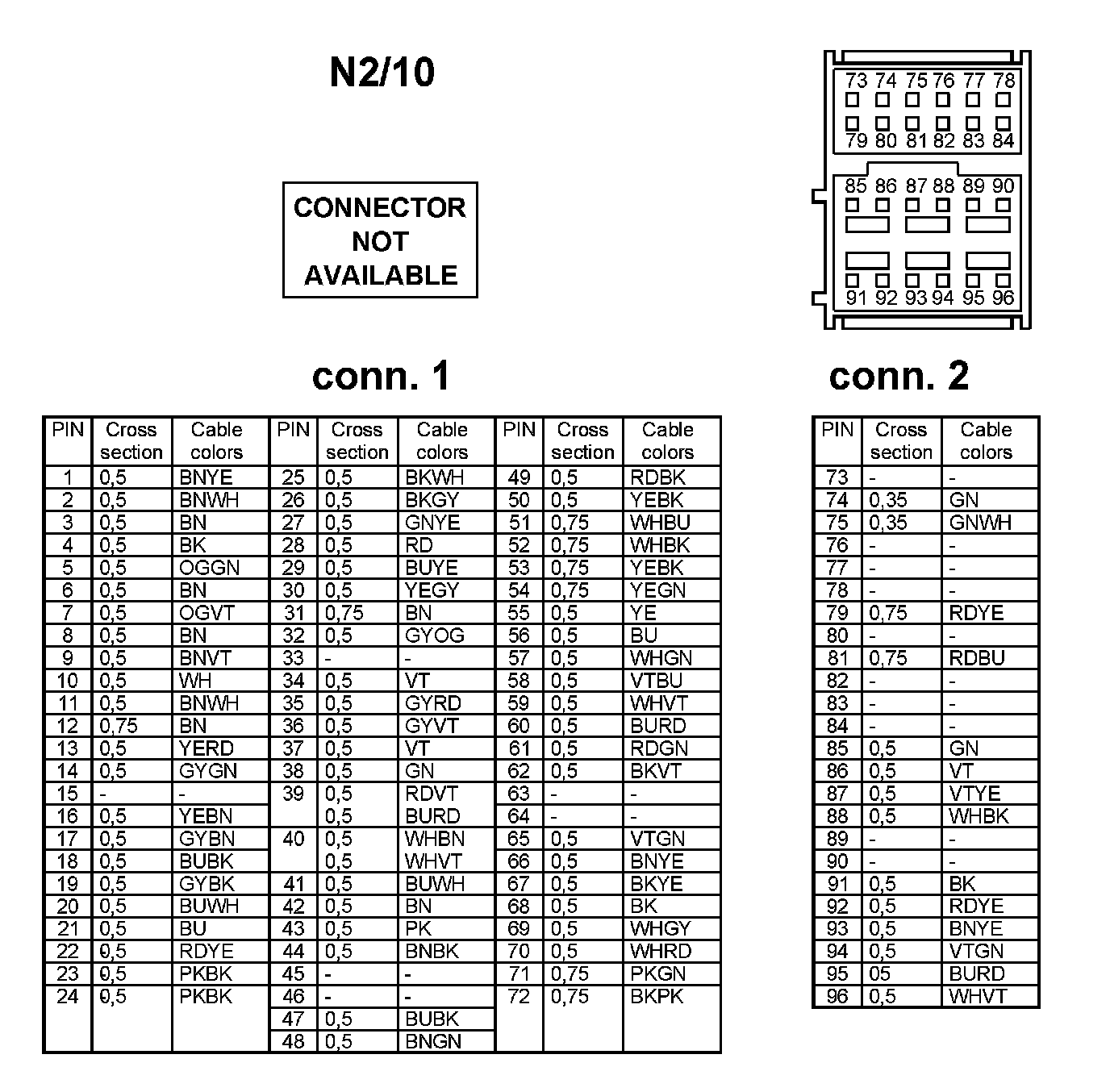

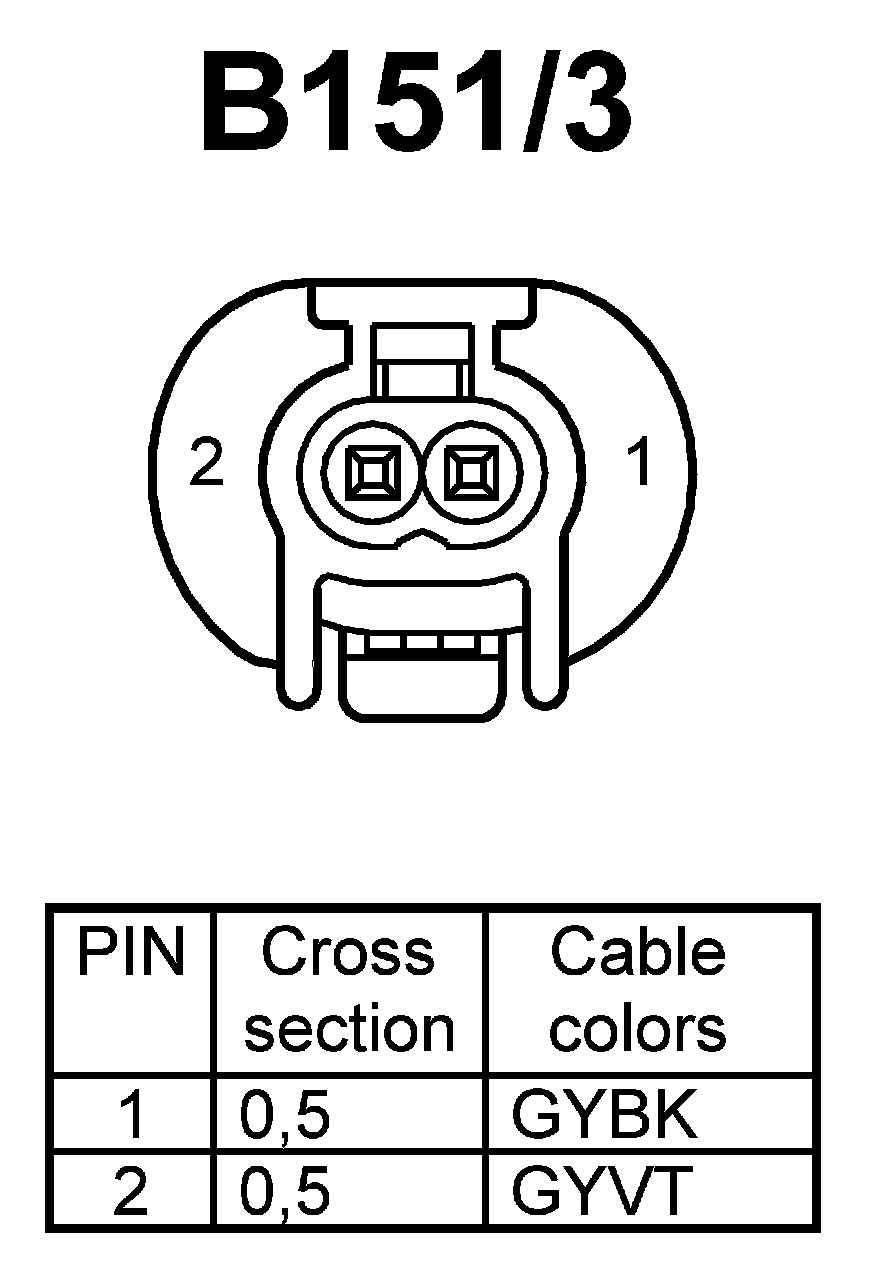

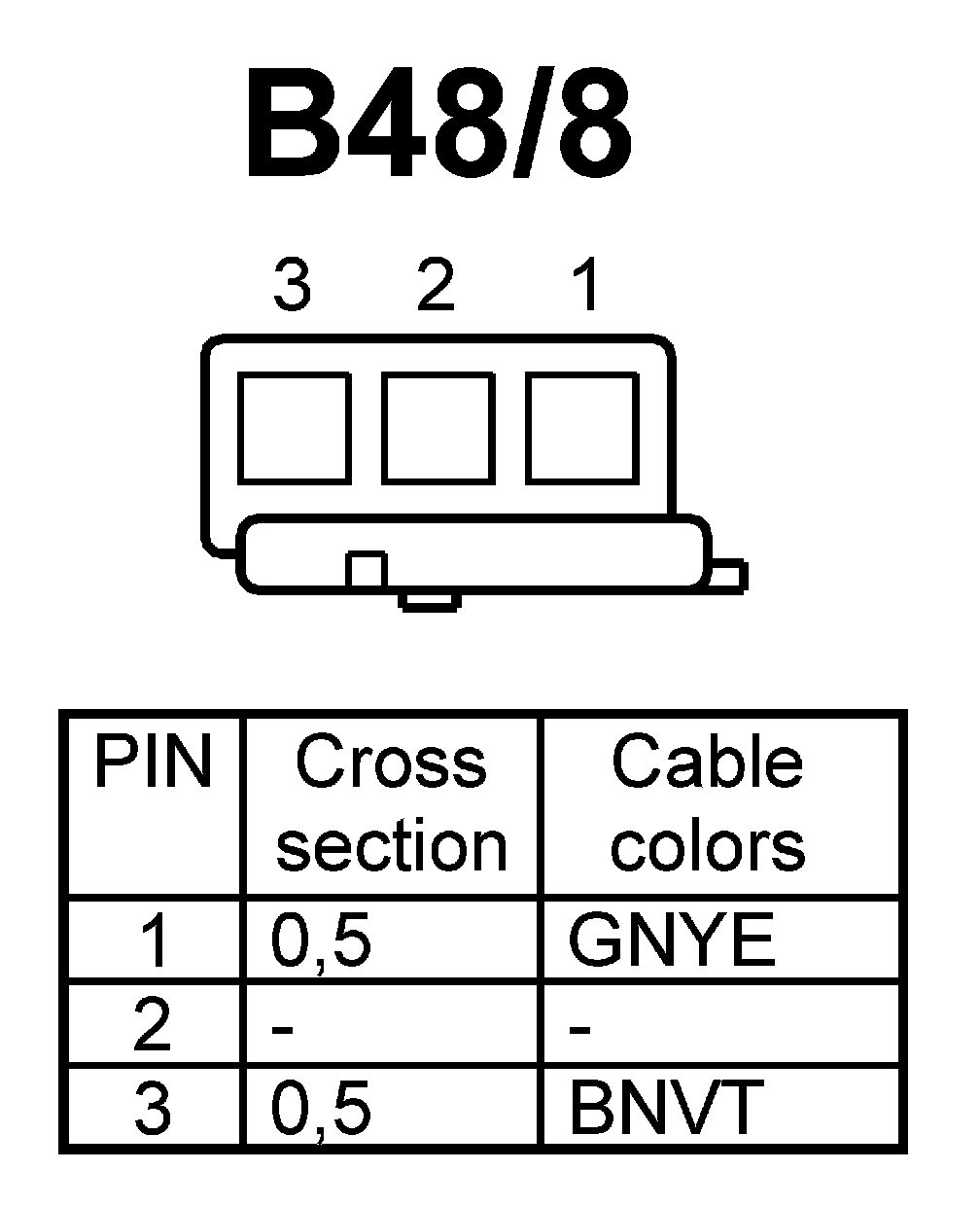

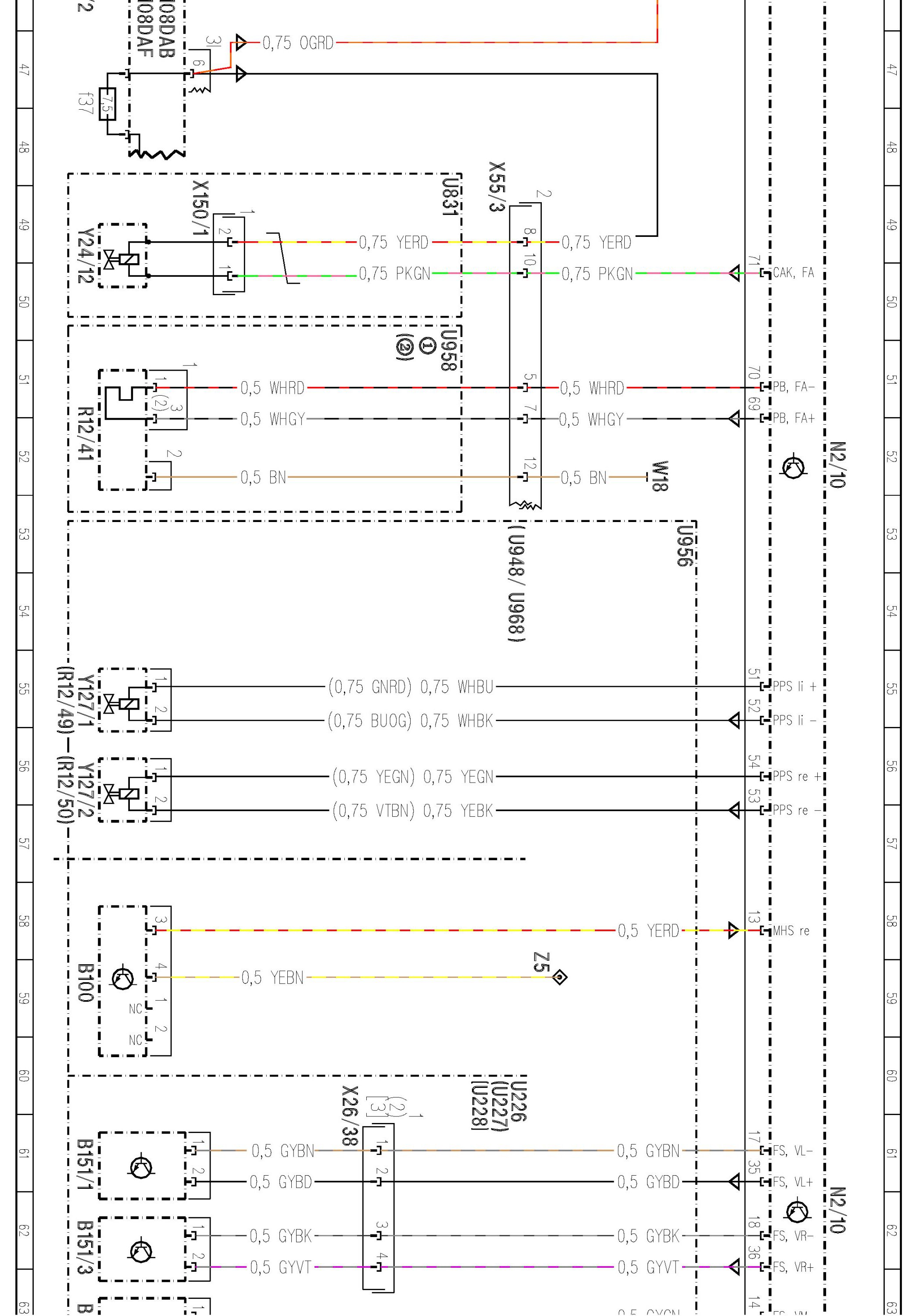

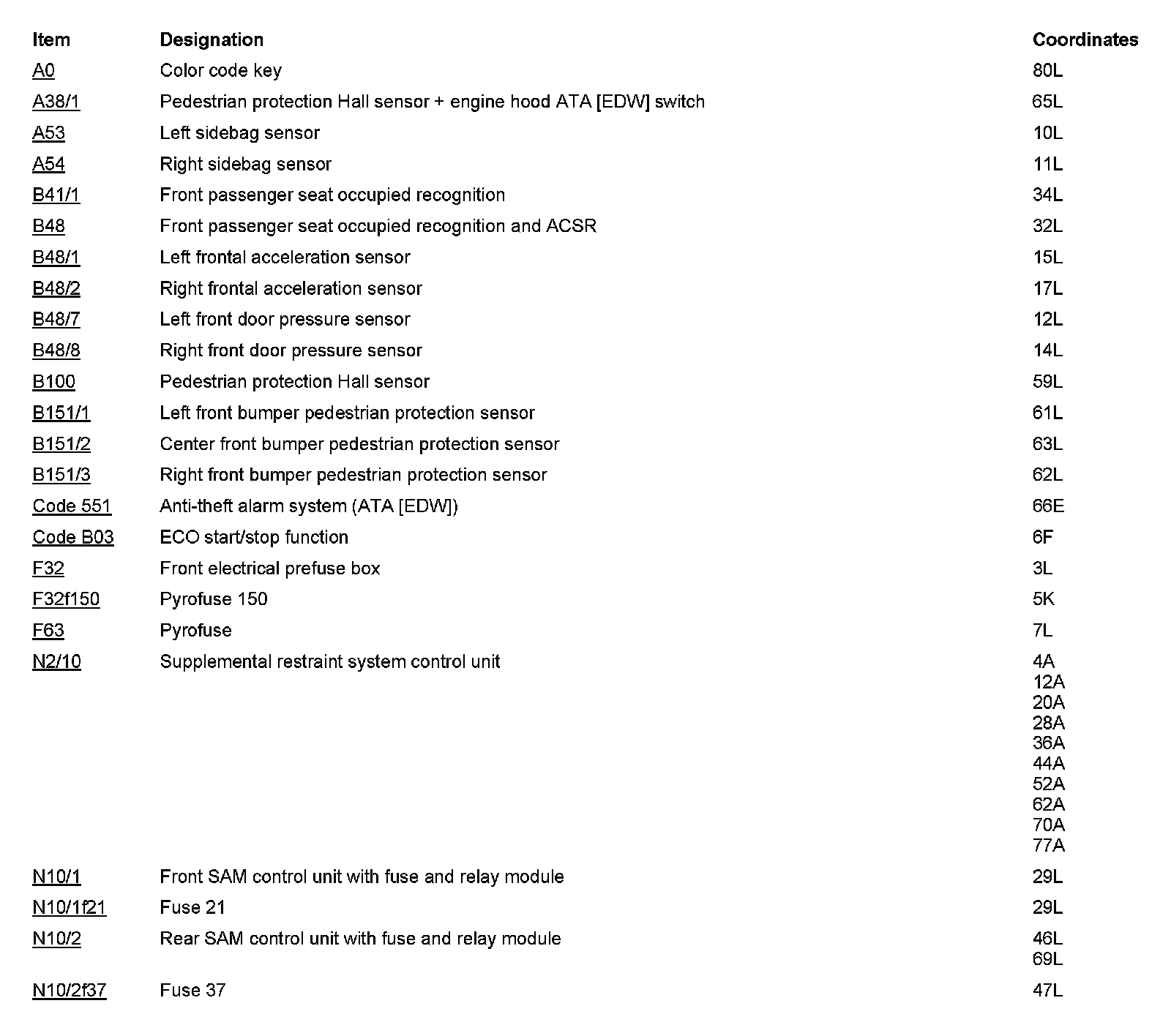

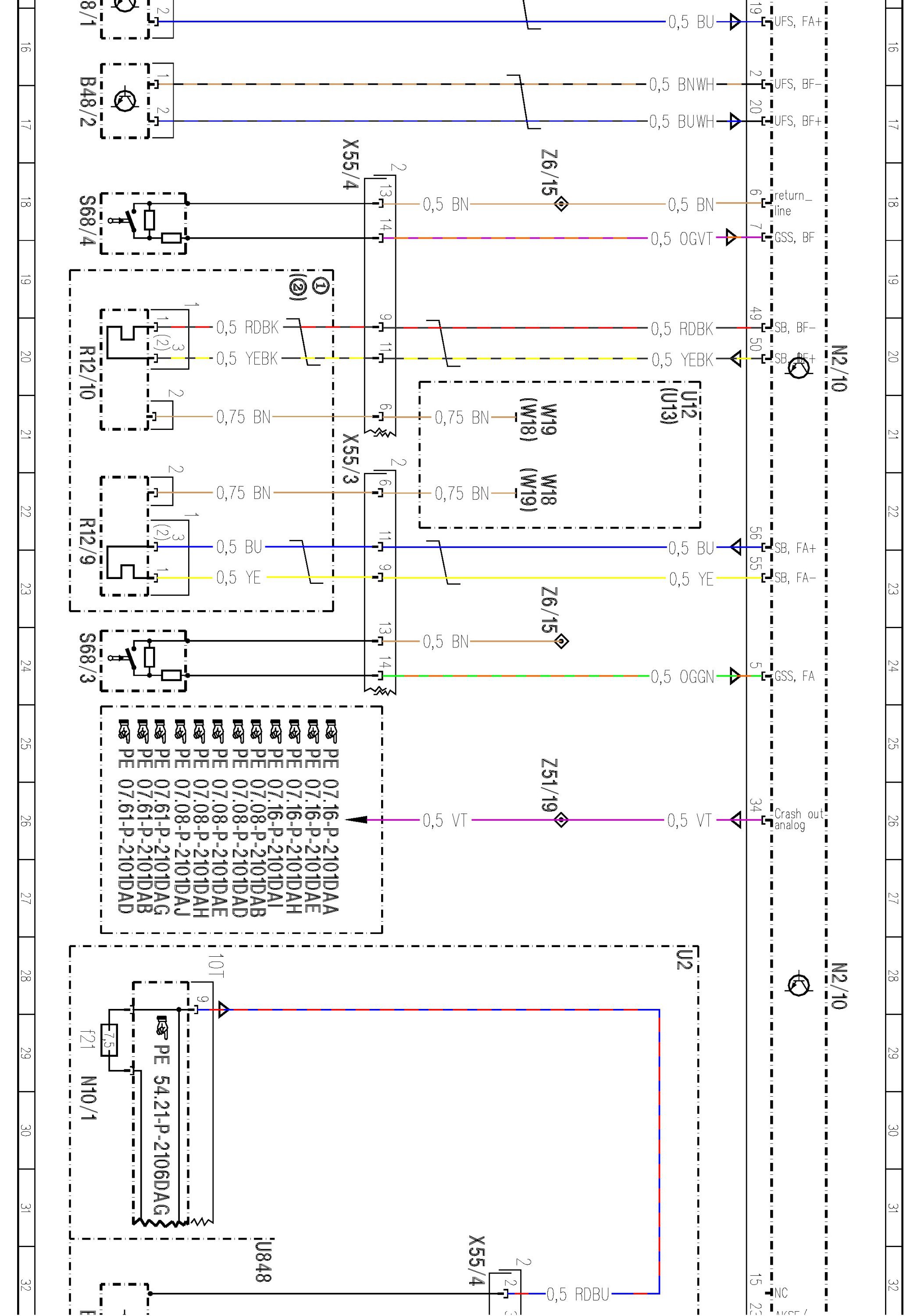

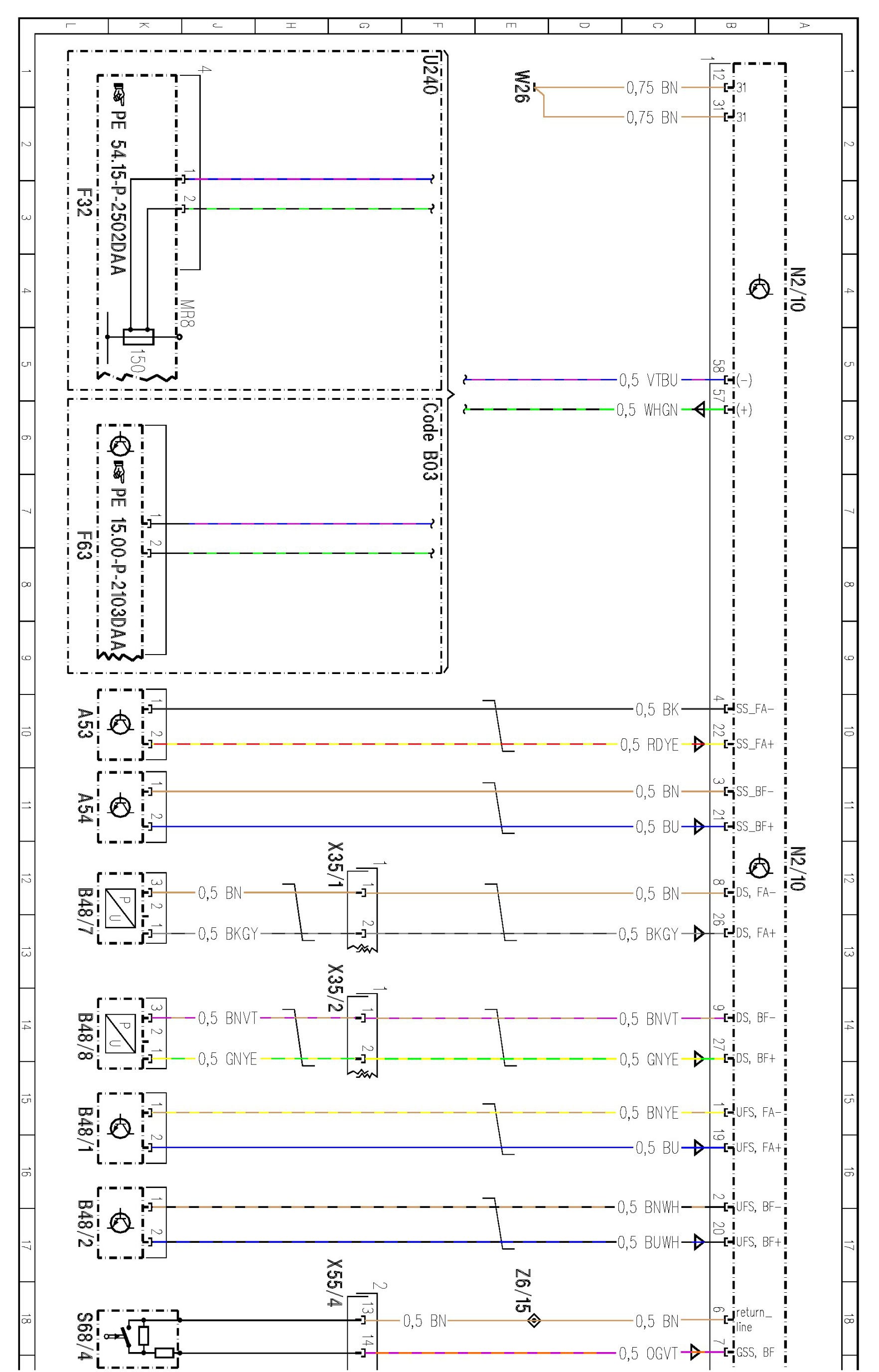

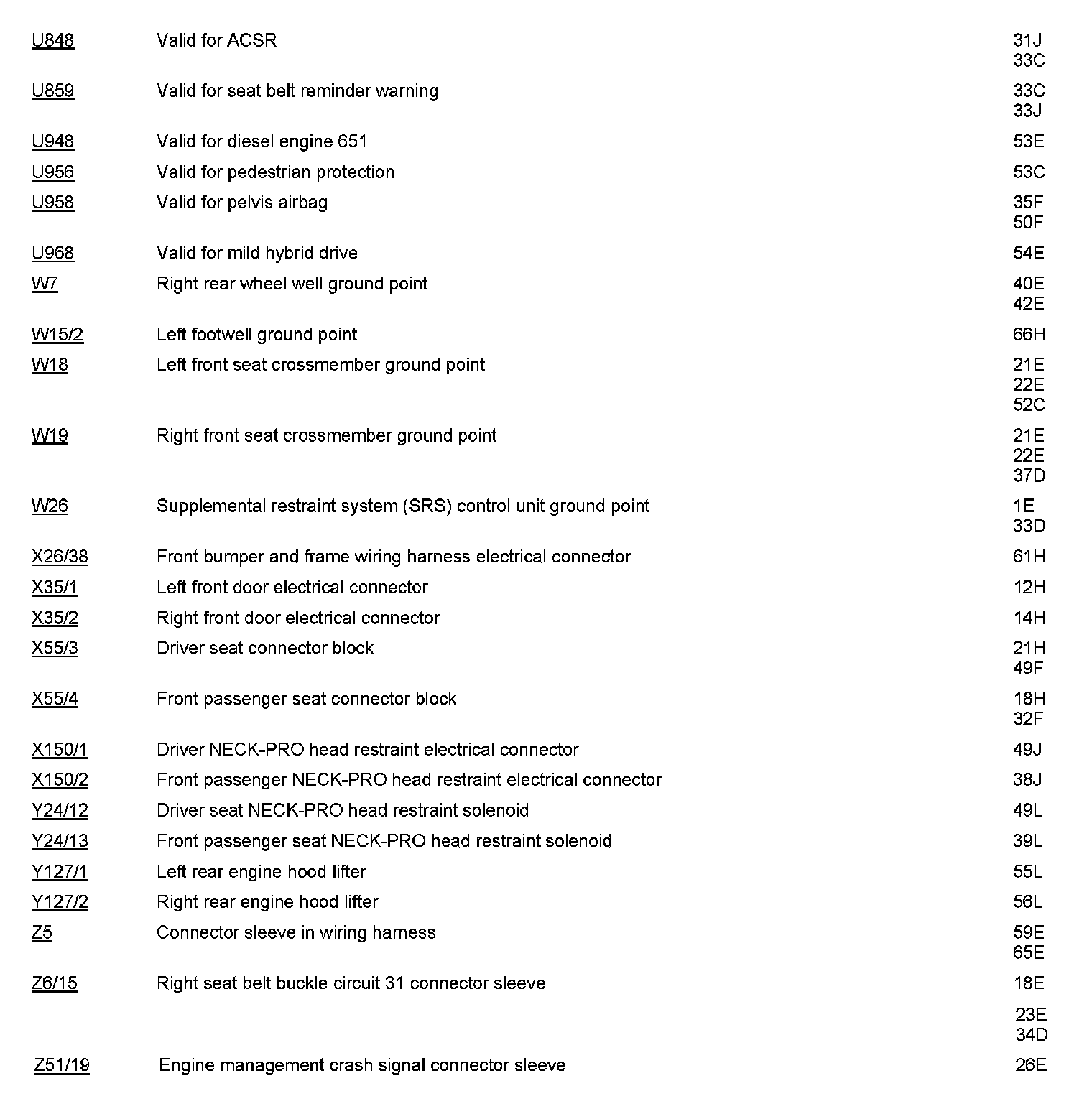

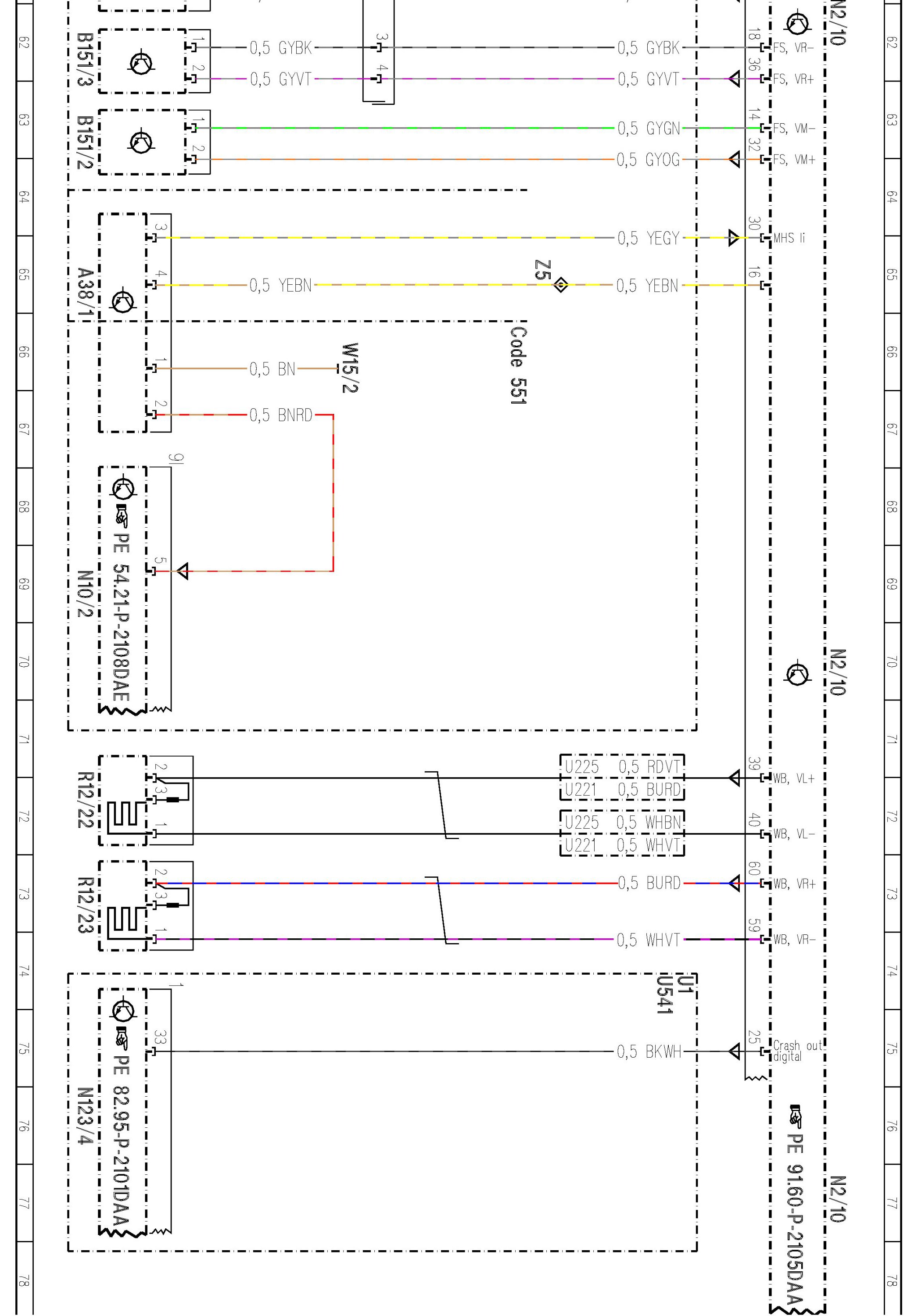

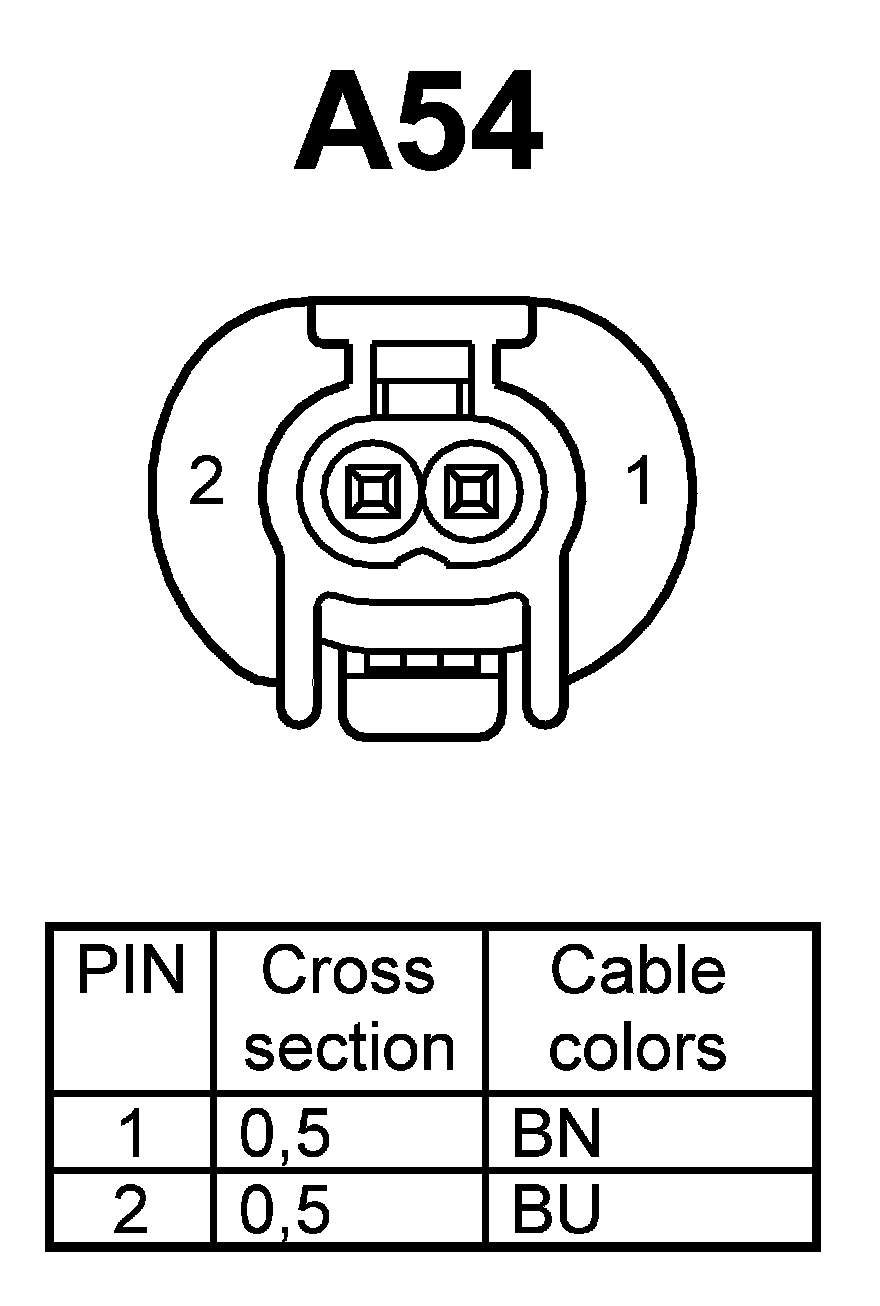

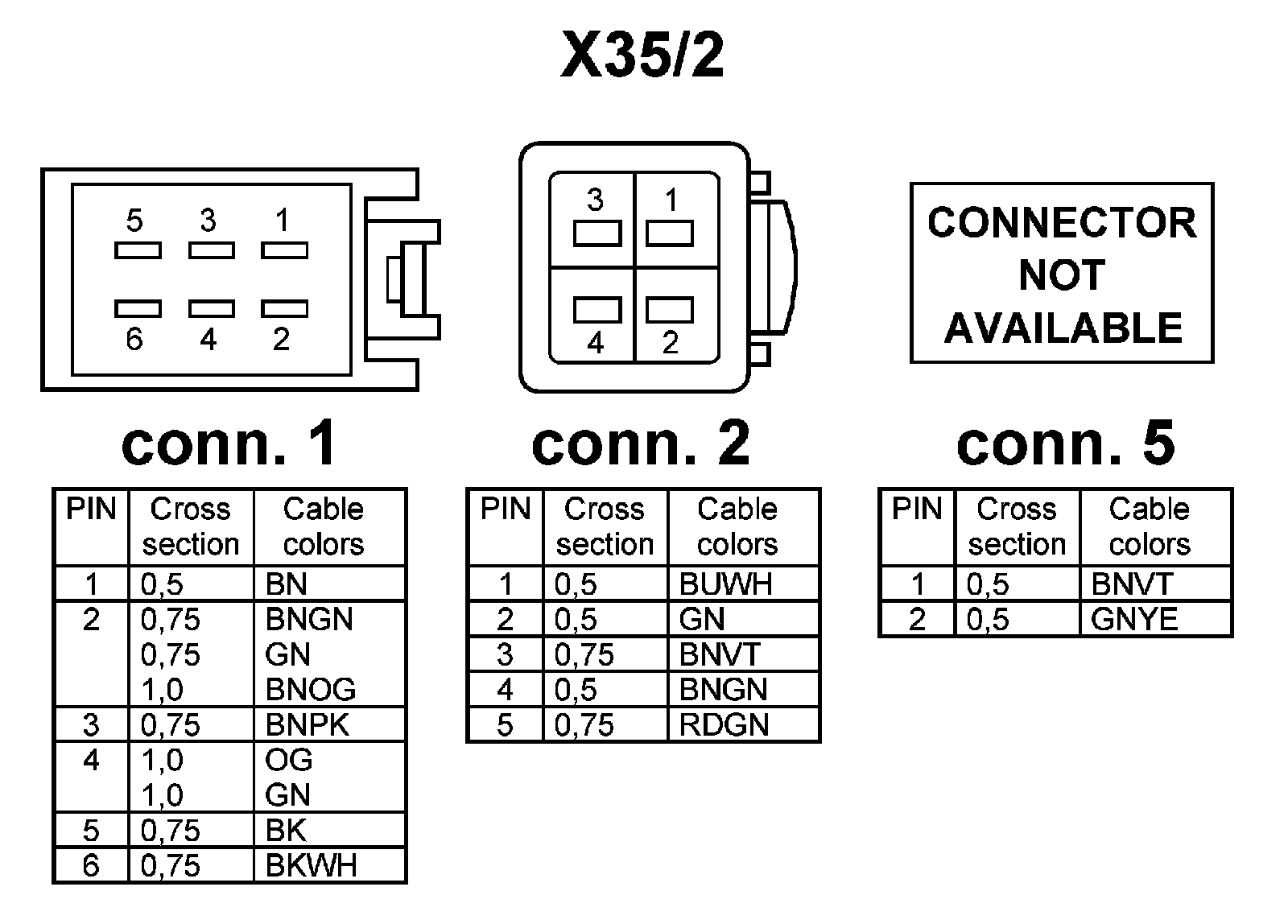

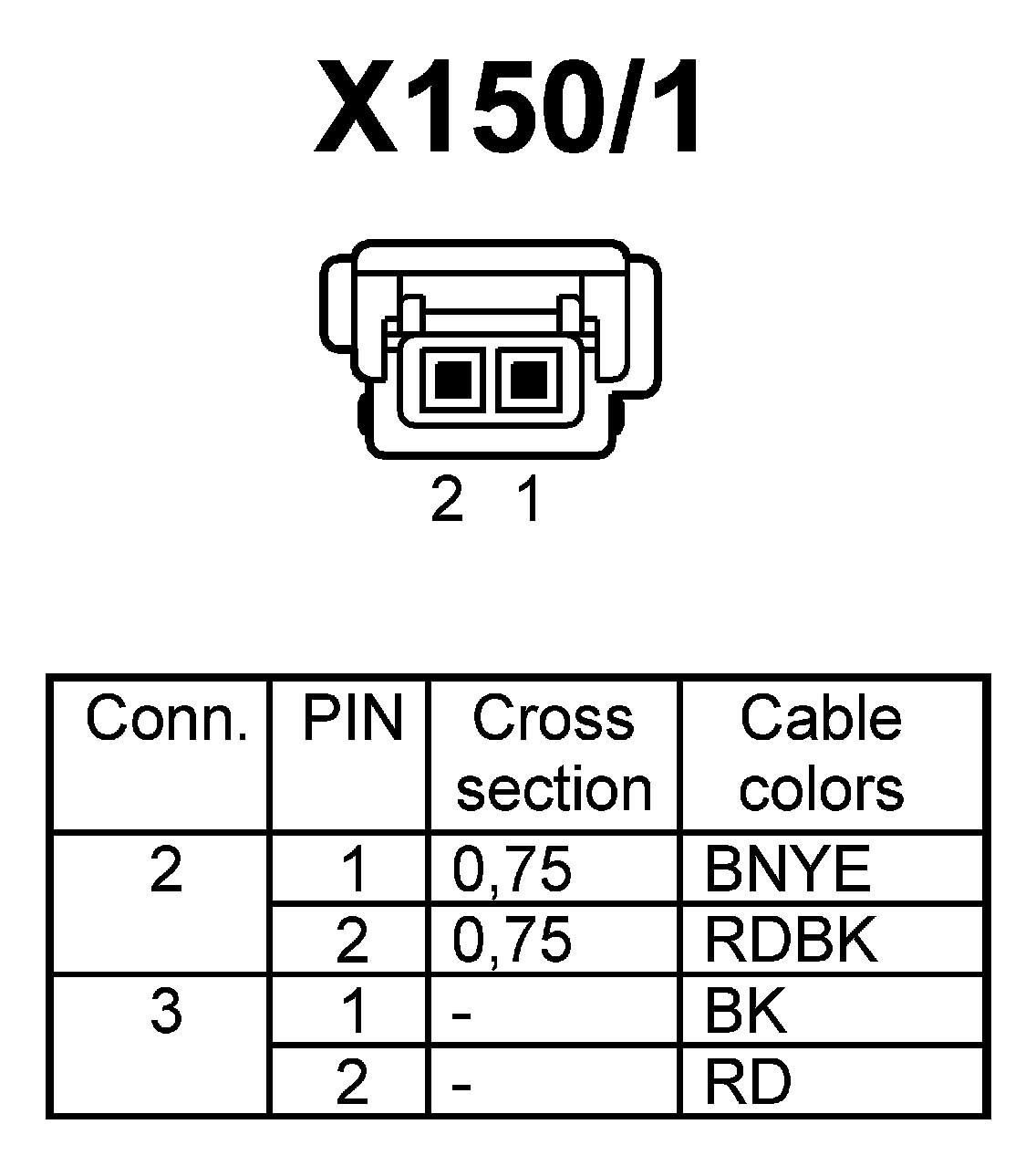

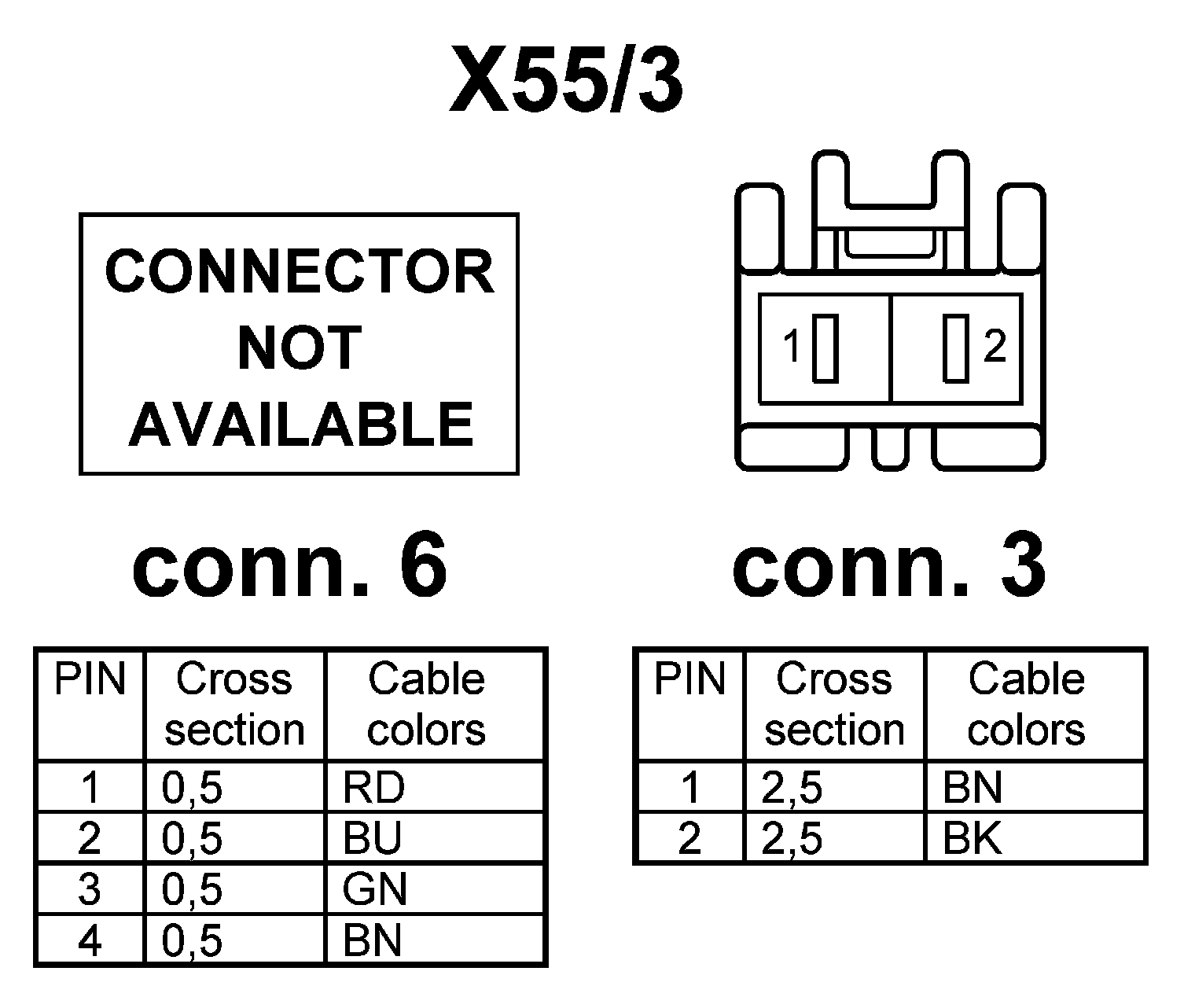

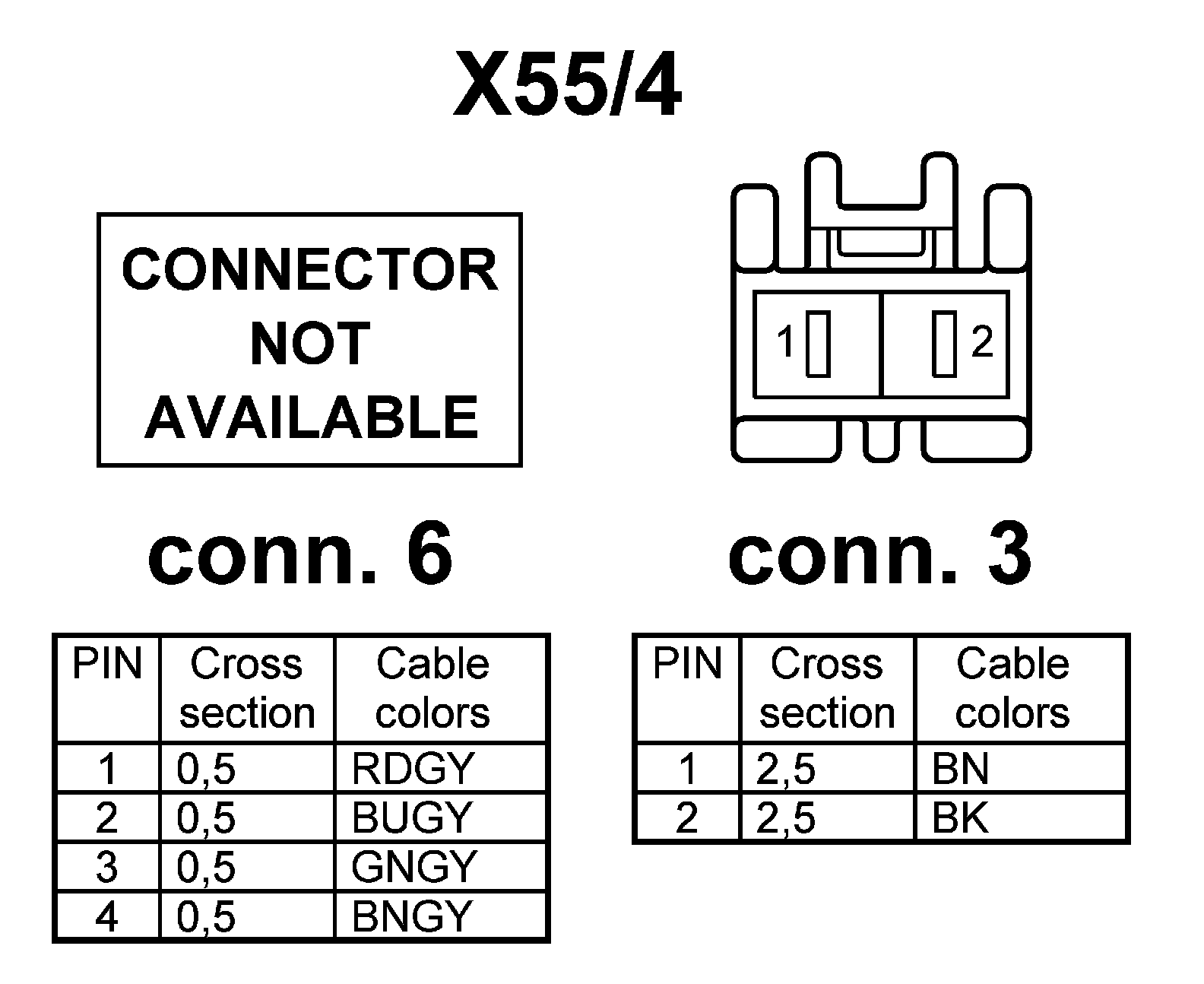

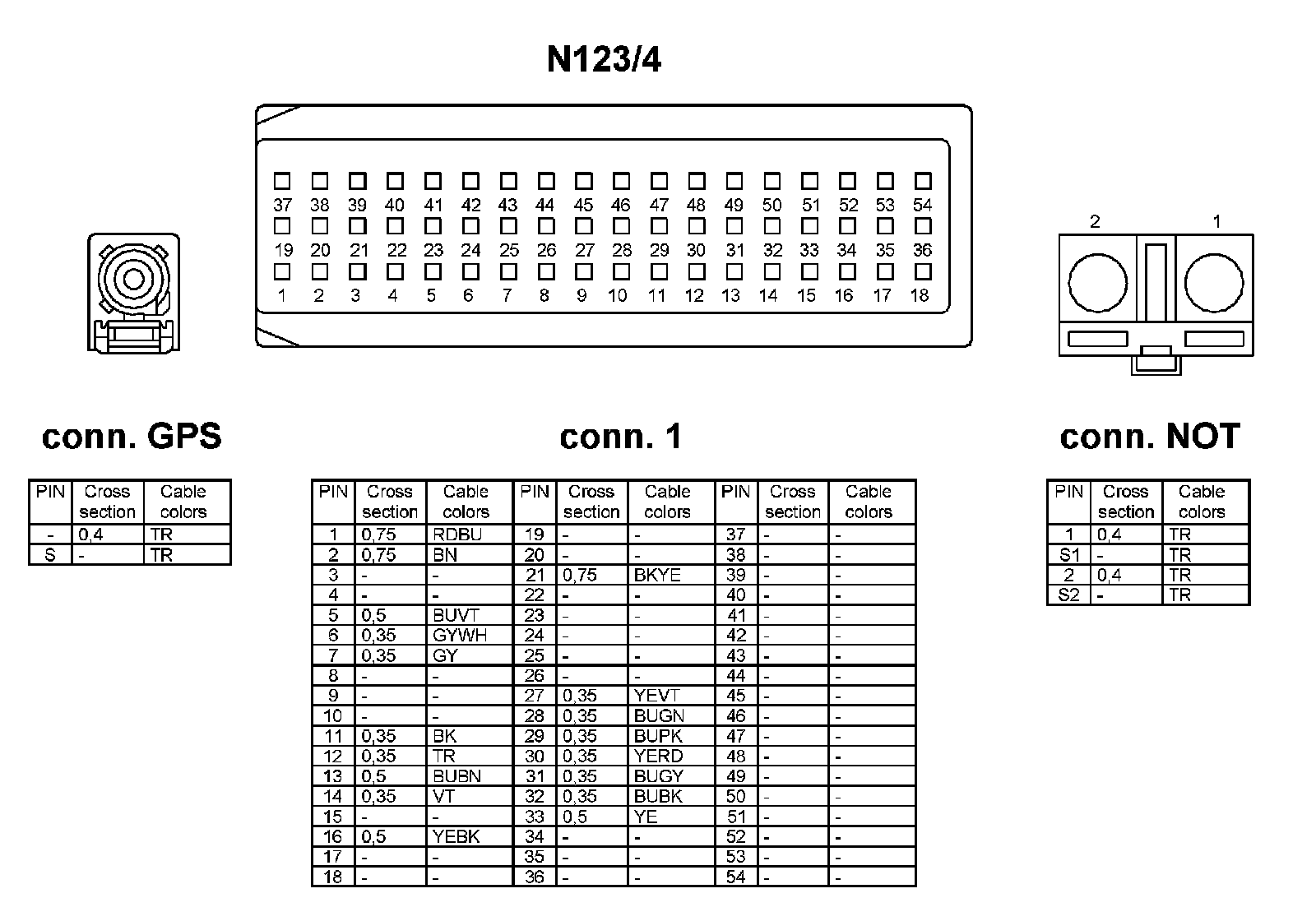

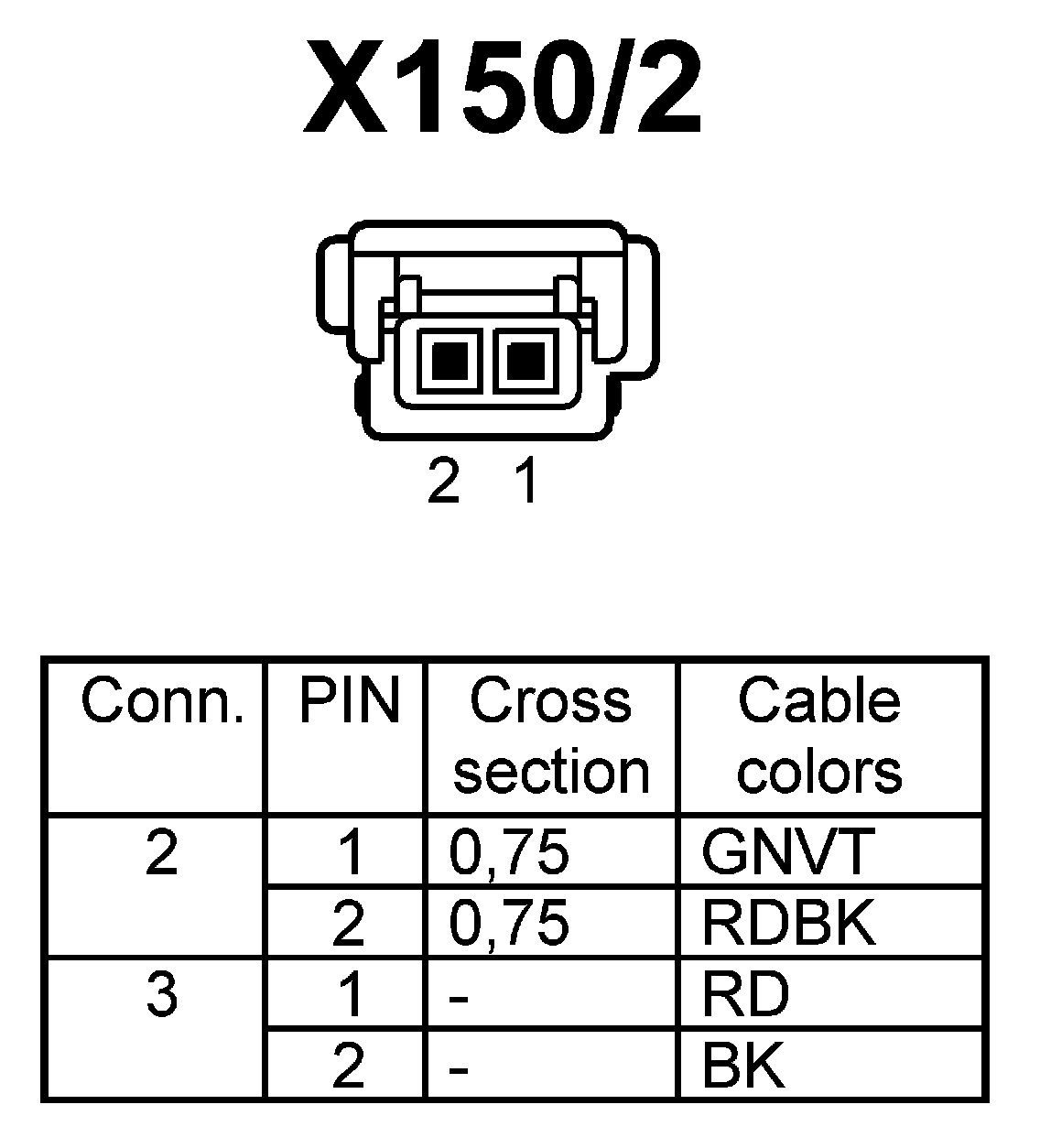

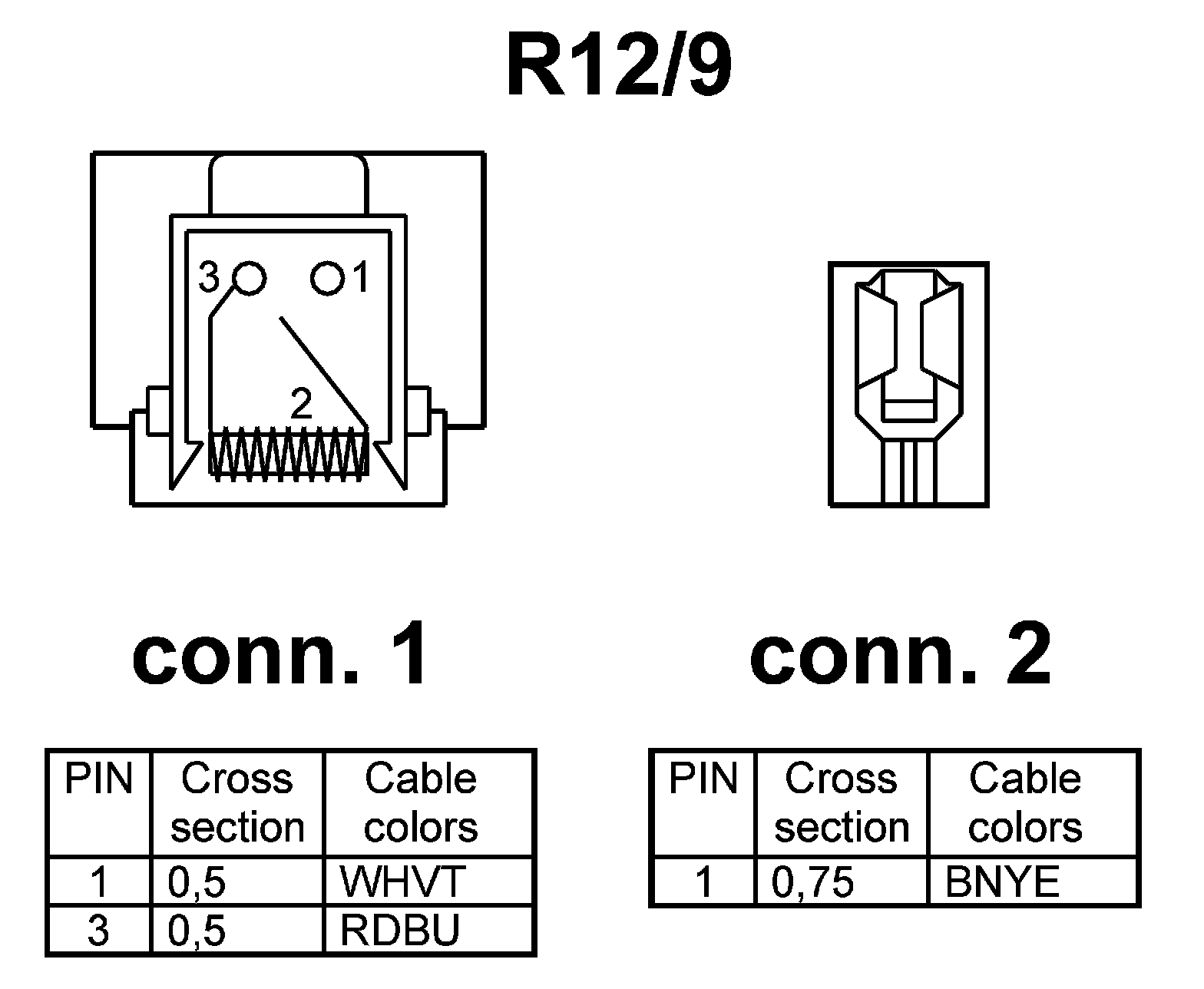

- Control unit N2/10, sheet 2










































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
