PE91.60-P-2105DAA Airbag control unit

PE91.60-P-2105DAA Airbag Control Unit
MODEL 212.0 /2

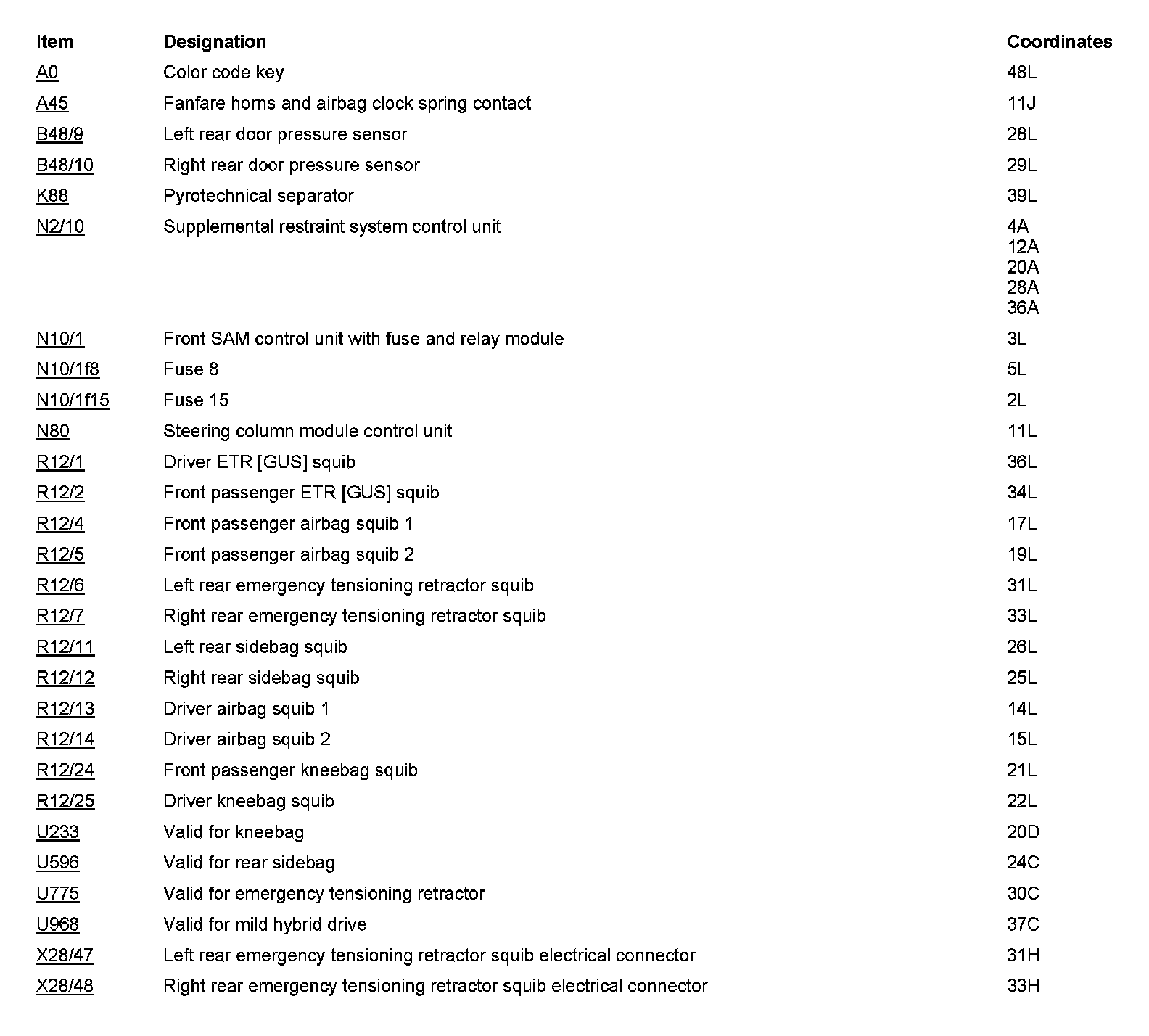

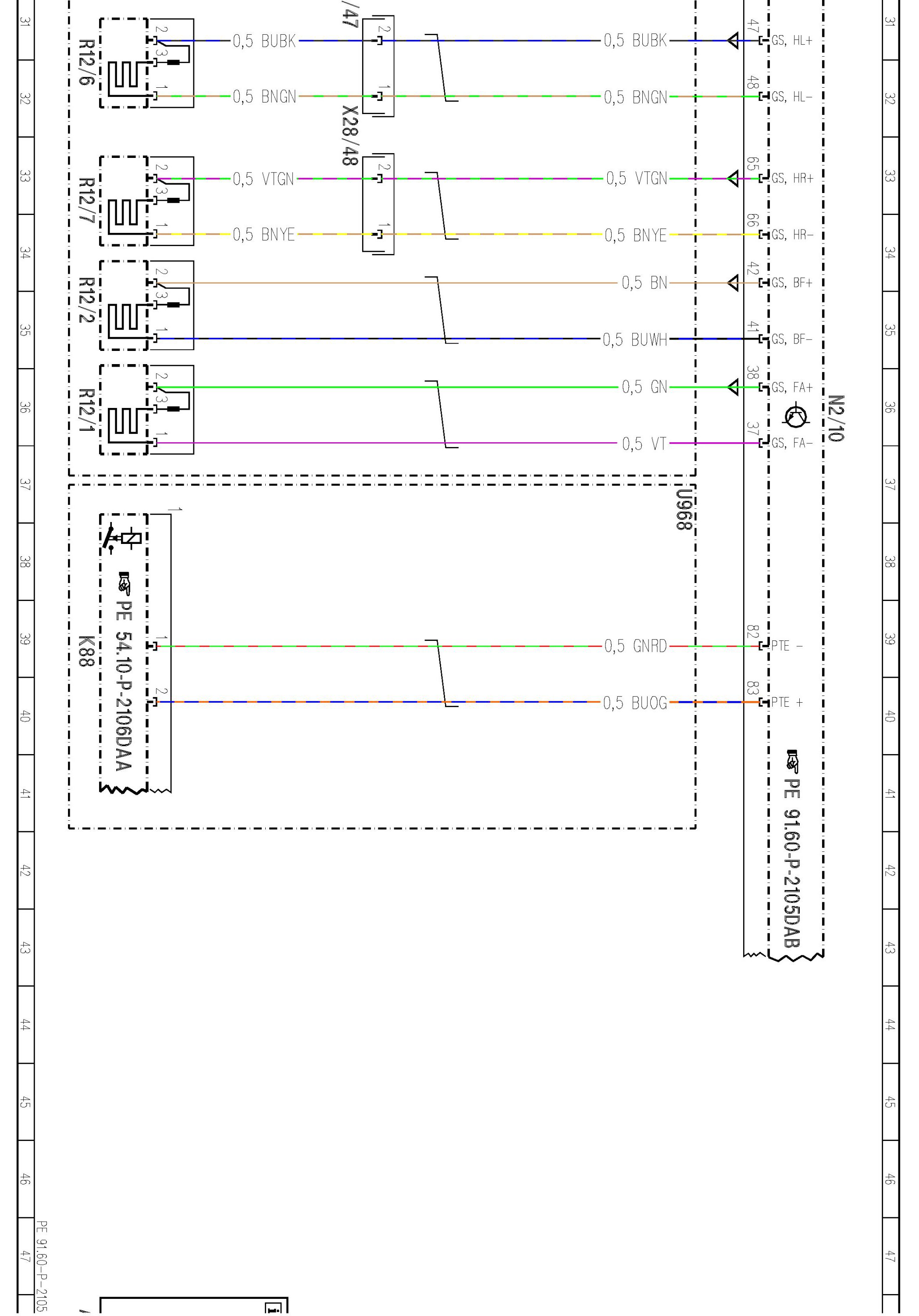

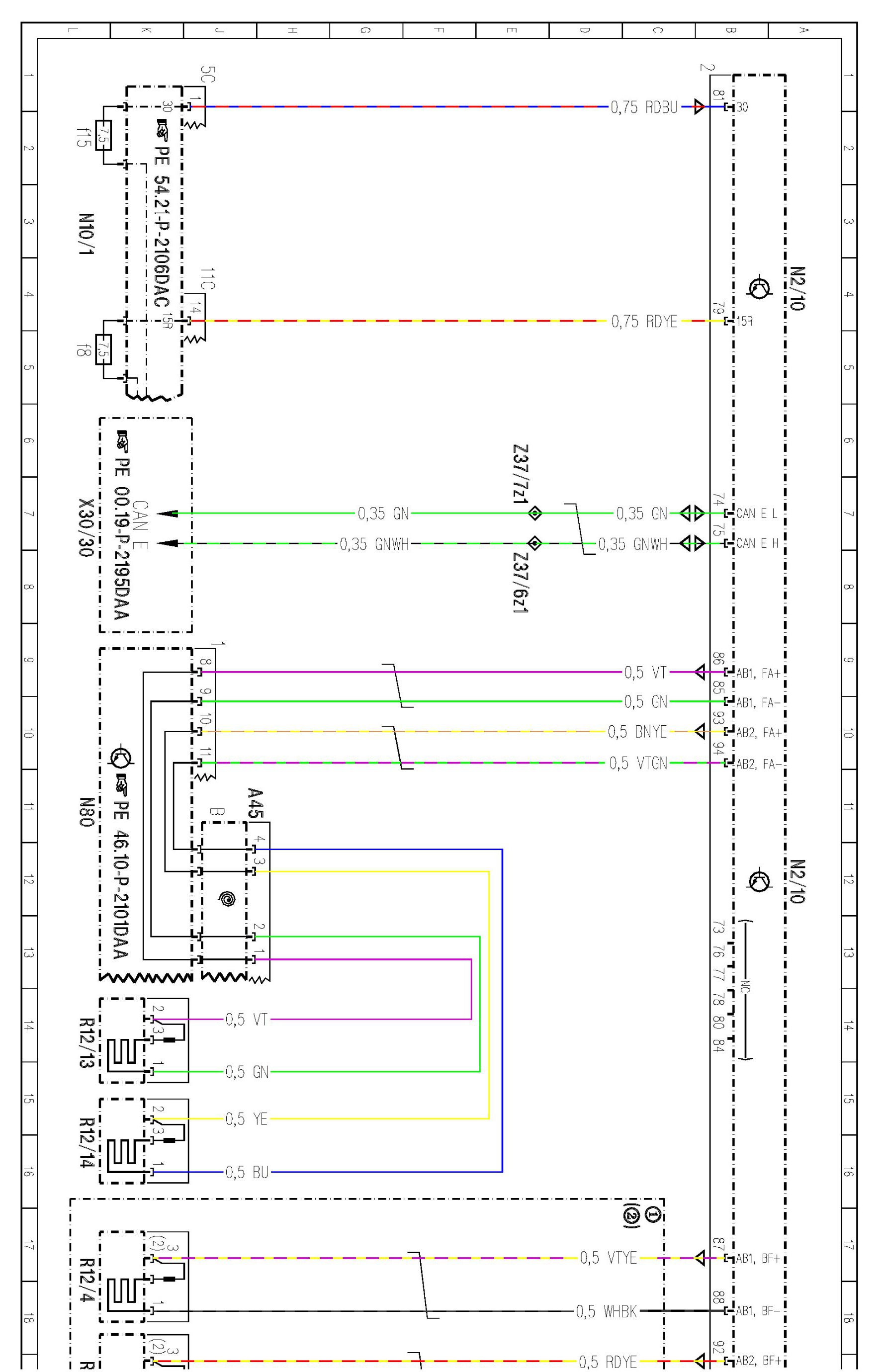

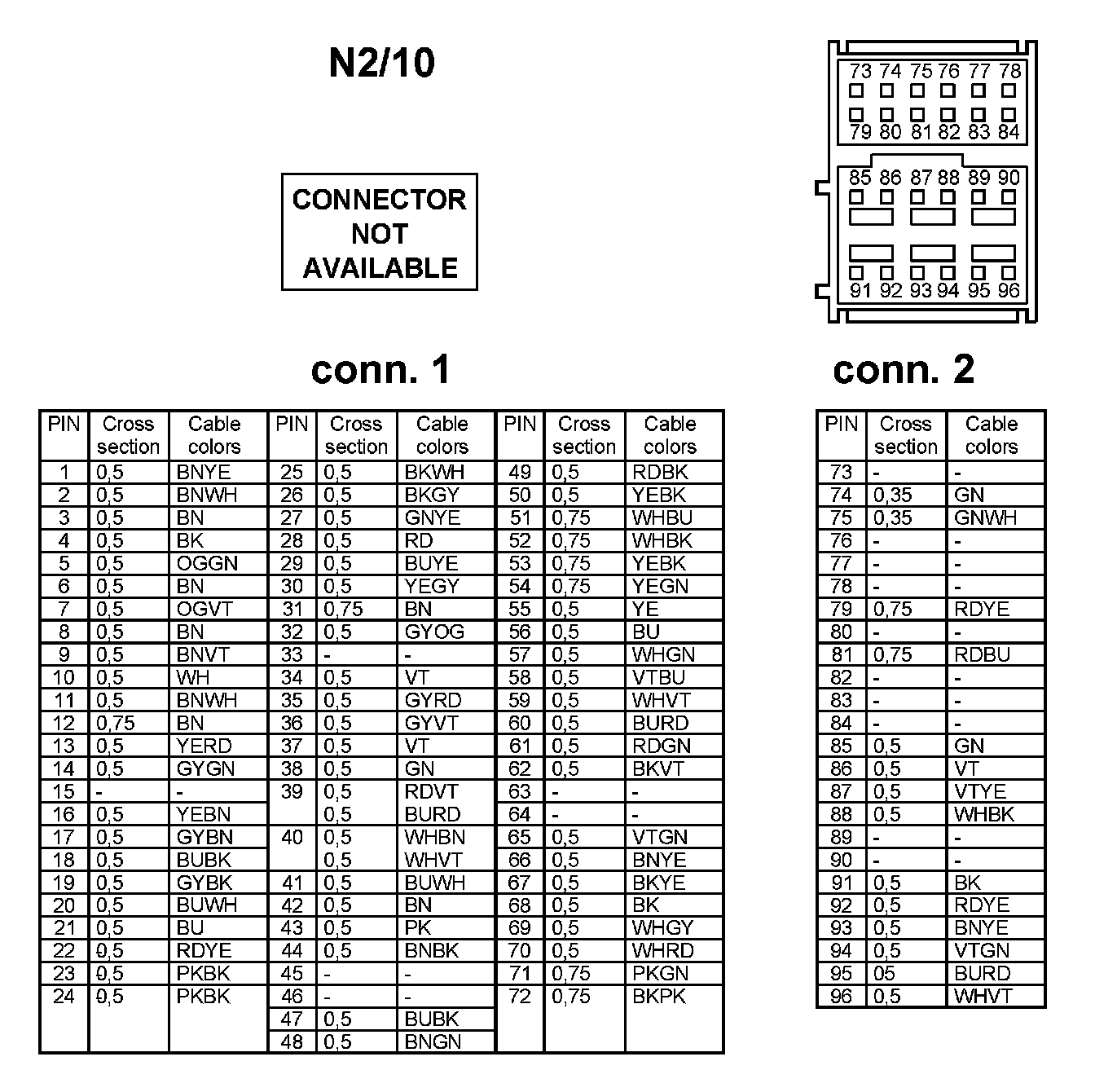

- Control unit N2/10, sheet 1


















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
