GF91.40-P-0001-03FL Pre-Safe, Block Diagram
GF91.40-P-0001-03FL Pre-Safe, Block Diagram

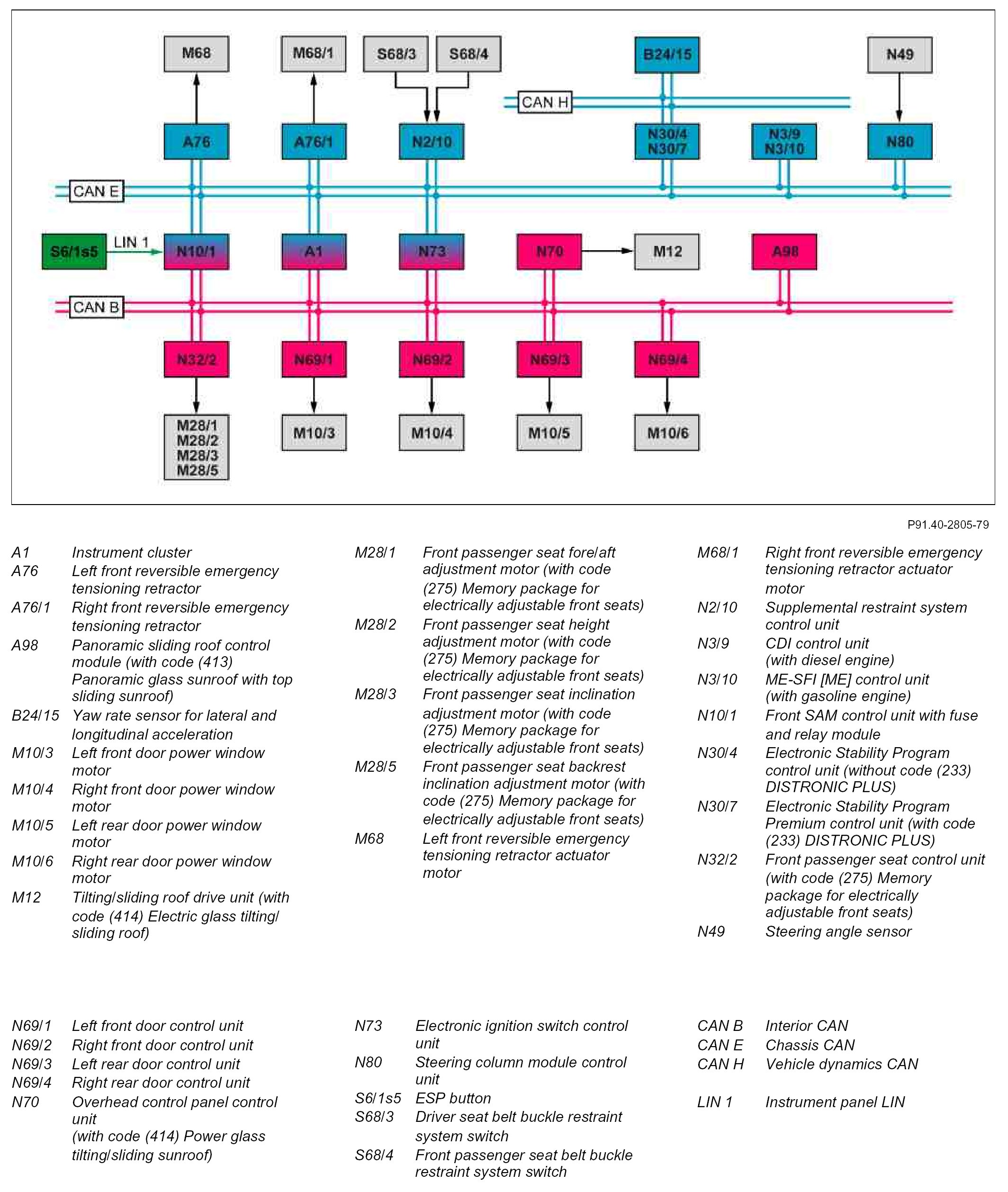

GF91.40-P-0001-03FL PRE-SAFE, Block Diagram
Component Identification:
