Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Air Bag
>>
Service and Repair
>>
AR91.60-P-0680EW Remove/Install Passenger Airbag Unit
AR91.60-P-0680EW Remove/Install Passenger Airbag Unit
AR91.60-P-0680EW Remove/Install Passenger Airbag Unit

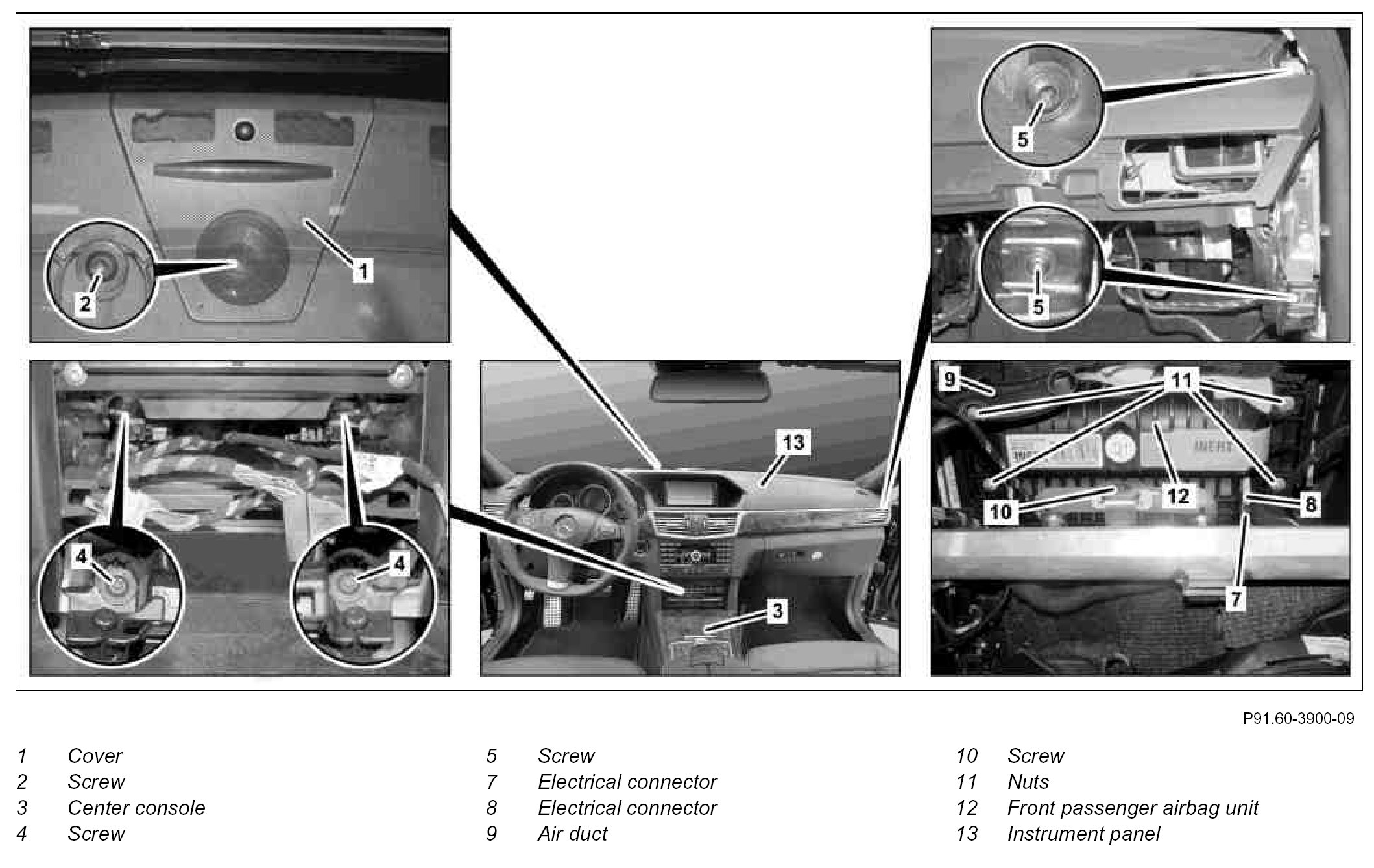

Component Identification:

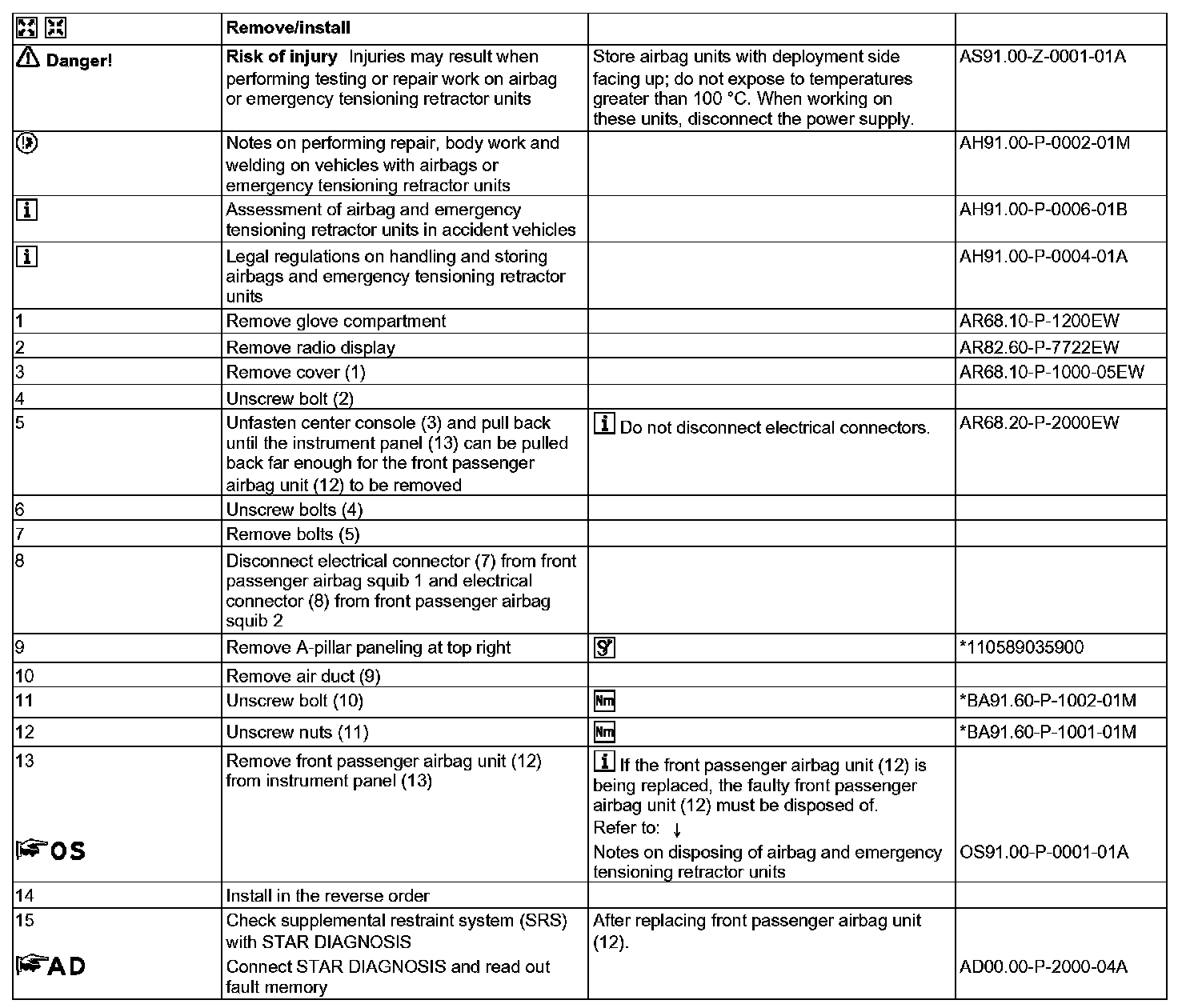

Steps 1 - 15:

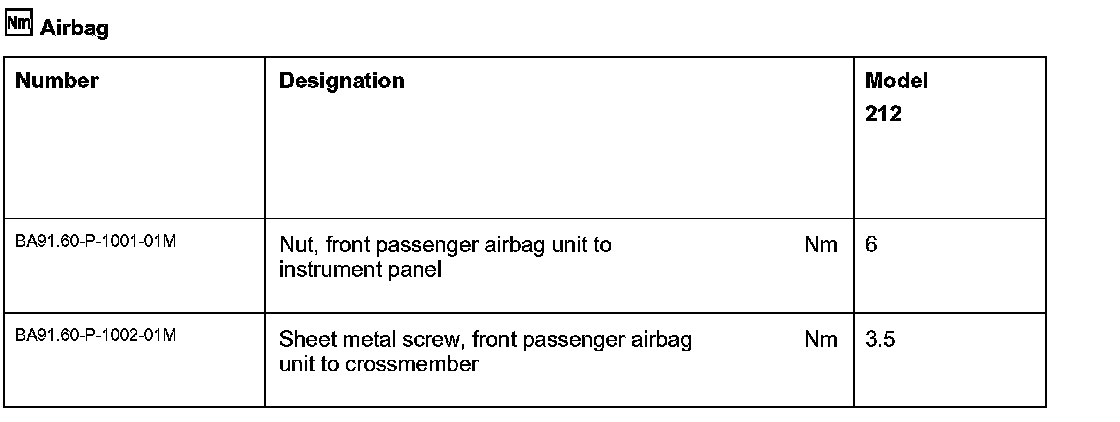

Airbag:

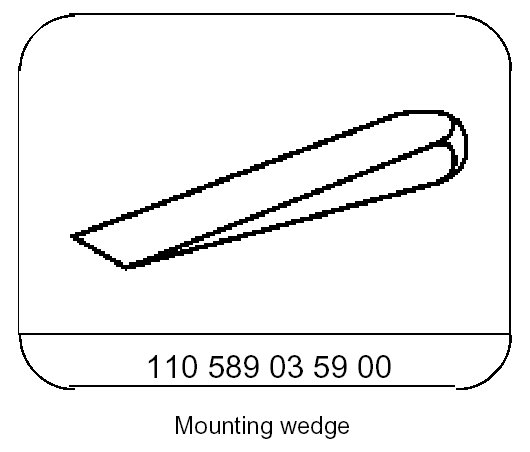

Special Tools:
