AR91.60-P-0660EW Remove/Install Airbag Unit on the Steering Wheel



AR91.60-P-0660EW Remove/Install Airbag Unit On The Steering Wheel

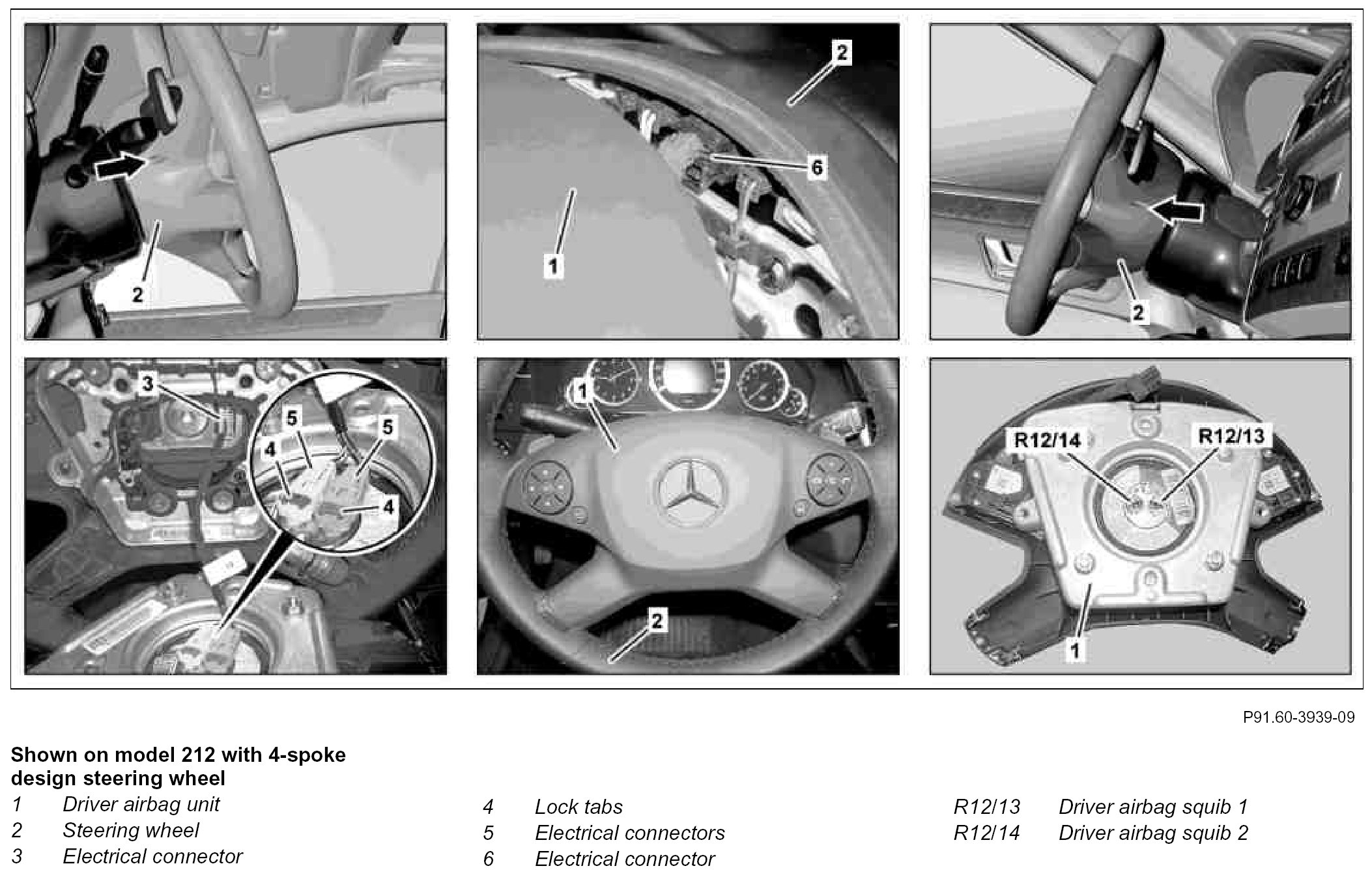

Component Identification:

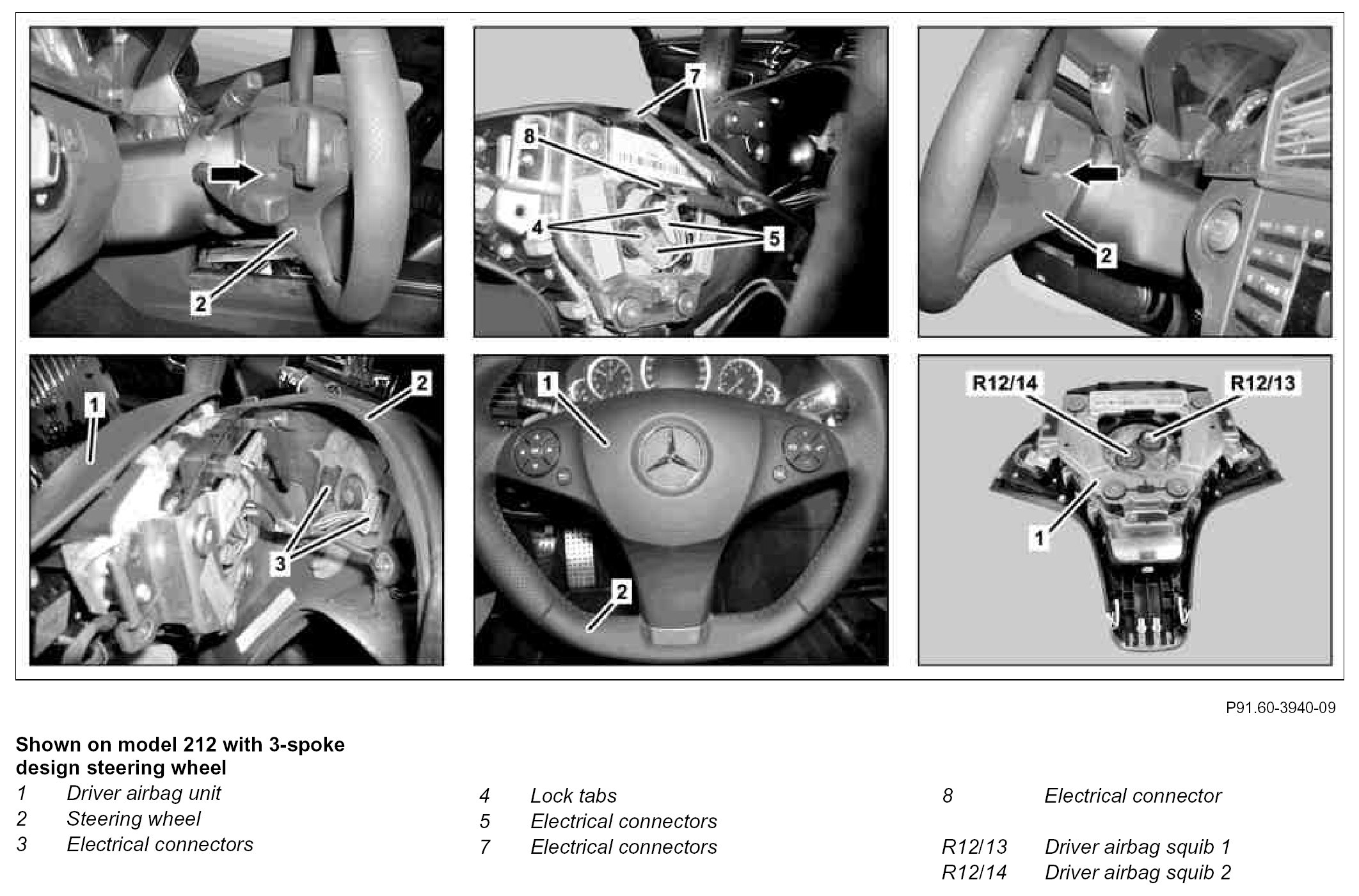

Component Identification:

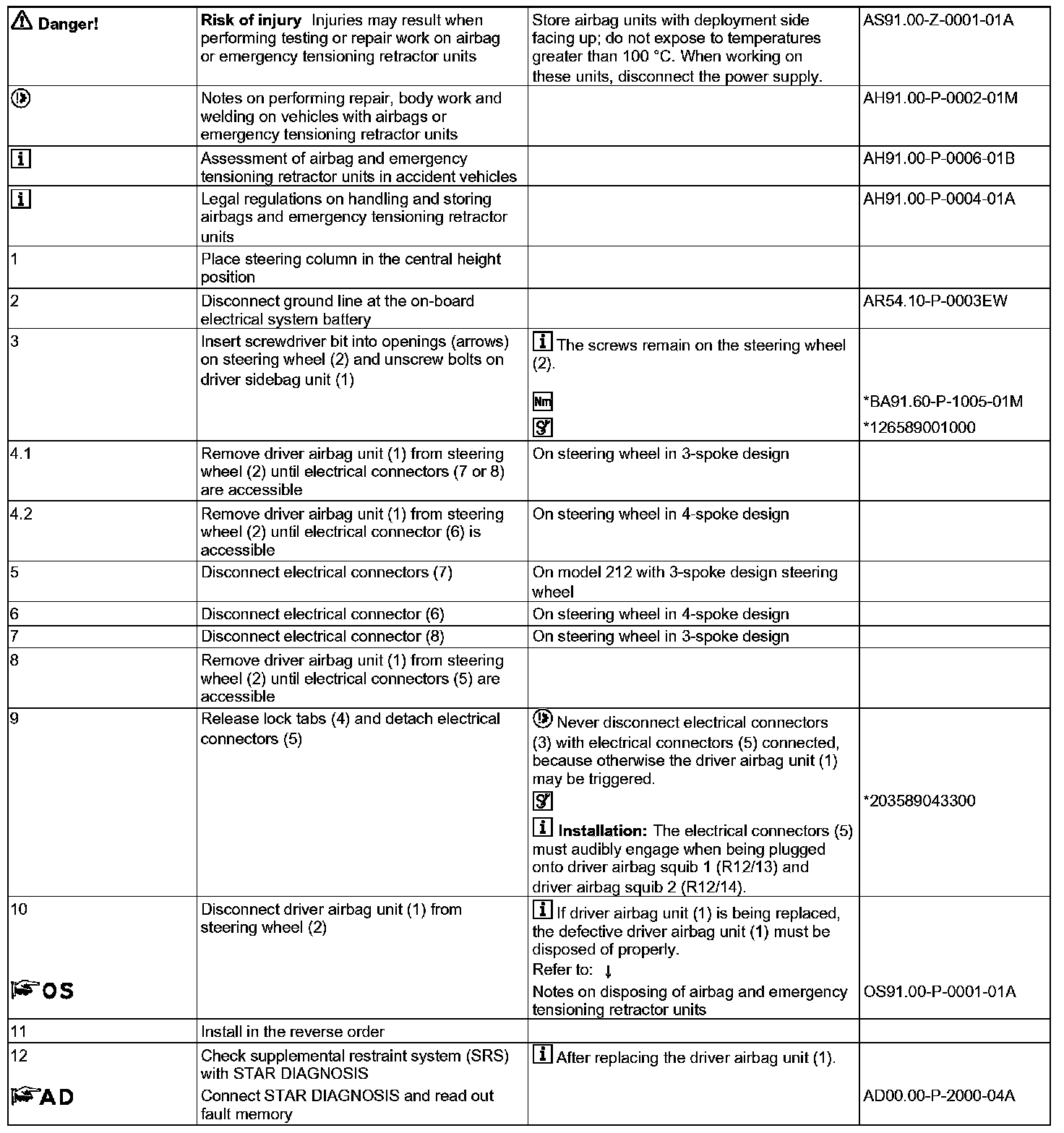

Steps 1 - 12:

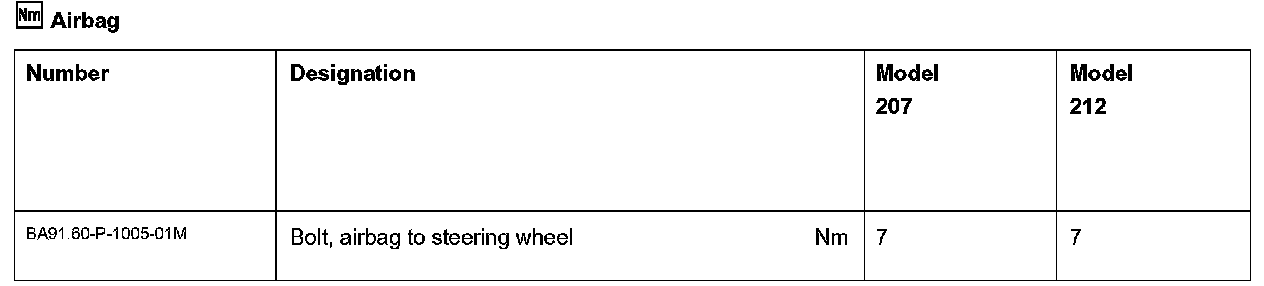

Airbag:

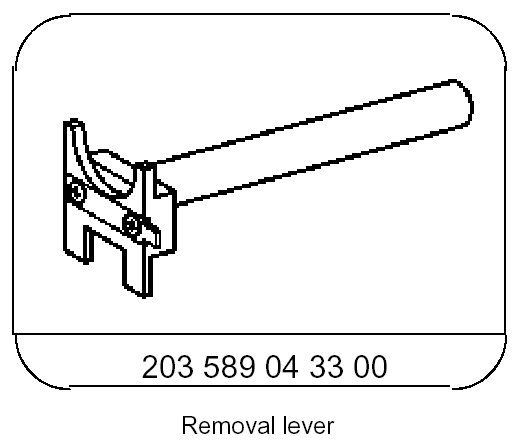

Special Tools:

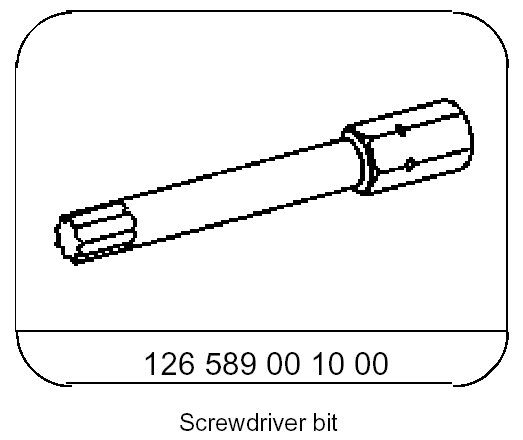

Special Tools:
