AR91.60-P-0660EW Remove/Install Airbag Unit on Steering Wheel

AR91.60-P-0660EW Remove/Install Airbag Unit on Steering Wheel
MODEL 207, 212 up to model year 2012
YoM 11

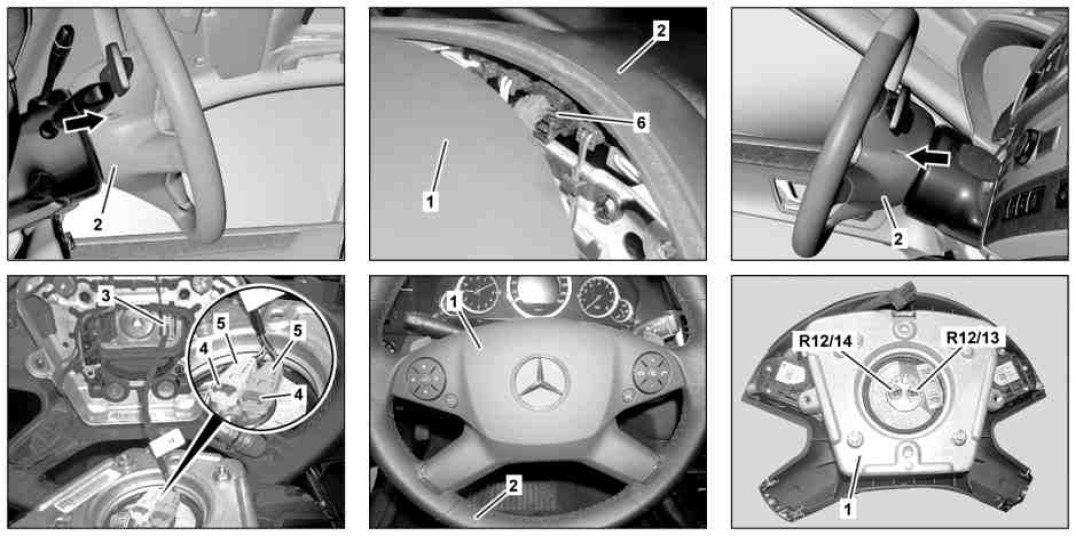

Shown on model 212 with 4-spoke design steering wheel

1 Driver airbag unit
2 Steering wheel
3 Electrical connector
4 Lock tabs
5 Electrical connectors
6 Electrical connector

R12/13 Driver airbag squib 1
R12/14 Driver airbag squib 2





Shown on model 212 with 3-spoke design steering wheel

1 Driver airbag unit
2 Steering wheel
3 Electrical connectors
4 Lock tabs
5 Electrical connectors
7 Electrical connectors
8 Electrical connector

R12/13 Driver airbag squib 1
R12/14 Driver airbag squib 2











126 589 00 10 00
Screwdriver bit





203 589 04 33 00
Removal lever
