Seat Belt Control Module: Service and Repair

AR91.60-P-0623EW Remove/Install Airbag, Sidebag And Emergency Tensioning Retractor Control Unit

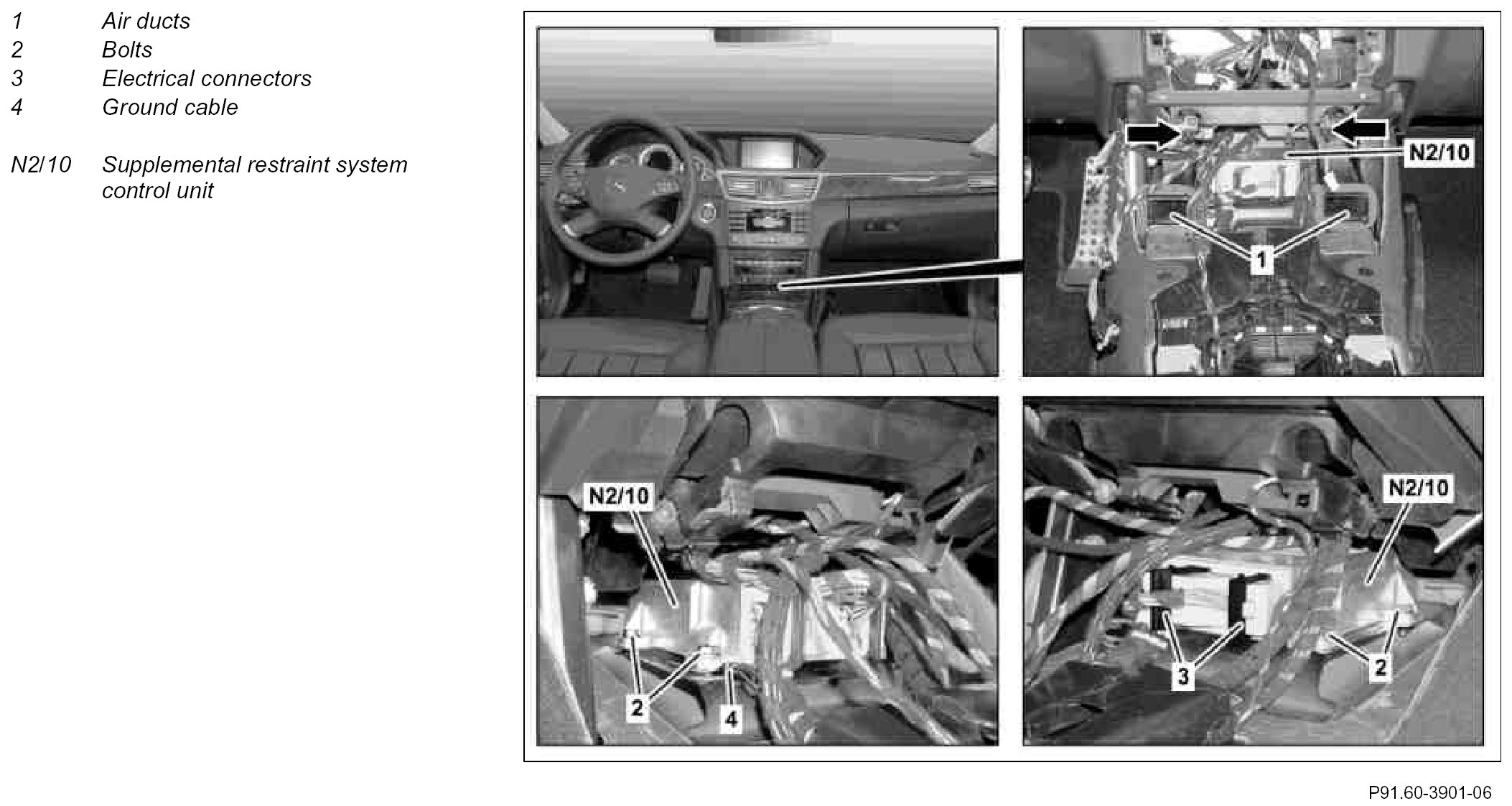

Component Identification:

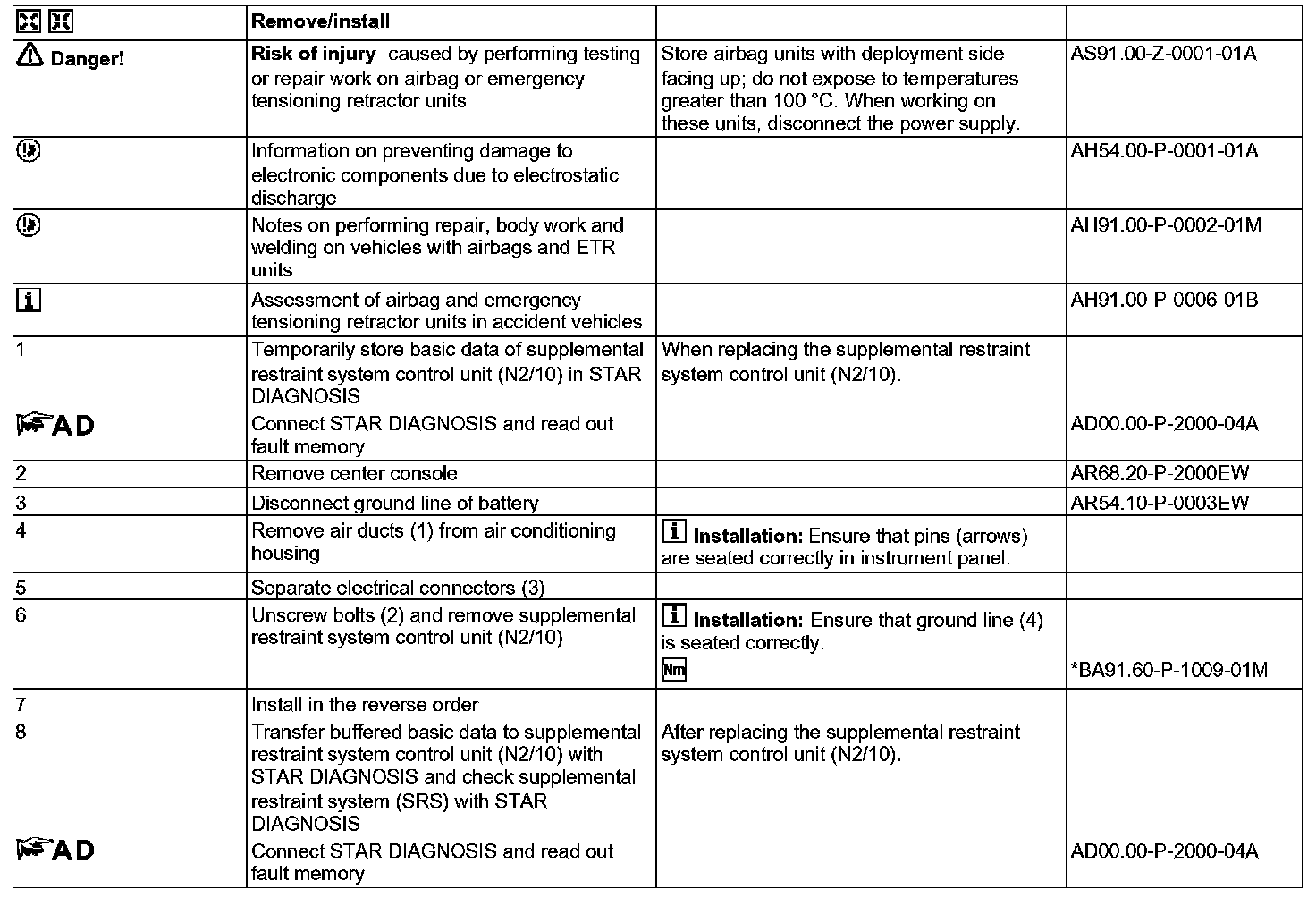

Steps 1 - 8:

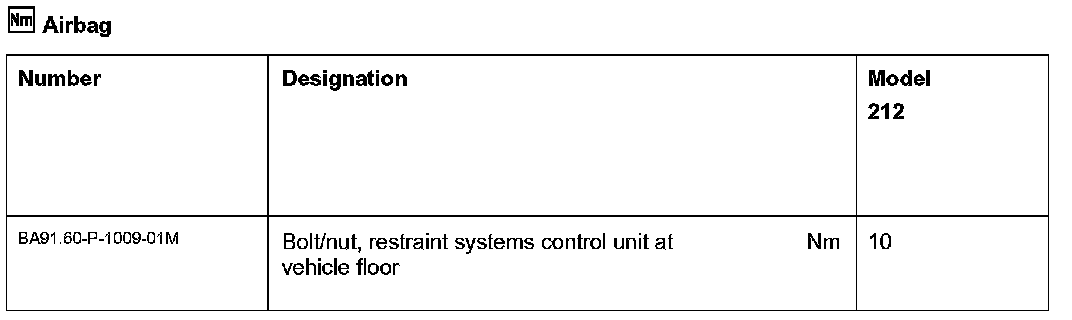

Airbag:
