ABS/TCS - ABR Control Unit Programming Issues
Date: October 19, 2010Order No.: P-B-42.47/114
Group: 42
SUBJECT: MY-All, Models 207 and 212
ABR Control Unit Programming and Initial Startup of ABR Control Unit
Programming ABR Control Units is problematic and a solution will be forthcoming. For now, do not program ABR control units. Should interruptions occur using Xentry diagnostic version 09/2010, the control unit must be replaced.
Units with these part number should NOT be installed:
^ Hydraulic unit A 212 431 21 12
^ Hydraulic unit A 212 431 23 12
^ ABR control unit A 212 901 48 00
^ ABR control unit A 212 901 49 00
Only install the units listed below in parts Information.

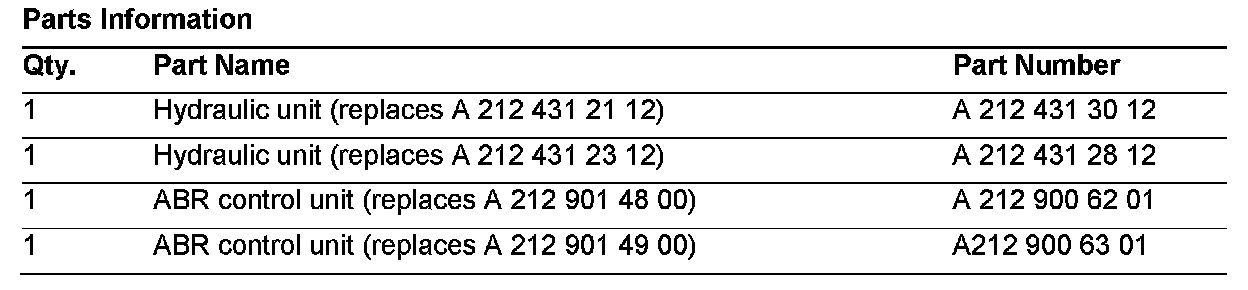

Parts Information
