Emergency Contact Module: Service and Repair



AR82.95-P-0005CW Remove/Install Control Unit For TELE AID Emergency Call System
- with CODE (359) TELE AID emergency call system

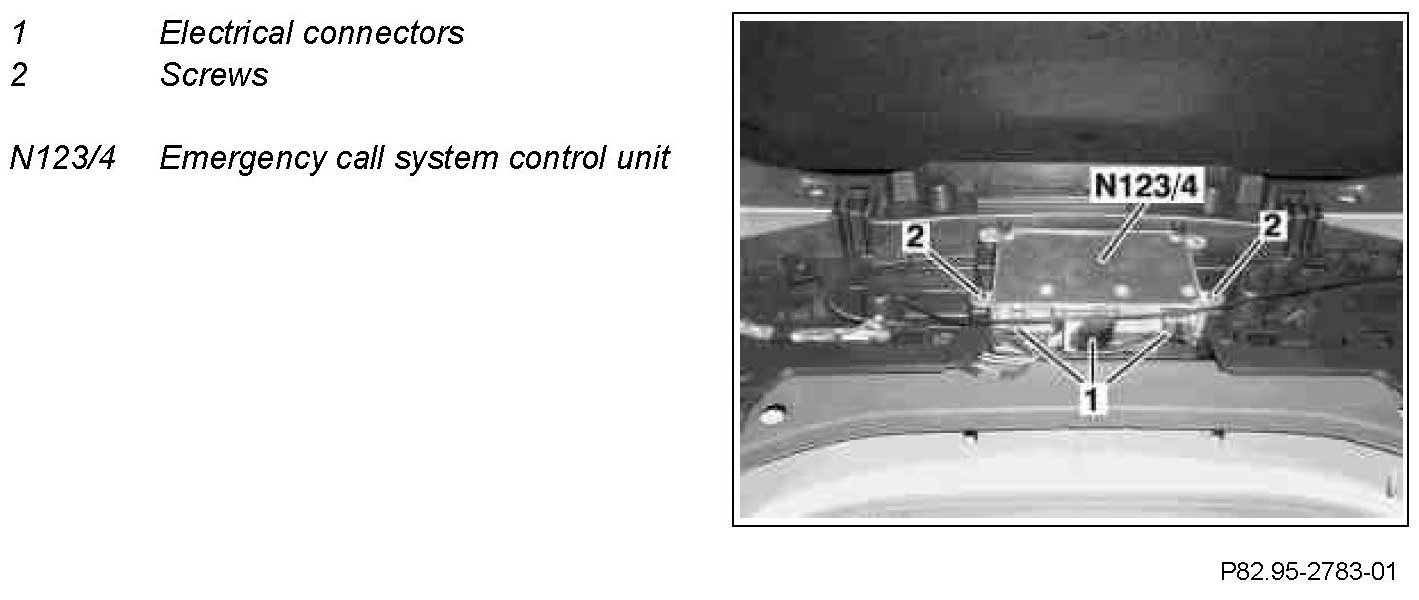

Component Identification:

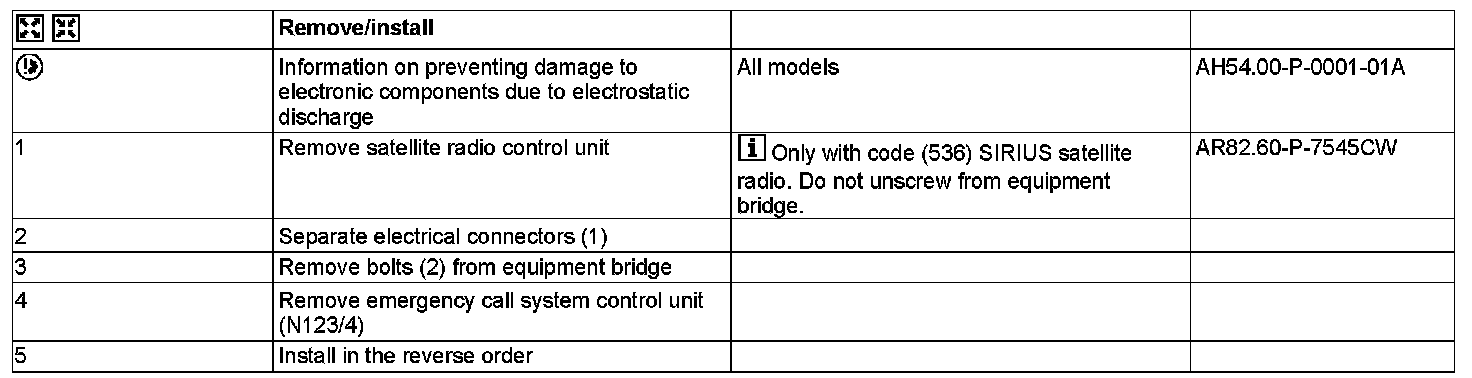

Steps 1 - 5:
