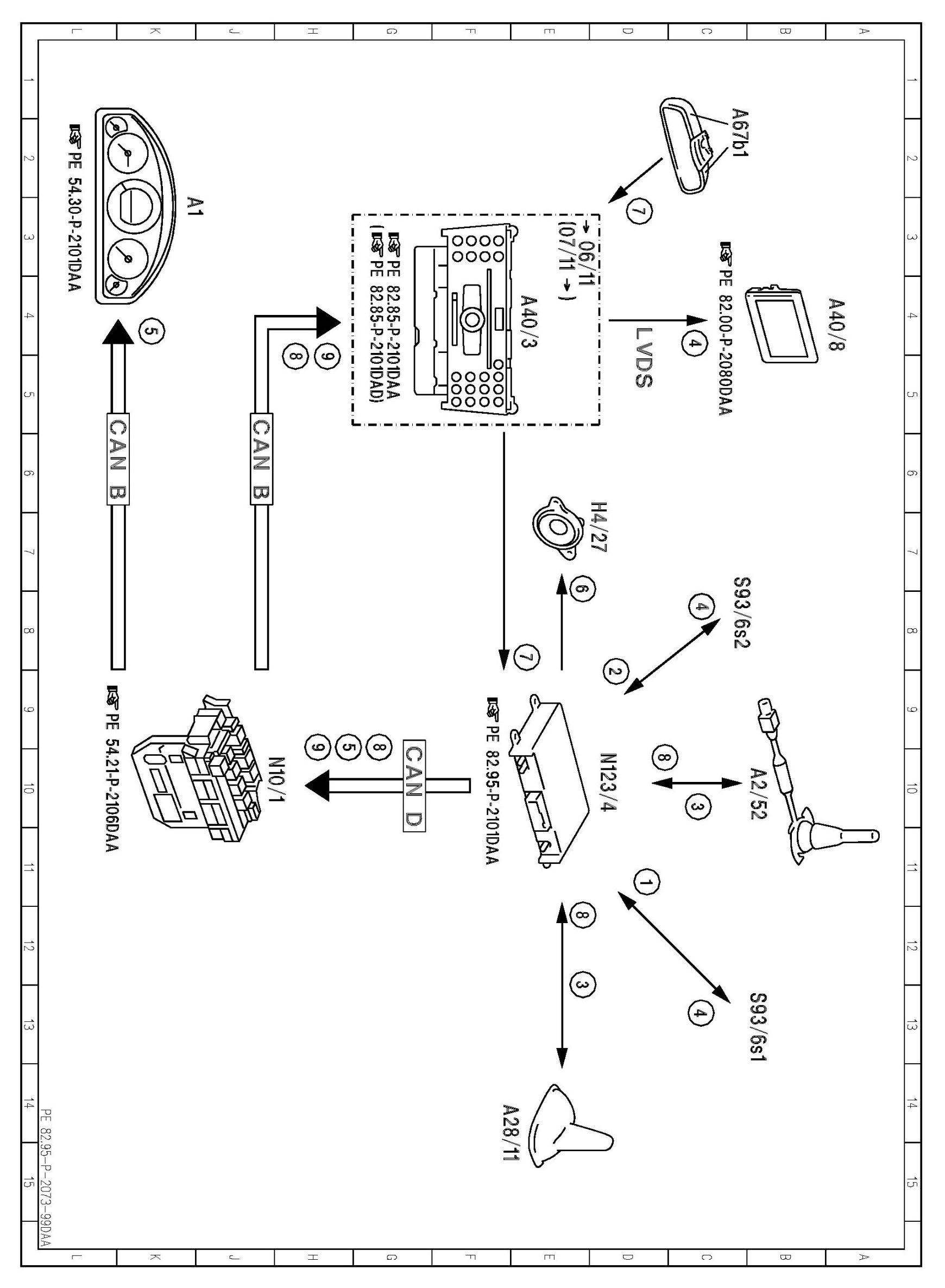

PE82.95-P-2073DAA Electrical Function Schematic For MB Information And Breakdown Assistance Function

PE82.95-P-2073DAA Electrical Function Schematic For MB Information And Breakdown Assistance Function
MODEL 212
- with CODE (348) Emergency call/Assist system
- with CODE (359) TELE AID emergency call system

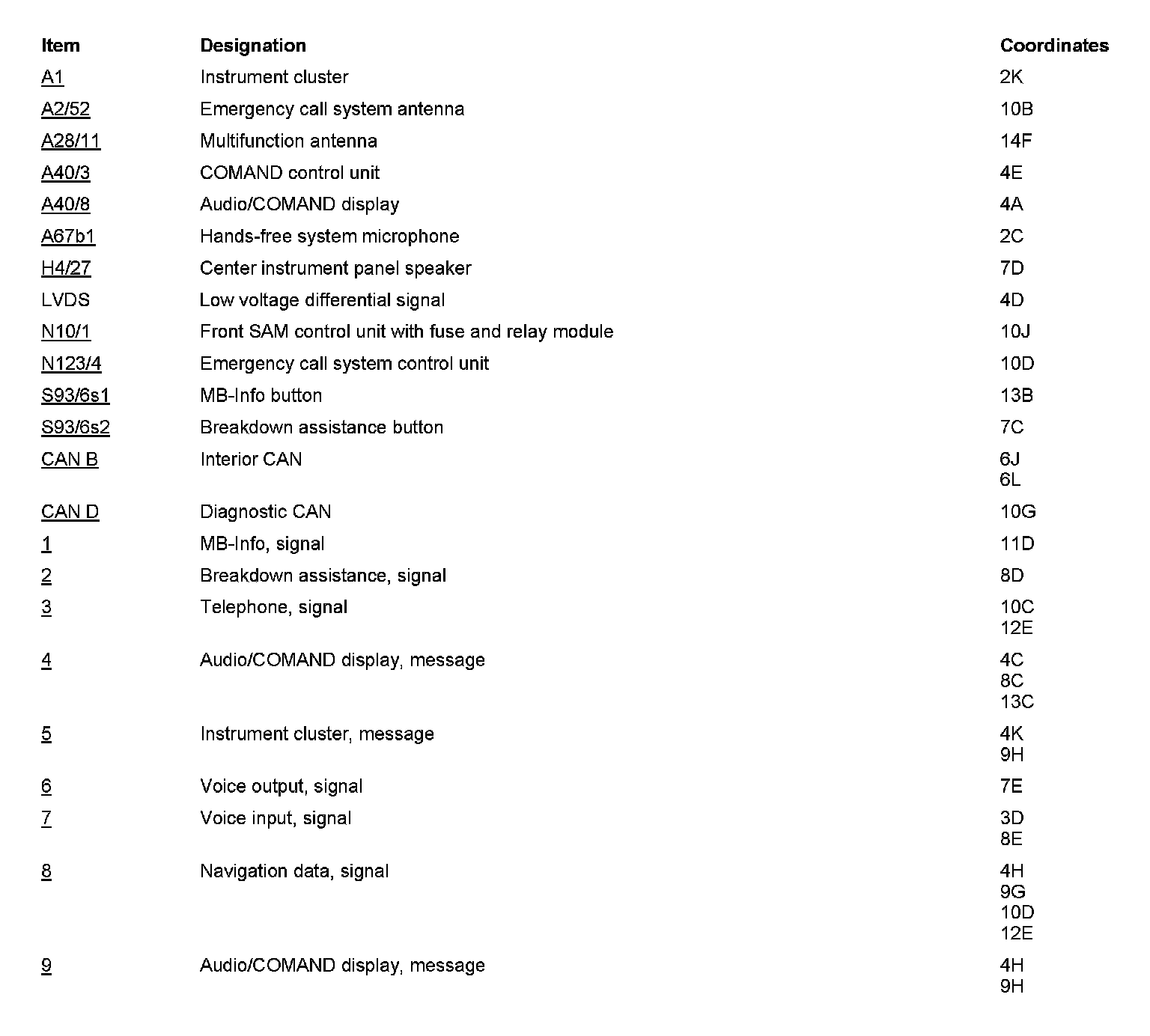

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
