Shift Selector Actuator: Service and Repair



AR27.19-P-0550EW Remove/install intelligent servo module
- Transmission 722.9

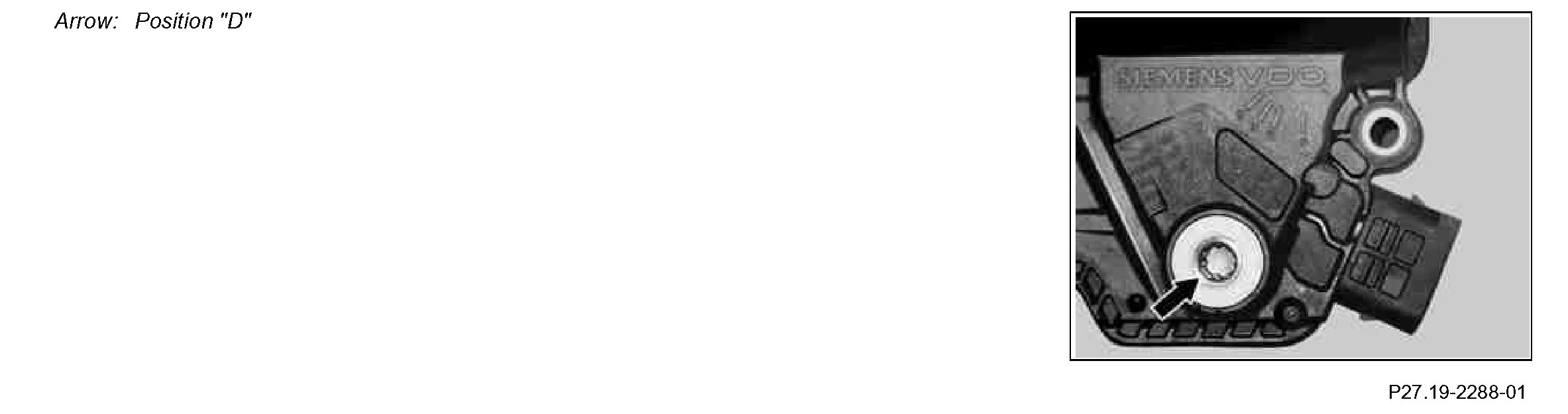

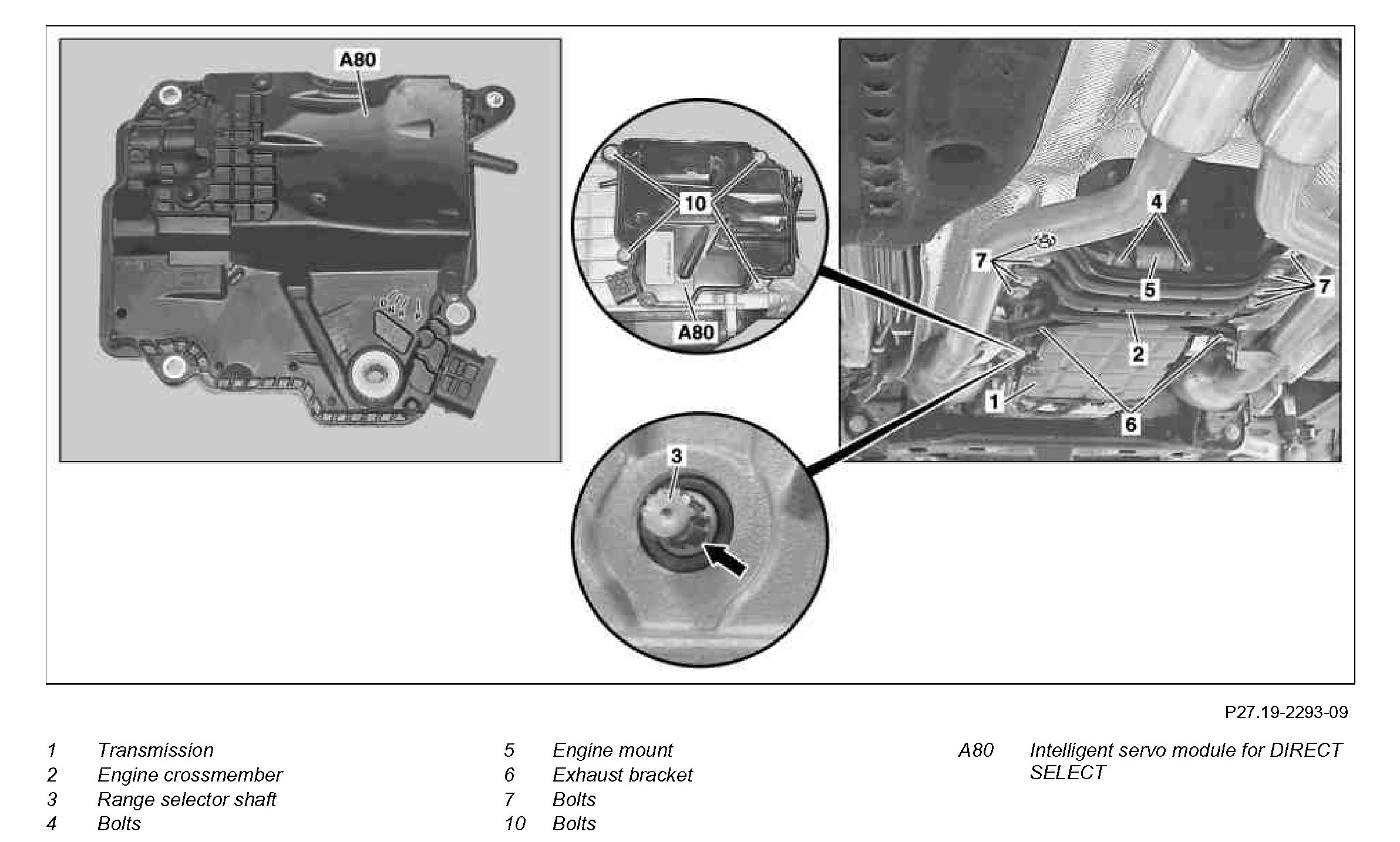

Component Identification:




Component Identification:

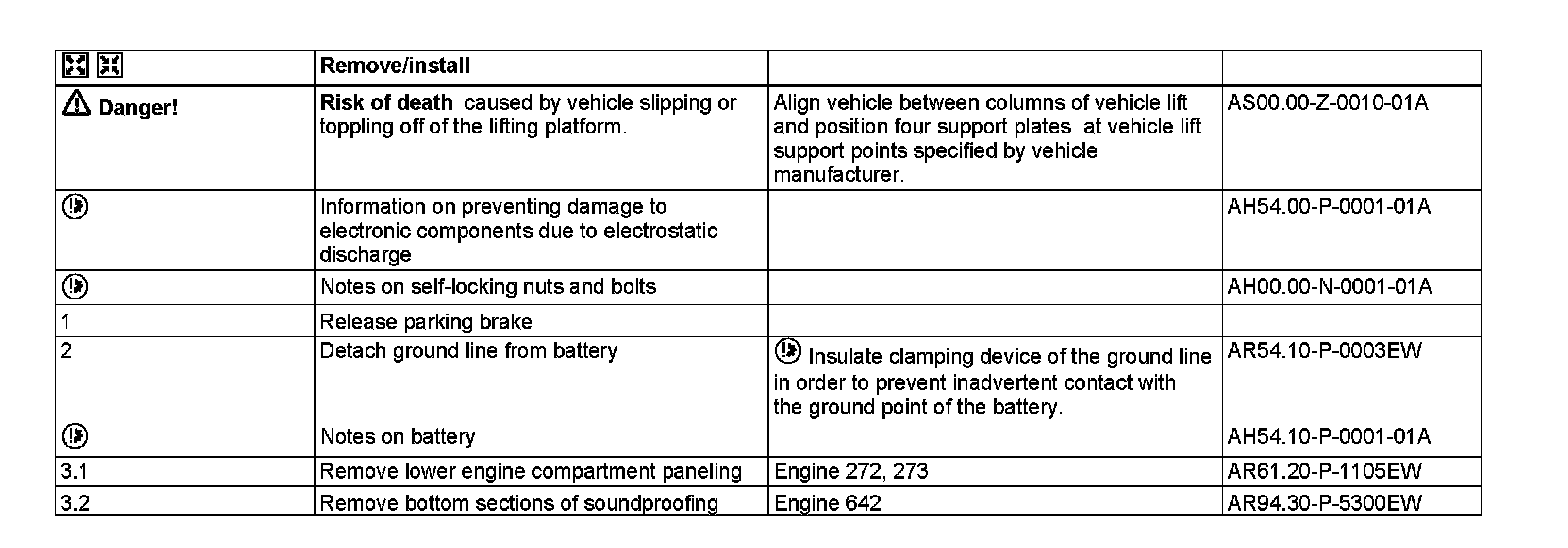

Steps 1-3.2:

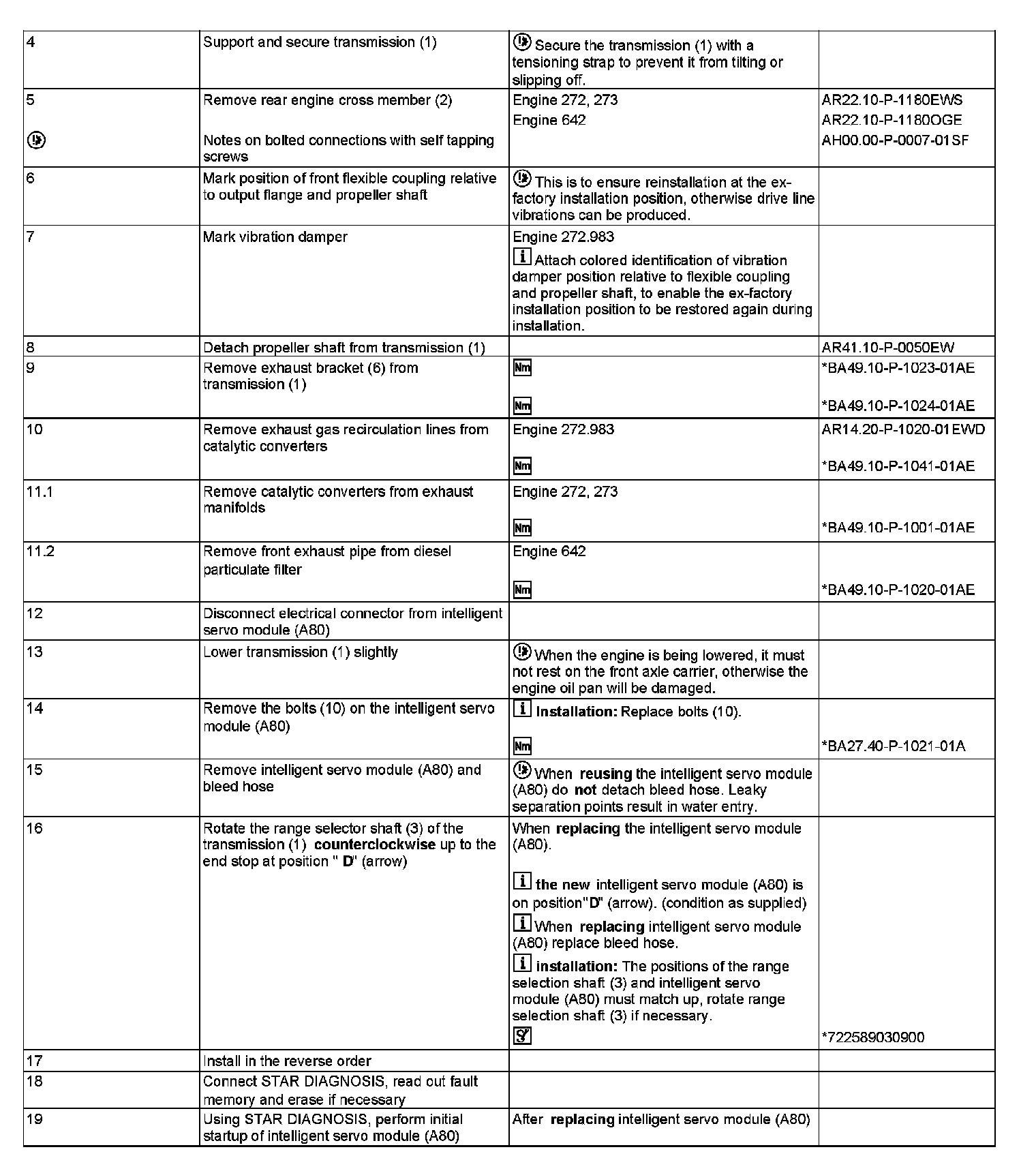

Steps 4-19:

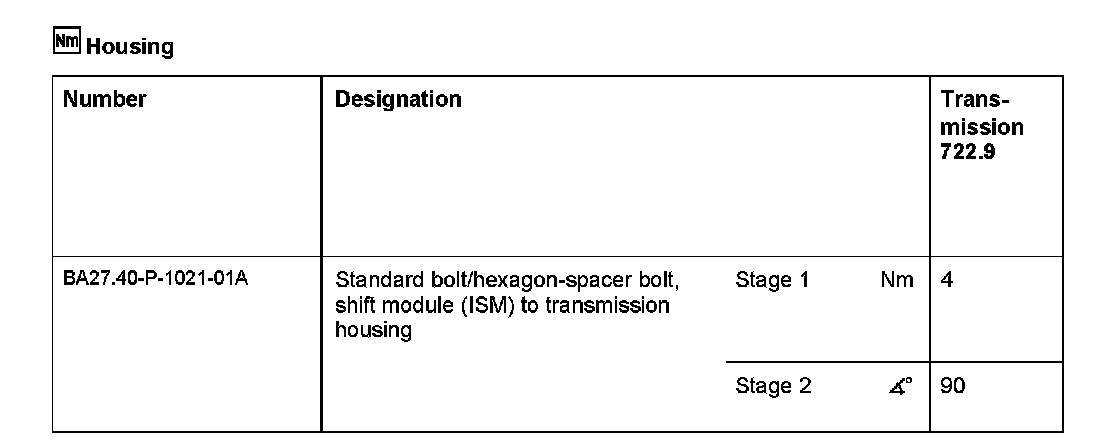

Housing:

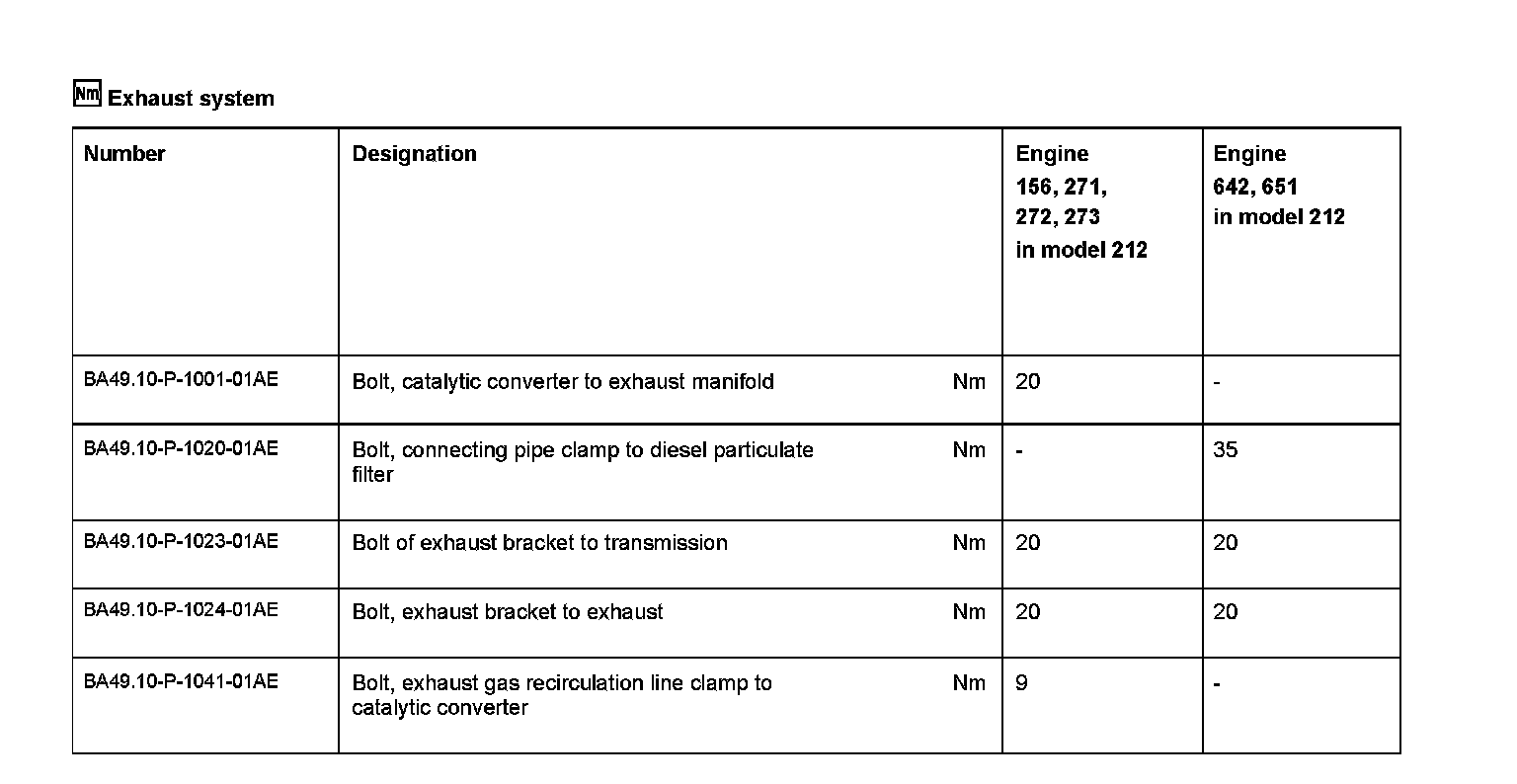

Exhaust system:

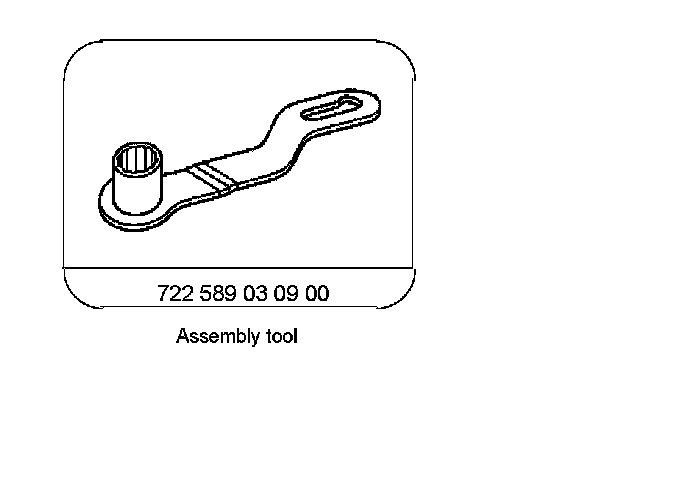

Special Tools:
