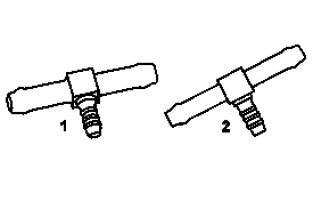

WS47.00-P-0035B 640 589 01 91 00 Connector Set




WS47.00-P-0035B 640 589 01 91 00 Connector Set
FG 47/ Set B
ENGINE 628, 629, 640, 642, 646, 647, 648





640 589 01 91 00

Use:
Set of connectors for shop-made manufacture of test cables for pressure measurement in the fuel low-pressure circuit for line diameters of 8 mm and 10 mm.
