Ignition Switch: Service and Repair

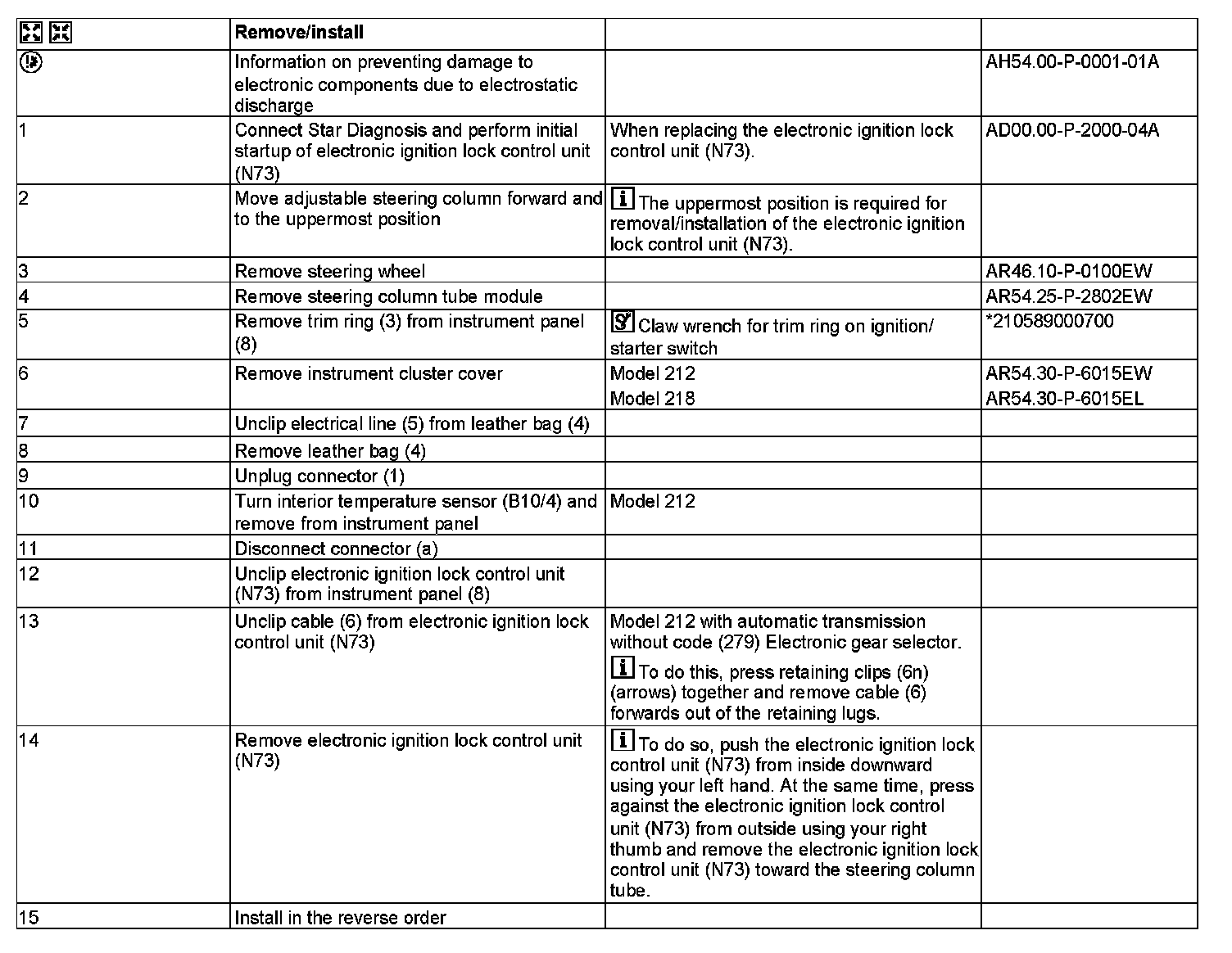

AR46.10-P-0810EW Electronic Ignition/Starter Switch (EZS) Removal And Installation
MODEL 212, 218

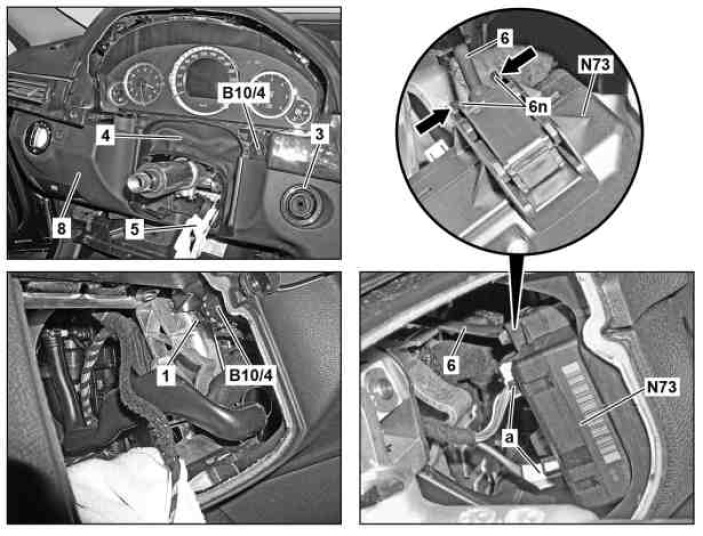

Shown on model 212

1 Connector
3 Trim ring
4 Leather bag
5 Electrical line
6 Cable
6n Retaining clips
8 Instrument panel

a Connector

B10/4 Interior temperature sensor
N73 Electronic ignition switch control unit








210 589 00 07 00
Claw-type wrench for rosette on ignition switch
