Turbo Boost Sensor: Service and Repair

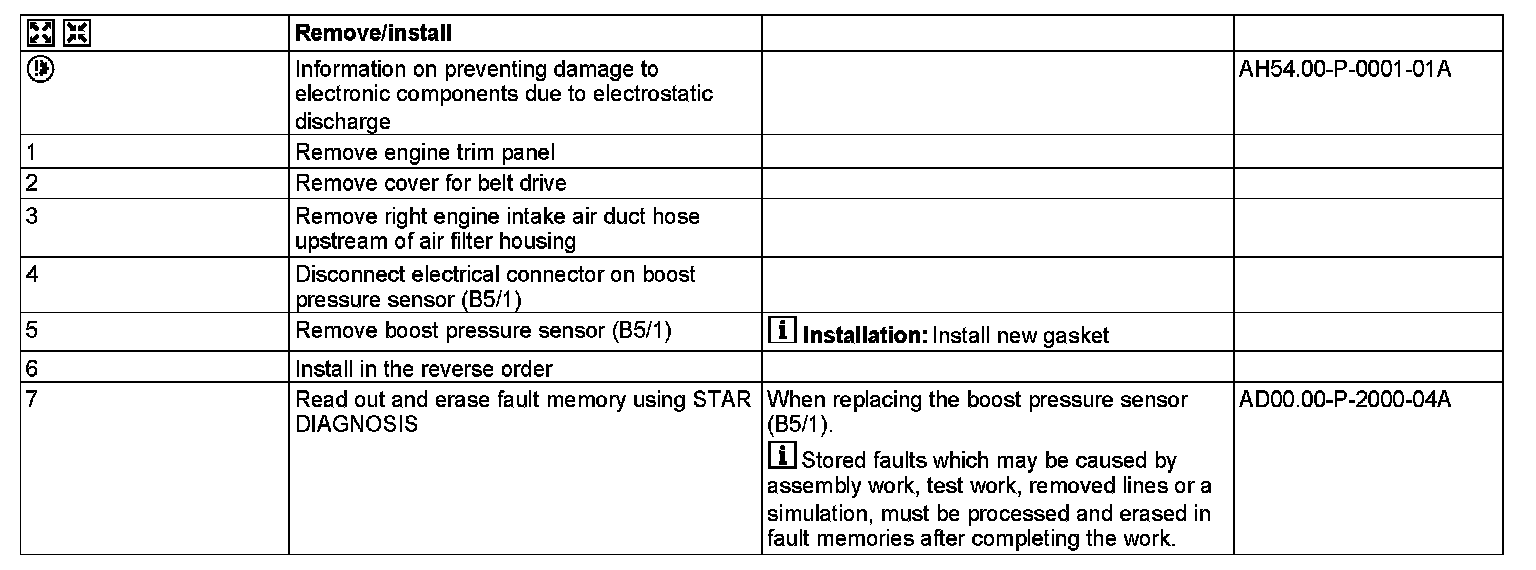

AR09.41-P-2006OGE Remove/install Boost Pressure Sensor
- ENGINES 642 in MODELS 207, 212, 218







B5/1 Boost pressure sensor
