Procedures

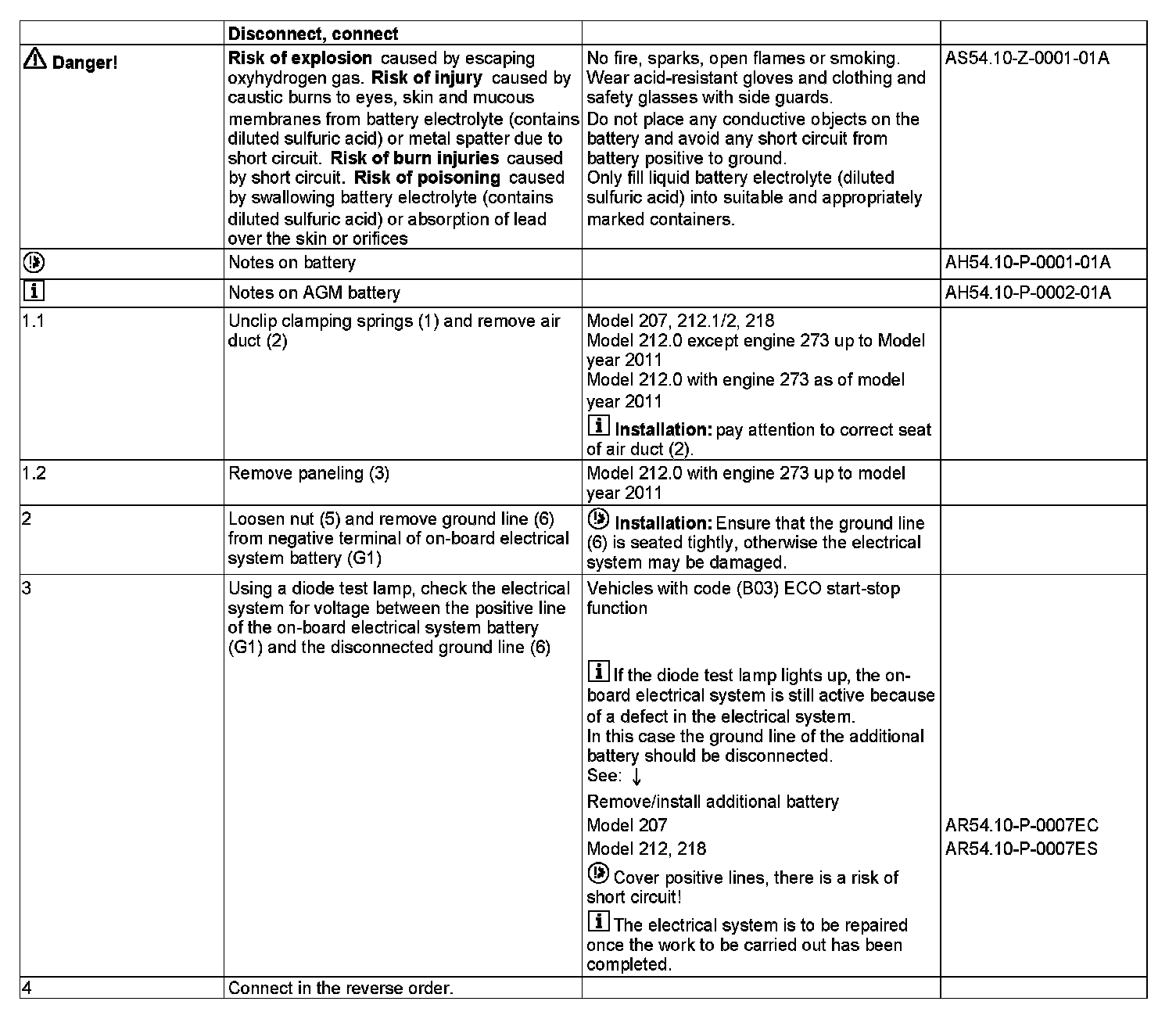

AR54.10-P-0003EW Disconnect/Connect Battery Ground Line
MODEL 207, 212, 218





Model 207, 212.1/2, 218
Model 212.0 except engine 273 up to model year 2011
Model 212.0 with engine 273 as of model year 2011
1 Tensioning springs
2 Air duct
5 Nut
6 Ground cable
G1 On-board electrical system battery

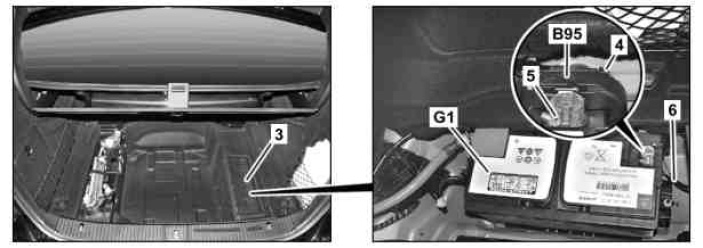

Model 212.0 with engine 273 up to model year 2011
3 Cover
5 Nut
6 Ground cable
G1 On-board electrical system battery
