Battery Current Sensor: Service and Repair
AR54.10-P-0002EW Remove/install Battery Sensor

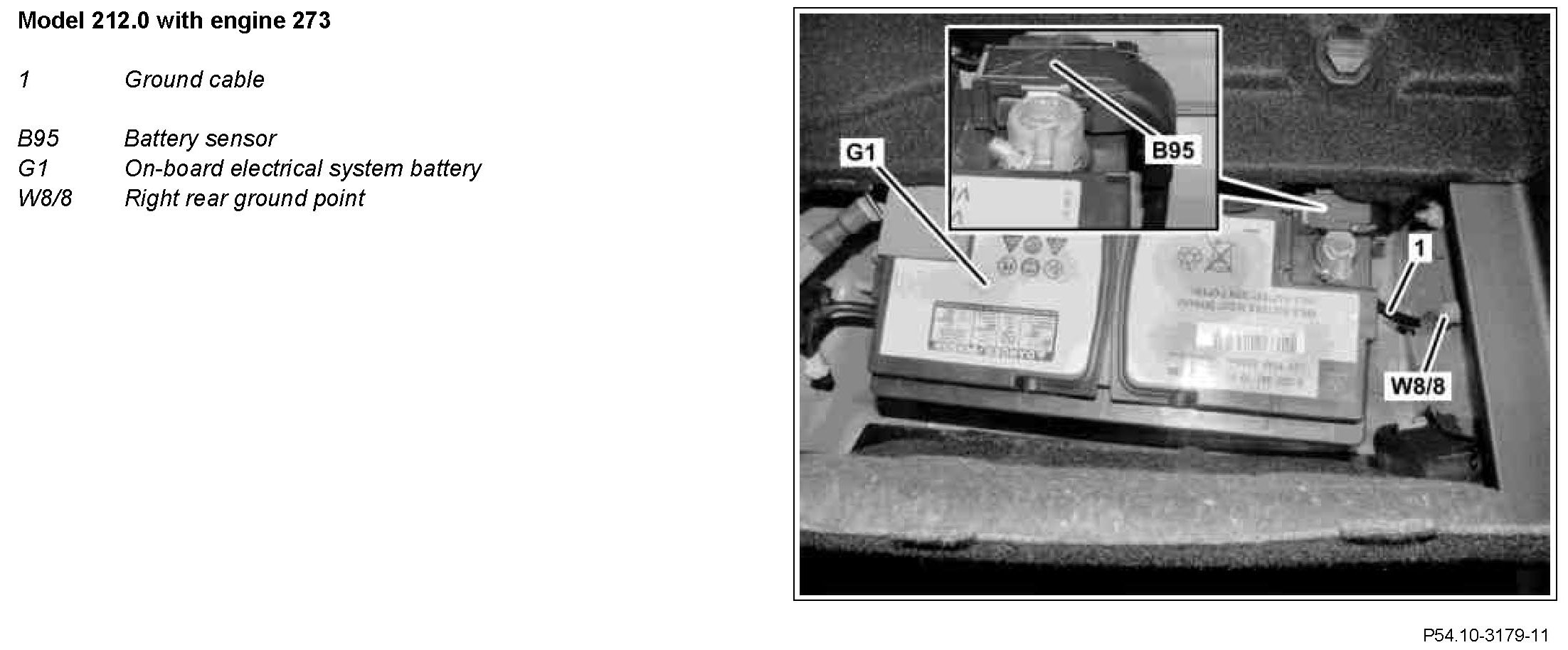

Component Identification:
Component Identification:

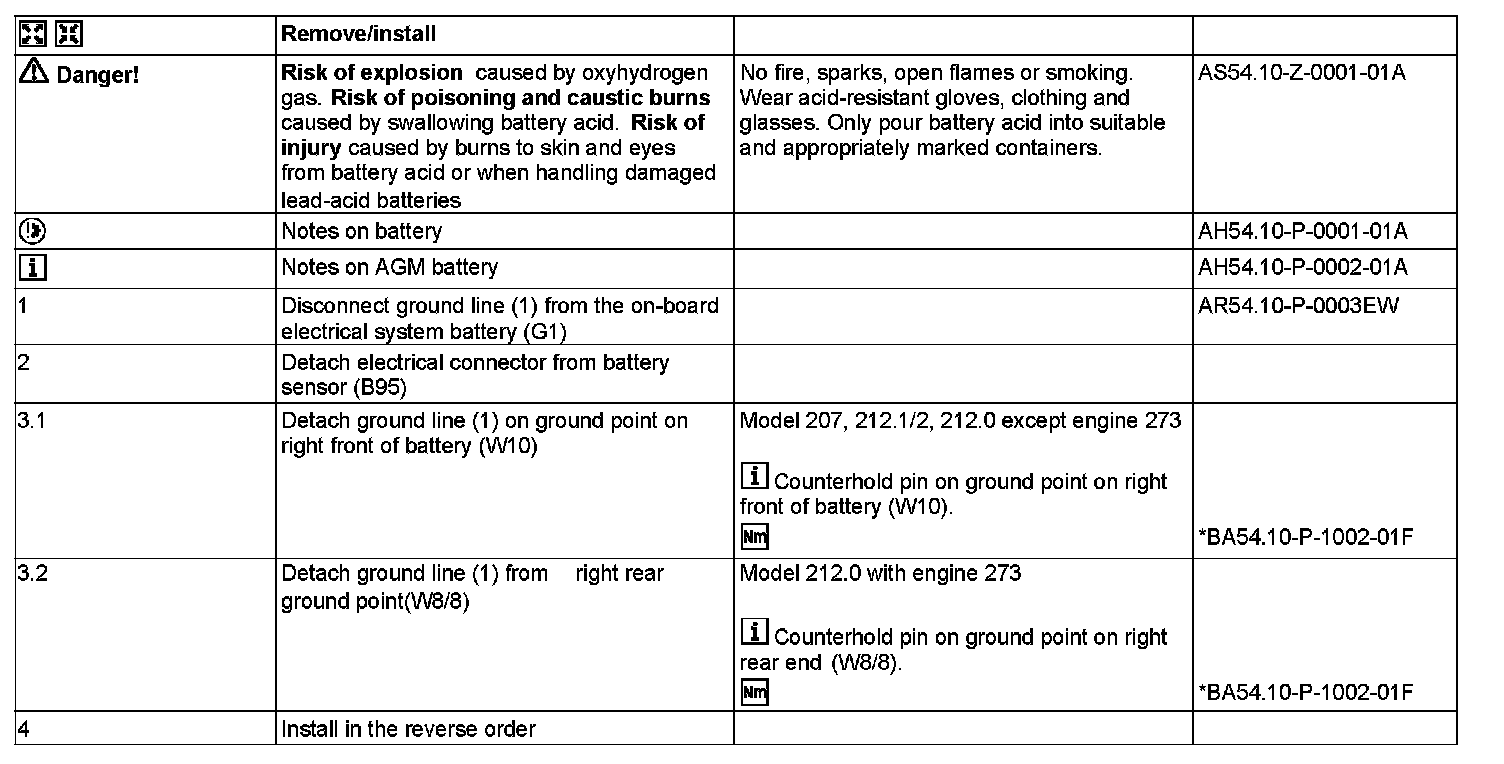

Steps 1-4:

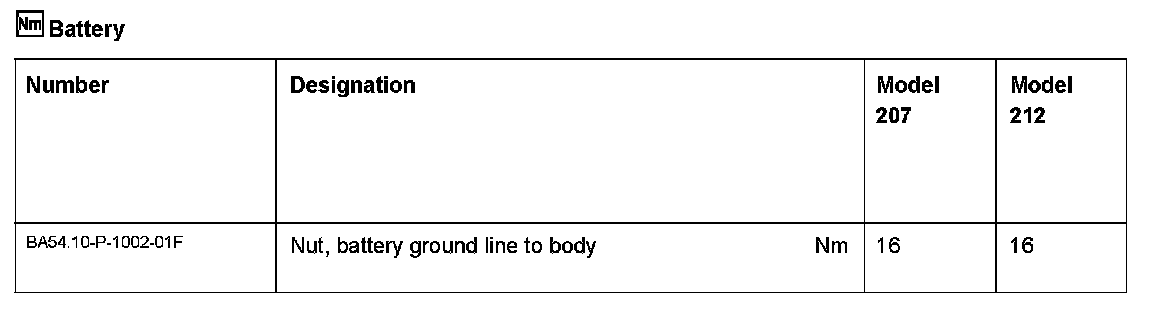

Battery:
