Removal and Replacement

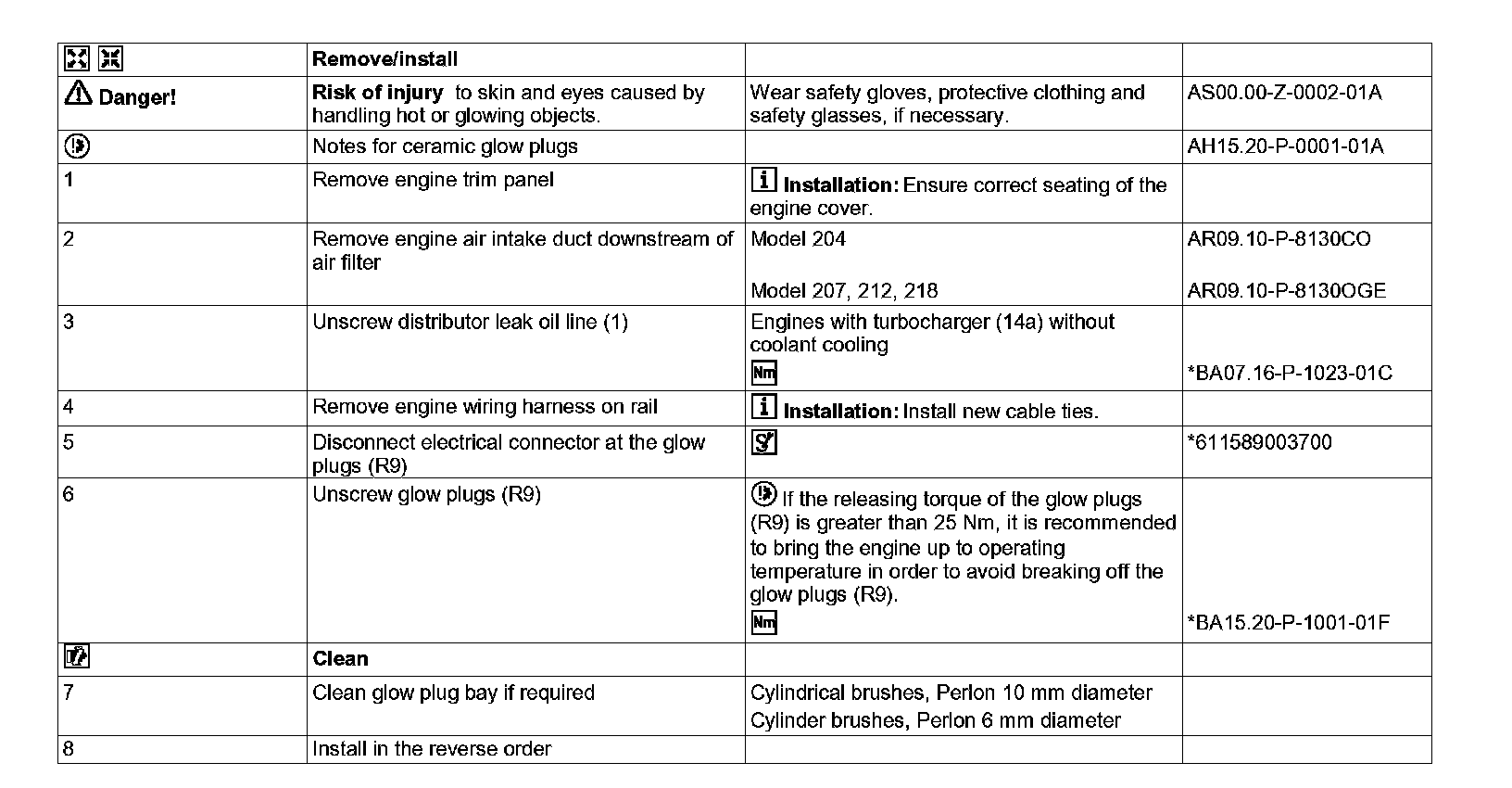

AR15.20-P-4111CO Remove/Install Glow Plugs
-ENGINES 642 in MODEL 204, 207, 212, 218

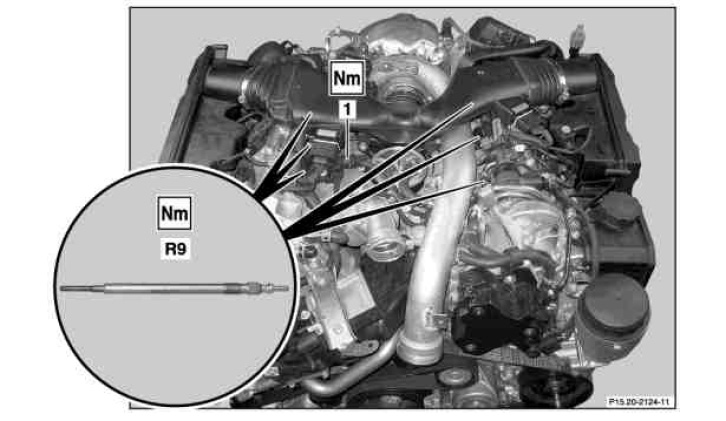

Shown on ENGINE 642.9

1 Distributor leak oil line

R9 Glow plugs





Turbocharger without coolant cooling

14a Turbocharger





Turbocharger with coolant cooling

14b Turbocharger
15 Coolant line














611 589 00 37 00
Pliers
