Glow Plug System: Diagrams

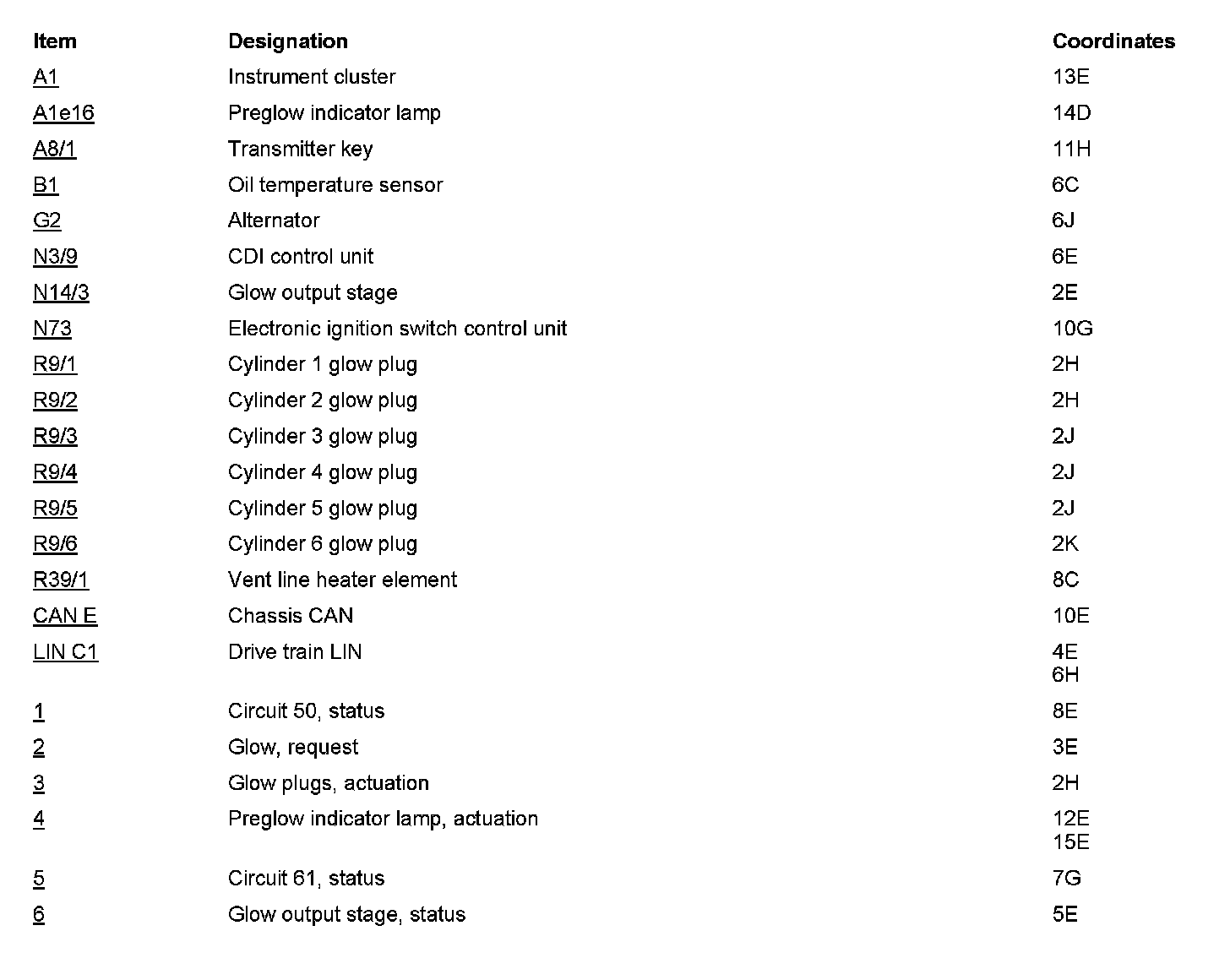

PE15.20-P-2051DAF Electrical Function Schematic For Preheating
ENGINE 642.8 in MODEL 212






















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
