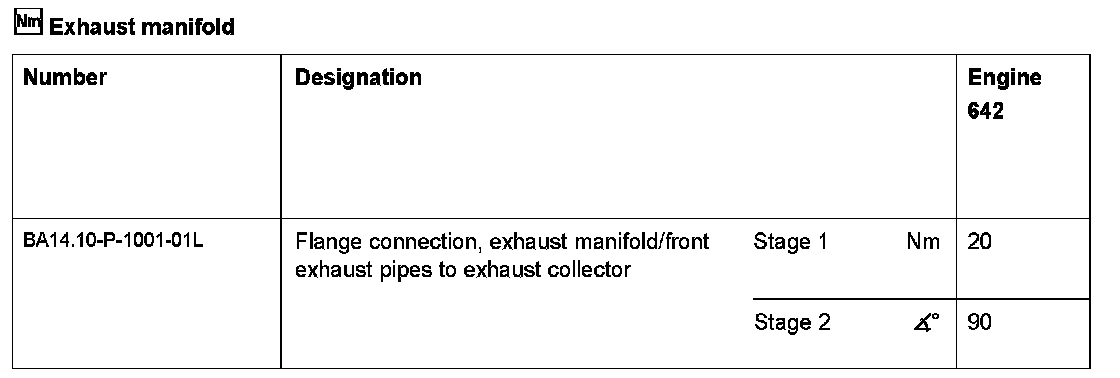

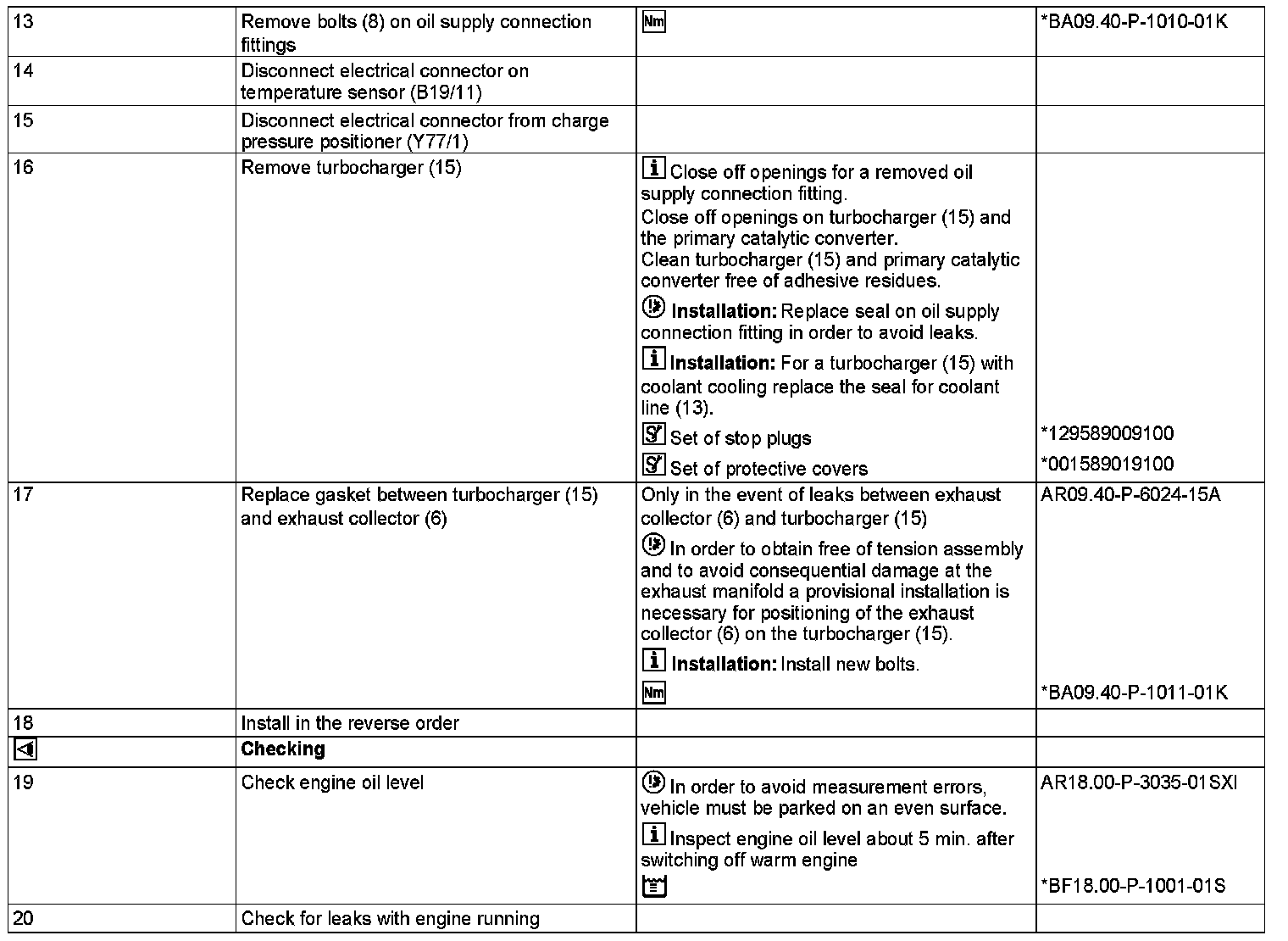

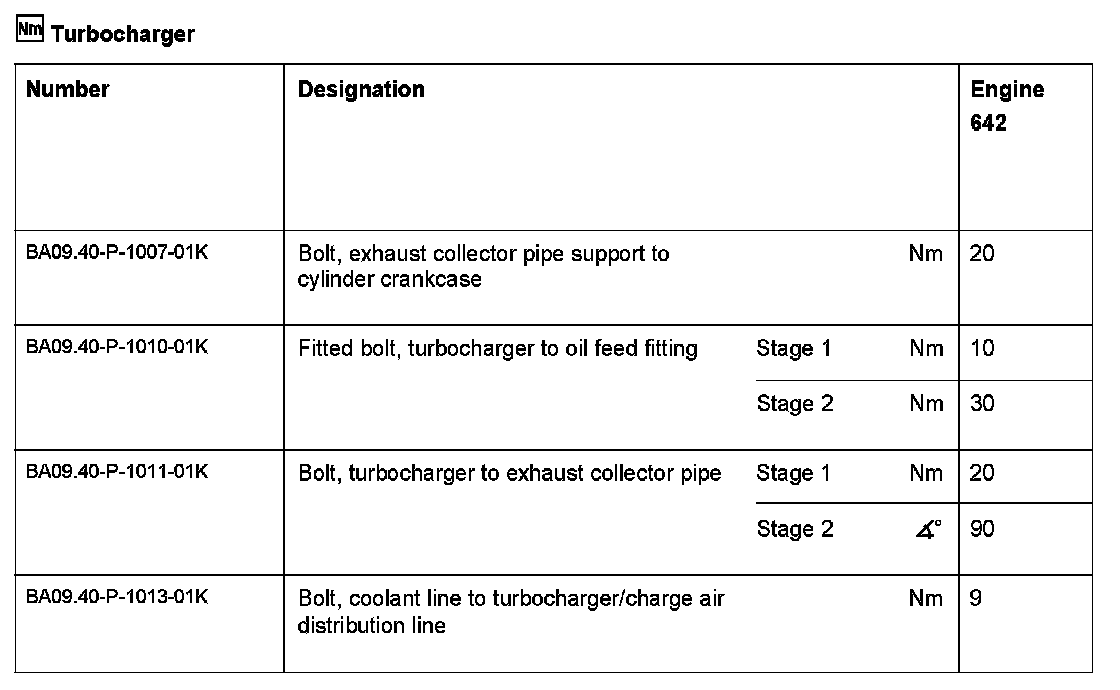

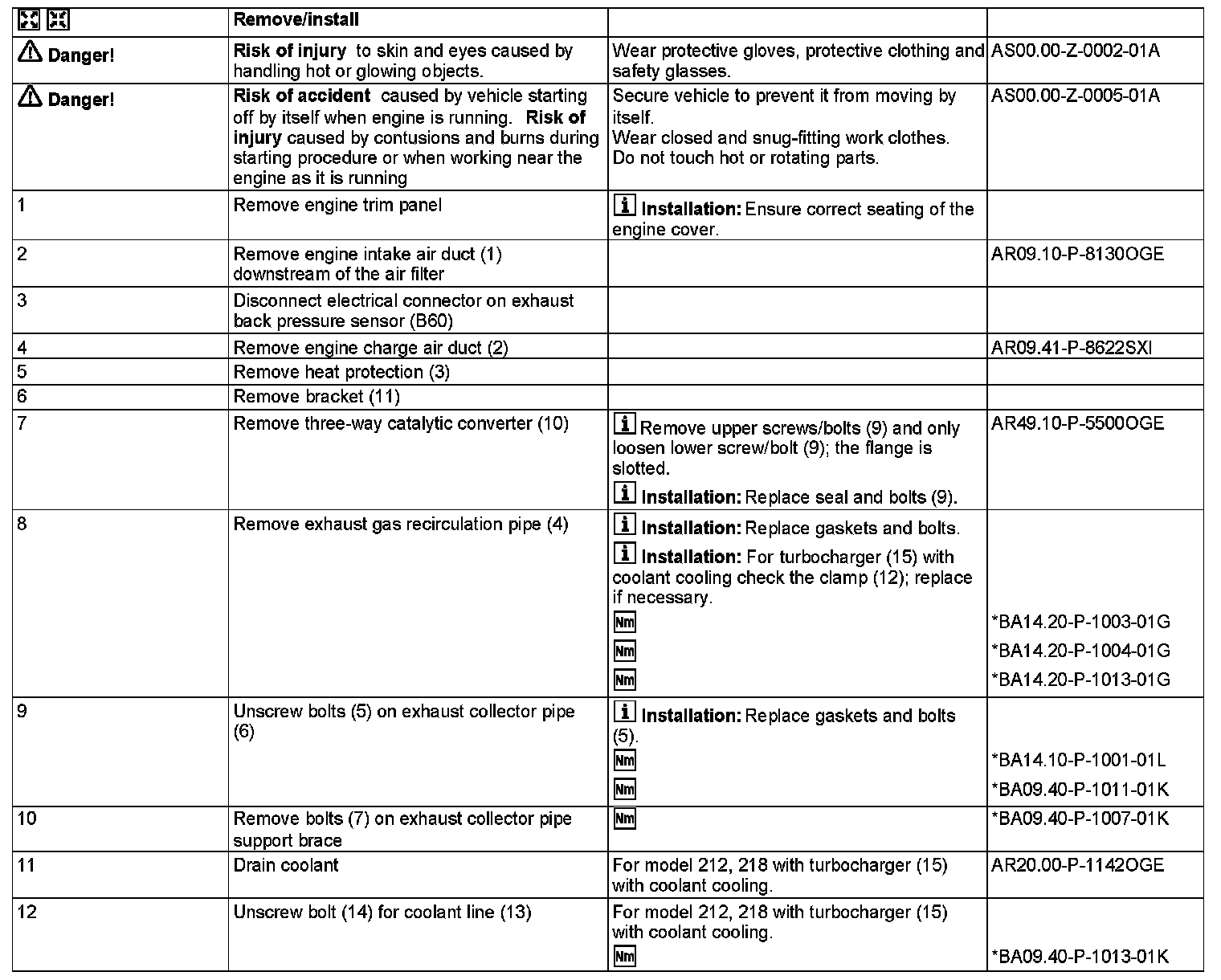

AR09.40-P-6020OGE Remove/Install Turbocharger

AR09.40-P-6020OGE Remove/install Turbocharger
- ENGINES 642 in MODELS 207, 212, 218

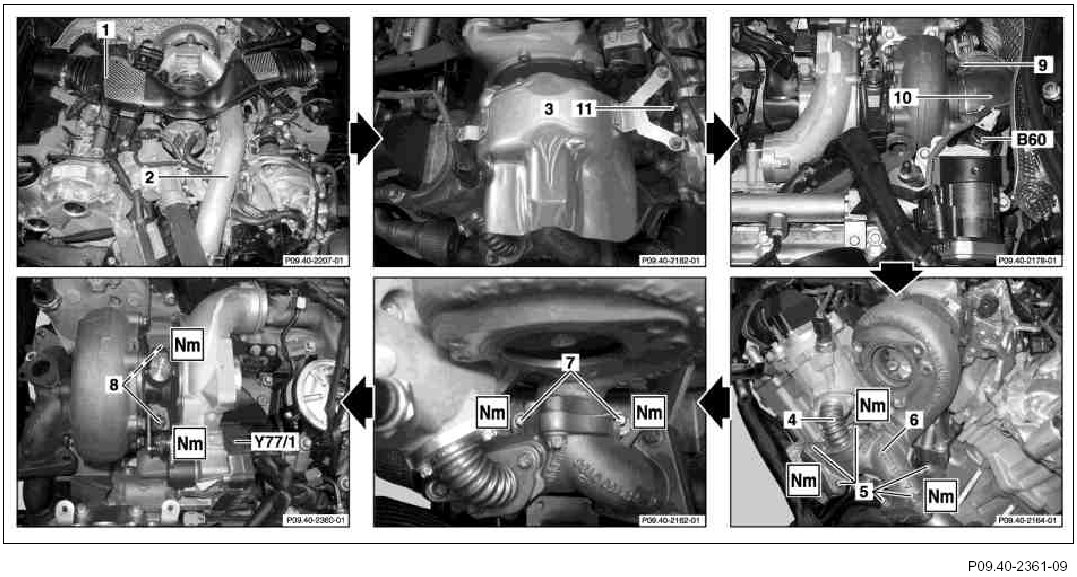

Turbocharger without coolant cooling







1 Engine air intake duct
2 Engine charge air duct
3 Heat protection
4 Exhaust gas recirculation pipe
5 Bolts
6 Exhaust collector pipe
7 Bolts
8 Bolts
9 Screw
10 Catalytic converter
11 Bracket
B60 Exhaust back pressure sensor
Y77/1 Charge pressure positioner

Turbocharger with coolant cooling

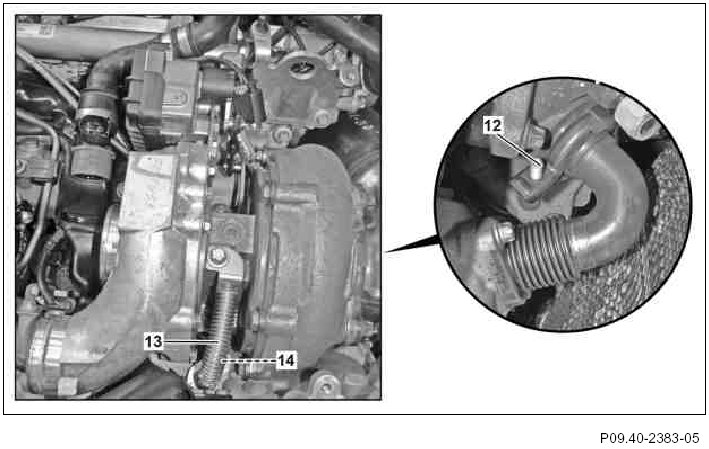

12 Clamp
13 Coolant line
14 Screw

Turbocharger without coolant cooling

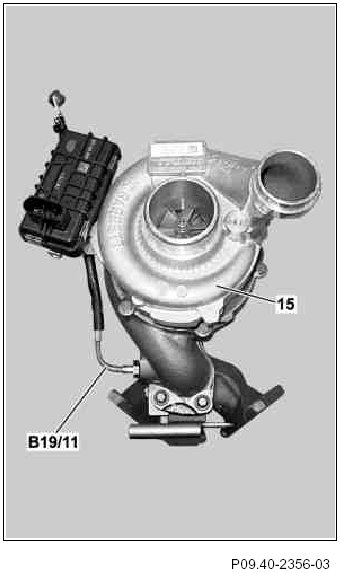

15 Turbocharger
B19/11 Temperature sensor upstream of turbocharger


























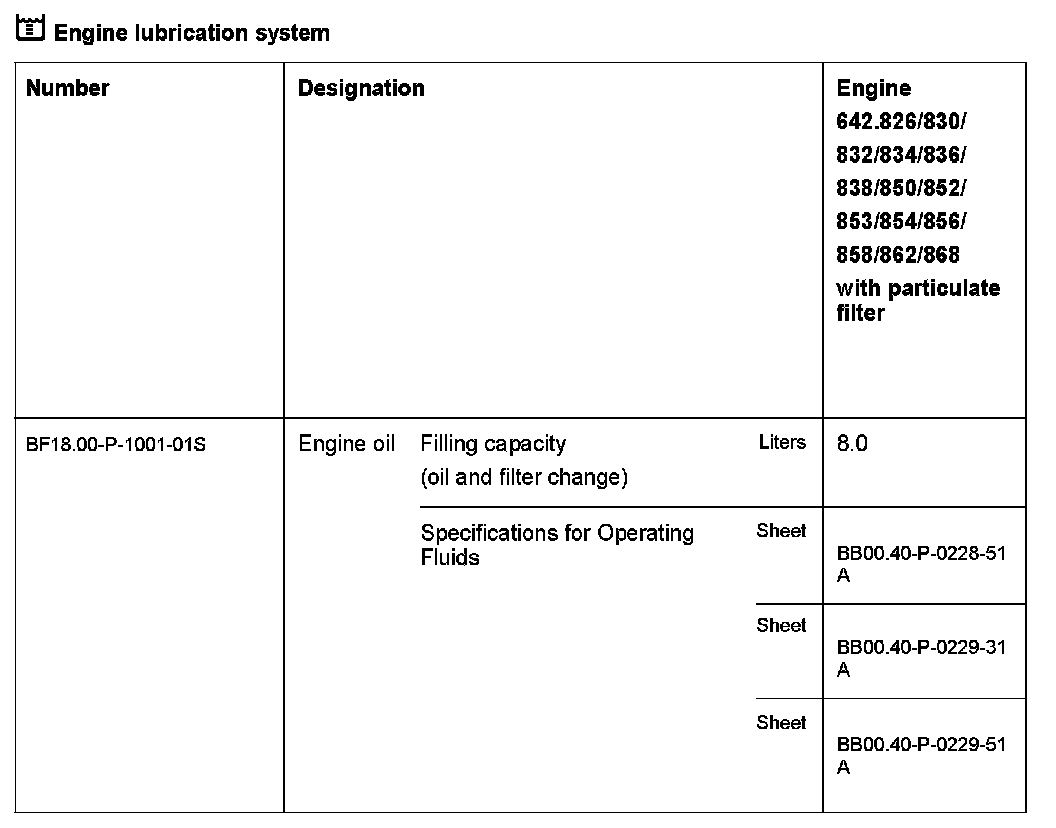

001 589 01 91 00, Set of protective covers







129 589 00 91 00, Set of stop plugs
