AR09.41-P-8624OGE Remove/Install Engine Charge Air Channel Downstream of Charge Air Cooler




AR09.41-P-8624OGE Remove/install Engine Charge Air Channel Downstream Of Charge Air Cooler
- ENGINES 642 in MODELS 207, 212, 218

Shown on model 212

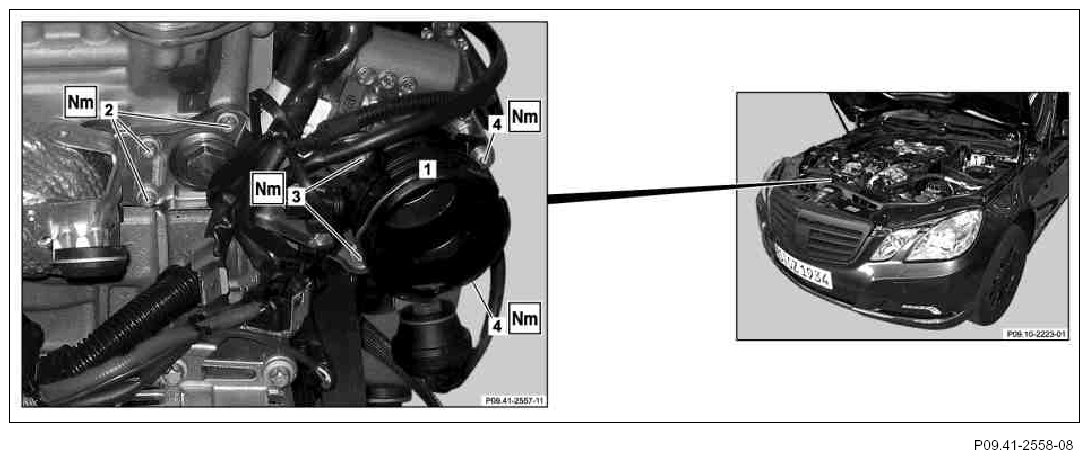

1 Engine charge air duct downstream of charge air cooler
2 Bolts
3 Bolts
4 Bolt
