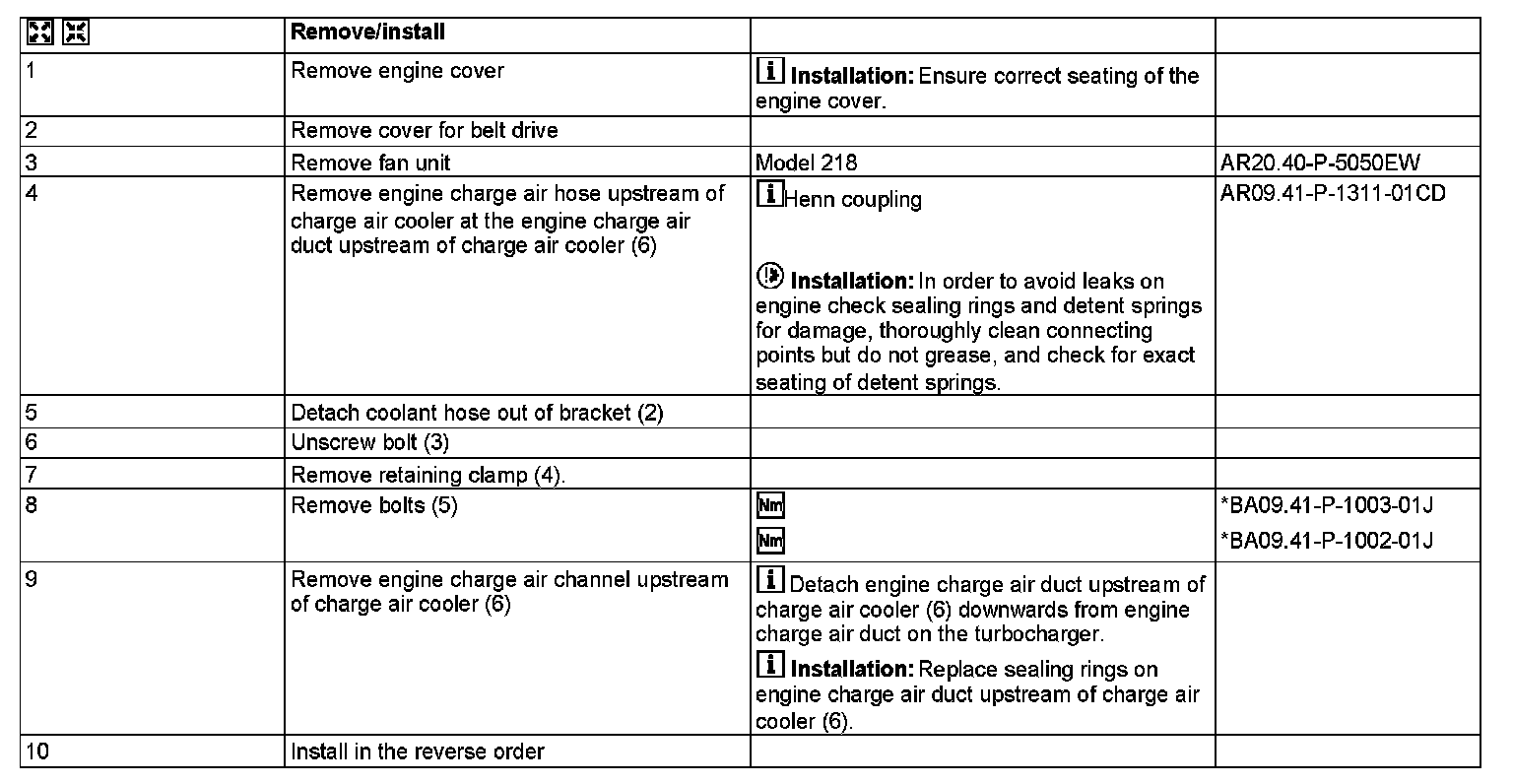

AR09.41-P-8623OGE Remove/Install Engine Charge Air Duct Upstream of Charge Air Cooler

AR09.41-P-8623OGE Remove/install Engine Charge Air Duct Upstream Of Charge Air Cooler
- ENGINES 642 in MODELS 207, 212, 218

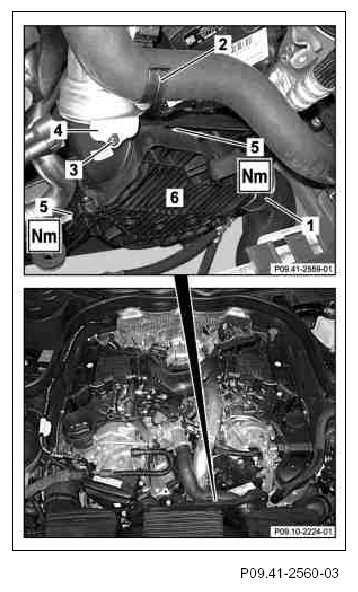

Shown on model 212







1 Henn coupling
2 Bracket
3 Bolt
4 Retaining clamp
5 Bolt
6 Engine charge air duct upstream of charge air cooler
