AR09.41-P-8622SXI Remove/Install Engine Charge Air Channel At Turbocharger

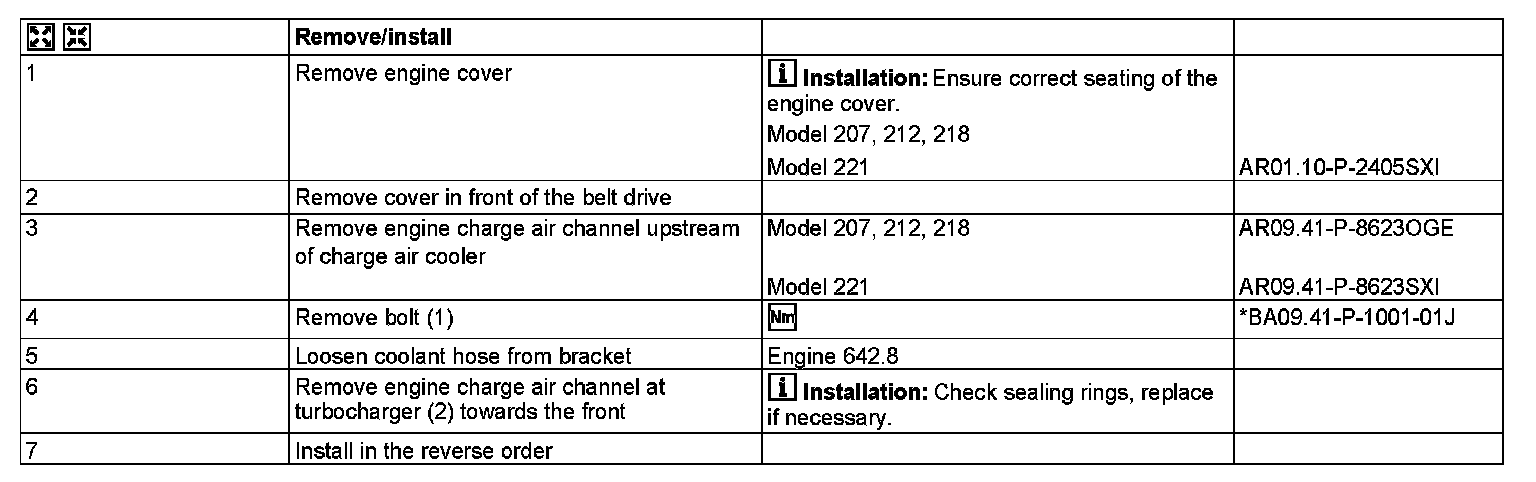

AR09.41-P-8622SXI Remove/install Engine Charge Air Channel At Turbocharger
- ENGINES 642 in MODEL 207, 212, 218, 221

Shown on engine 642.9

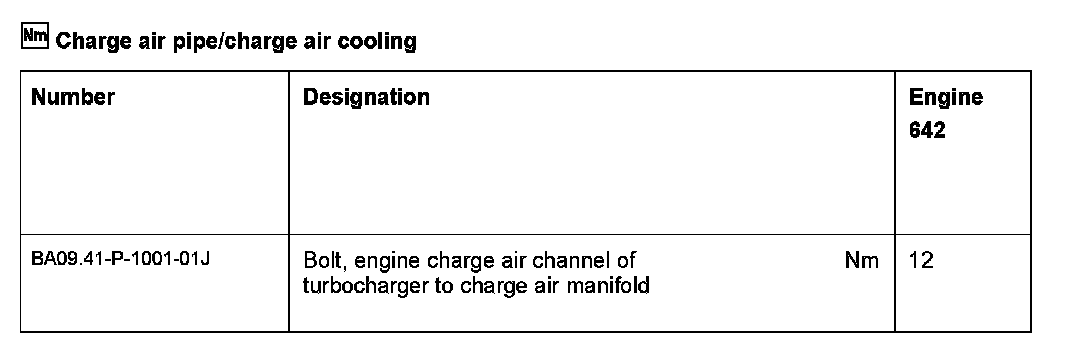

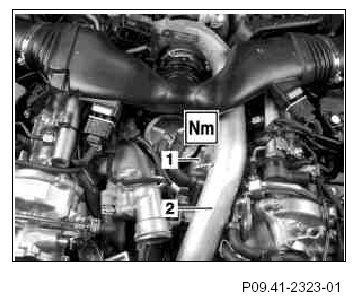

1 Screw
2 Engine charge air duct at turbocharger
