Throttle Body: Service and Repair

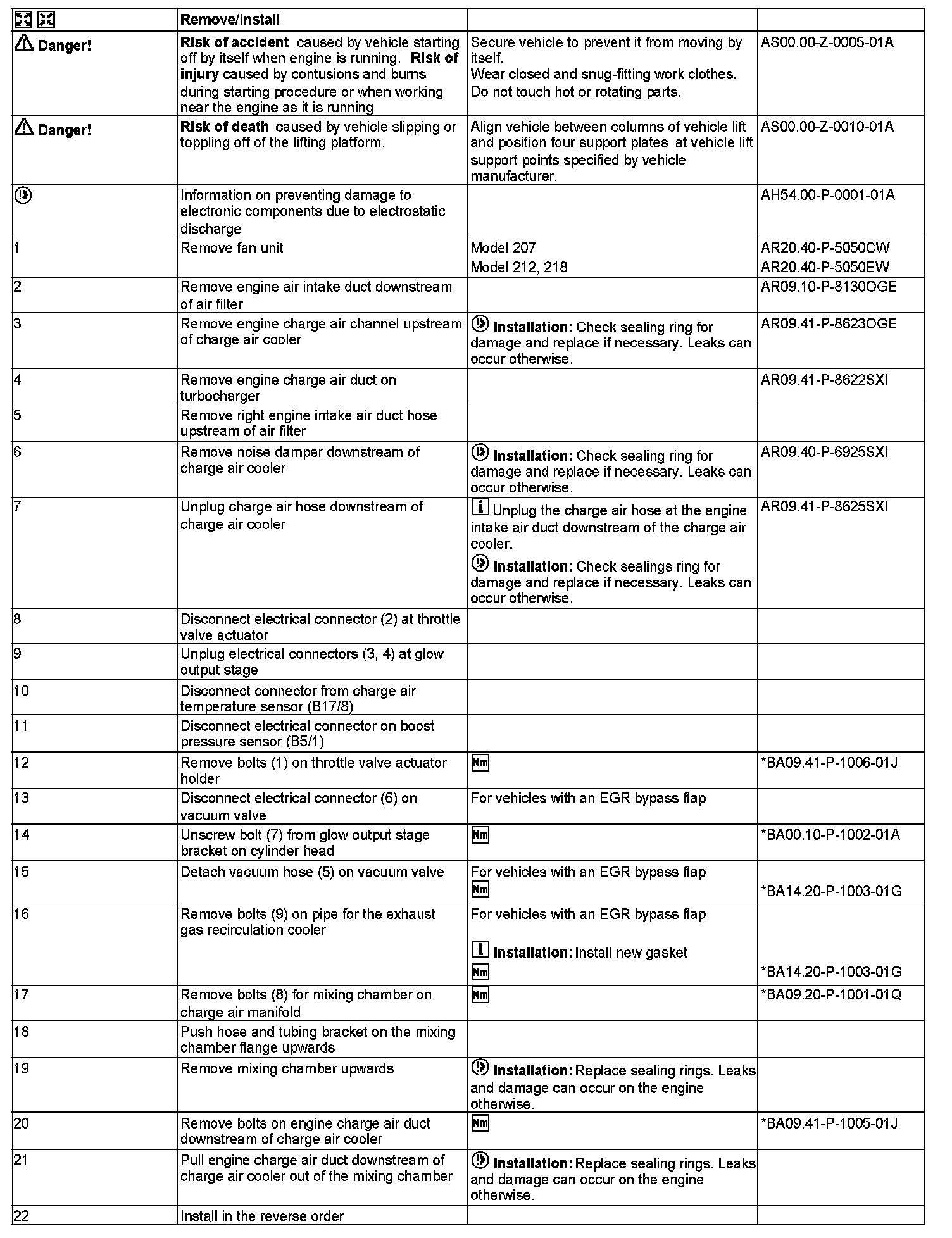

AR09.20-P-1320OGE Remove/Install Mixing Chamber
ENGINES 642 in MODELS 207, 212, 218

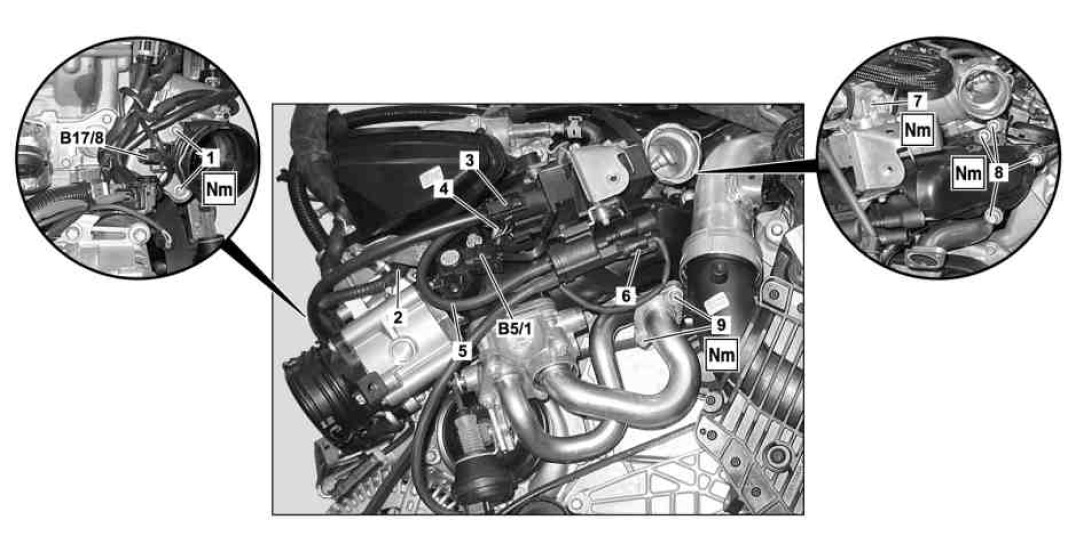

1 Bolts
2 Electrical connector
3 Electrical connector
4 Electrical connector
5 Vacuum hose
6 Electrical connector
7 Screw
8 Bolts
9 Bolts

B5/1 Boost pressure sensor
B17/8 Charge air temperature sensor
