Fuel/Water Separator: Service and Repair

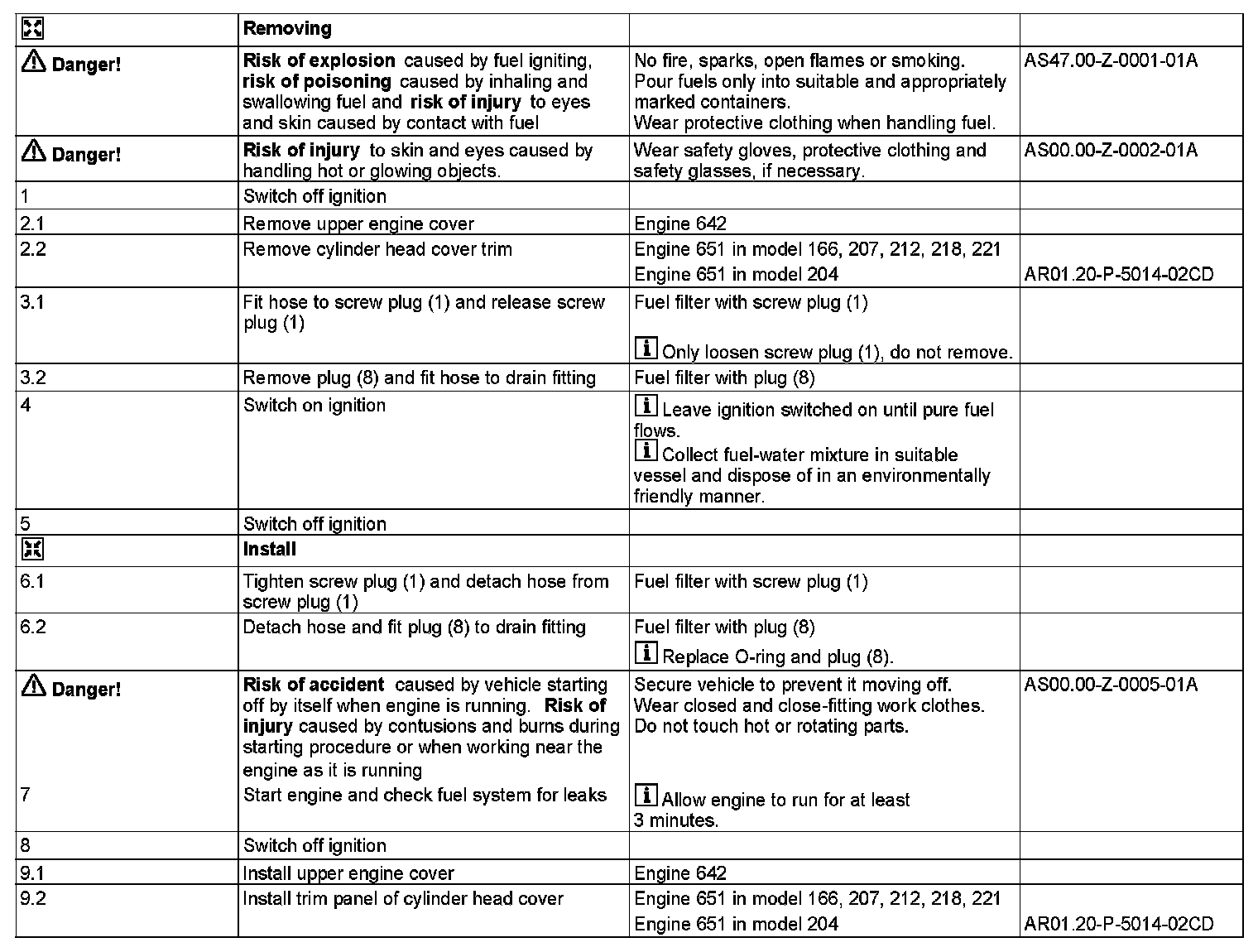

AP47.20-P-0794CWD Remove Water From Fuel System Water Separator
- ENGINE 642, 651 in MODEL 204, 207, 212 with water separator
- ENGINE 651 in MODEL 221
- ENGINE 642, 651 in MODEL 166, 218

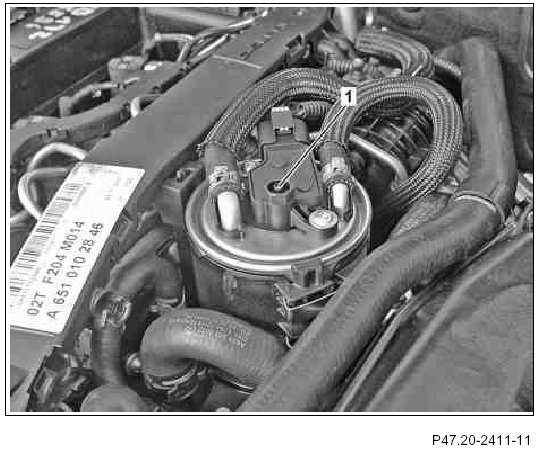

Shown on engine 651, fuel filter with screw plug







1 Screw plug

Shown on engine 642, fuel filter with plugs







2 Plug
