Fuel Supply Line: Service and Repair

AR47.20-P-5510-01EW Disconnect Fuel Line, Stick Together

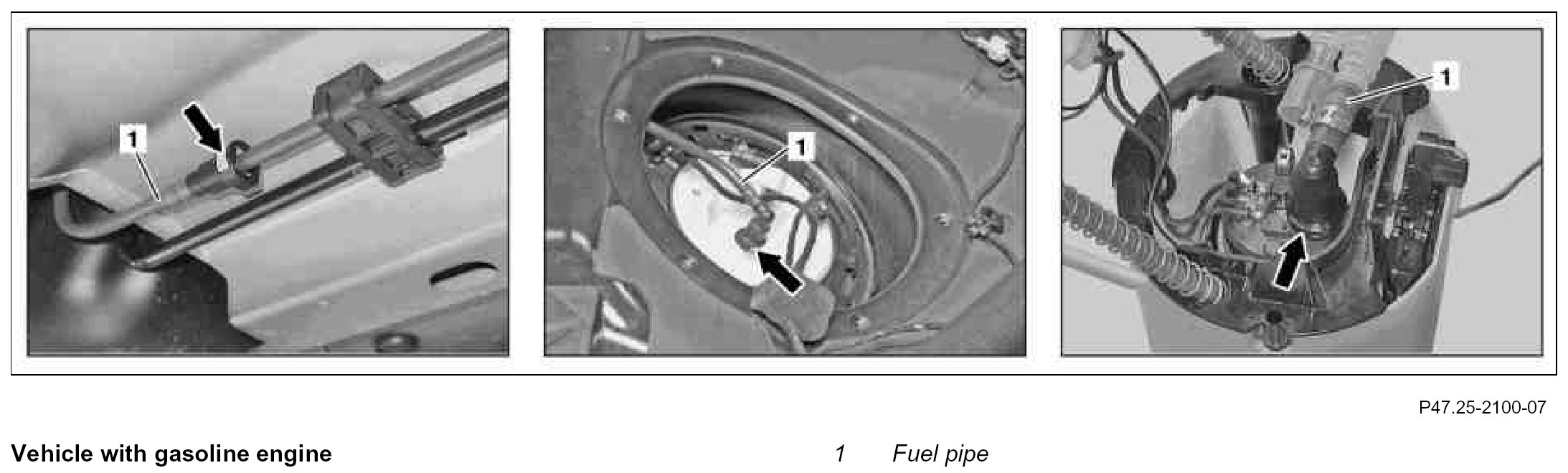

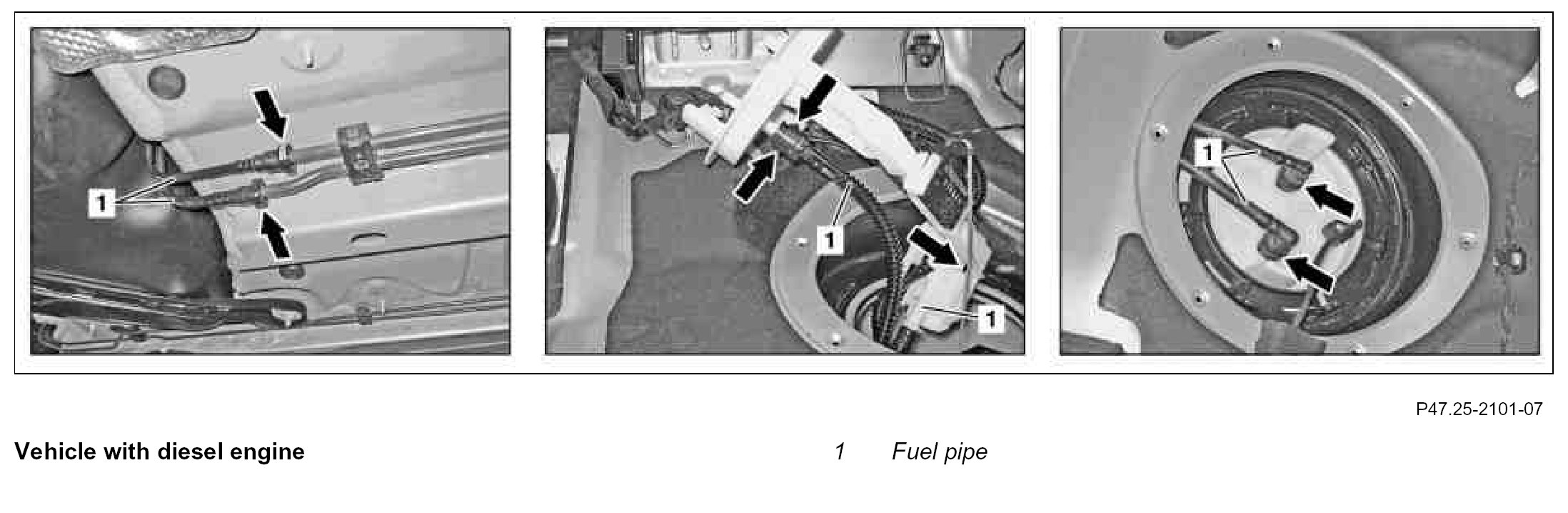

Component Identification:

Detach fuel line (1)
1 Press lock for fuel line (1) by hand or with a screwdriver in the direction of the arrow and detach fuel line (1) from fitting or fuel line.

Mount fuel line (1).
2 Place fuel line (1) on fitting or fuel line.
Check for correct locking by pulling on the connector.
