Fuel Pump: Service and Repair

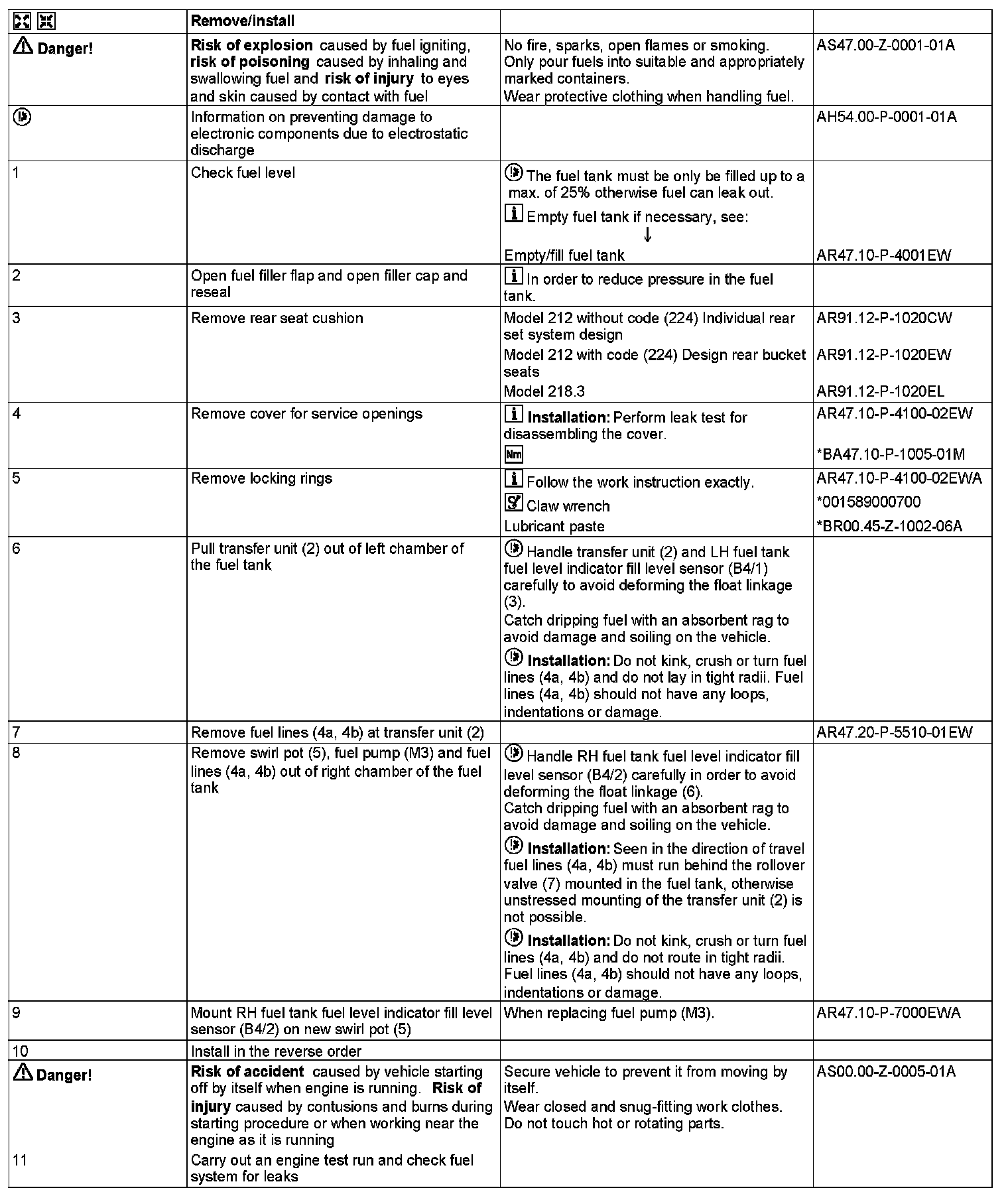

AR47.20-P-5710EWA Remove/install Fuel Pump
- ENGINES 642, 651 in MODEL 212, 218







2 Transfer unit
3 Float linkage
4a Fuel line
4b Fuel line
5 Splash bowl
6 Float linkage
B4/1 Fuel tank fuel level indicator fill level sensor, left
B4/2 Fuel tank fuel level indicator fill level sensor, right
M3 Fuel pump
















001 589 00 07 00, Claw-type wrench
