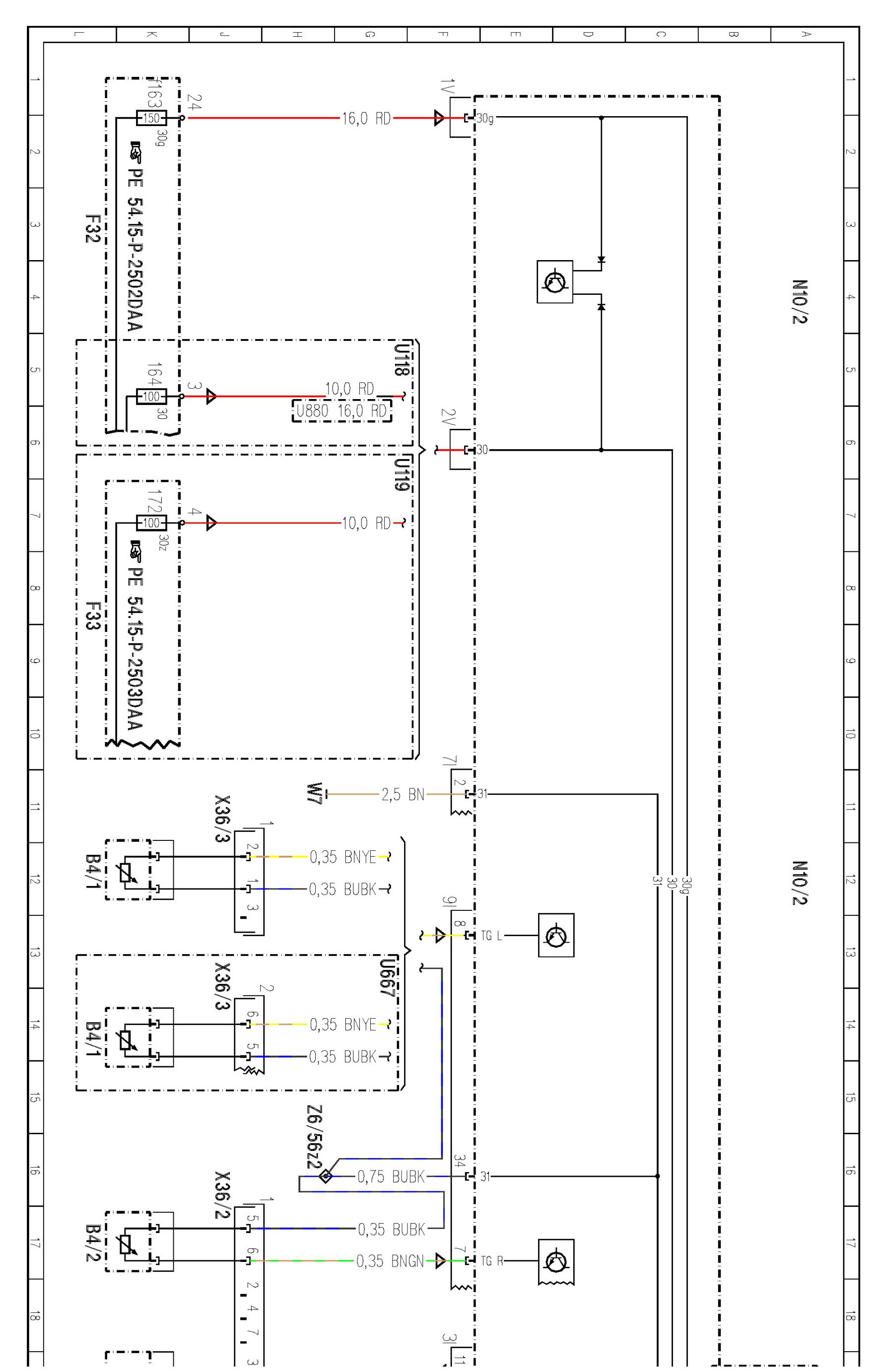

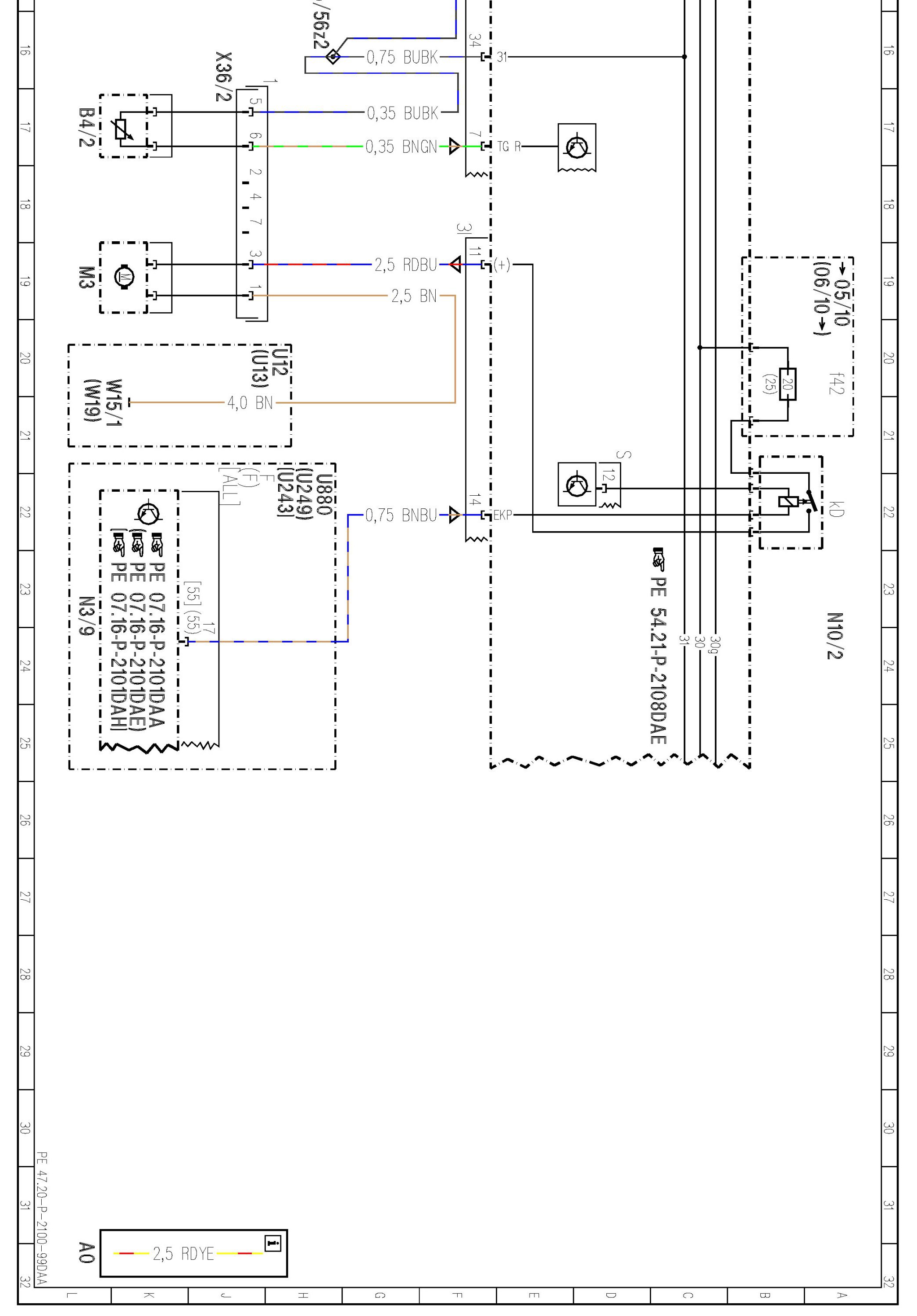

PE47.20-P-2100DAA Fuel Pump
PE47.20-P-2100DAA Fuel Pump
PE47.20-P-2100DAA
Fuel Pump
ENGINE 642, 651 in MODEL 212 vehicles
-
without control unit N118

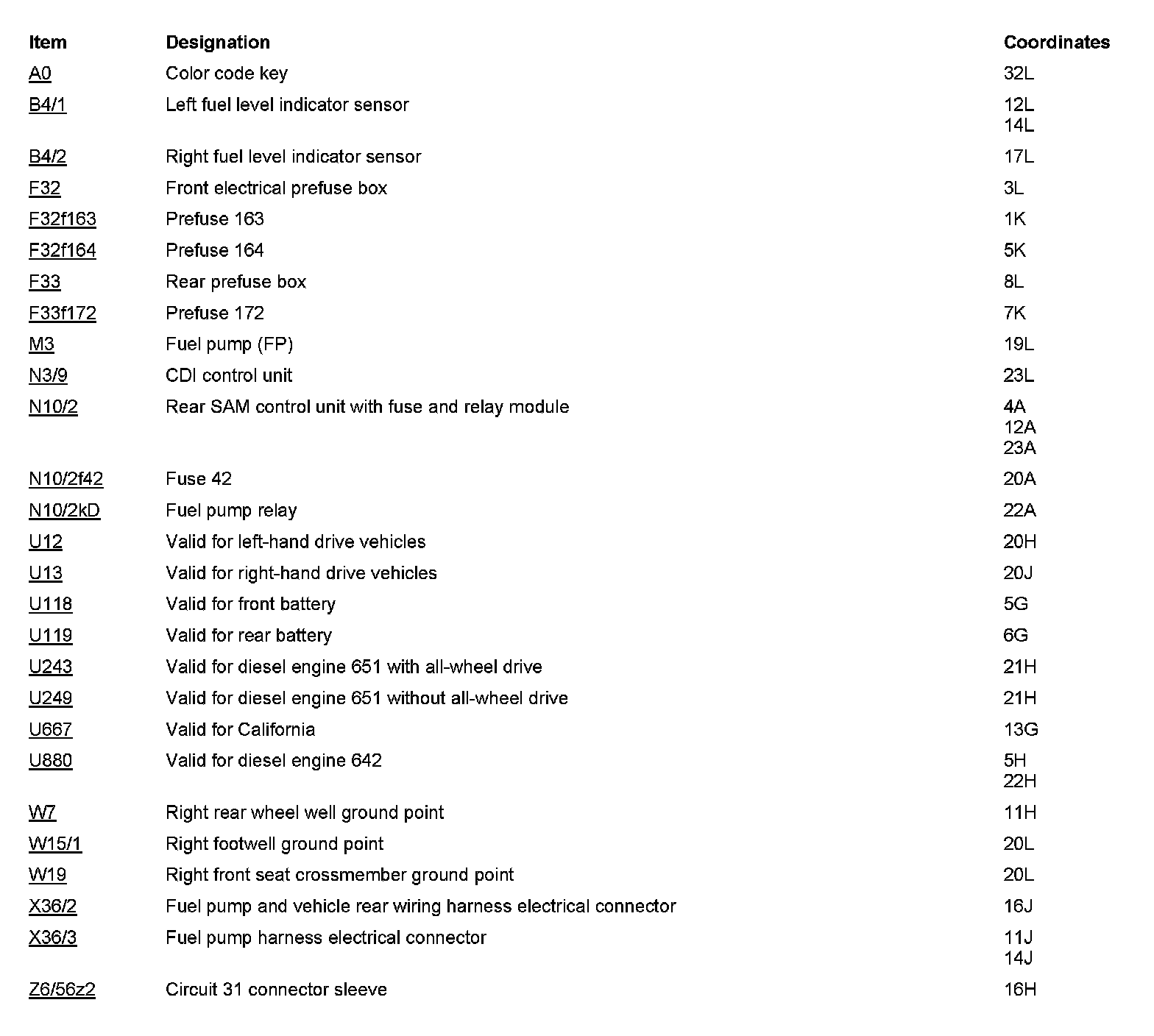

Component Locations:
Component Location photographs can be found via their component names at the vehicle level.
Locations
