AR47.10-P-4100-02EW Open, Close Latch

AR47.10-P-4100-02EW Open, Close Latch

Fuel Tank:

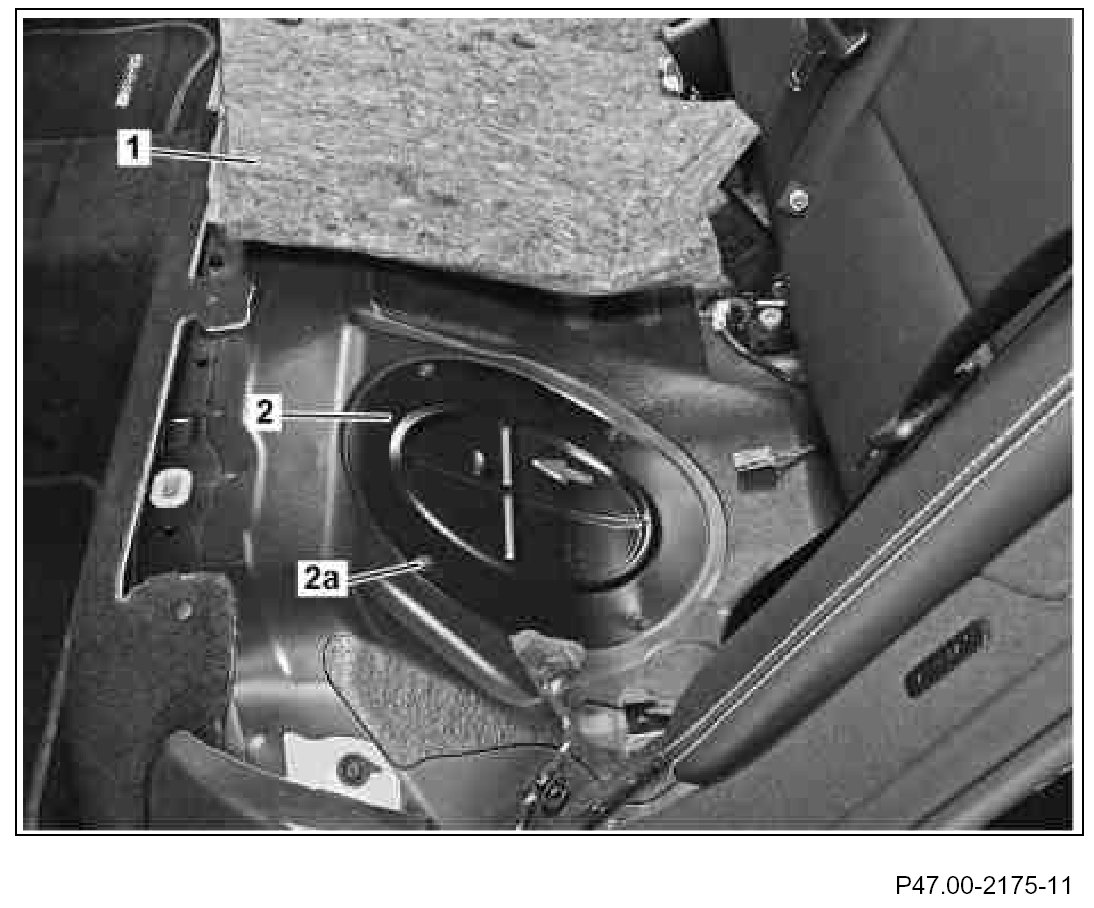

1 Hammer back damping mat (1) or remove it.
2 Remove bolts (2a) on the respective cover (2) and remove cover (2) for service opening.
Observe maximum bolt length of 10 mm. When using longer bolts, there is danger of leaks at the fuel tank and injury to persons or damage to equipment and the environment.
Installation: The impressed arrow on the cover (2) must point in the direction of travel.

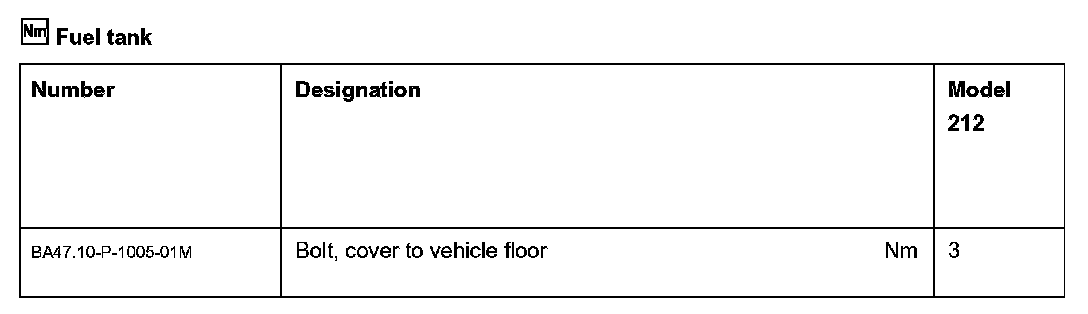

Installation:. Observe tightening torque [Nm].

3 Install in the reverse order.
