Diesel MFI Pump Drive Gear: Service and Repair

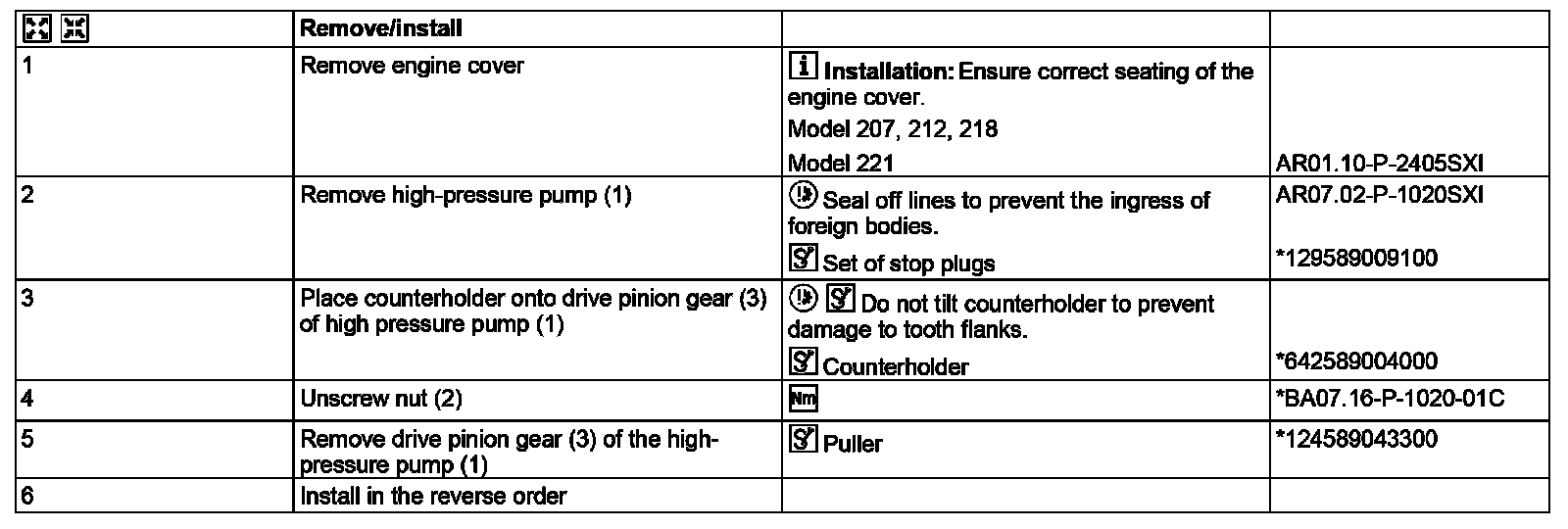

AR07.02-P-1021SXI Remove/install High-pressure Pump Drive Gear
- ENGINES 642 in MODEL 207, 212, 218, 221

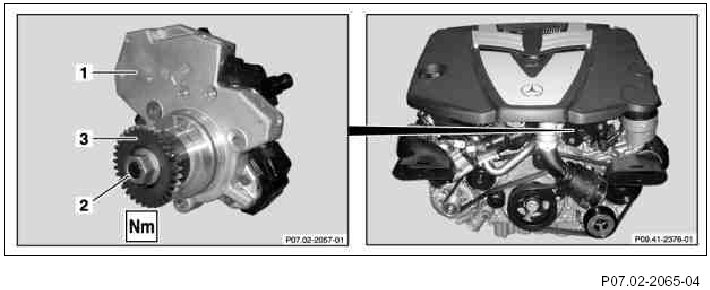

1 High-pressure pump
2 Nut

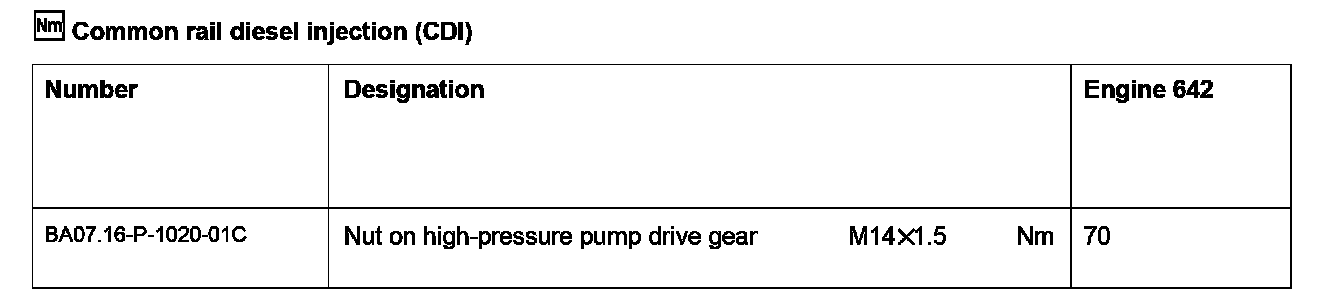

3 Drive gear











642 589 00 40 00, Counterholder







124 589 04 33 00, Puller







129 589 00 91 00, Set of stop plugs
