AR30.12-P-1321EW Remove/Install Accelerator Pedal
AR30.12-P-1321EW Remove/Install Accelerator Pedal
AR30.12-P-1321EW Remove/Install
Accelerator Pedal

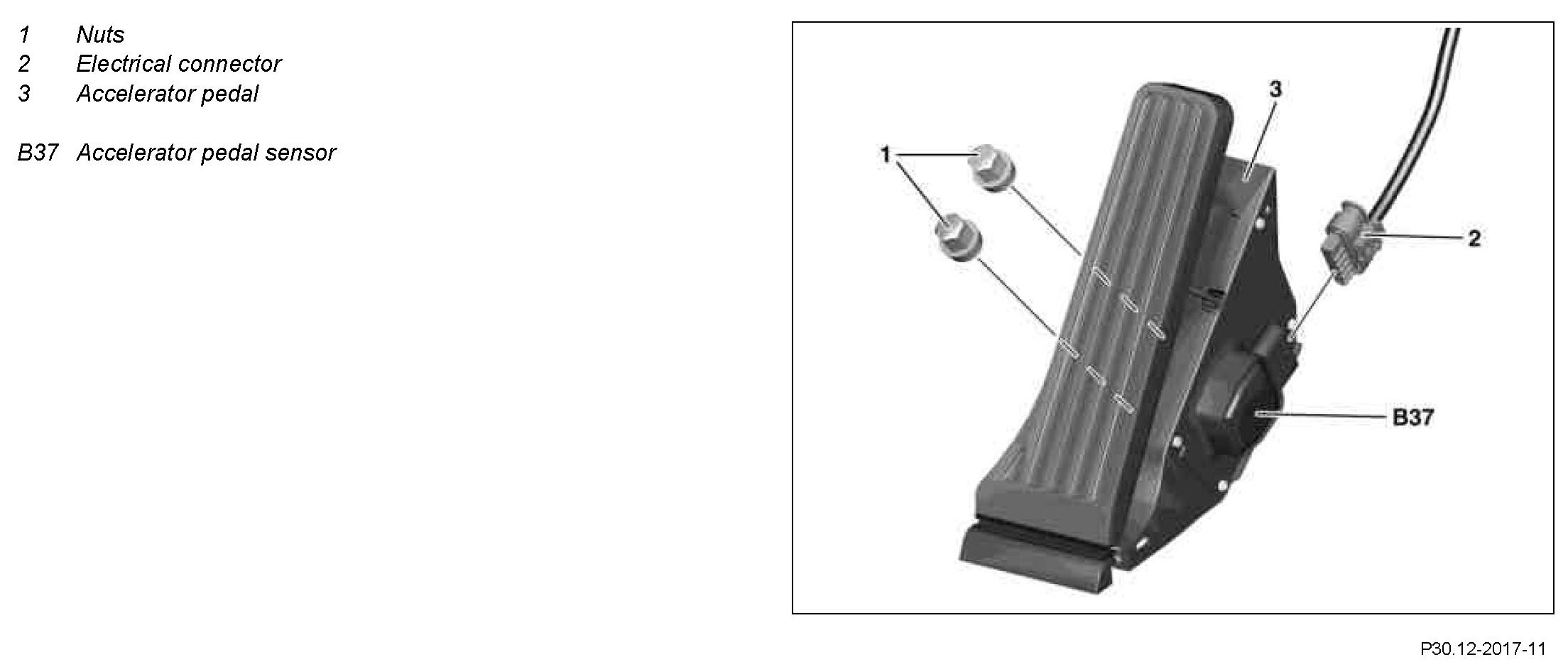

Component Identification:

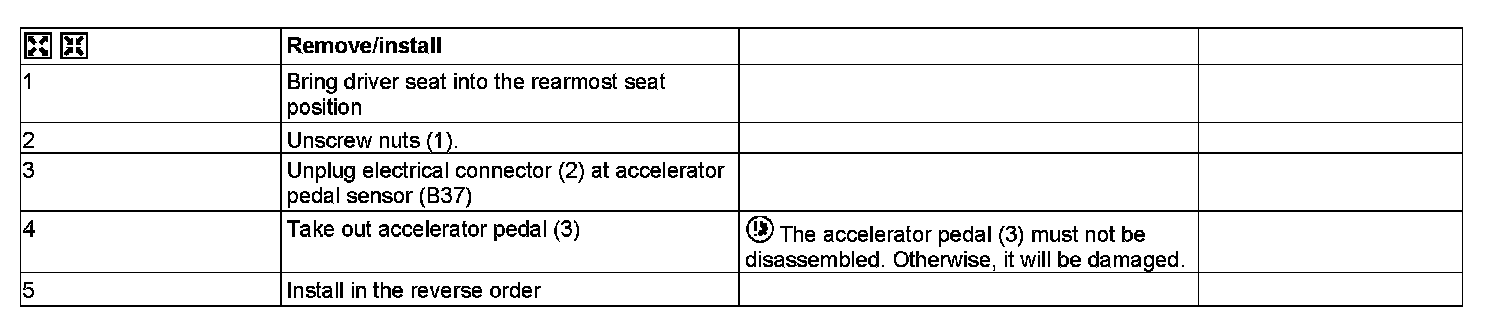

Steps 1 - 5:
