Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Accelerator Pedal >> Service and Repair >> AR29.10-P-0300EW Remove/Install Pedal Assembly

AR29.10-P-0300EW Remove/Install Pedal Assembly



AR29.10-P-0300EW Remove/install pedal assembly
- Transmission 711.6, 716.2, 722.6/9


Component Identification:

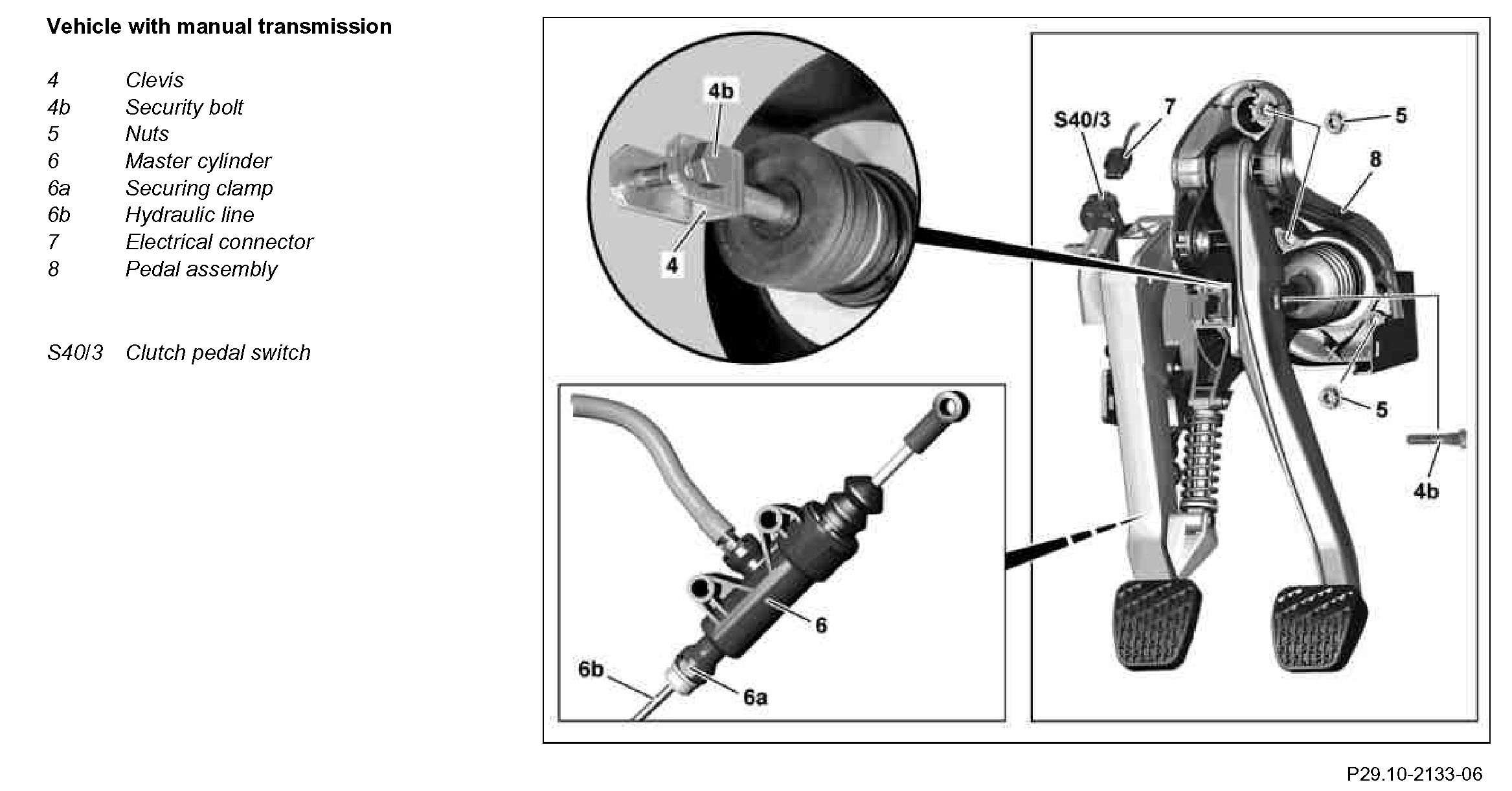

Vehicle with manual transmission

Component Identification:

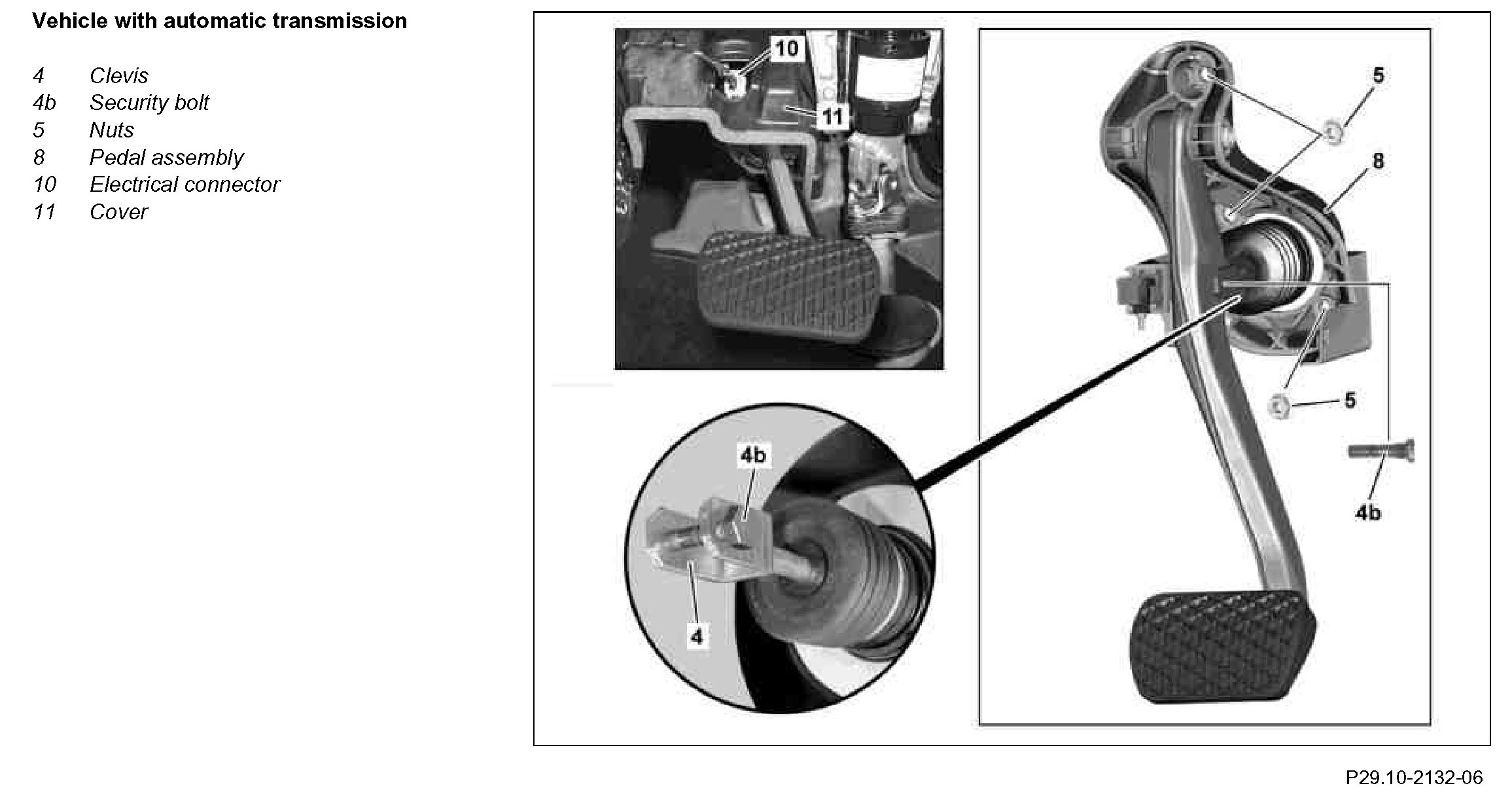

Vehicle with automatic transmission

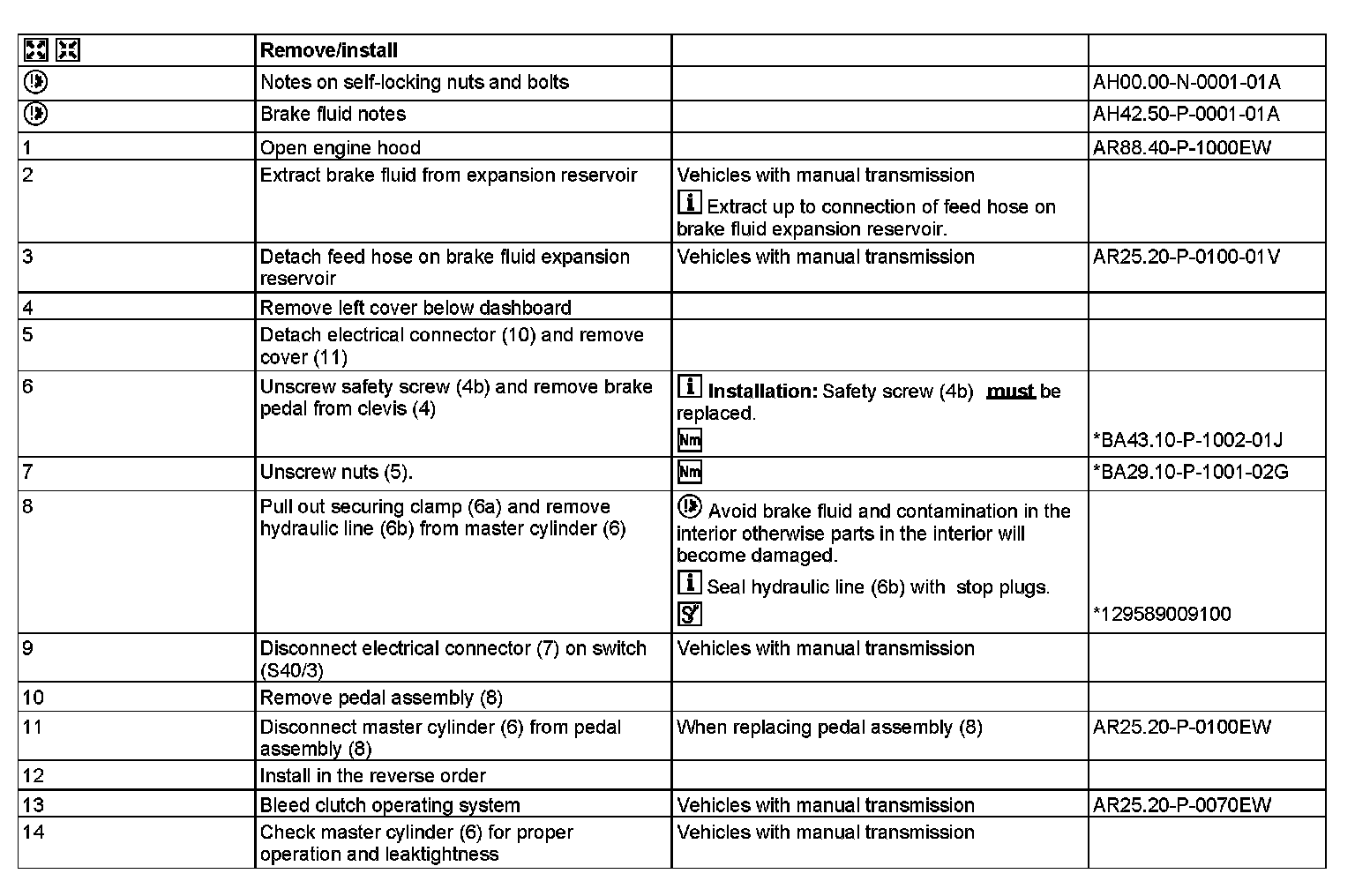

Steps 1-14:

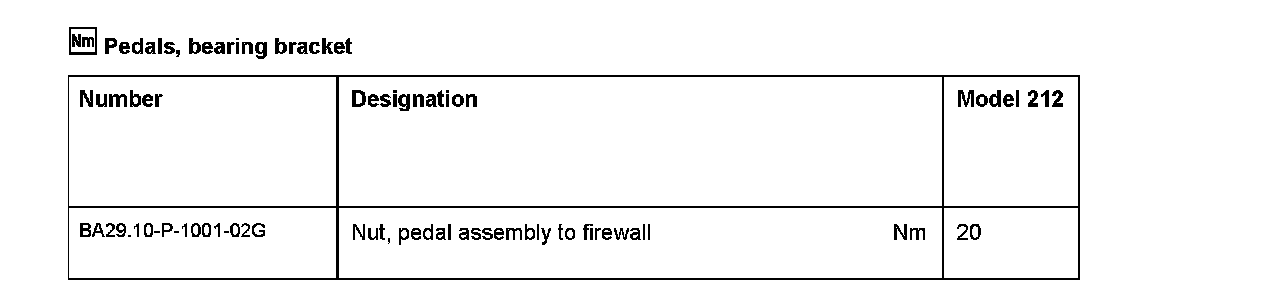

Pedals, bearing bracket:

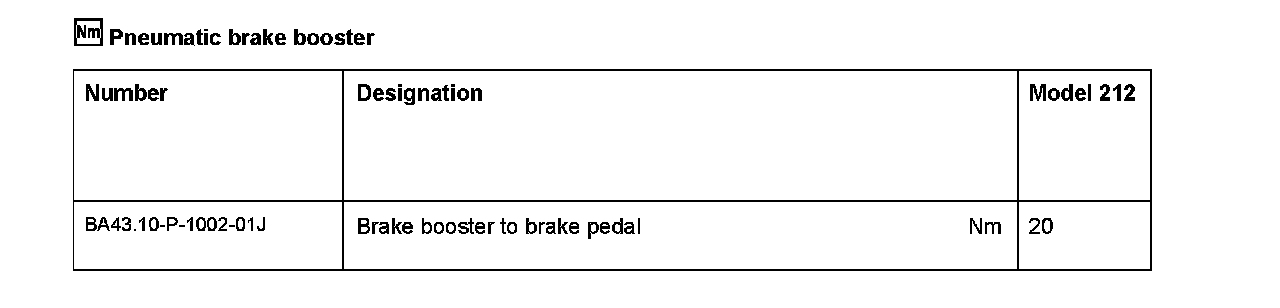

Pneumatic brake booster:

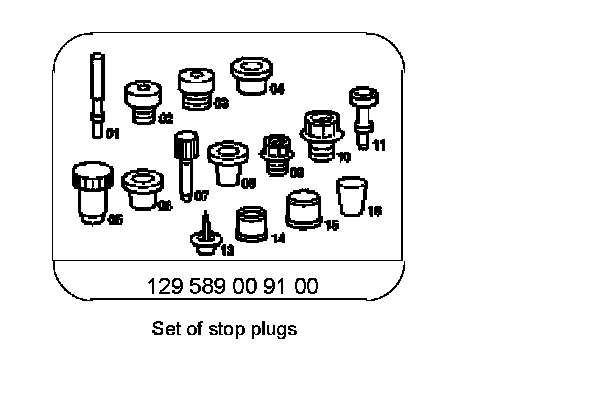

Special Tools:
