AP14.40-P-1410BT AdBlue Container Correct the Fluid Level



AP14.40-P-1410BT AdBlue Container Correct the Fluid Level
- with CODE (U42) BlueTEC diesel exhaust treatment (SCR)

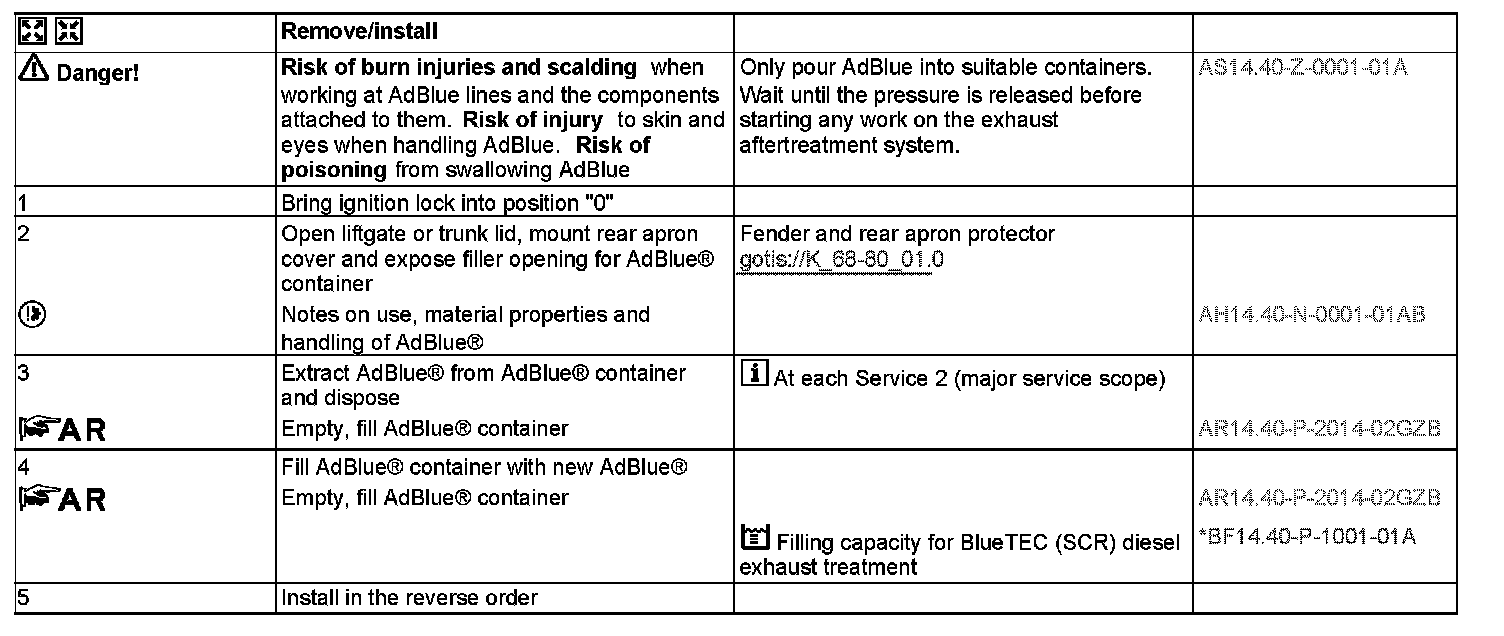

Steps 1 - 5:

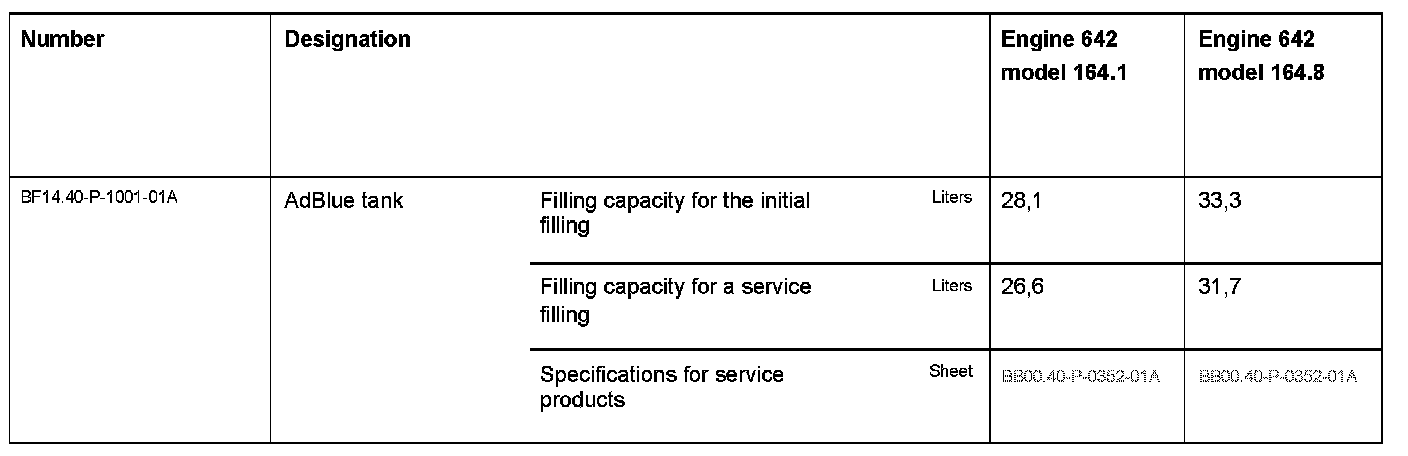

Capacity Chart:

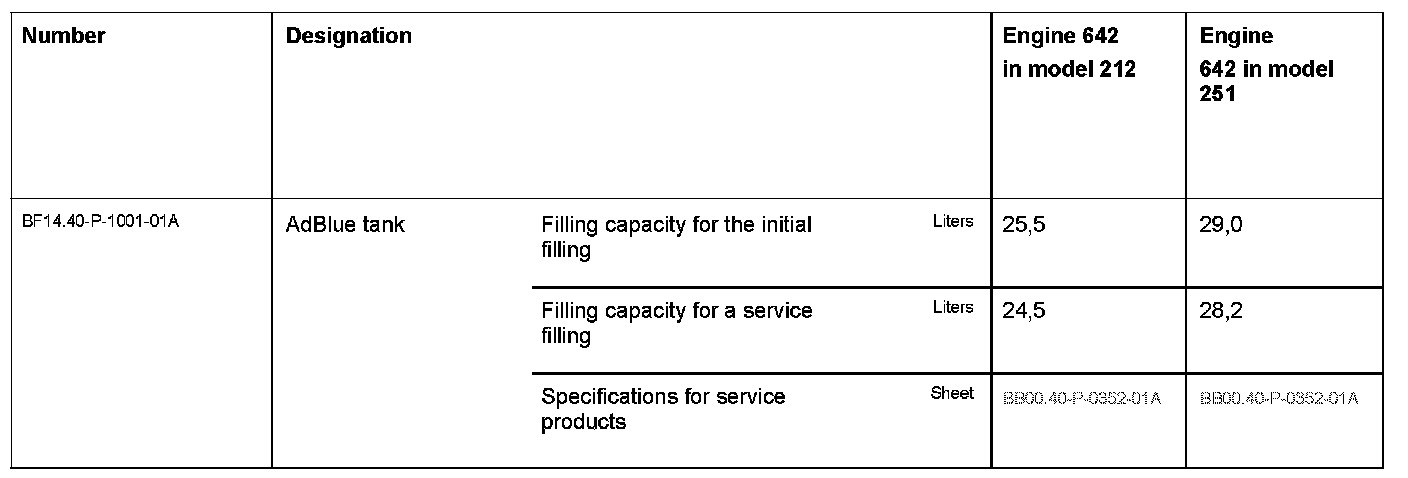

Capacity Chart:
