Diesel Emissions Fluid Tank: Service and Repair

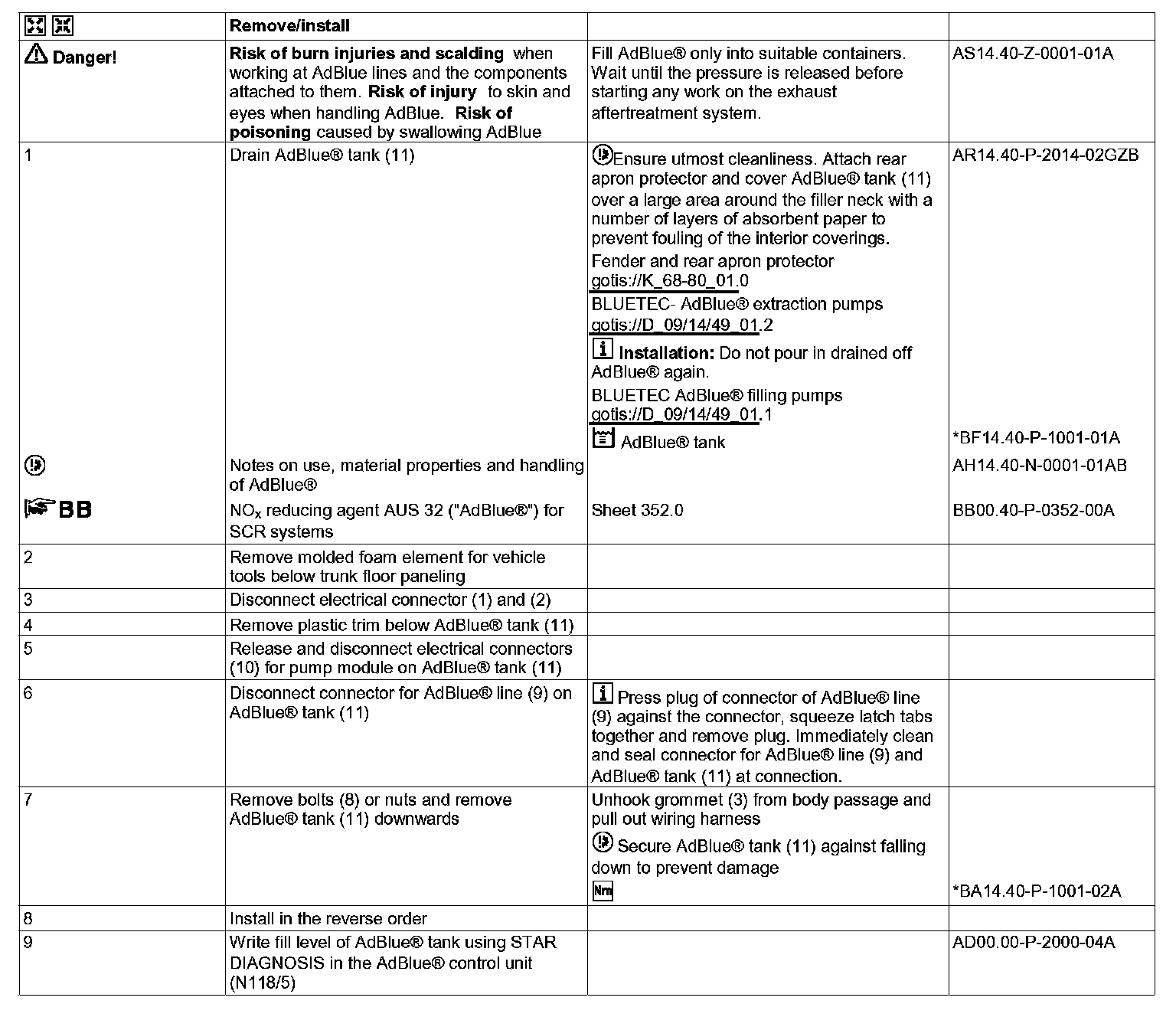

AR14.40-P-2014OGE Remove/Install AdBlue Tank
-ENGINES 642 in MODEL 212, 221
- with CODE (U42) BlueTEC (SCR) diesel exhaust treatment





Shown on model 212

1 Electrical connector
2 Electrical connector
3 Grommet
4 Locking clamp
5 Electrical connector
6 Bolts
7 Locking clips

N118/5 AdBlue(R) control unit

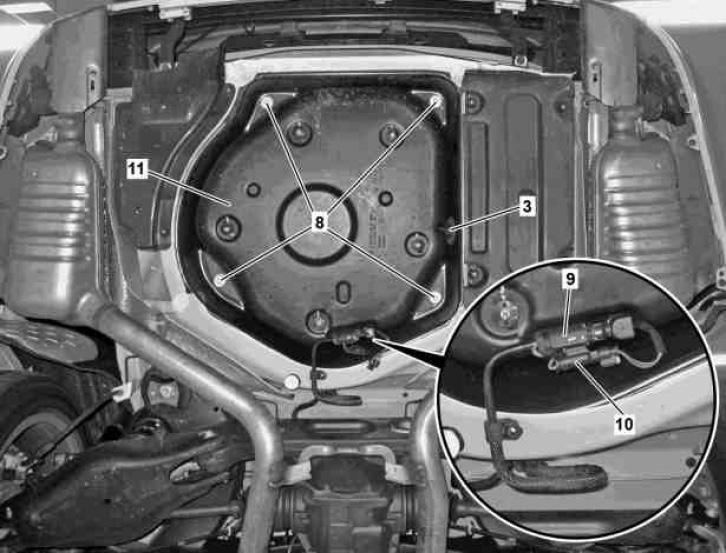

Shown on model 212

3 Grommet
8 Bolts
9 Connection for AdBlue(R) line
10 Electrical connectors
11 AdBlue(R) tank
