PE07.16-P-2101DAB Common Rail Diesel Injection (CDI) Control Unit

PE07.16-P-2101DAB Common Rail Diesel Injection (CDI) Control Unit
ENGINE 642 in MODEL 212

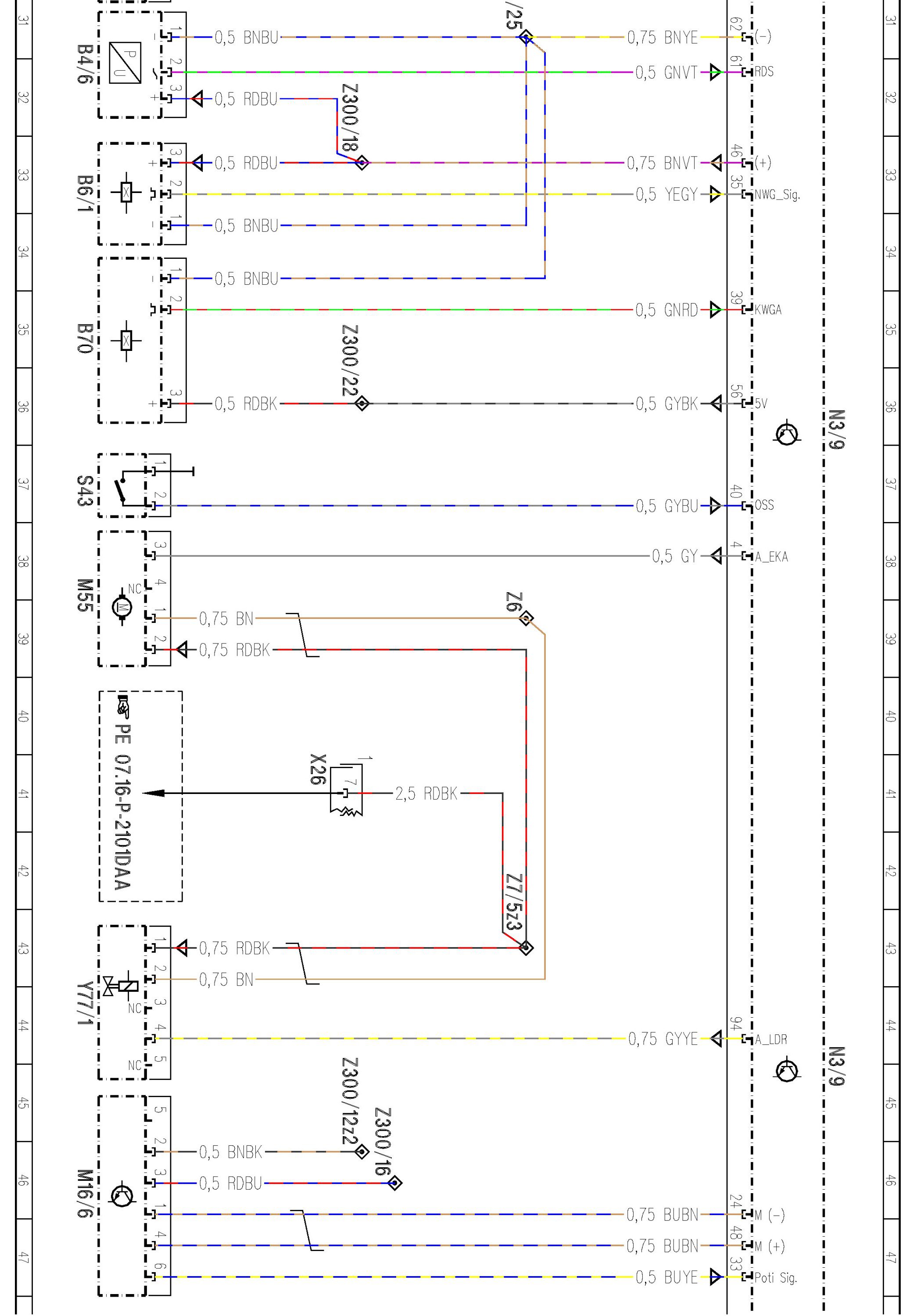

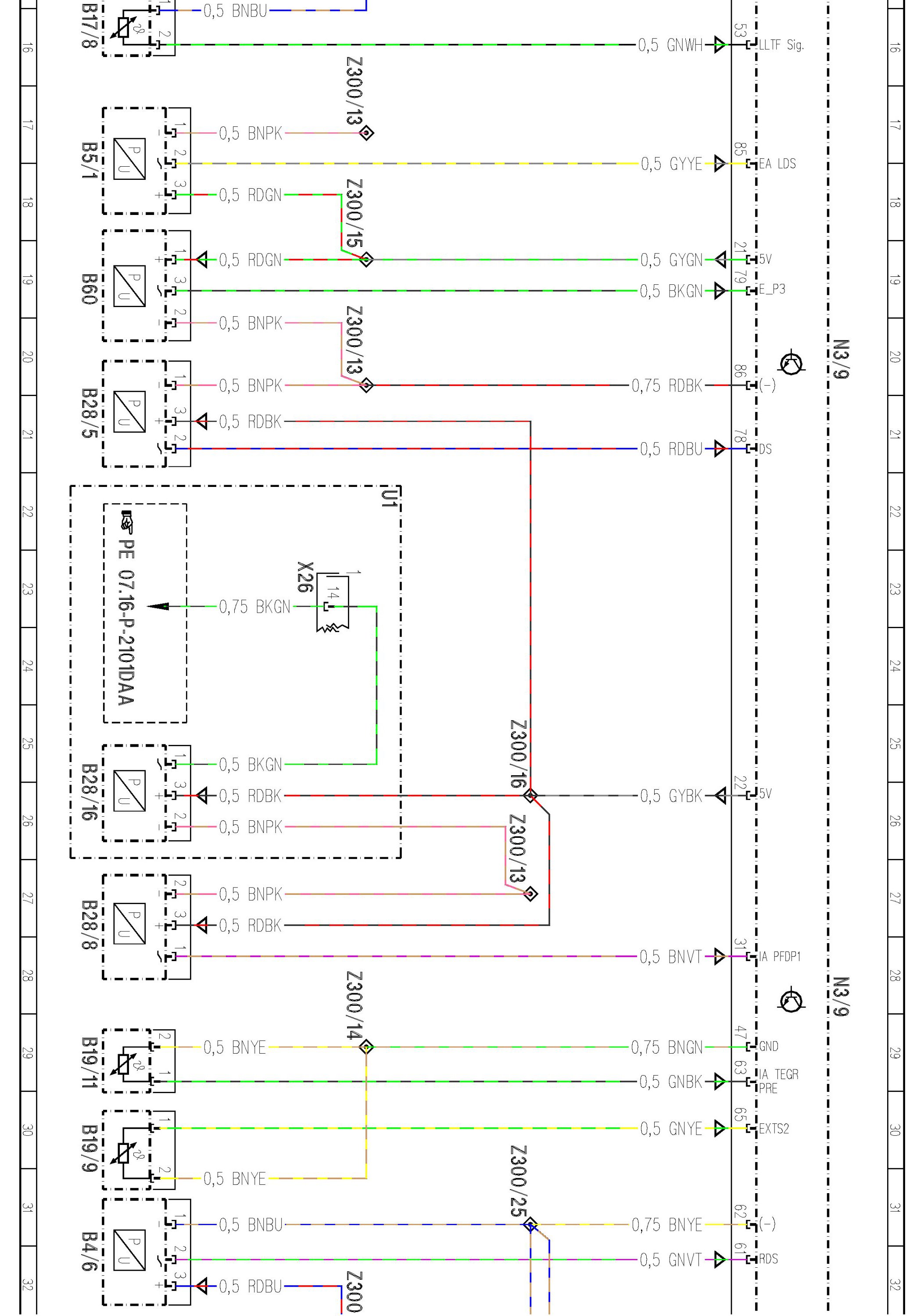

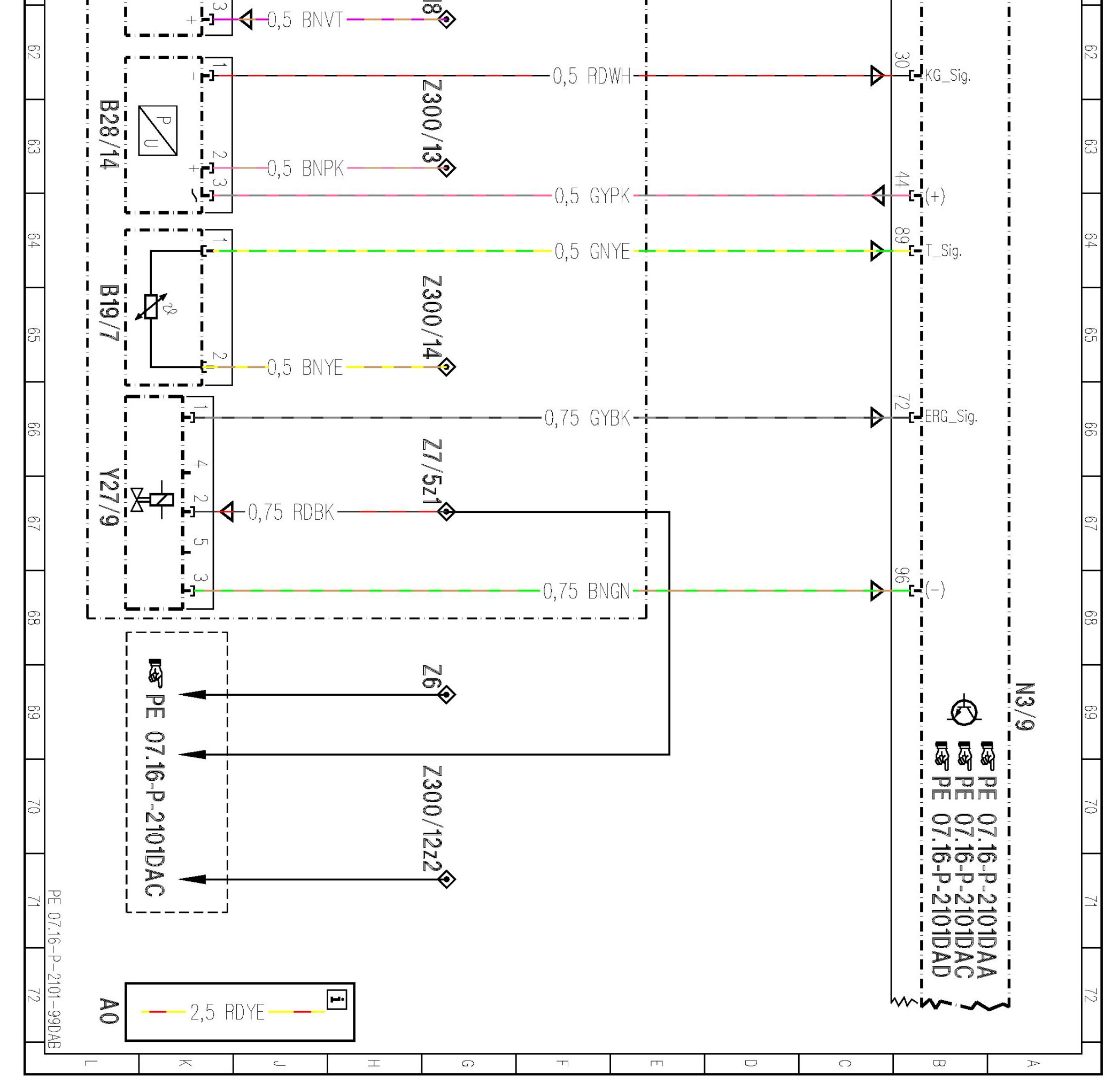

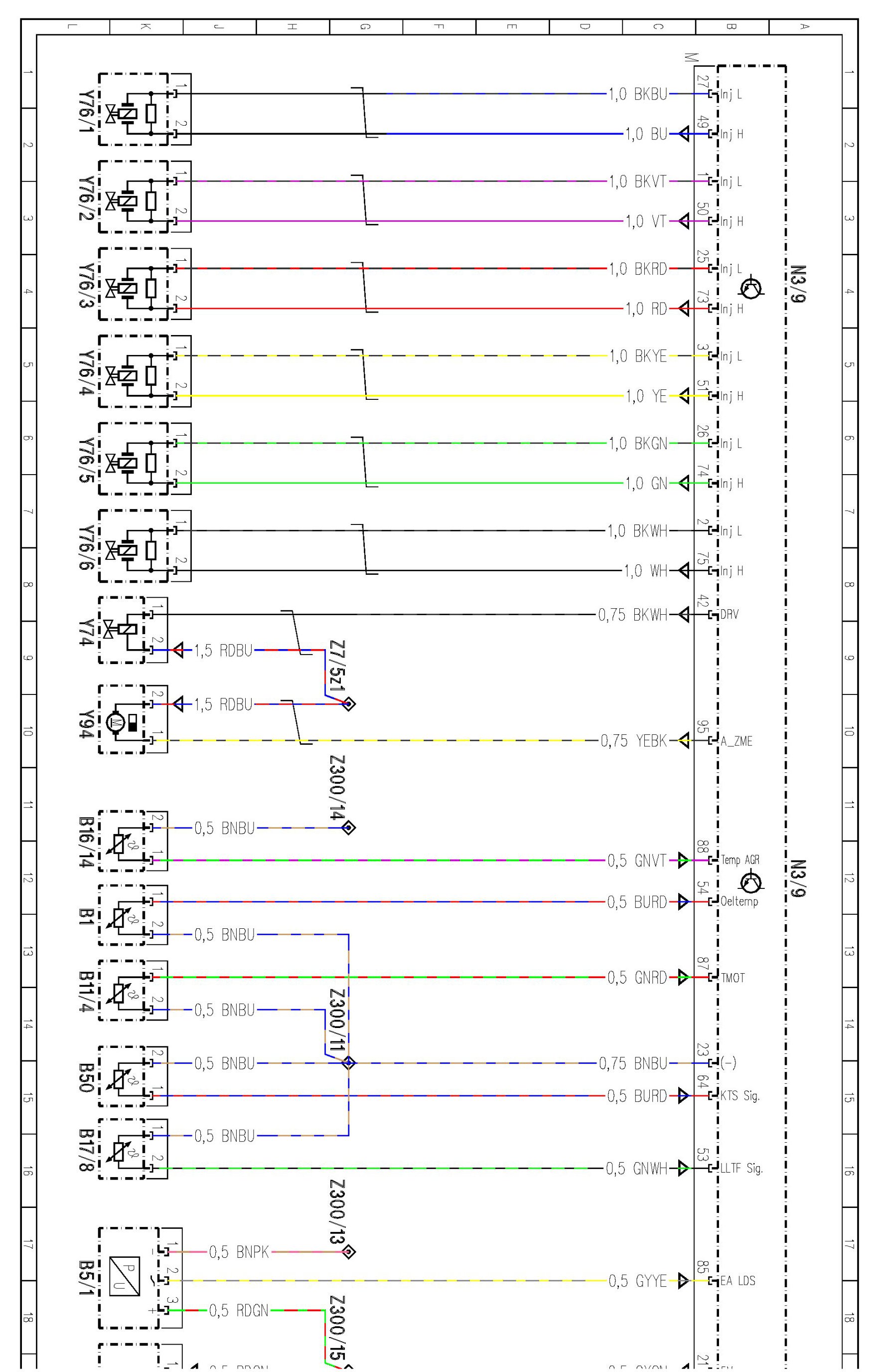

- control unit N3/9 engine connector, sheet 1






















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
