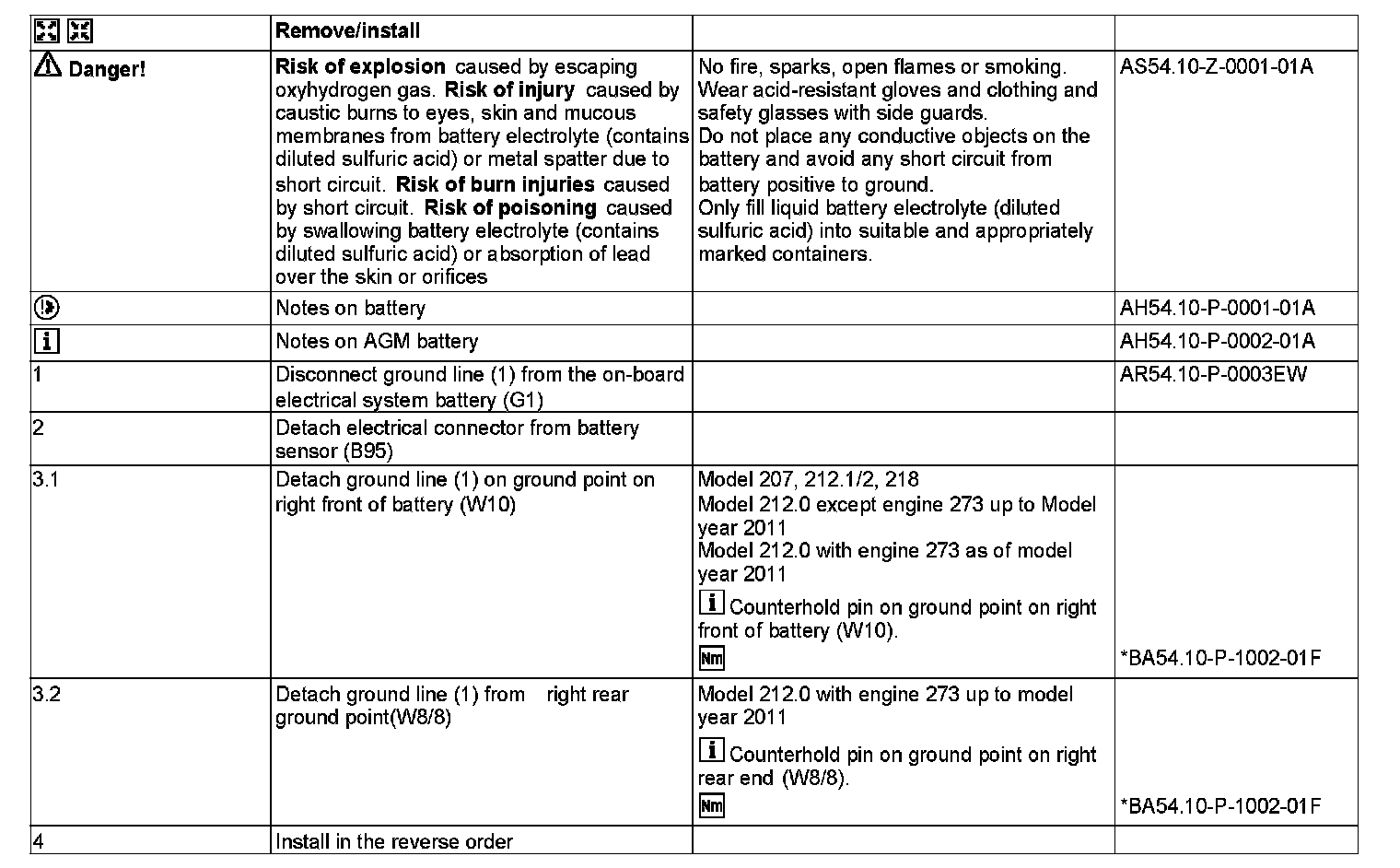

AR54.10-P-0002EW Remove/Install Battery Sensor

AR54.10-P-0002EW Remove/Install Battery Sensor
MODEL 207, 212, 218





Model 207, 212.1/2, 218
Model 212.0 except engine 273 up to model year 2011
Model 212.0 with engine 273 as of model year 2011

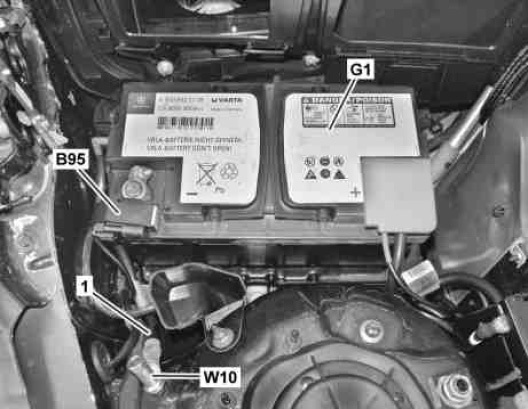

1 Ground cable
B95 Battery sensor
G1 On-board electrical system battery
W10 Right front battery ground point





Model 212.0 with engine 273 up to model year 2011
1 Ground cable
B95 Battery sensor
G1 On-board electrical system battery
W8/8 Right rear ground point
