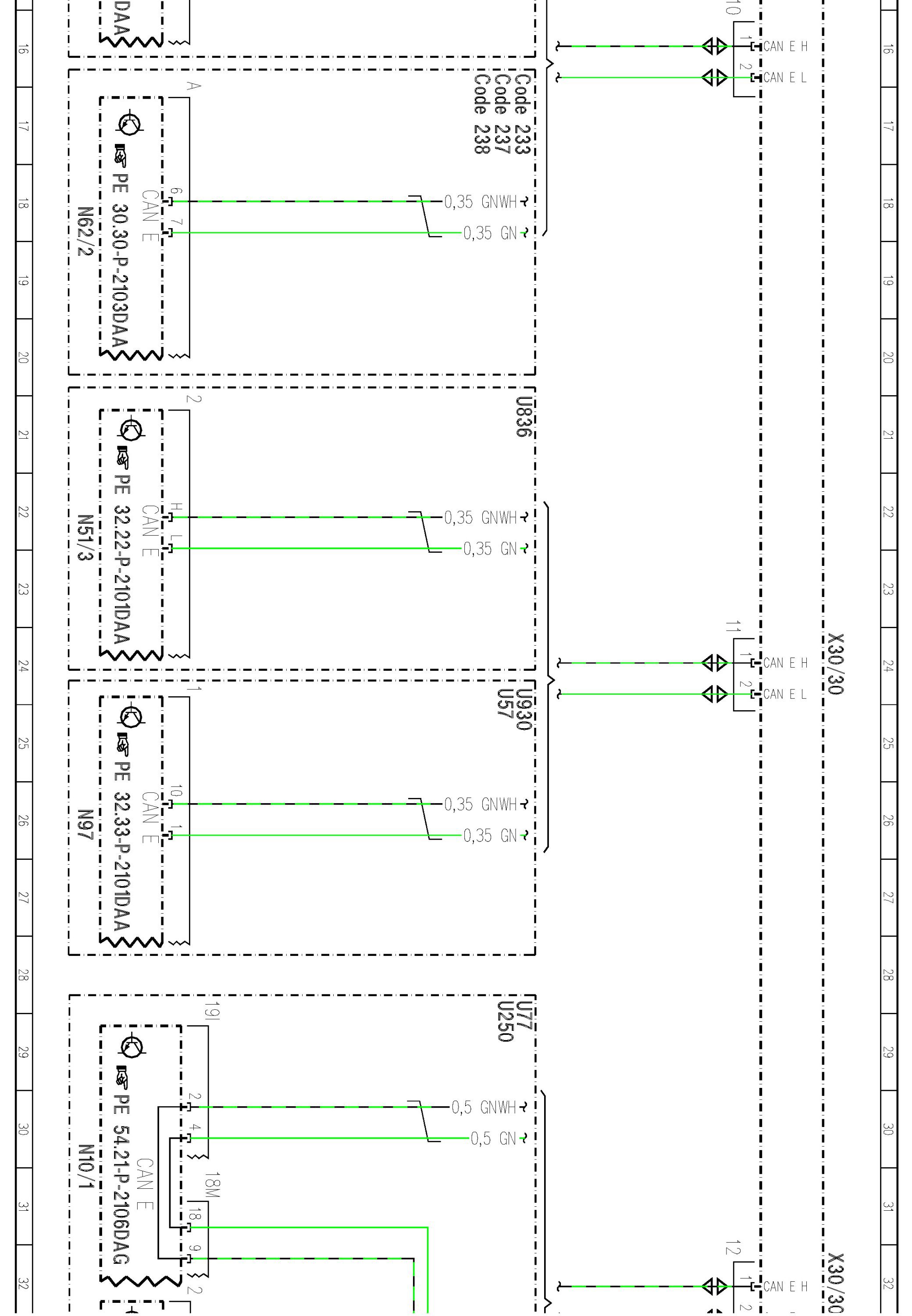

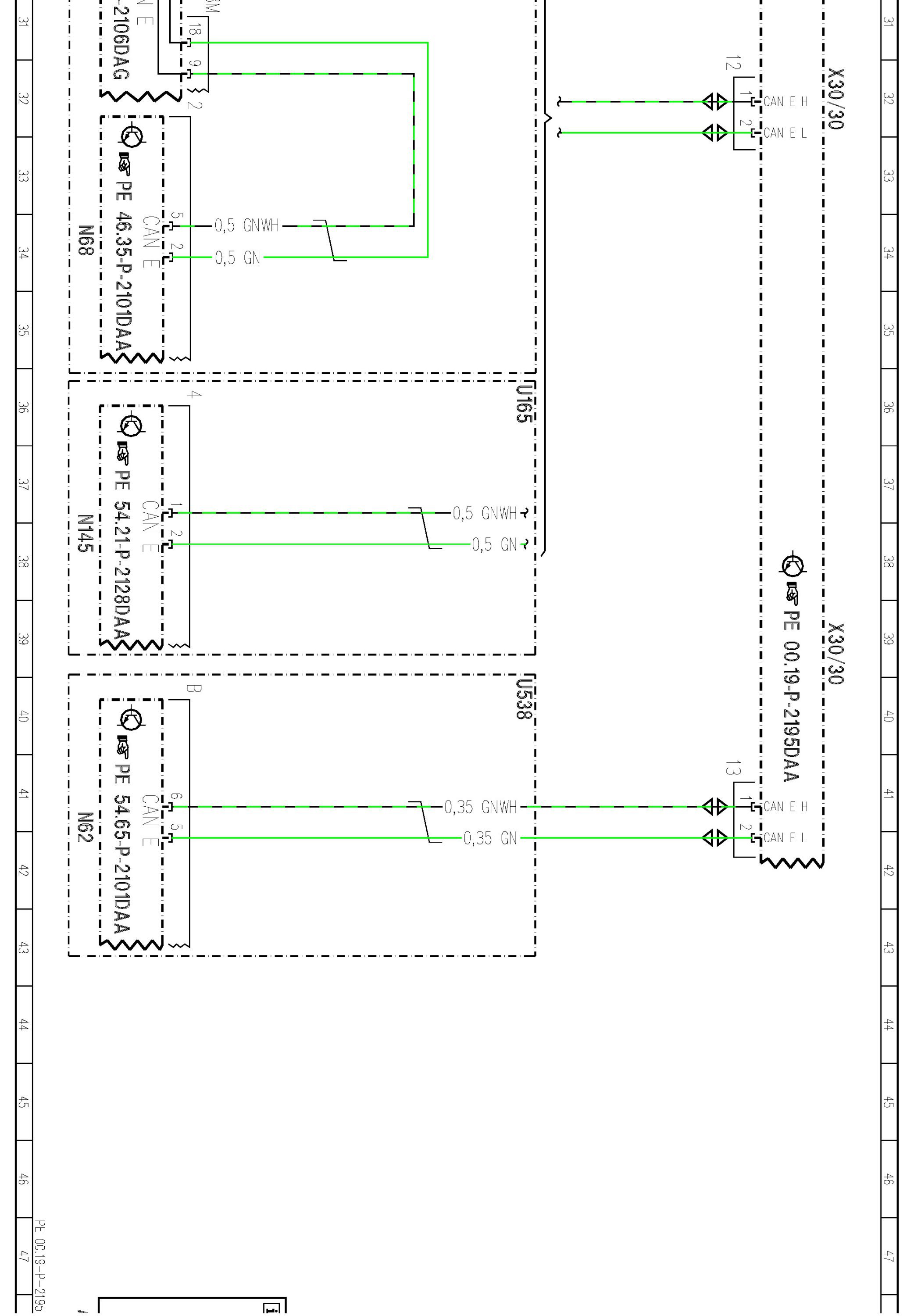

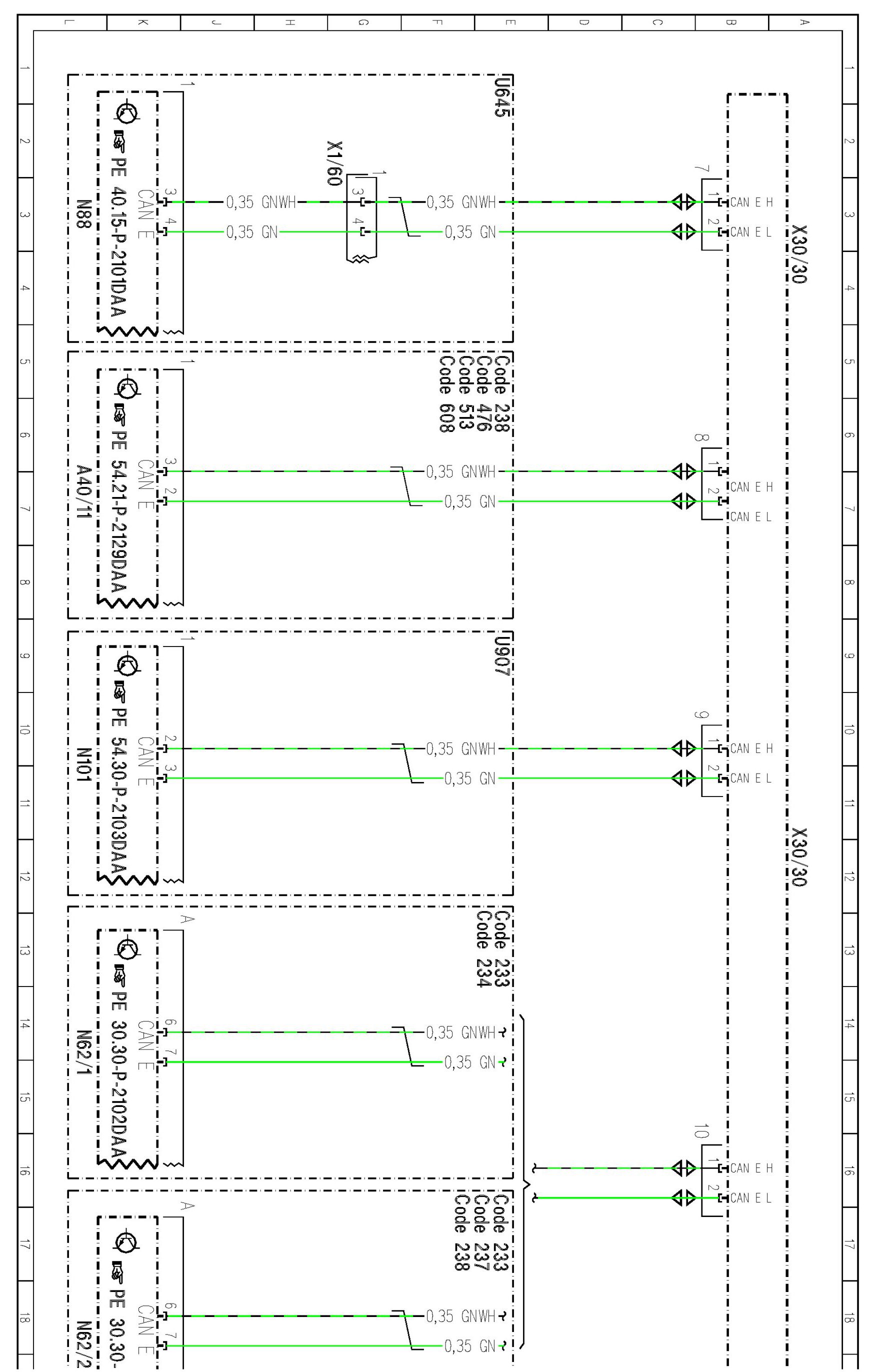

PE00.19-P-2195DAB Chassis CAN

PE00.19-P-2195DAB Chassis CAN

MODEL 212.0 /2

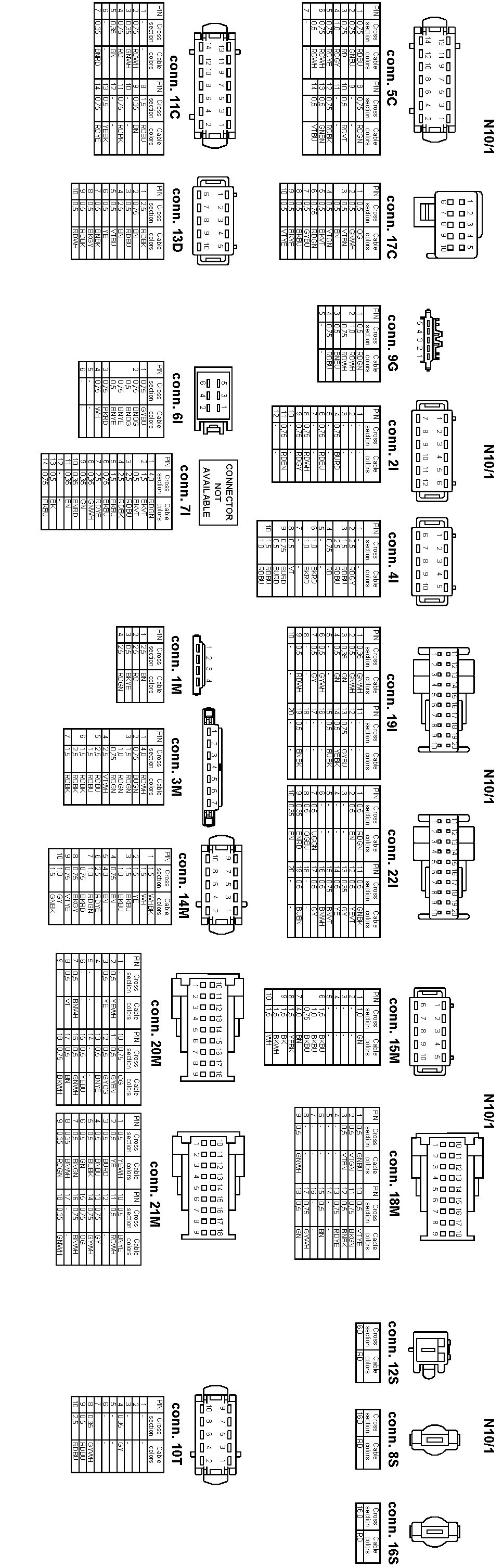

- Potential Distributor X30/30, sheet 2

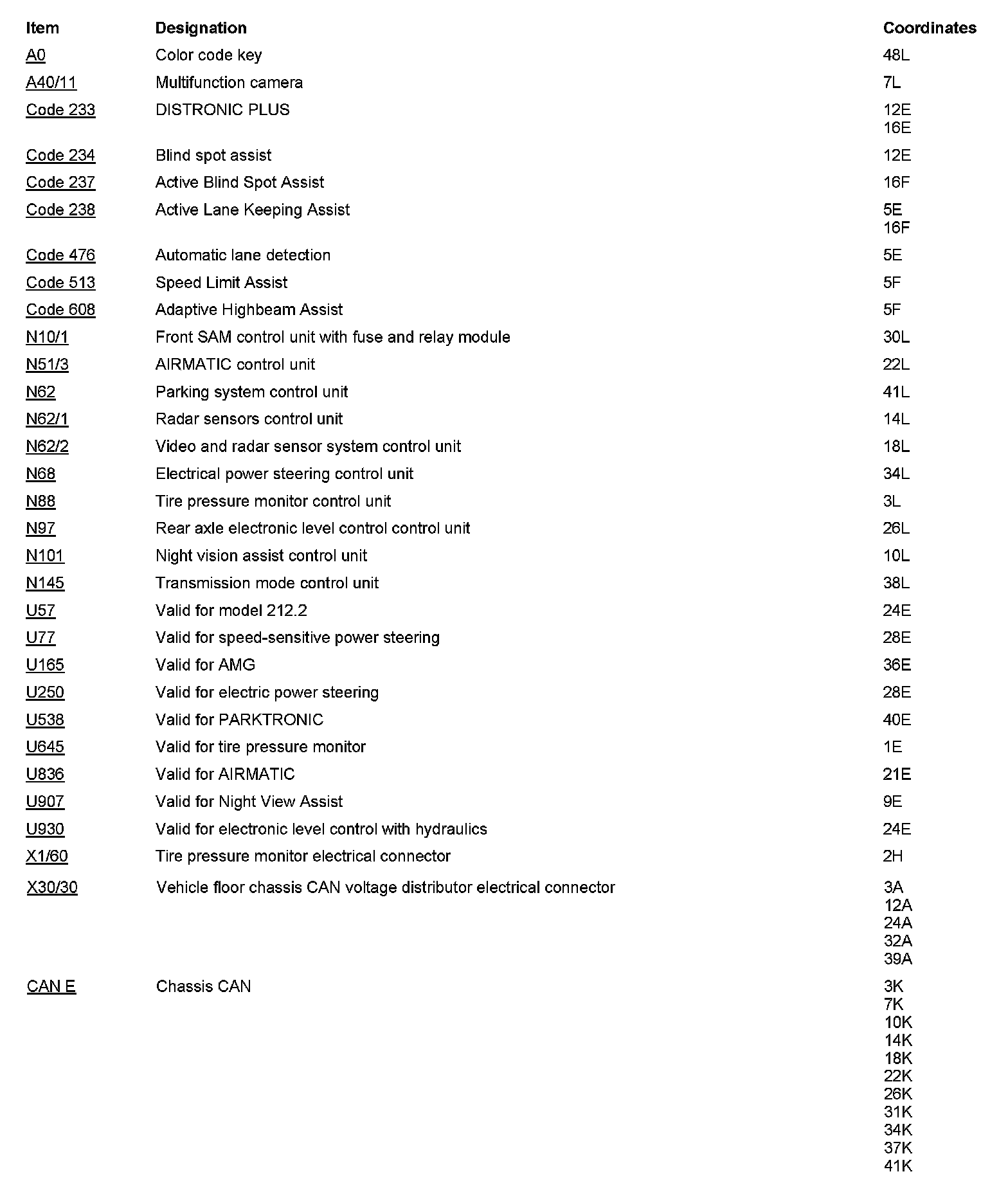

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
