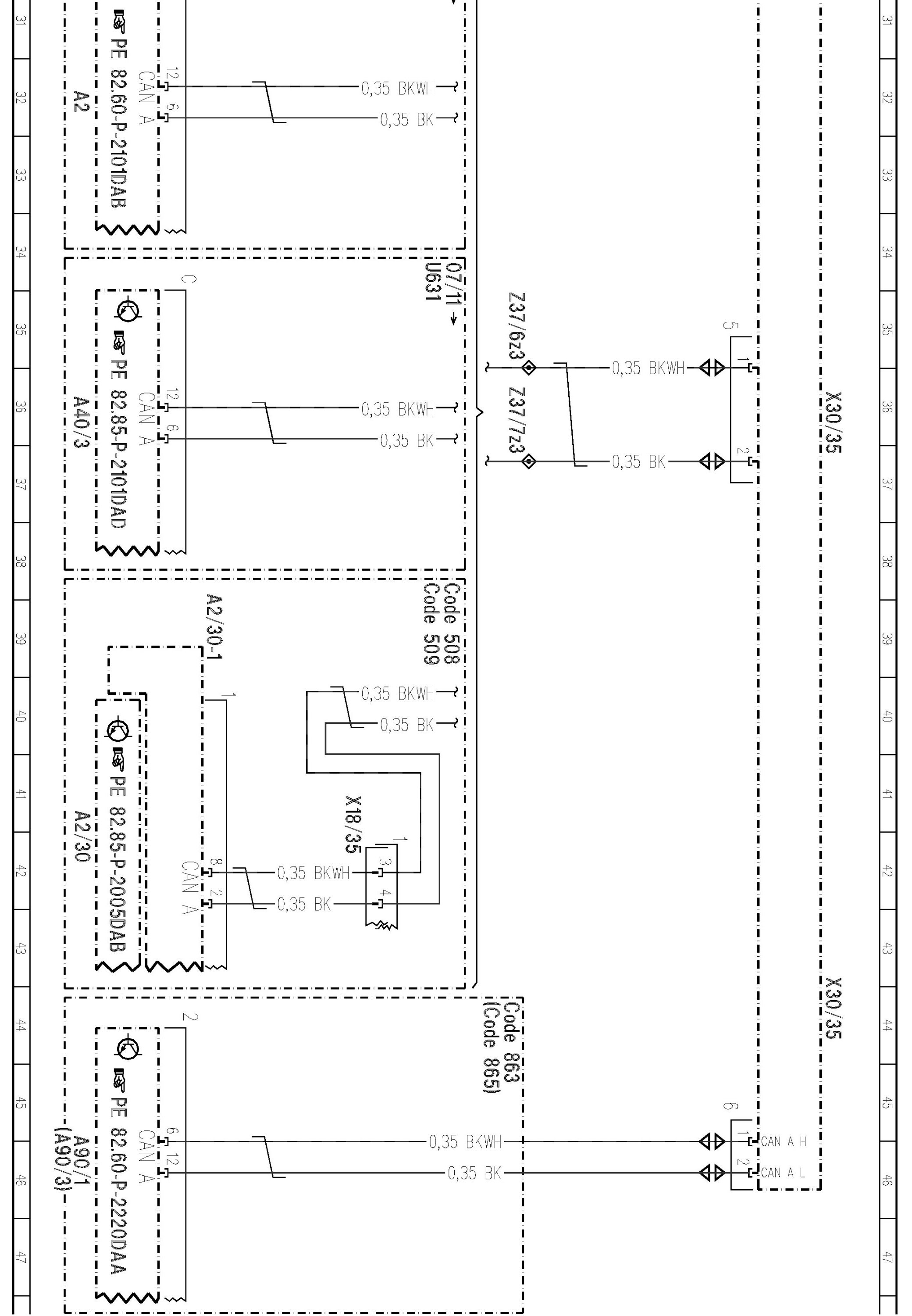

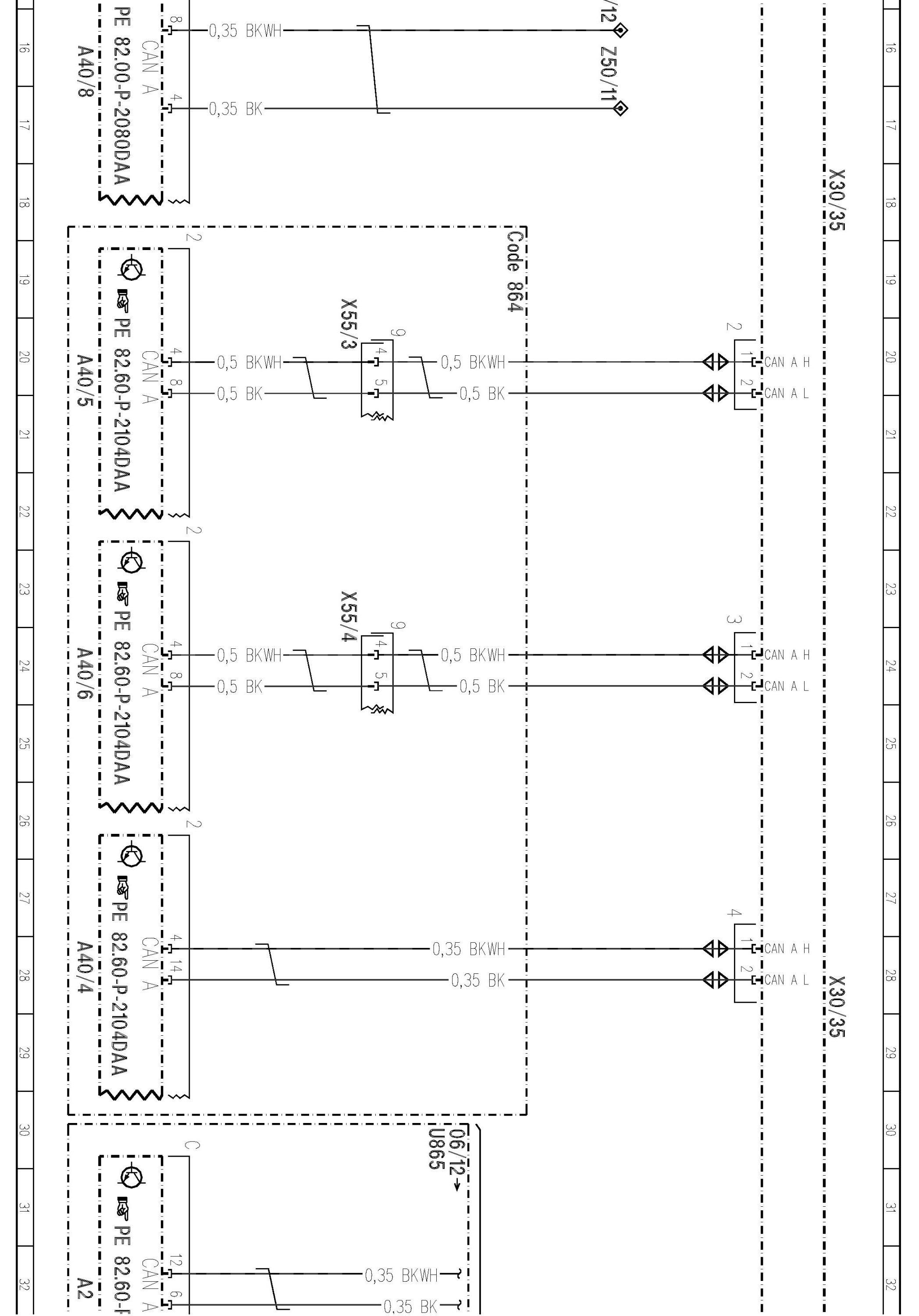

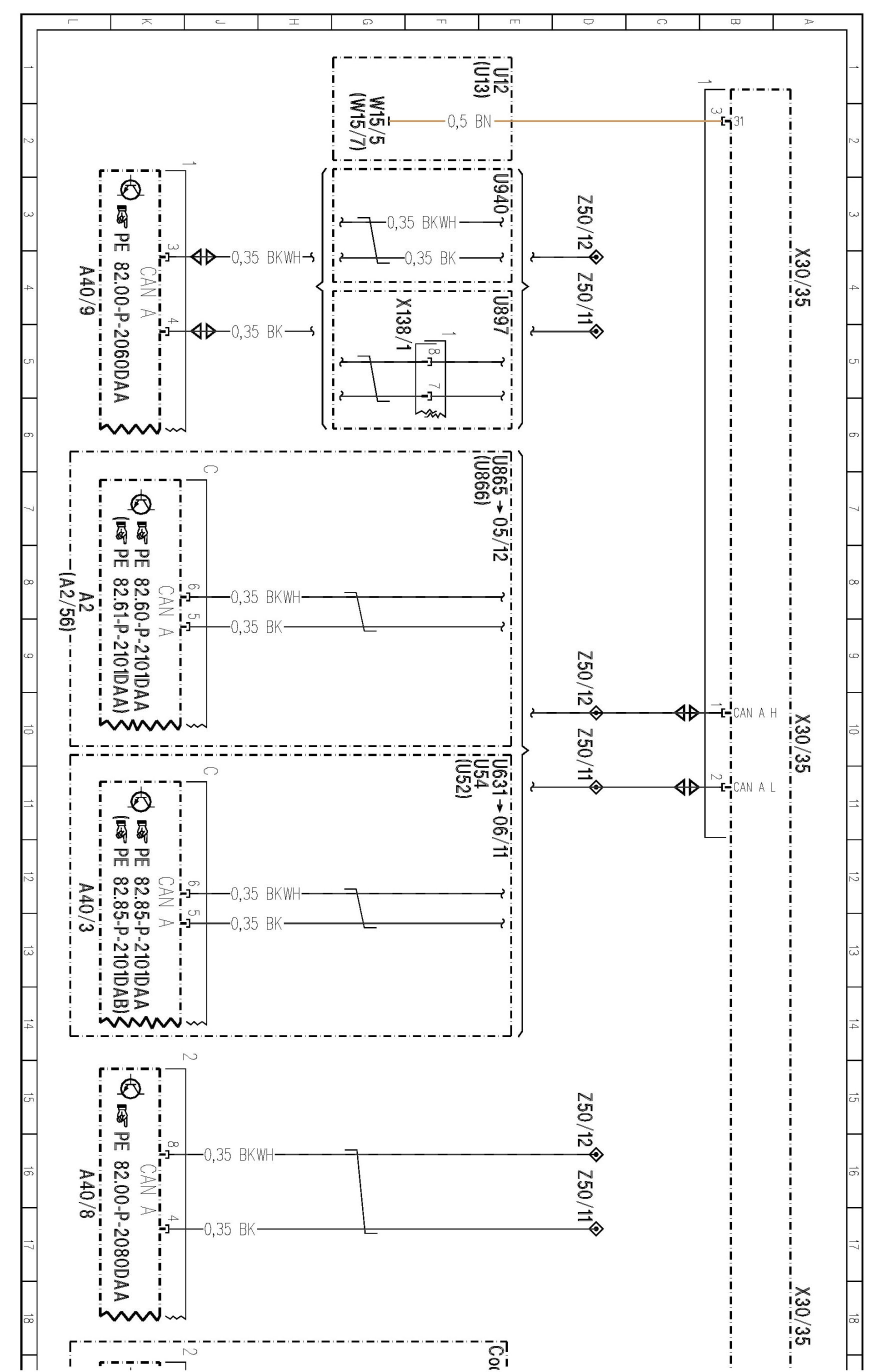

PE00.19-P-2180DAA Telematics CAN



PE00.19-P-2180DAA Telematics CAN

MODEL 212.0 /2

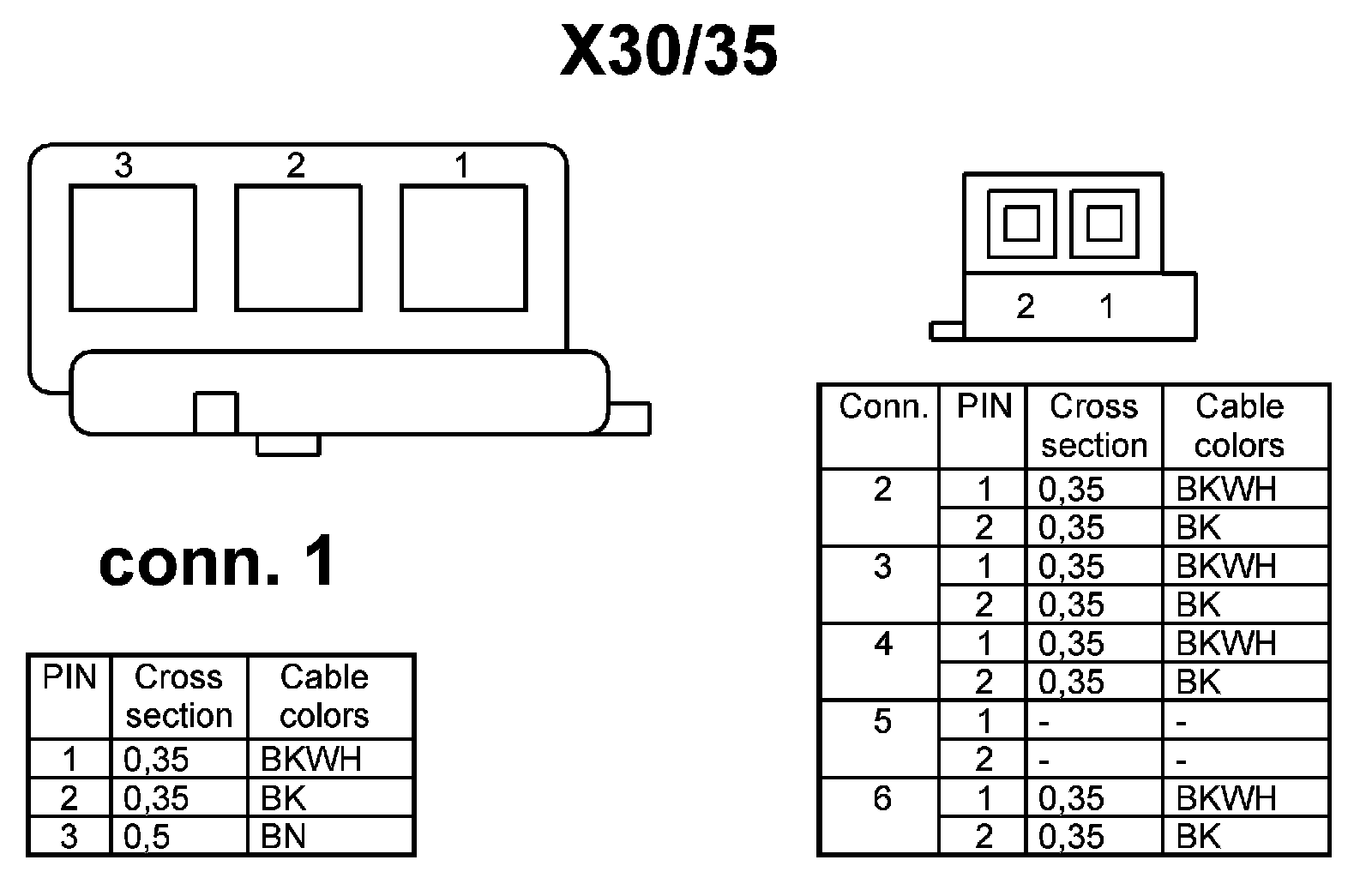

- Potential Distributor X30/35






























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
