Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Electrical Diagrams >> PE00.19-P-2170DAA Drive Train CAN

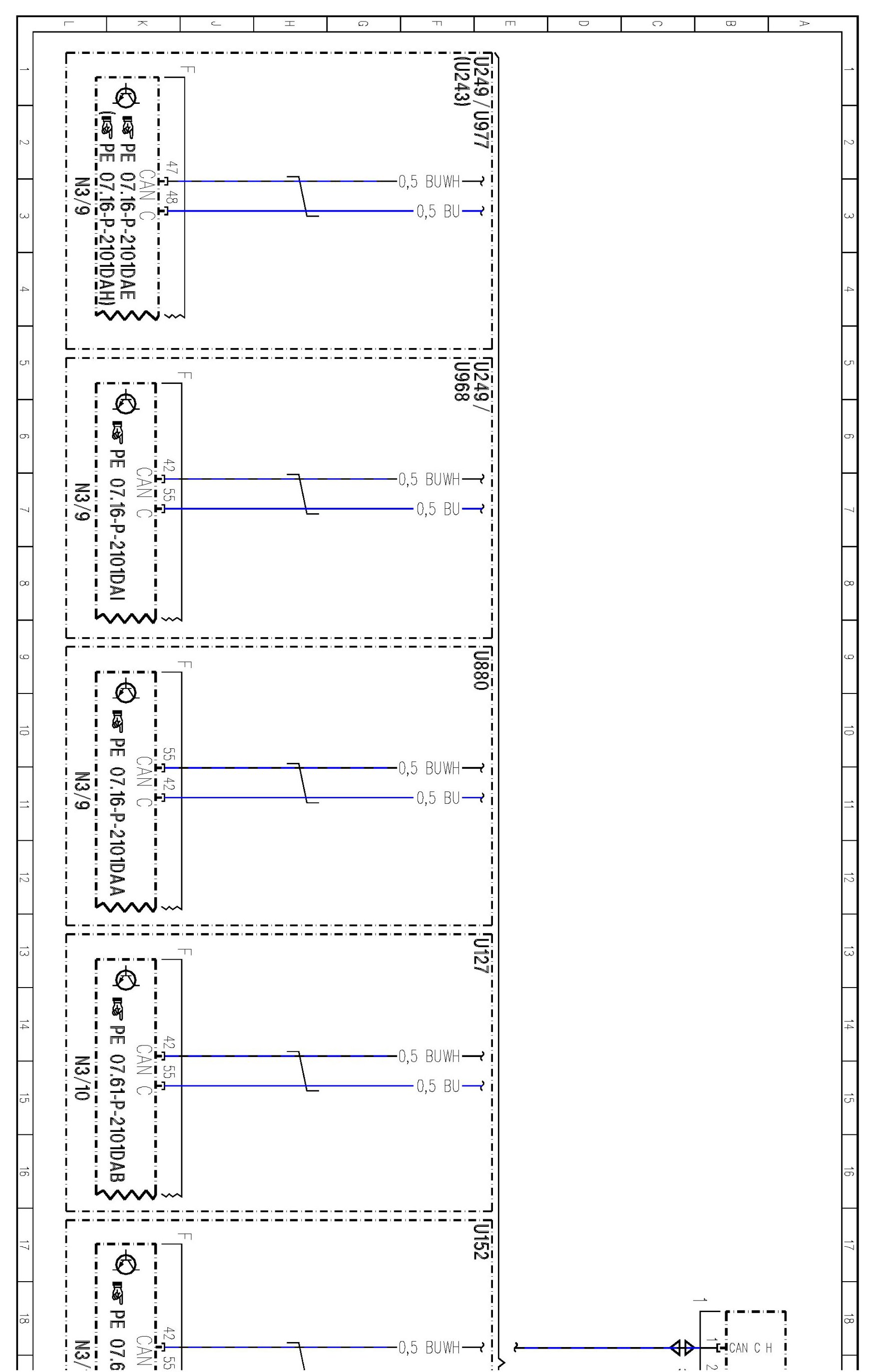

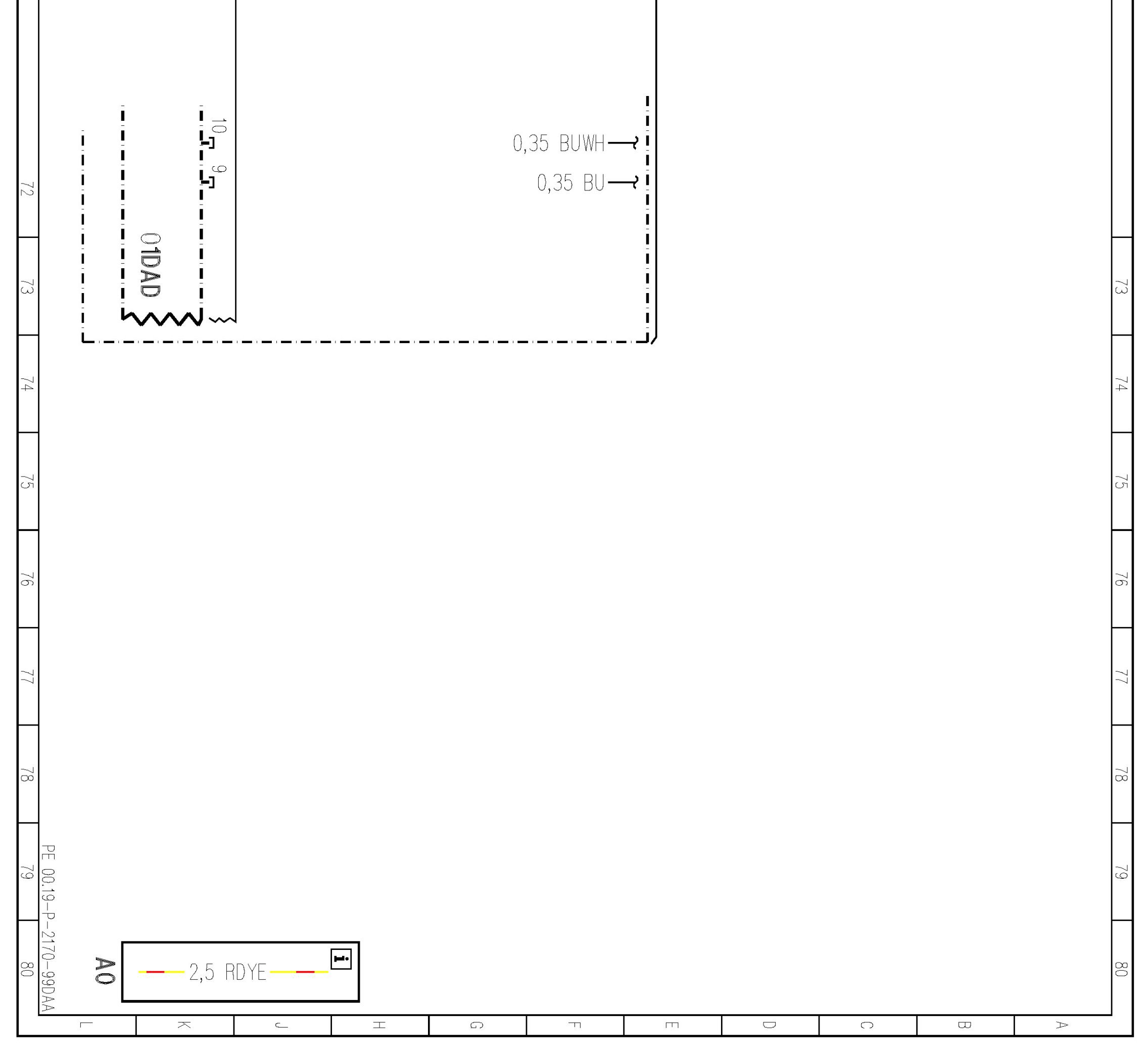

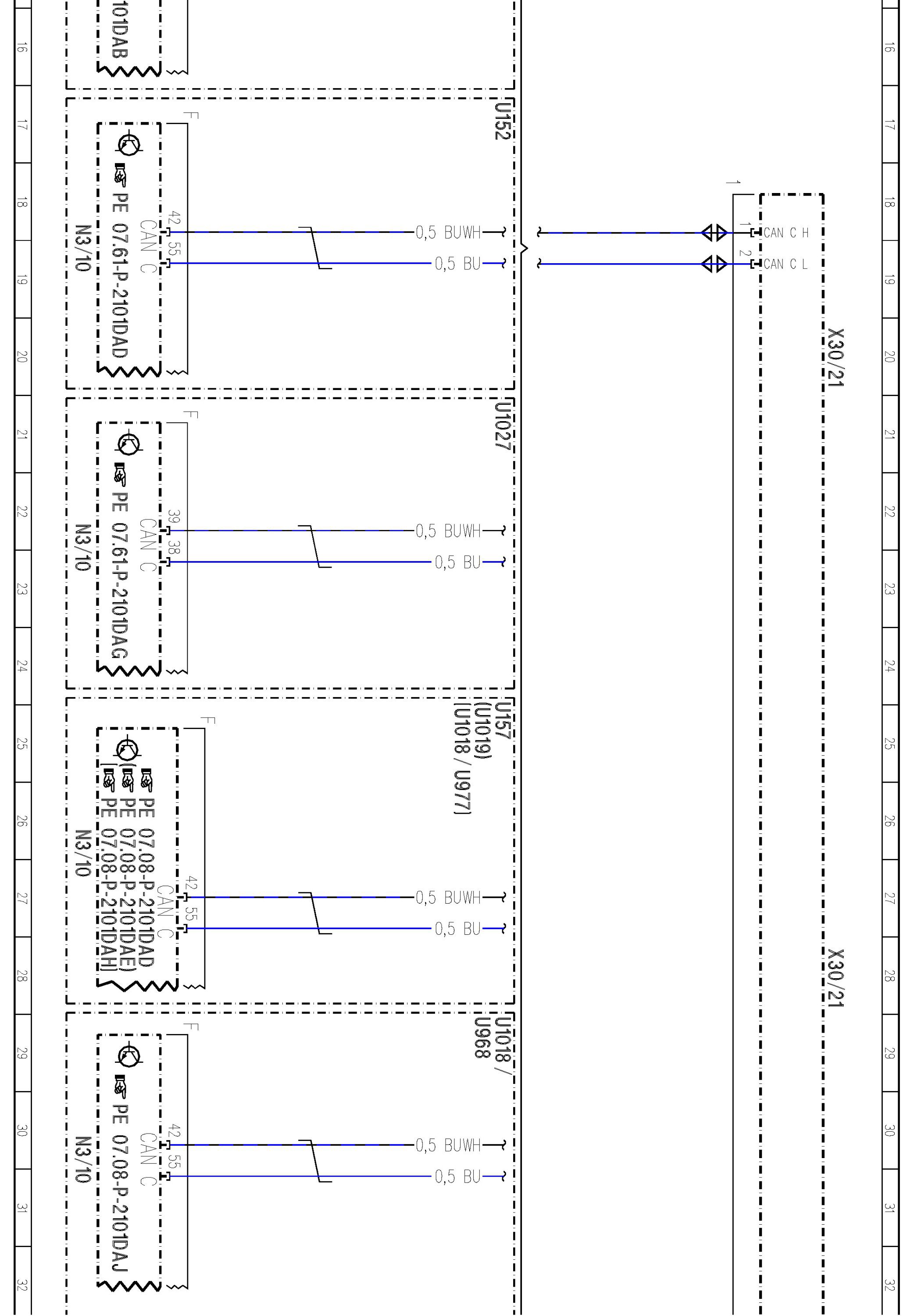

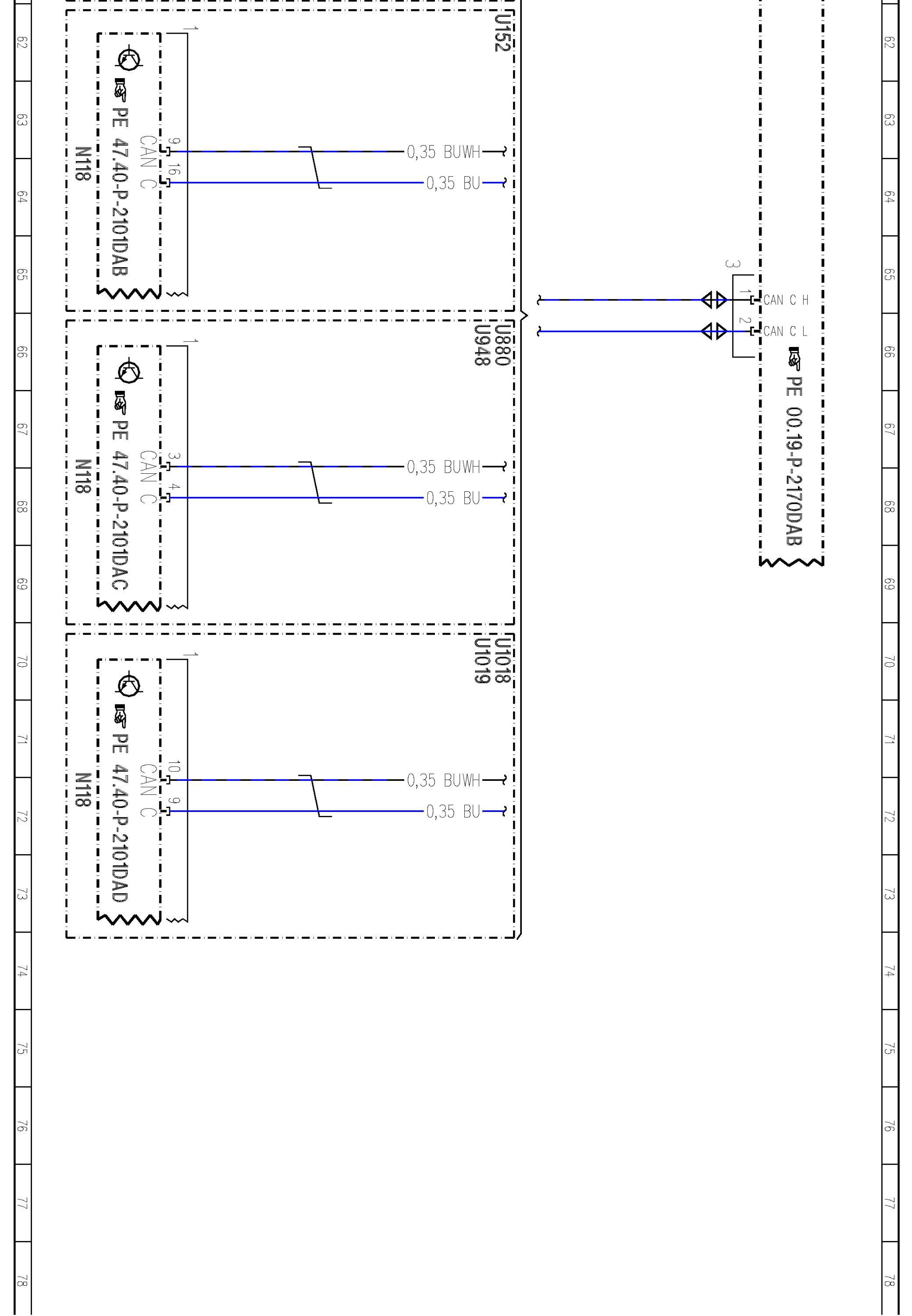

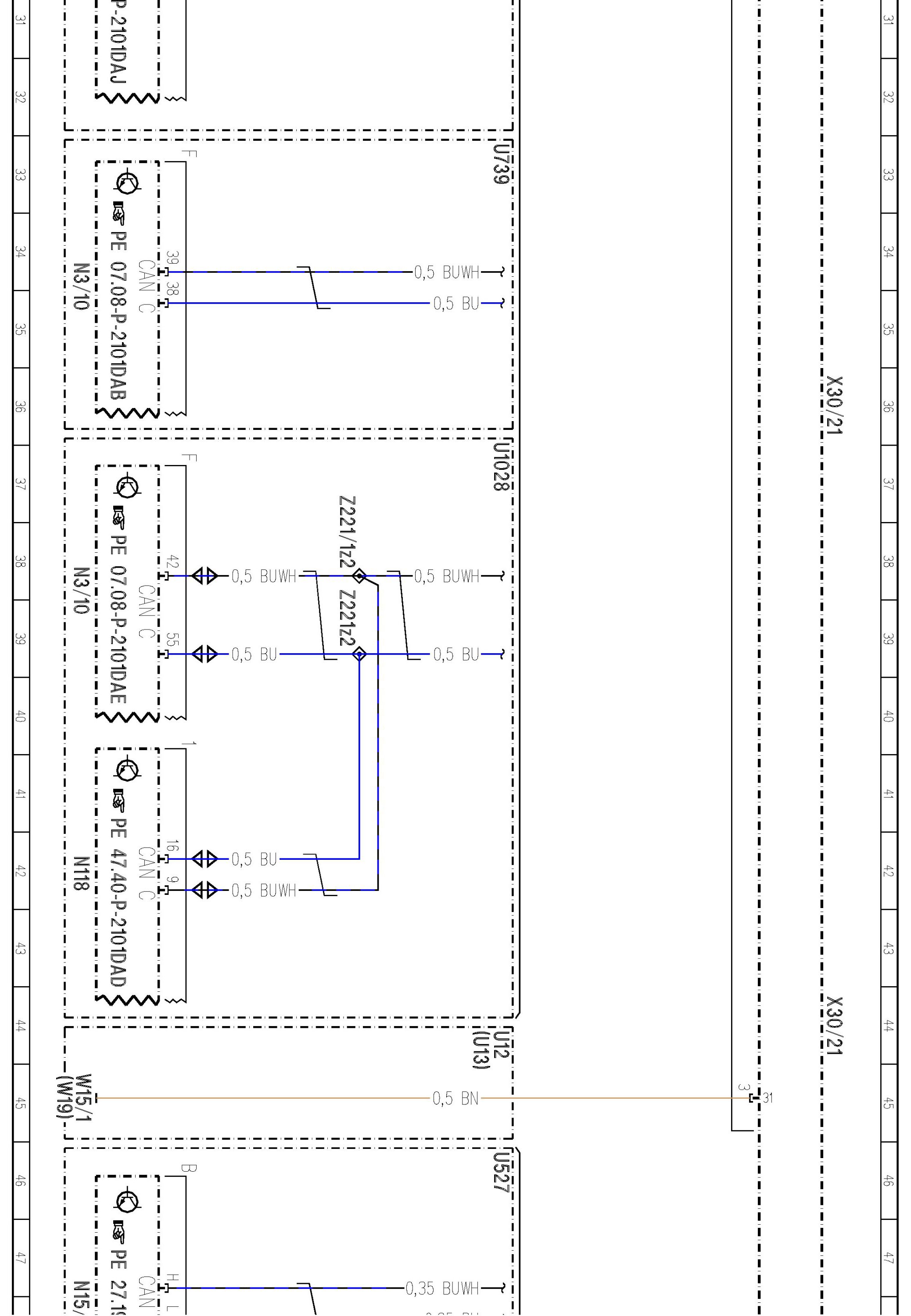

PE00.19-P-2170DAA Drive Train CAN



PE00.19-P-2170DAA Drive Train CAN

MODEL 212

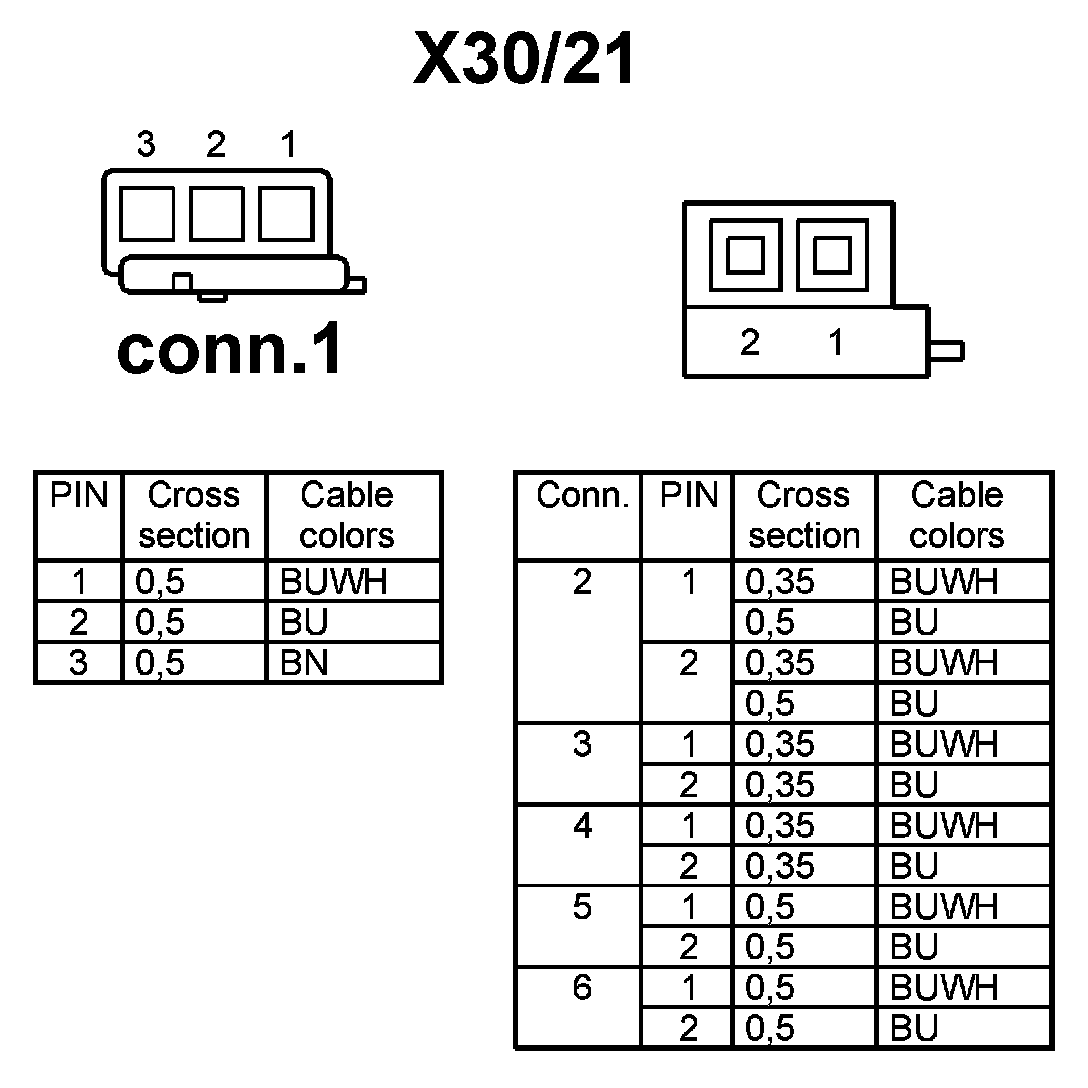

- Voltage Distributor X30/21, Sheet 1














































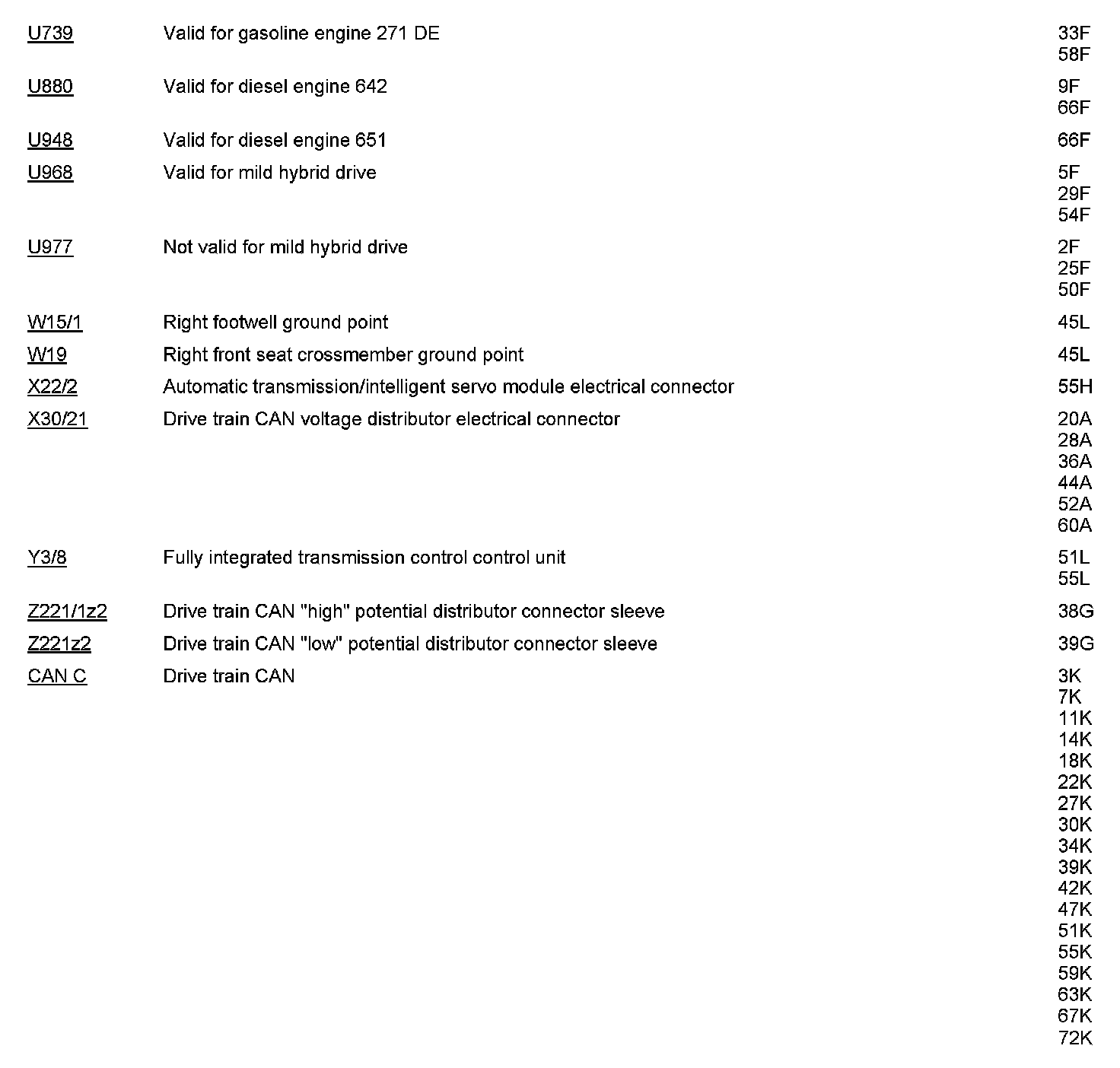

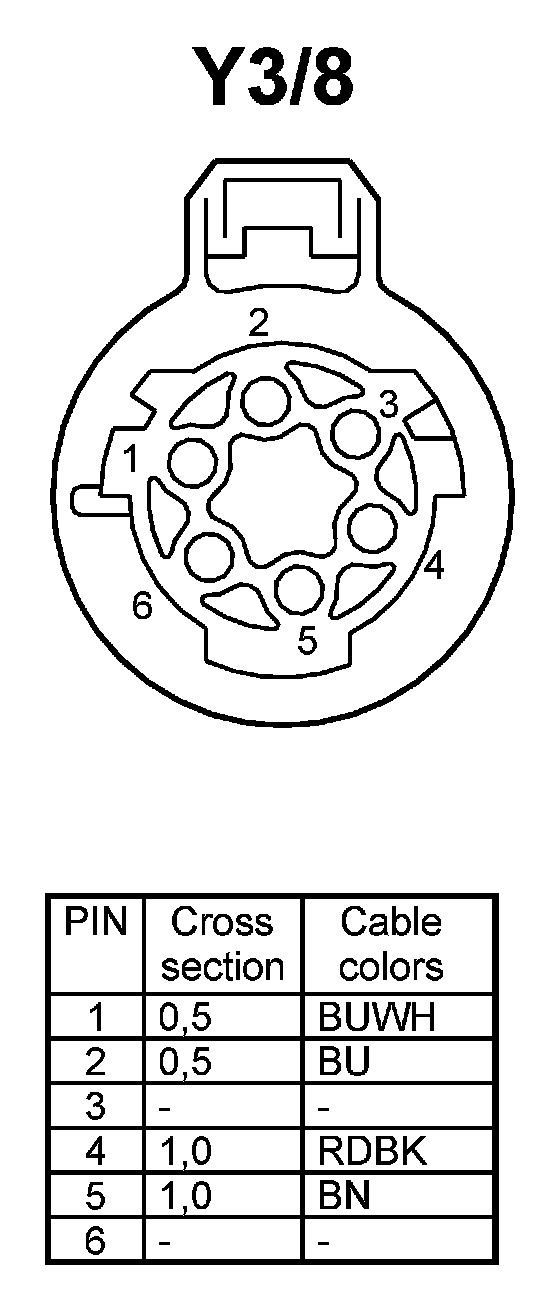

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Locations
