AR54.15-P-2000EW Remove/Install Additional Battery Relay

AR54.15-P-2000EW Remove/install Additional Battery Relay
- with CODE (B03) ECO start/stop function

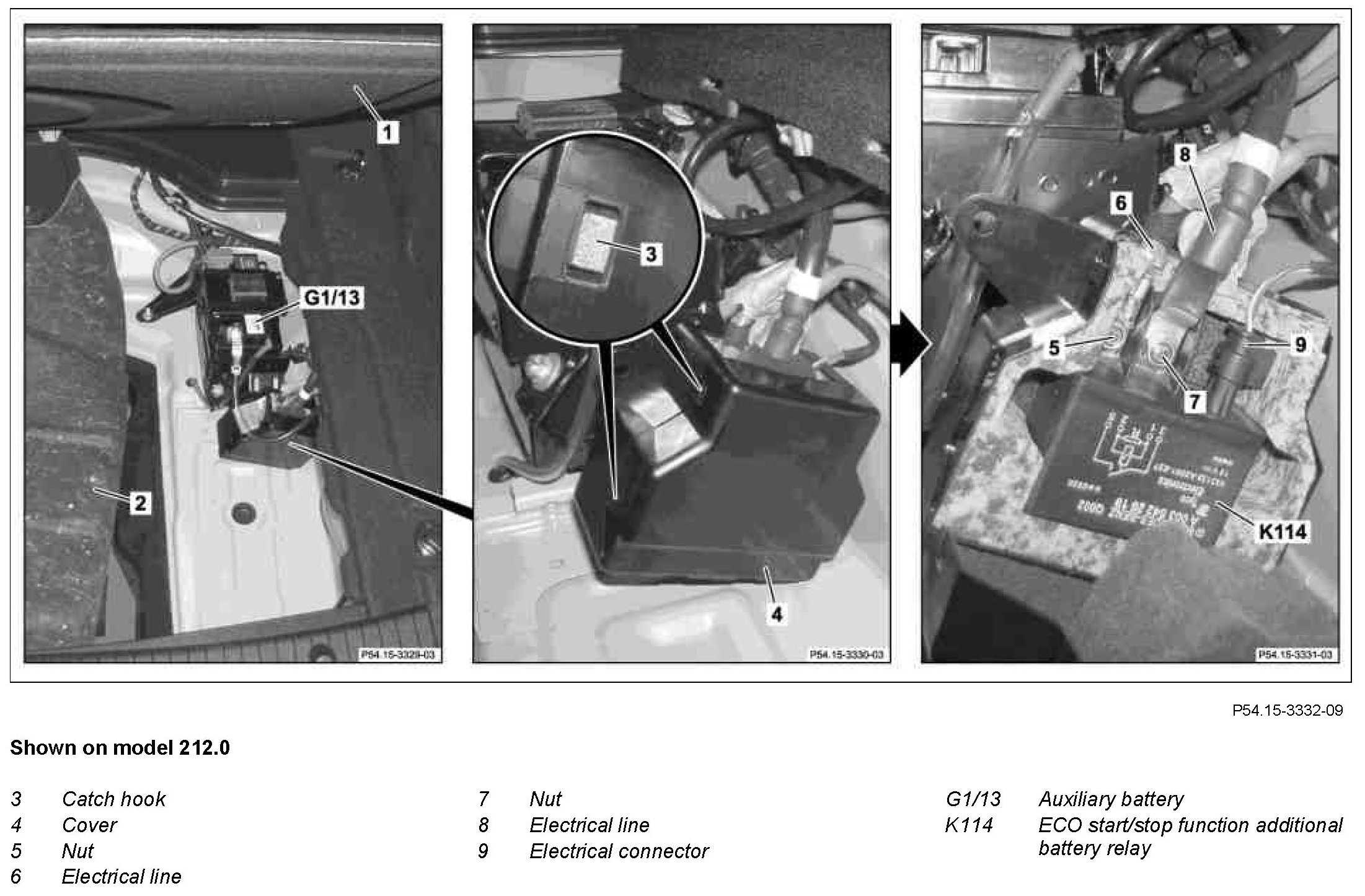

Component Identification:

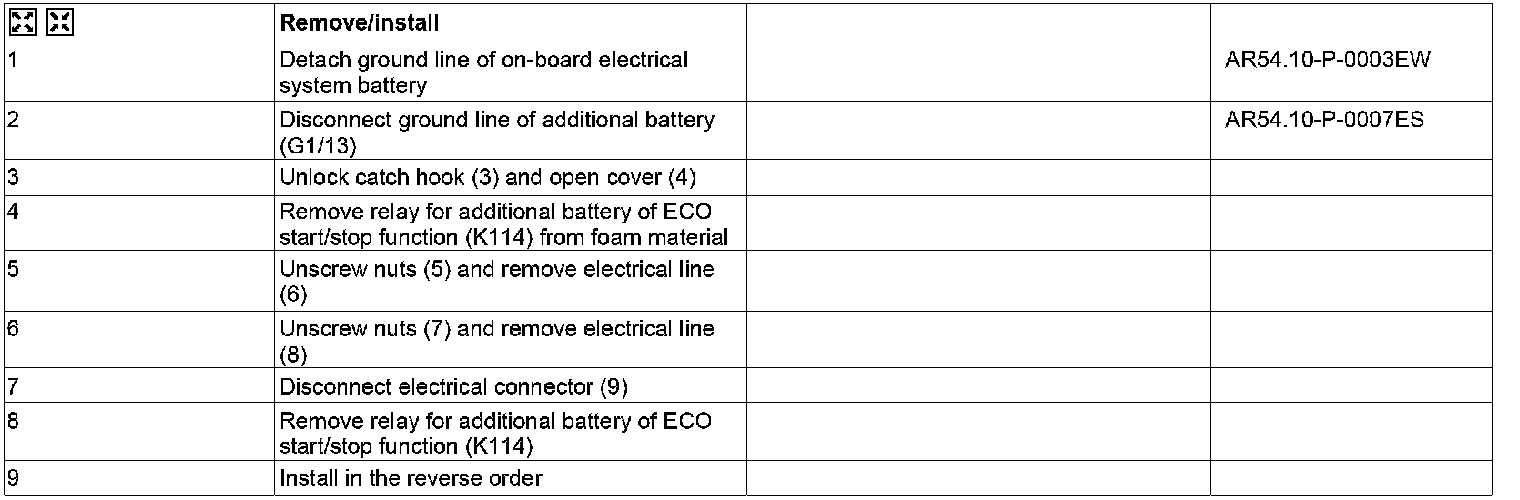

Steps 1-9:
