AR54.15-P-1330EW Remove/Install Front Prefuse Box
AR54.15-P-1330EW Remove/Install Front Prefuse Box
AR54.15-P-1330EW Remove/install Front Prefuse Box

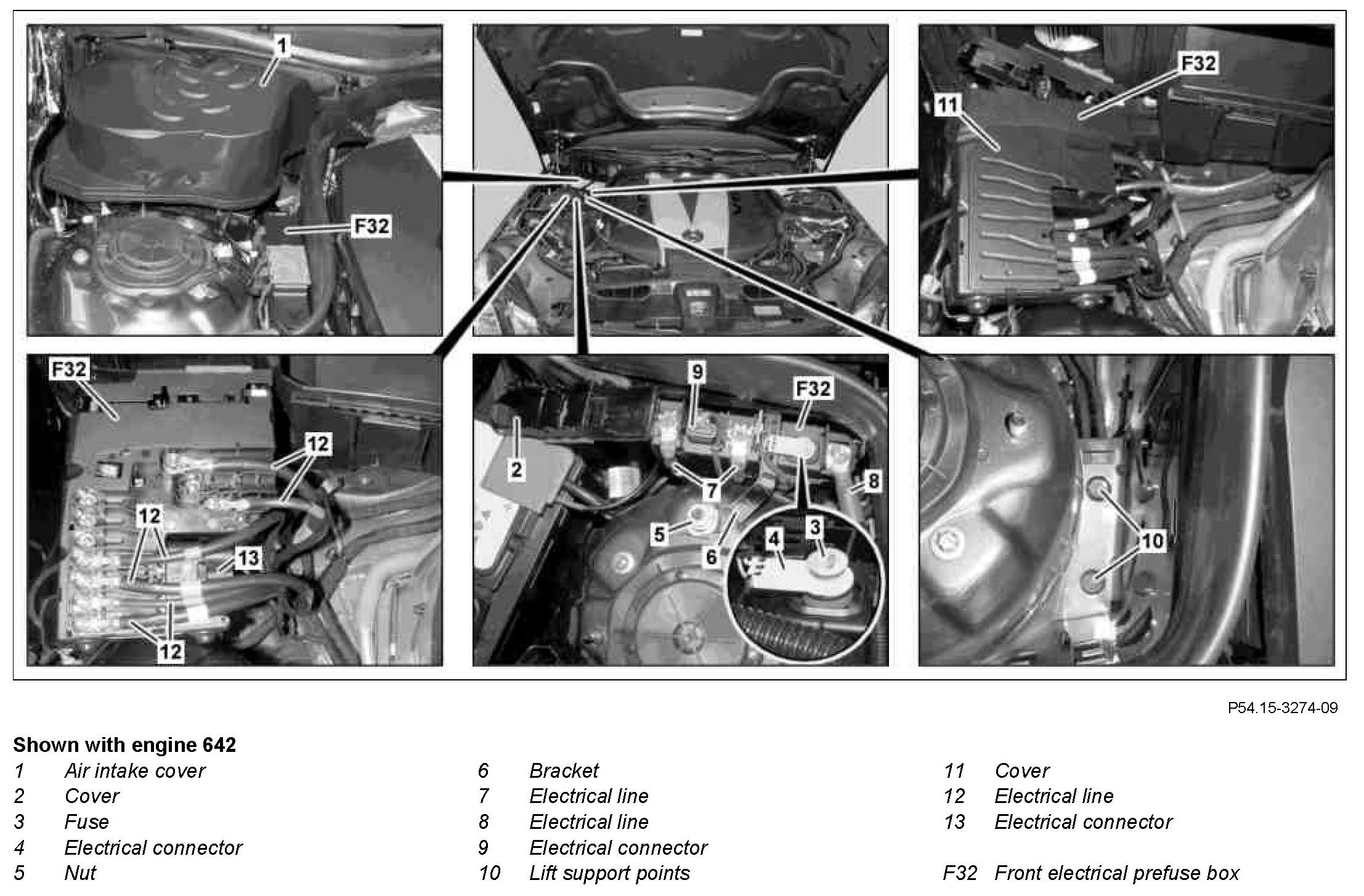

Component Identification:

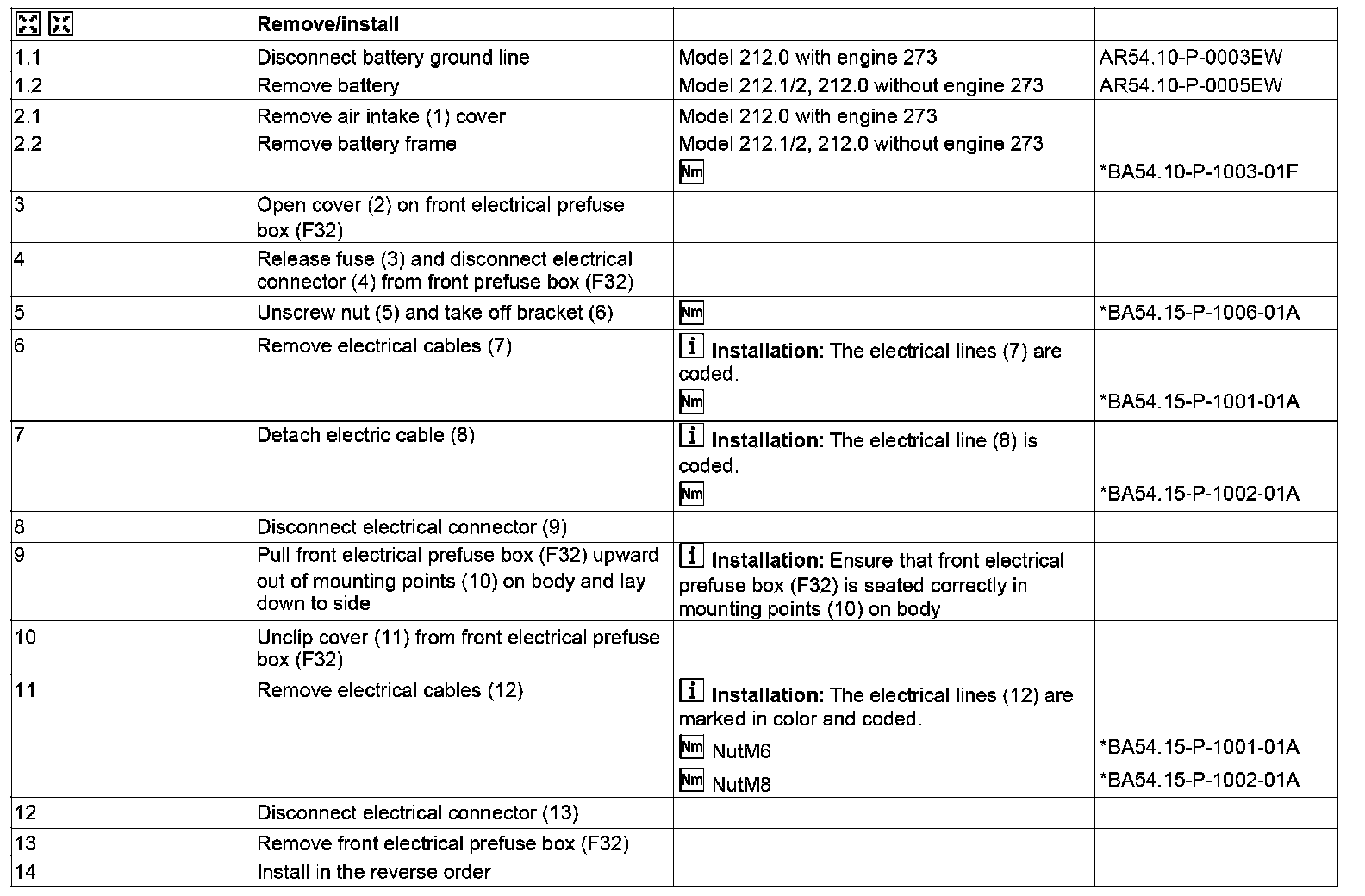

Steps 1.1-14:

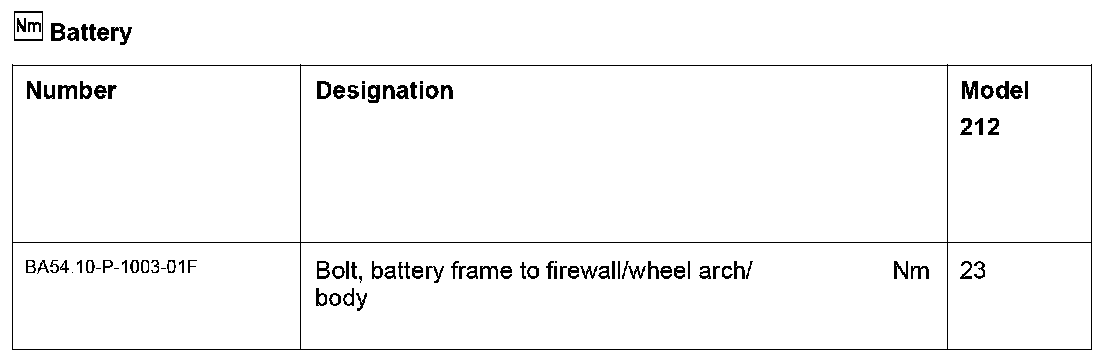

Battery:

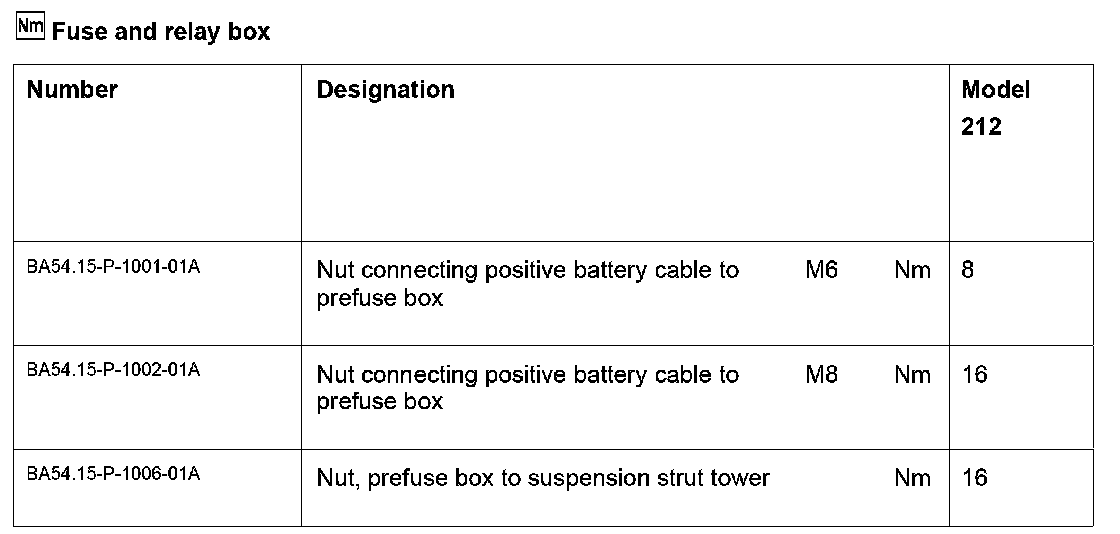

Fuse And Relay Box:
