Vehicle Lifting: Service and Repair

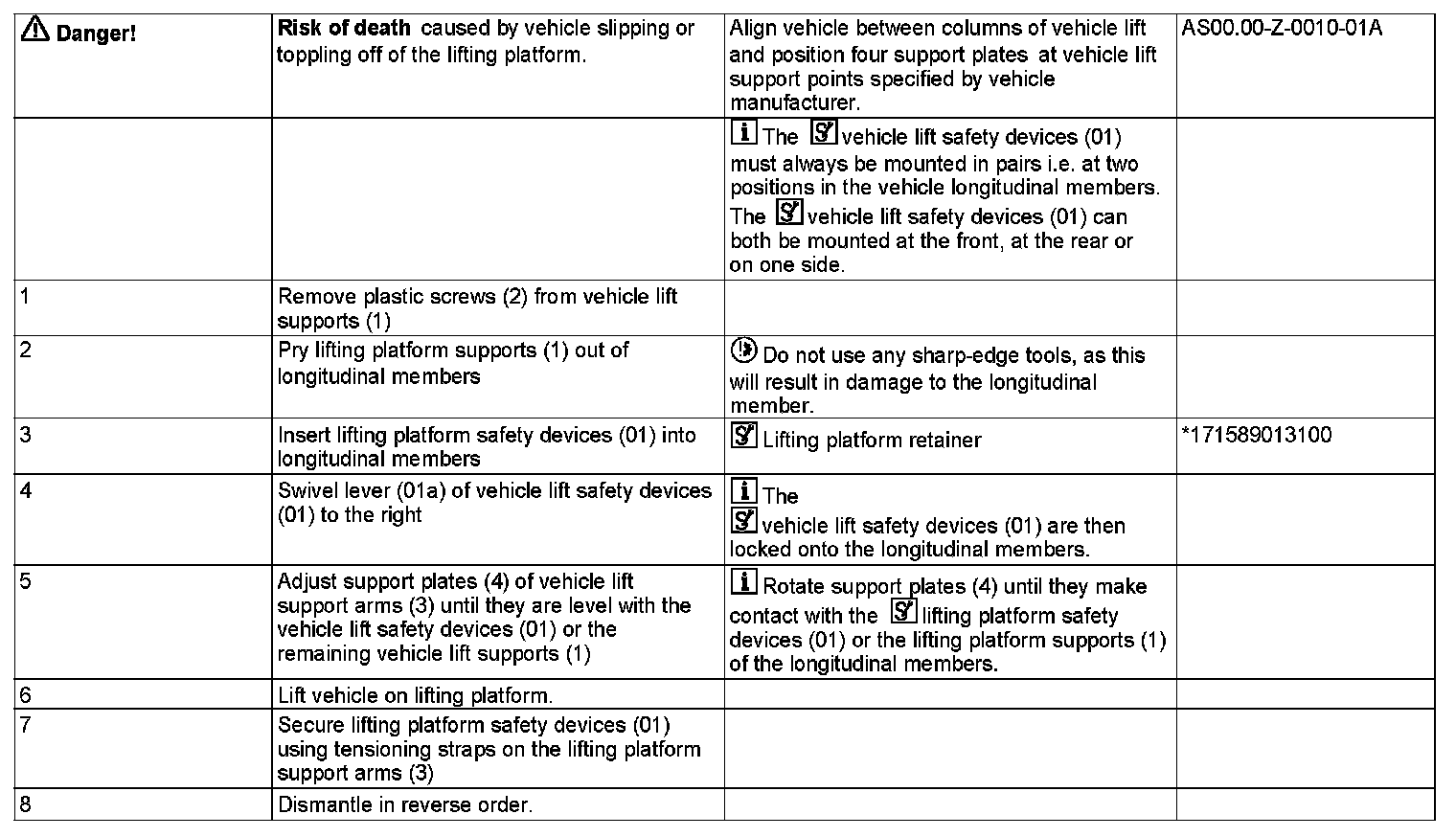

AR00.60-P-0100EWS Secure Vehicle On Vehicle Lift
- MODEL 212, 218

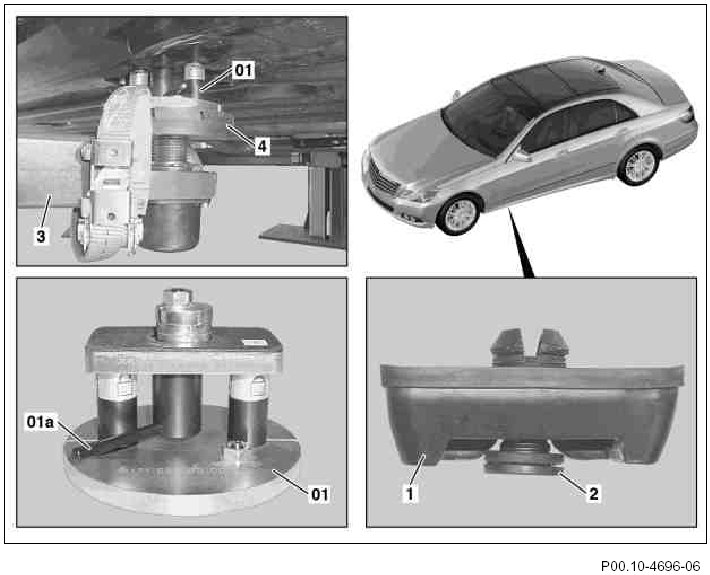

Shown on model 212







01 Lifting platform safety device
01a Lever
1 Vehicle lift support
2 Plastic screw
3 Vehicle lift support arm
4 Support plate







171 589 01 31 00, Vehicle lift safety device
