Power Steering Fluid: Service and Repair



AP46.00-P-4611EW Check and correct power steering fluid level

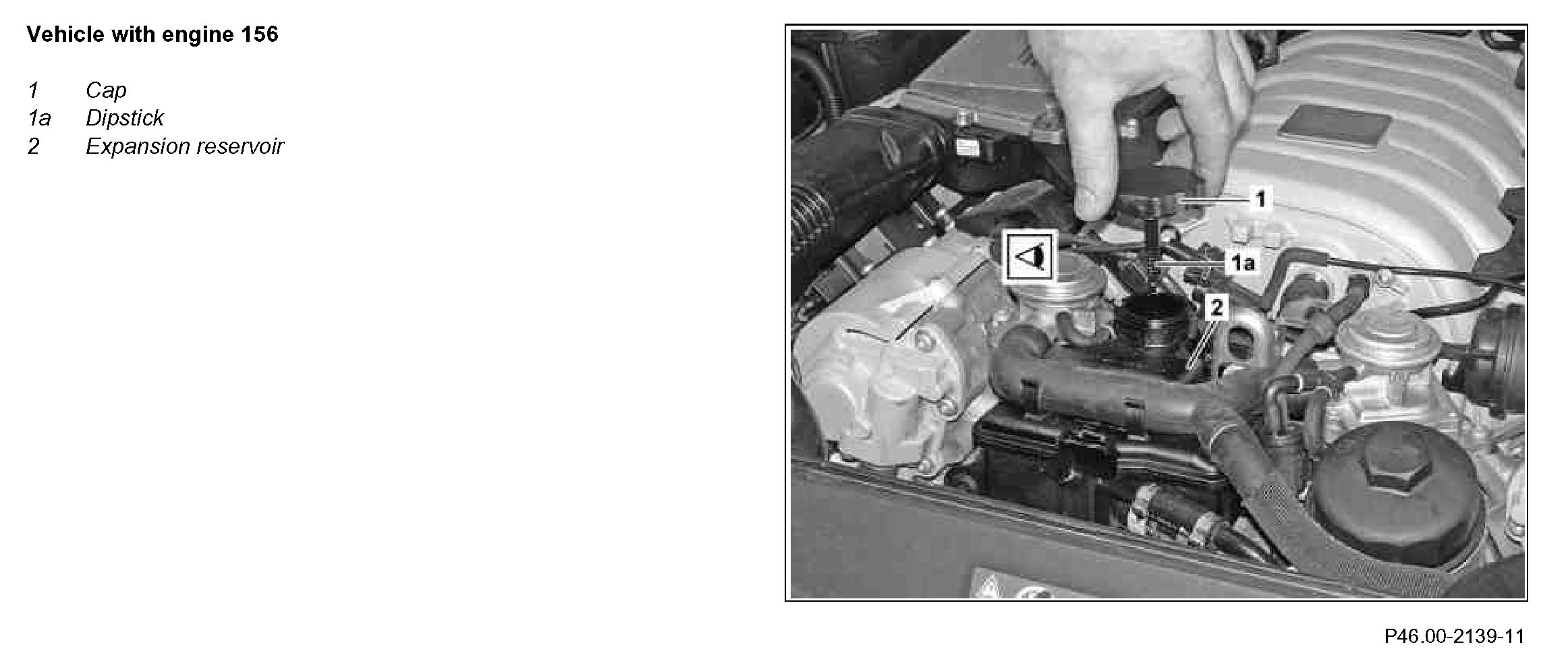

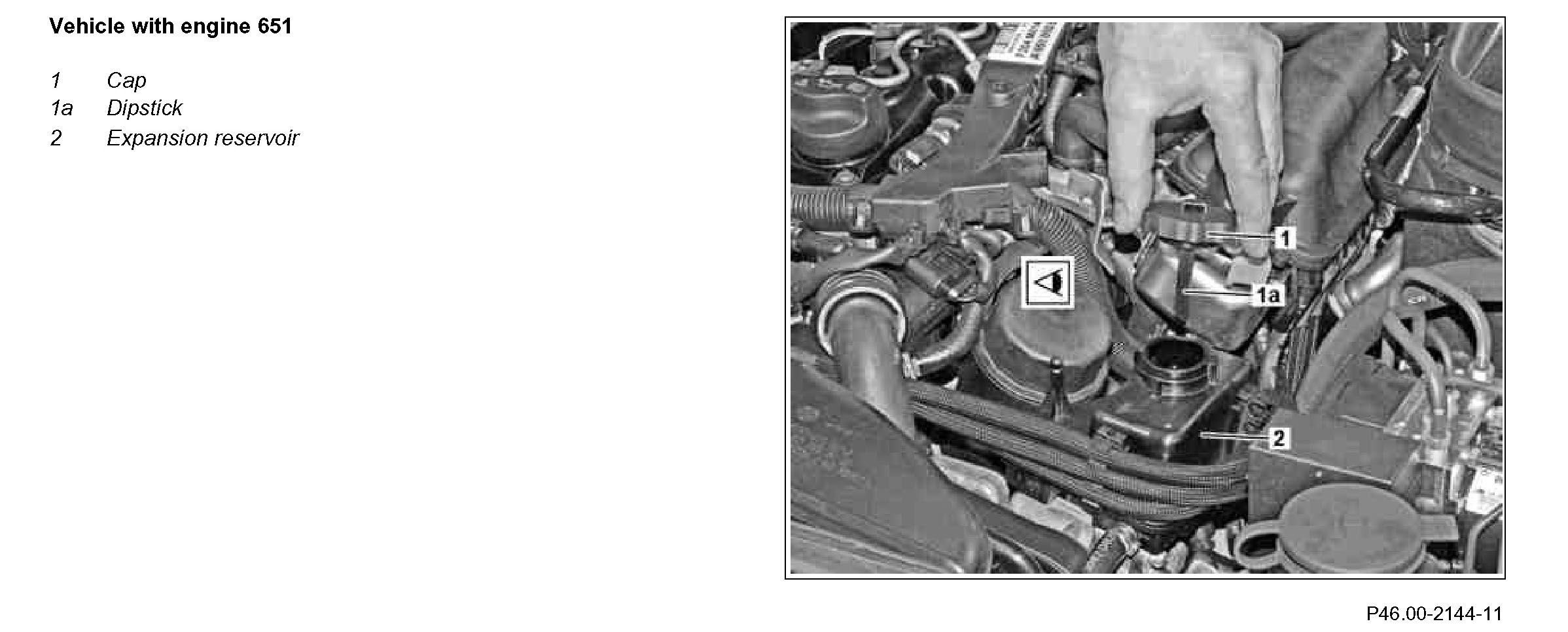

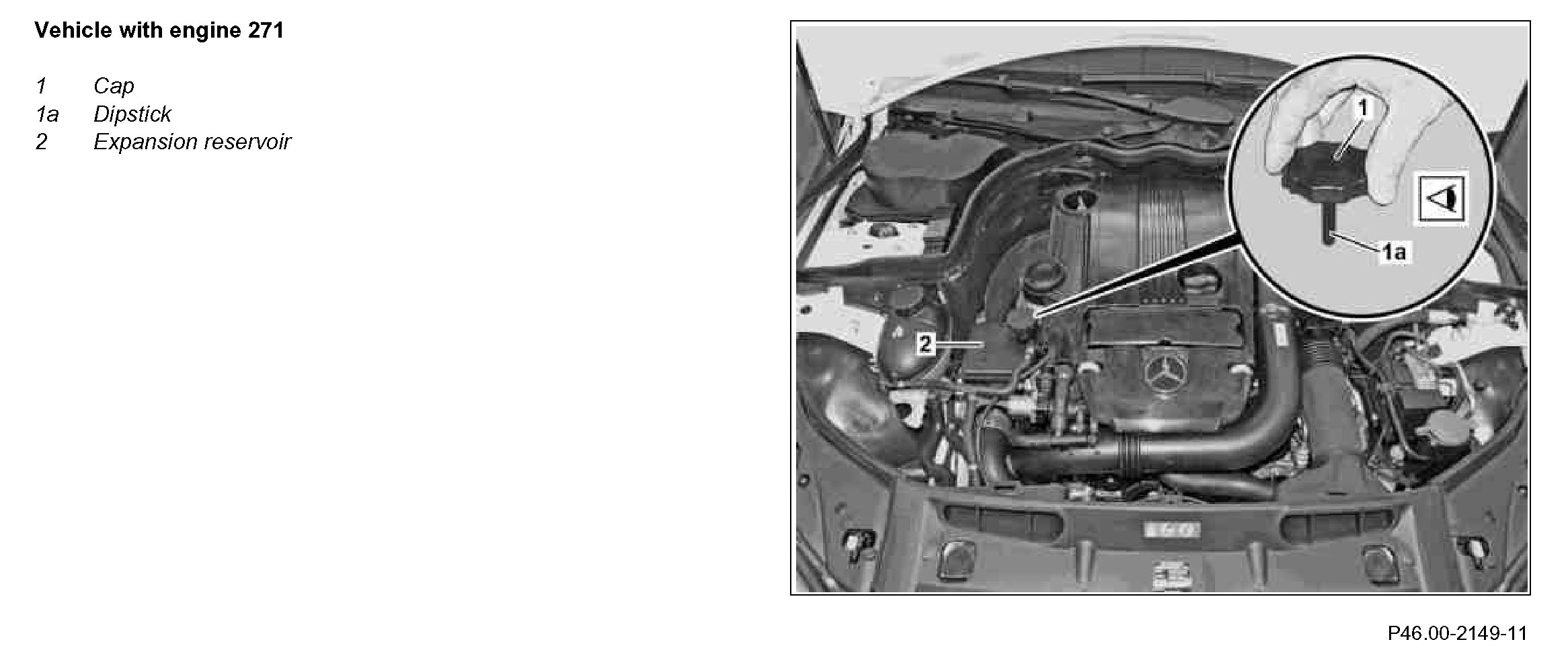

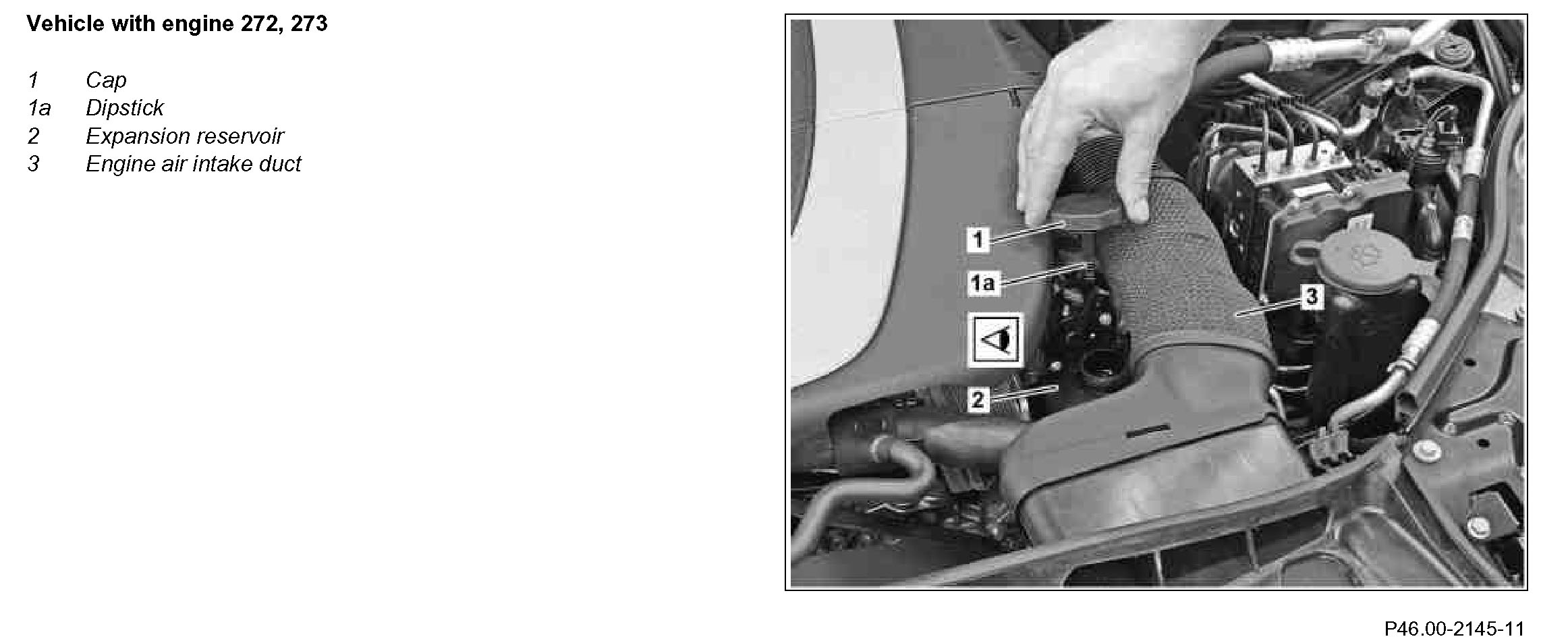

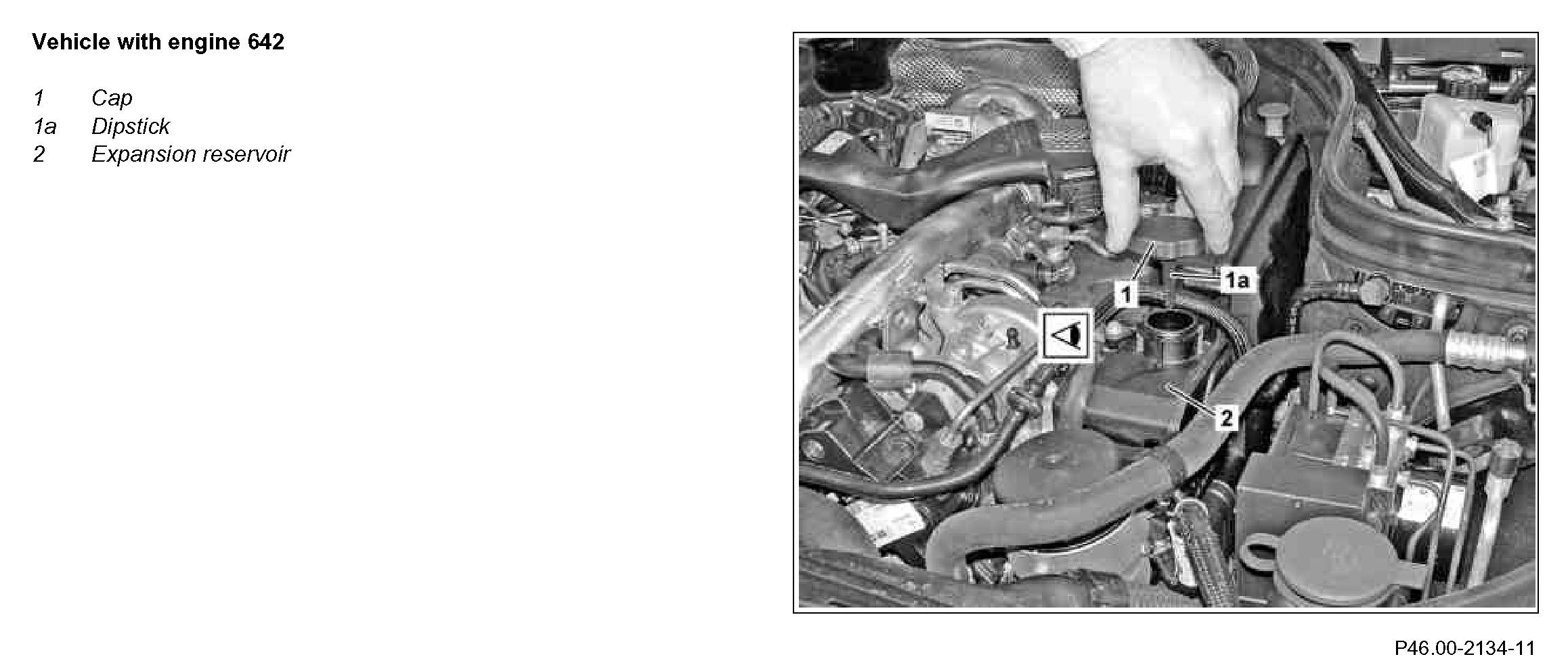

Component Identification:




Component Identification:




Component Identification:




Component Identification:




Component Identification:

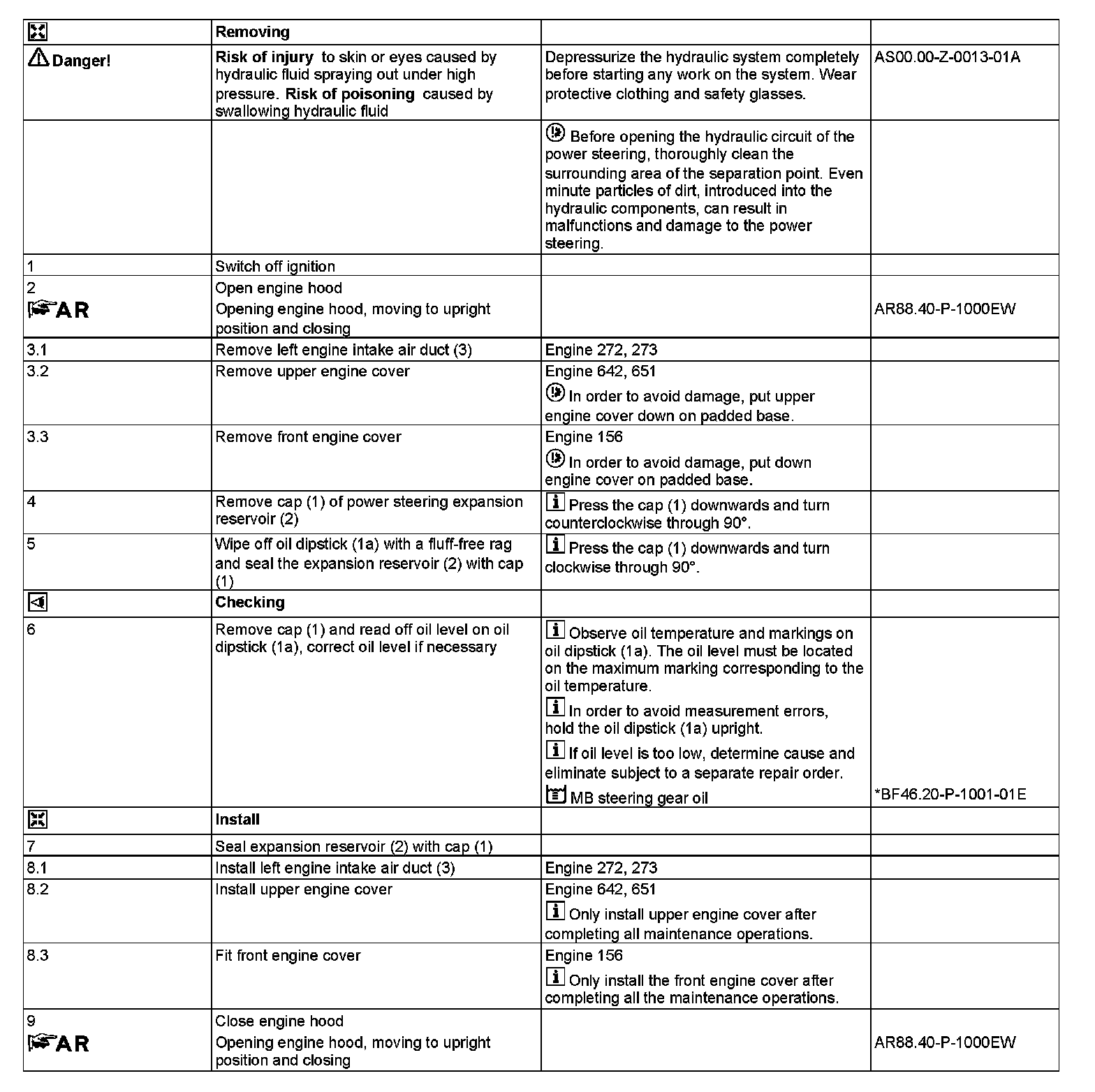

Steps 1-9:

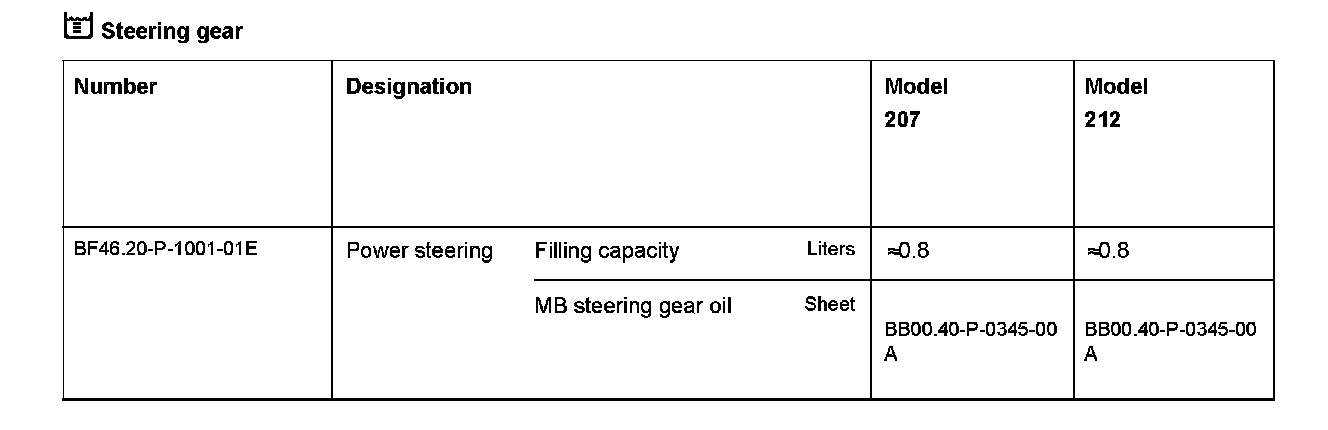

Steering gear:
