Cabin Air Filter / Purifier: Service and Repair

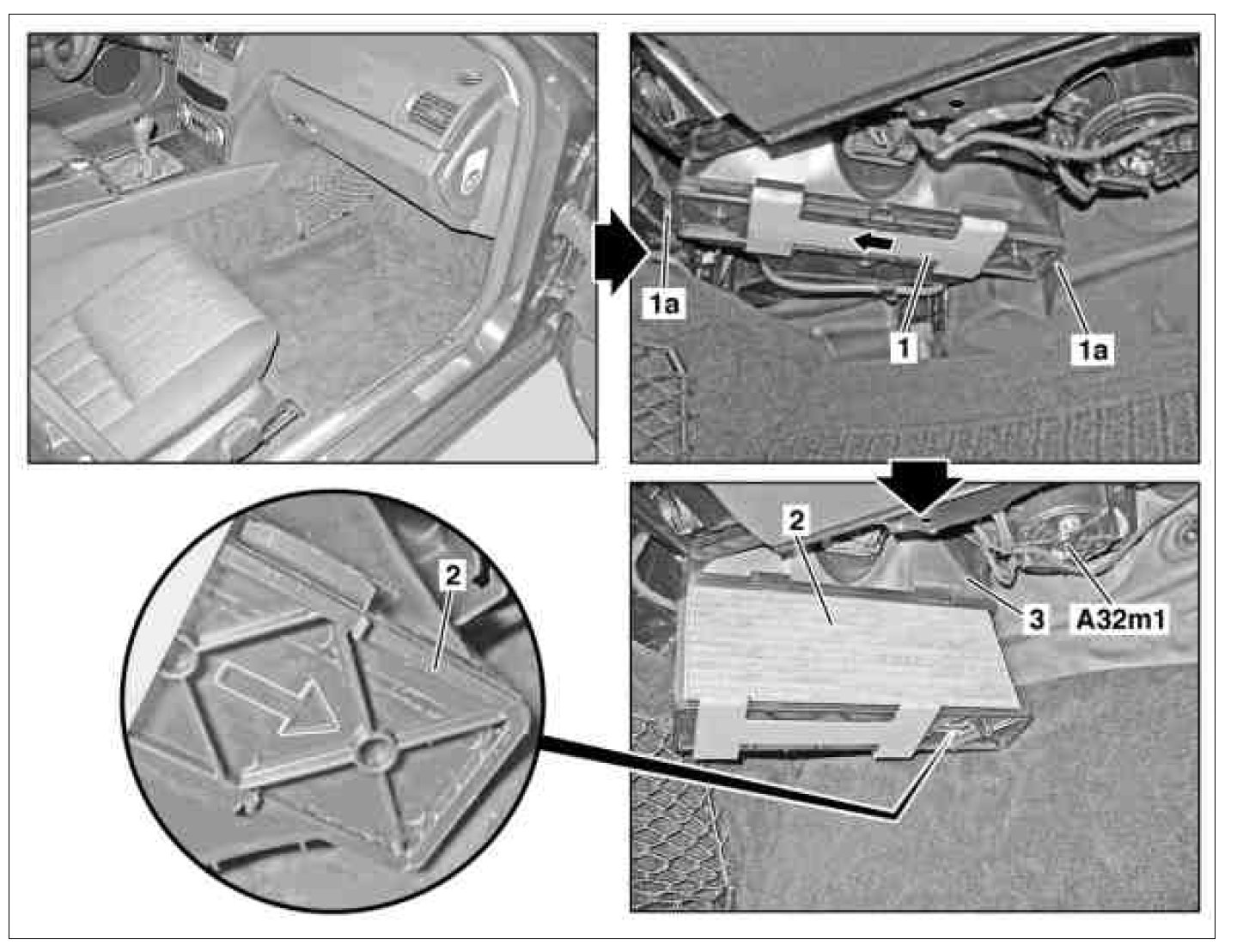

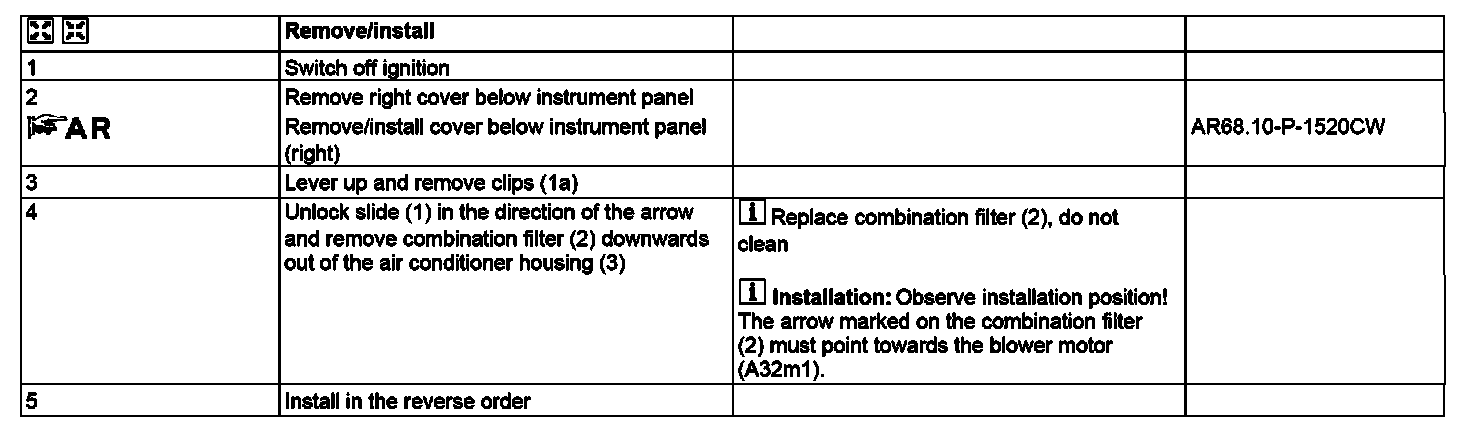

AP83.00-P-8384EW Replace Combination Filter







1 Splide
1a Clamp
2 Combination filter
3 AC housing
A32m1 Blower motor
