Drive Belt: Diagrams

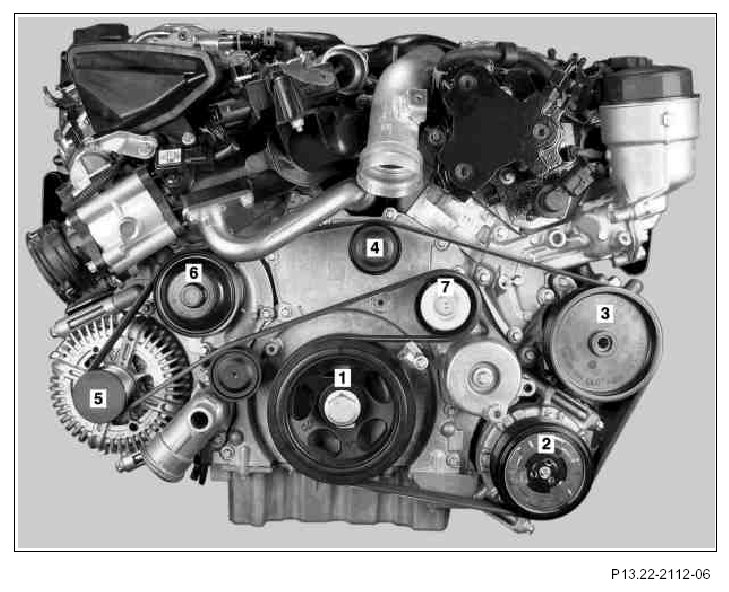

AR13.22-P-3902-02SXI Routing Diagram Of Poly V-belt

1 Install poly-V-belt according to running diagram.







1 Crankshaft
2 AC compressor
3 Power steering pump
4 Pulley
5 Alternator
6 Coolant pump
7 Tensioning pulley
