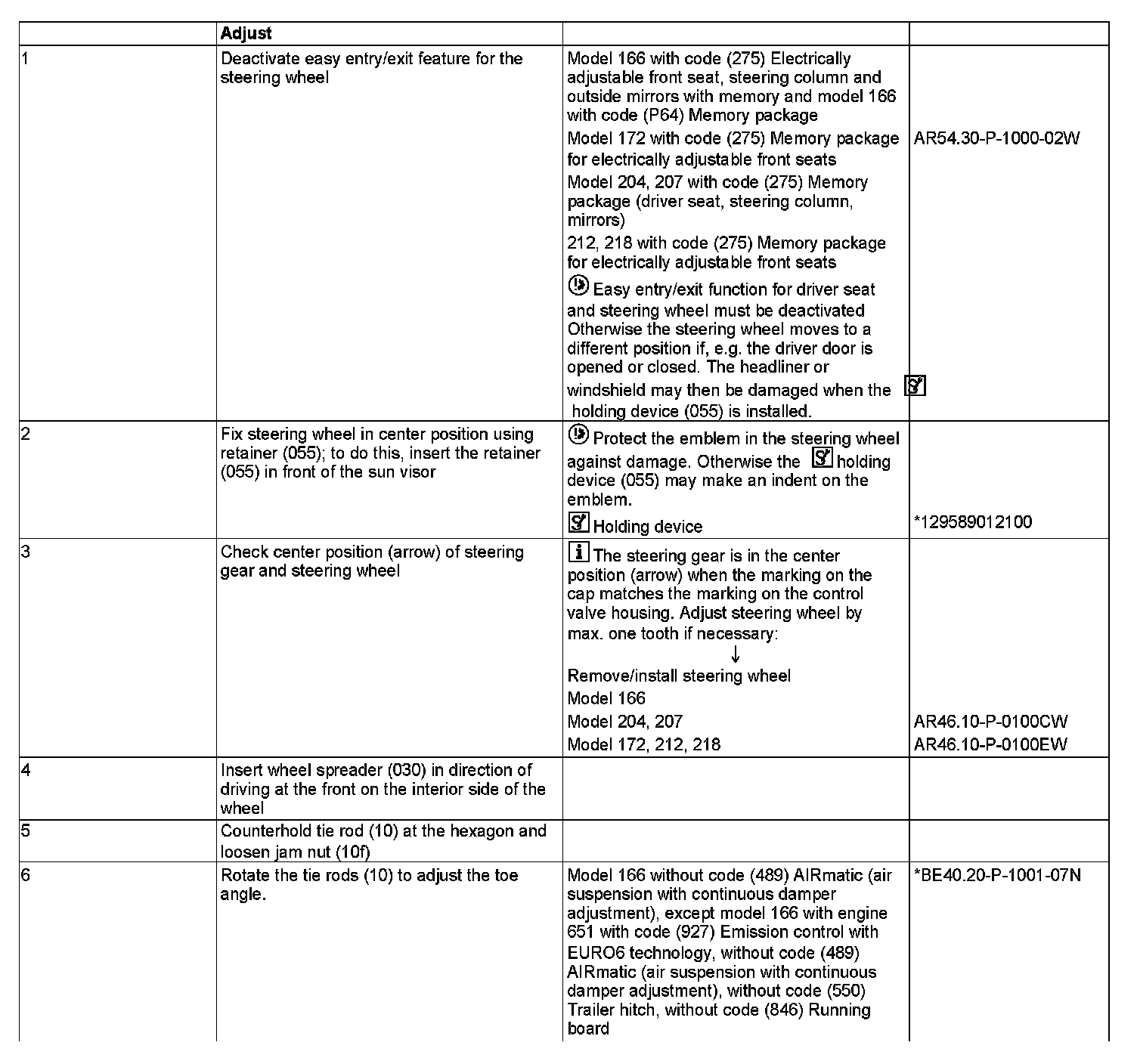

AR40.20-P-0264CW Adjust Front Axle Toe

AR40.20-P-0264CW Adjust Front Axle Toe
MODEL 166, 172, 204, 207, 212, 218

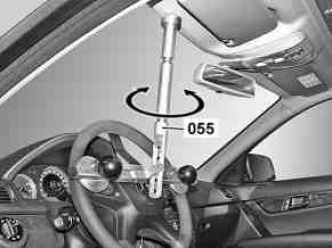

Shows model 204.0

055 Retaining device





Shown on model 204.0 without 4MATIC

10 Tie rod
10f Jam nut

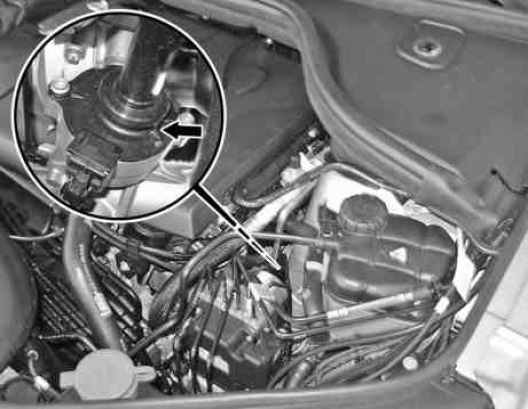

Shows model 166

Arrow Center position

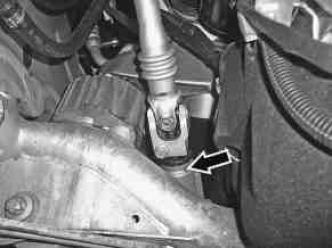

Shown on model 204.0 without 4MATIC

Arrow Center position

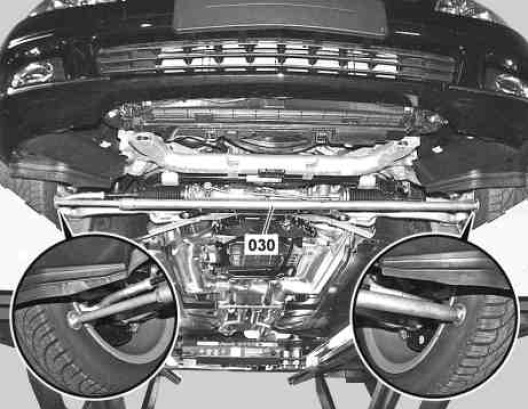

Shown on model 204.0 without 4MATIC

030 Wheel spreader


























129 589 01 21 00
Holding device
