Turn Signal Lamp: Service and Repair
AR82.25-P-4726CY Remove/Install Additional
Turn Signal Lamp

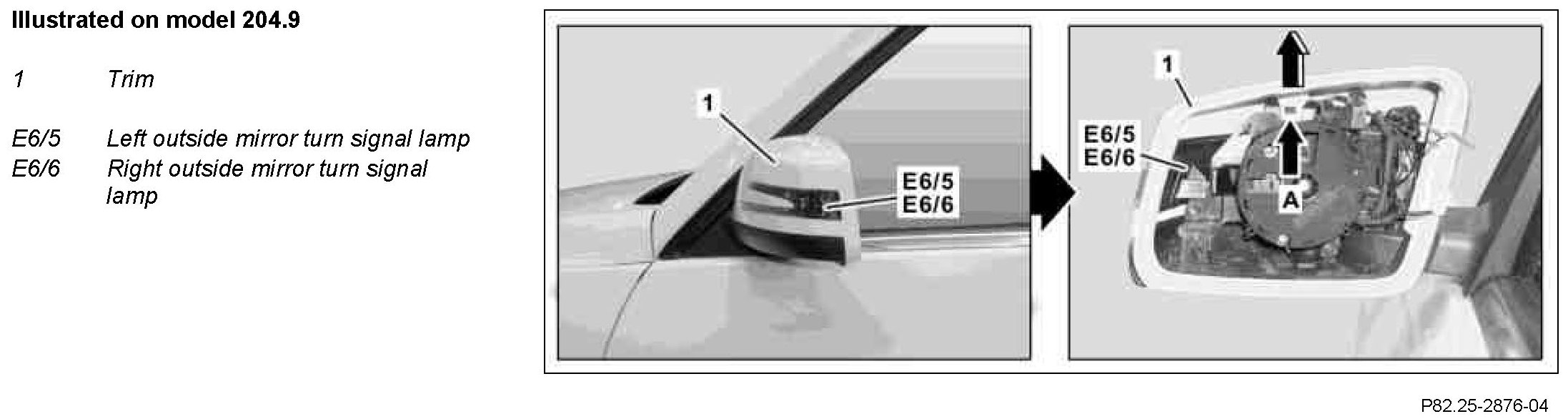

Component Identification:

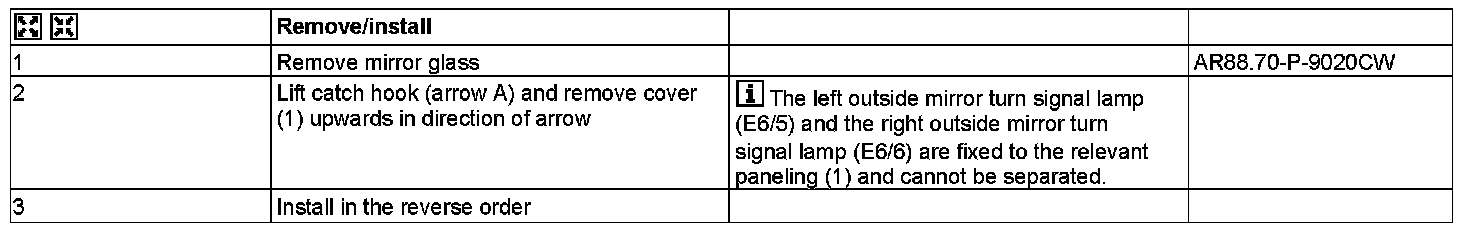

Steps 1 - 3:
