FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Sensors and Switches - Lighting and Horns
>>
Ambient Light Sensor
>>
Service and Repair
Ambient Light Sensor: Service and Repair
AR82.30-P-7800CW Remove/Install Rain/Light Sensor
Component Identification:

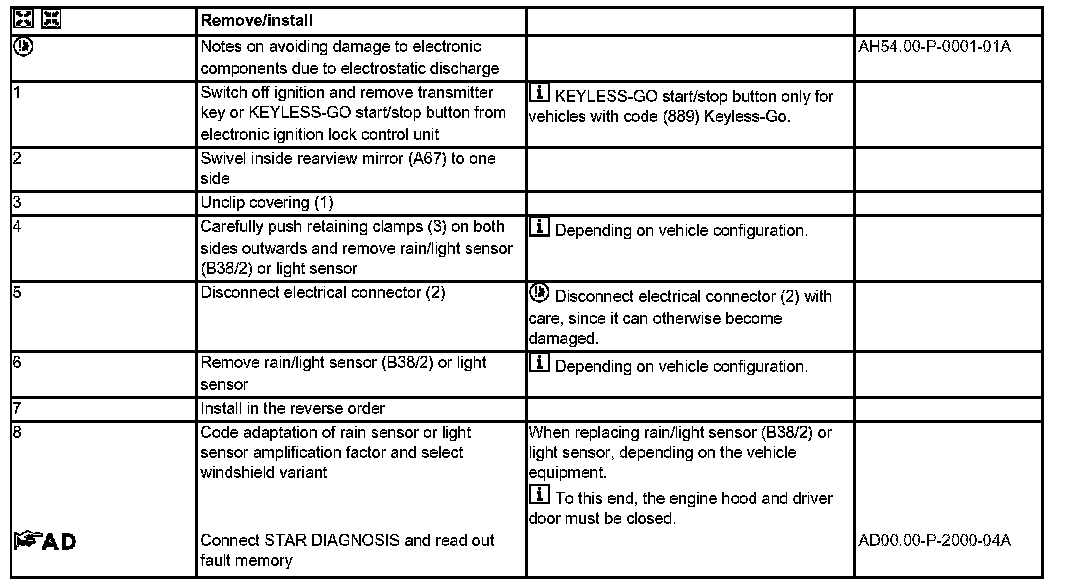

Steps 1 - 8:
