Fog/Driving Lamp: Adjustments

AP82.10-P-8260-04EW Adjust Or Check Front Fog Lights

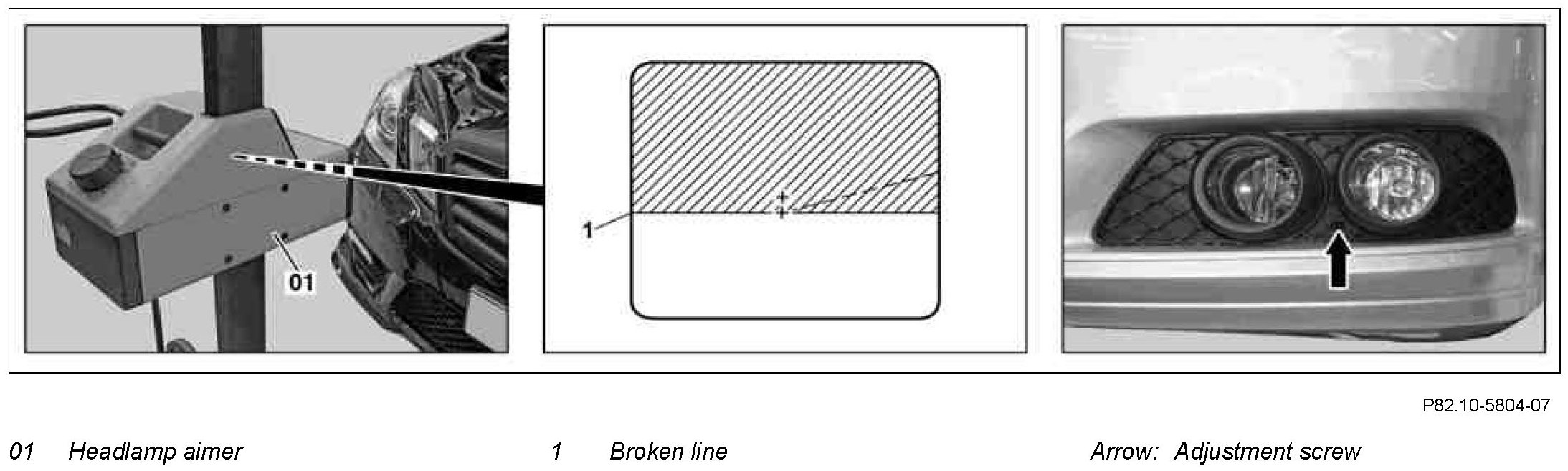

Component Identification:

1 Check adjustment of front fog lamps.

The light-dark boundary of the light beam must be horizontal at the height of the separating line (1) in the headlamp aimer (01).

2 Correct front fog lamps adjustment if necessary by turning the adjustment screw (arrow).
